AE70-ECMSS (1979)
Toyota Corolla

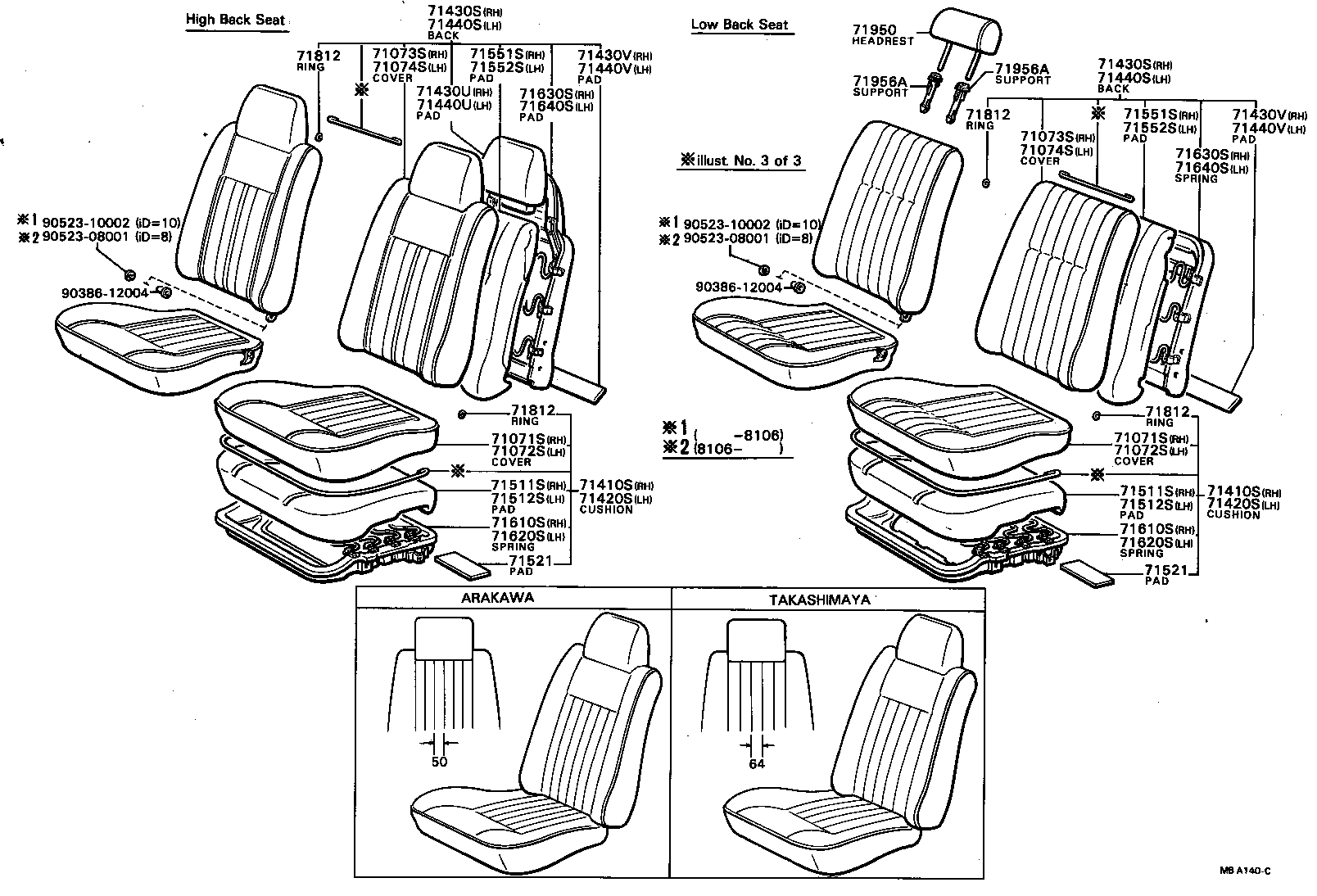

ILLUST NO. 1 OF 3(7903-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1A33003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A33006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1A38004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A33004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1A33104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A38104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1A33103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A33106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1A33003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A33006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1A38004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A33004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1A33104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A38104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1A38106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1A33103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71071-1A33106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1A33003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71072-1A38004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A33004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A38006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A38003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71072-1A33006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A33106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A33104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A33103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71072-1A38104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A38106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A38103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1A33003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71072-1A38004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A33004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A38006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A38003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71072-1A33006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A33106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A33104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A33103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71072-1A38104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1A38106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1A38103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A41006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A41003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLUE,GRAY,TRIM2# |
1 | ||
| 71073-1A41004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A46004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM2# |
1 | ||
| 71073-1A41103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1A41006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A41003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLUE,GRAY,TRIM2# |
1 | ||
| 71073-1A41004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A46004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM2# |
1 | ||
| 71073-1A41103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1A41003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A41006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A46003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A41106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71074-1267004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1268004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1267006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1268003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71074-1267003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71074-1268006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1A41003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A41006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A46003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A41106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71073-1A46106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1A46104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1A41103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71074-1267004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1268004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1267006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1268003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71074-1267003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71074-1268006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1A23006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1A32003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A32004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A32006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1A23003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A23004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A23106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1A23104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A23103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A32103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A32104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A32106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1A23006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1A32003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A32004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A32006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1A23003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A23004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A23106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1A23104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A23103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A32103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71410-1A32104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1A32106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1A26004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A26006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A35004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A26003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71420-1A35003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71420-1A35006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A26103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71420-1A26106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A26104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A35106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A35104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A35103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1A26004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A26006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A35004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A26003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71420-1A35003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71420-1A35006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A26103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71420-1A26106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A26104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A35106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1A35104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1A35103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A33004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A33003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A33006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1A42006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1A42003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A42004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A33103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A42106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1A42103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A33104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A42104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A33106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1A33004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A33003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A33006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1A42006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1A42003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A42004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A33103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A42106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1A42103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71430-1A33104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A42104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1A33106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71430U - PAD, FRONT SEAT BACK, RH NO.2(FOR SEPARATE TYPE) | ||||
| 71561-12160 |
AE70,KE70,TE70,71..LVN,SL,SR |
1 | ||
| 71430V - PAD, FRONT SEAT BACK, RH NO.3(FOR SEPARATE TYPE) | ||||
| 71581-12020 |
AE70,KE7#,TE7# |
1 | ||
| 71430V - PAD, FRONT SEAT BACK, RH NO.3(FOR SEPARATE TYPE) | ||||
| 71581-12020 |
AE70,KE7#,TE7# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1A28006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1A28004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A28003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A37004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A37003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A37006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1A28103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A28104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A37104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A37106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1A37103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A28106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1A28006 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1A28004 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A28003 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A37004 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A37003 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A37006 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1A28103 |
AE70,KE70..SL FB,*(TA),GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A28104 |
AE70,KE70..SL FB,*(TA),BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A37104 |
AE70,KE70..SL FB,ARAKAWA,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1A37106 |
AE70,KE70..SL FB,ARAKAWA,L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1A37103 |
AE70,KE70..SL FB,ARAKAWA,GRAY & BLACK,GRAY,TRIM2# |
1 | ||
| 71440-1A28106 |
AE70,KE70..SL FB,*(TA),L-BROWN & D-BROWN,BROWN,TRIM4# |
1 | ||
| 71440U - PAD, FRONT SEAT BACK, LH NO.2(FOR SEPARATE TYPE) | ||||
| 71561-12160 |
AE70,KE70,TE70,71..LVN,SL,SR |
1 | ||
| 71440V - PAD, FRONT SEAT BACK, LH NO.3(FOR SEPARATE TYPE) | ||||
| 71581-12020 |
AE70,KE7#,TE7# |
1 | ||
| 71440V - PAD, FRONT SEAT BACK, LH NO.3(FOR SEPARATE TYPE) | ||||
| 71581-12020 |
AE70,KE7#,TE7# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12320 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12320 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12320 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12320 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-12160 |
AE70,KE70,TE70,71..CP,LB |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-12160 |
AE70,KE70,TE70,71..CP,LB |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12310 |
AE70,KE70,TE70,71..LVN,SL,SR |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12310 |
AE70,KE70,TE70,71..LVN,SL,SR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12310 |
AE70,KE70,TE70,71..LVN,SL,SR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12310 |
AE70,KE70,TE70,71..LVN,SL,SR |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12150 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71610-12110 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12150 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71610-12110 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12120 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71620-12110 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12120 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71620-12110 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12190 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-12190 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12180 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-12180 |
AE70,KE70,TE70,71..CP |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| Common parts | ||||
| 90386-12004 | ||||
| 90523-08001 | ||||
| 90523-10002 | ||||

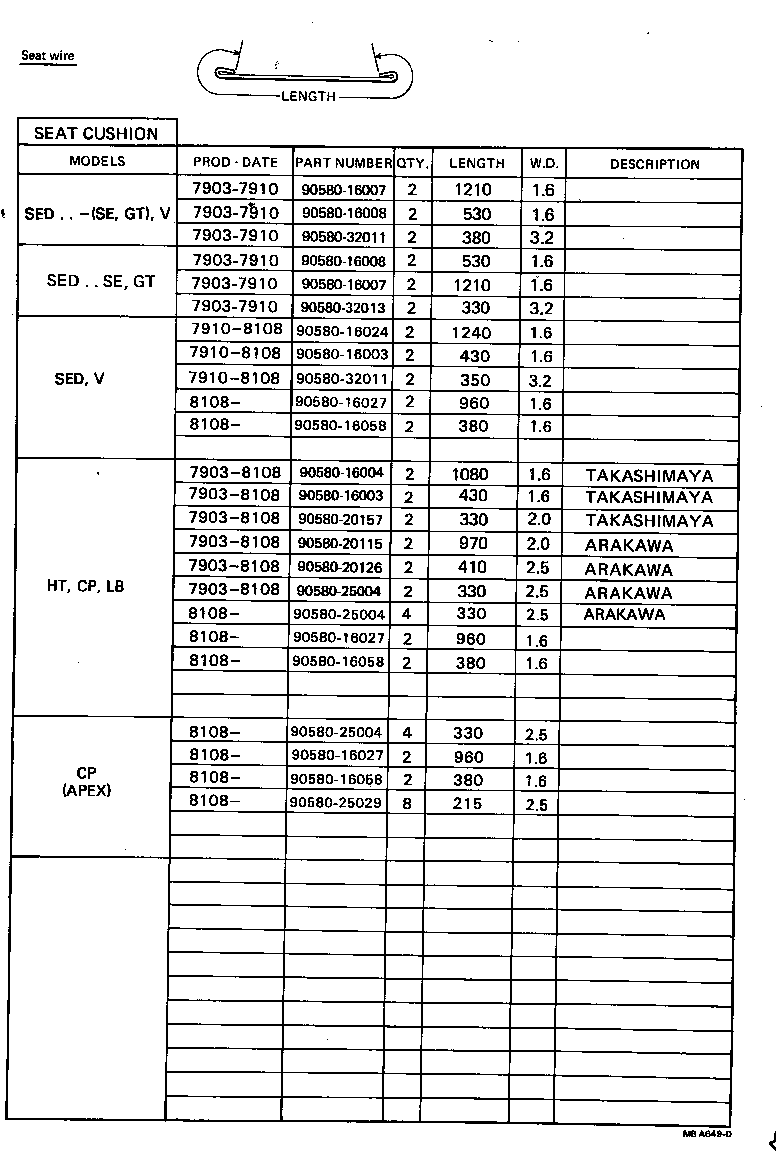

ILLUST NO. 3 OF 3(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16003 | ||||
| 90580-16004 | ||||
| 90580-16007 | ||||
| 90580-16008 | ||||
| 90580-16024 | ||||
| 90580-16027 | ||||
| 90580-16058 | ||||
| 90580-20115 | ||||
| 90580-20126 | ||||
| 90580-20157 | ||||
| 90580-25004 | ||||
| 90580-25029 | ||||
| 90580-32011 | ||||
| 90580-32013 | ||||

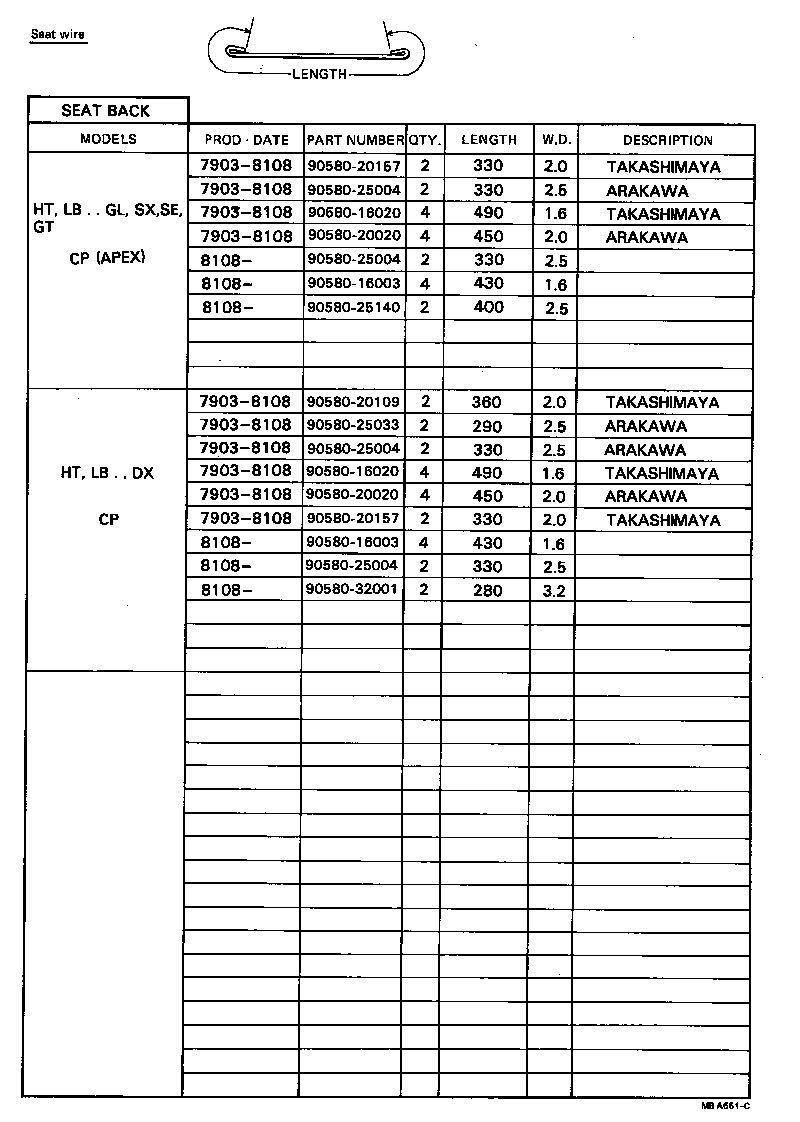

ILLUST NO. 3 OF 3(7903-8304)CP,HT,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16003 | ||||
| 90580-16020 | ||||
| 90580-20020 | ||||
| 90580-20109 | ||||
| 90580-20157 | ||||
| 90580-25004 | ||||
| 90580-25033 | ||||
| 90580-25140 | ||||
| 90580-32001 | ||||

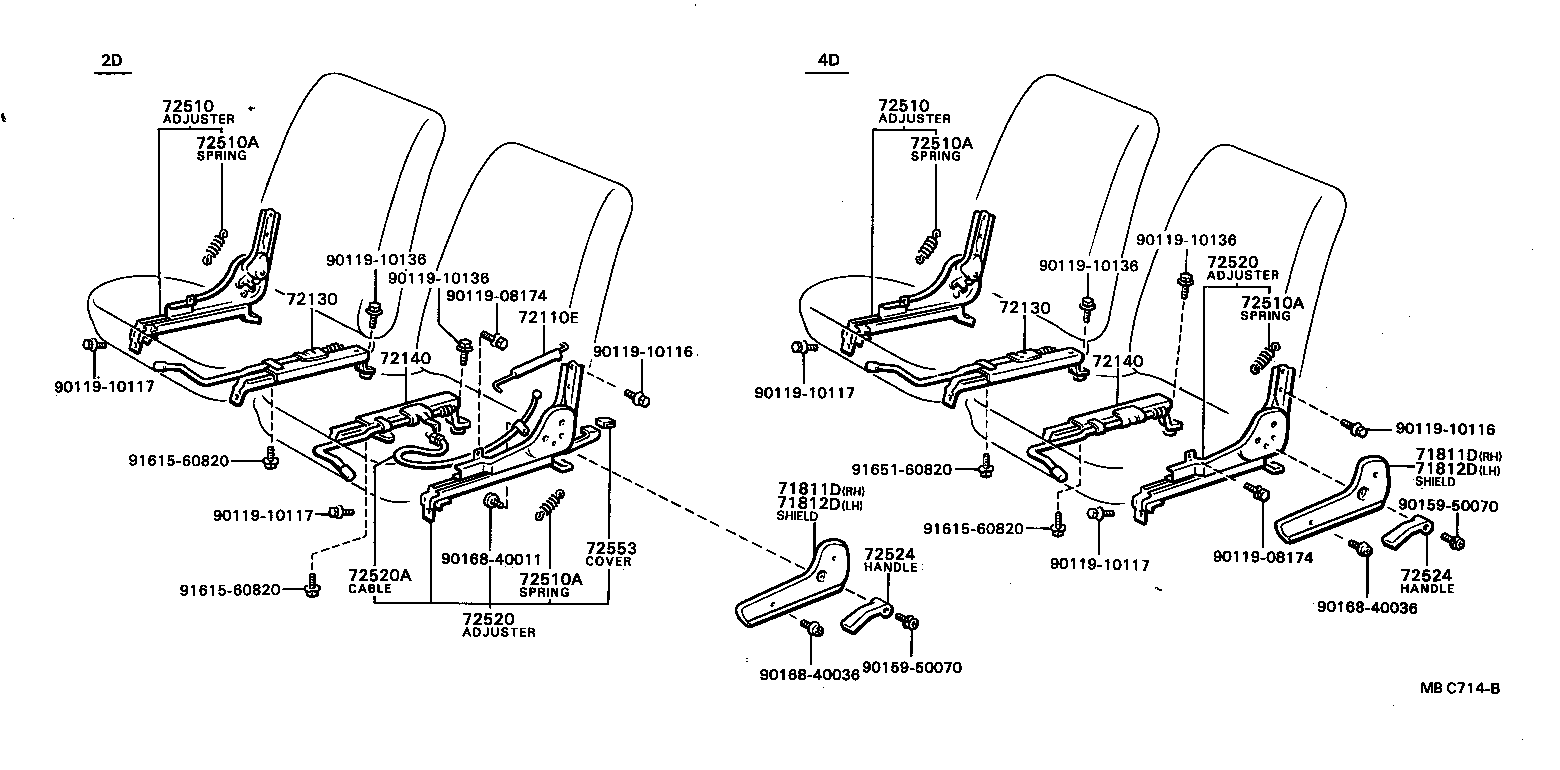

ILLUST NO. 2 OF 3(7903-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-18020 |
AE70,KE70,TE71..2D L=190 |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-12120 |
AE70,KE7#,TE7# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12111 |
AE70,KE7#,TE7#..2D |
1 | ||
| 72140-12110 |
AE70,KE70,TE71..2D |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-12111 |
AE70,KE7#,TE7#..2D |
1 | ||
| 72140-12110 |
AE70,KE70,TE71..2D |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1201004 |
AE70,KE70,TE71..CTD,DX,GL,GT,LVN,SE,SL,SR BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1201016 |
AE70,KE70,TE70,71..CP,HT,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1201001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1201004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1201001 |
AE70,KE70,TE71 BLACK,BLACK,TRIM2# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1201004 |
AE70,KE70,TE71..CTD,DX,GL,GT,LVN,SE,SL,SR BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1201016 |
AE70,KE70,TE70,71..CP,HT,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1201001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1201004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1201001 |
AE70,KE70,TE71 BLACK,BLACK,TRIM2# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1202001 |
AE70,KE70,TE71..2D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1202016 |
AE70,KE70,TE70,71..CP,HT,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1202001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1202004 |
AE70,KE70,TE71..(DX,GL,GT,LVN,SE,SL,SR)..2D BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1202004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1202001 |
AE70,KE70,TE71..2D BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1202016 |
AE70,KE70,TE70,71..CP,HT,LB D-BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1202001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1202004 |
AE70,KE70,TE71..(DX,GL,GT,LVN,SE,SL,SR)..2D BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1202004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 72520A - CABLE, ADJUSTER TO SEAT TRACK | ||||
| 72210-12050 |
AE70,KE7#,TE7#..2D |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1202016 |
AE70,KE70,TE70,71..CP,HT,LB LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1208016 |
AE70,KE70,TE70,71..CP,HT,LB RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72526-1202004 |
AE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1208004 |
AE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1202016 |
AE70,KE70,TE70,71..CP,HT,LB LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1208001 |
AE70,CE7#,KE7#,TE7# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1208016 |
AE70,KE70,TE70,71..CP,HT,LB RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1202001 |
AE70,CE7#,KE7#,TE7# LH,BLACK,BLACK,TRIM2# |
2 | ||
| 72526-1202004 |
AE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1208004 |
AE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12020 |
AE70,KE70,71,72,TE70,71..2D ARAKAWA |
1 | ||
| 72553-12030 |
AE70,KE70,71,72,TE70,71..2D SIRAKI |
1 | ||
| Common parts | ||||
| 90119-08174 | ||||
| 90119-10116 | ||||
| 90119-10117 | ||||
| 90119-10136 | ||||
| 90159-50070 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 91615-60820 | ||||
| 91651-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
