AE70-ECHSS (1979)

Toyota Corolla

Production Oct 1979 - Aug 1981
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)3AU

Click highlighted areas on diagram

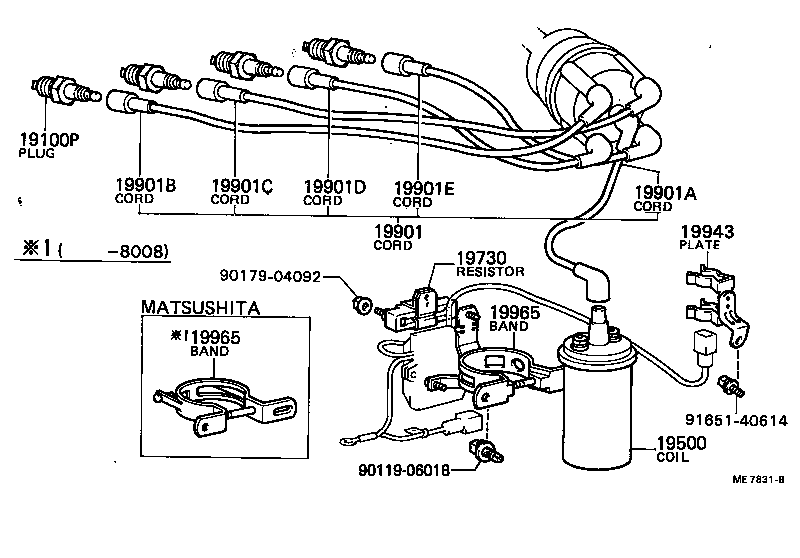

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19943 19965 19965 9011906018 9017904092 9165140614
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01085

3AU..AE70

W14EX−U11,W14EX-U11

 4
19500 - COIL ASSY, IGNITION
90919-02083

3AU..AE70

 1
19730 - RESISTOR, IGNITION COIL
90919-04026

3AU..AE70

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21217

3AU..AE70

 1
19901A - CORD, COIL RESISTIVE
99254-21028

3AU..AE70

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
99242-21037

3AU..AE70

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
99242-21032

3AU..AE70

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
99242-21018

3AU..AE70

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
99242-21020

3AU..AE70

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-15010

3AU..AE70

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03066

3AU..AE70

IGNITER=ND

 1
90919-03061

3AU..AE70

IGNITER=MATSUSHITA

 1
90919-03066

3AU..AE70

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03066

3AU..AE70

IGNITER=ND

 1
90919-03061

3AU..AE70

IGNITER=MATSUSHITA

 1
90919-03066

3AU..AE70

 1
Common parts
90119-06018
90179-04092
91651-40614
