AE114-AEPEK (1995)

Toyota Corolla

Production May 1995 - Aug 2000
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

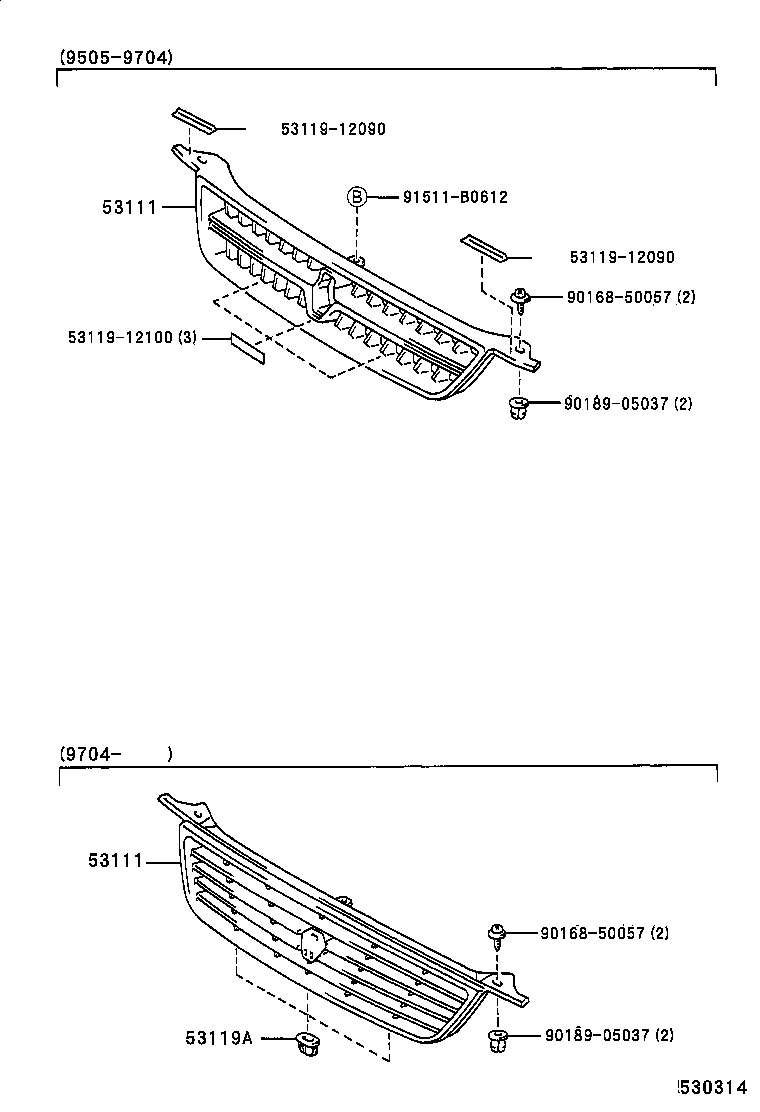

Click highlighted areas on diagram

diagram 53111 53111 5311912090 5311912090 5311912100 53119A 9016850057 9016850057 9018905037 9018905037 91511B0612
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-1A330

AE11#,CE11#,EE111..GT,SESAL,XESAL

 1
53111-1A250

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

 1
53111-1A280

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

 1
53111 - GRILLE, RADIATOR
53111-1A330

AE11#,CE11#,EE111..GT,SESAL,XESAL

 1
53111-1A250

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

 1
53111-1A280

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

 1
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-12110

AE11#,CE11#,EE111

 3
Common parts
53119-12090
53119-12100
90168-50057
90189-05037
91511-B0612
