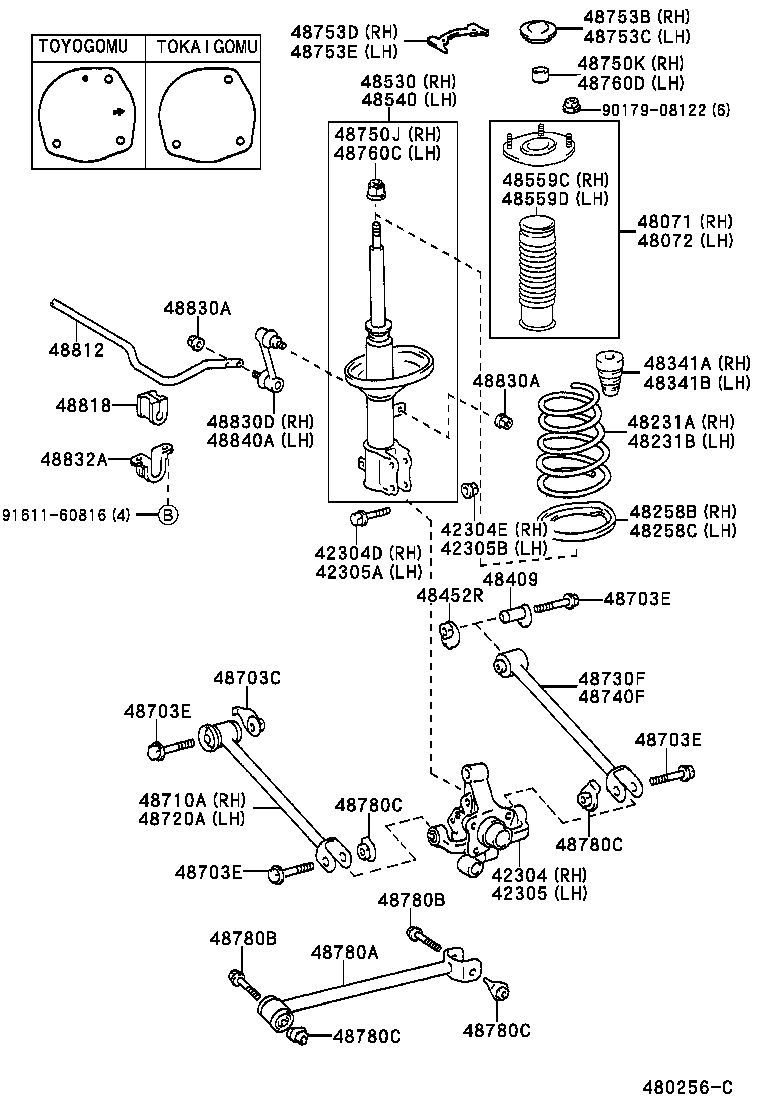

AE114-AEPEK (1995)
Toyota Corolla
(9505- )AE114,CE114,116
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-12210 |
AE114,CE114 ｱﾘ(*66) |
1 | ||
| 42304-12200 |
AE114,CE114 |
1 | ||
| 42304-12210 |
AE114,CE114..SESAL,XESAL |
1 | ||
| 42304-12210 |
CE116;AE114,CE114..SESAL,XESAL |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
AE114,CE114,116 |
2 | ||
| 90105-15001 |
AE114,CE114 |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
AE114,CE114,116 |
2 | ||
| 90179-15001 |
AE114,CE114 |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-12200 |
AE114,CE114 |
1 | ||
| 42305-12210 |
AE114,CE114..SESAL,XESAL |
1 | ||
| 42305-12210 |
AE114,CE114 ｱﾘ(*66) |
1 | ||
| 42305-12210 |
CE116;AE114,CE114..SESAL,XESAL |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
AE114,CE114,116 |
2 | ||
| 90105-15001 |
AE114,CE114 |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
AE114,CE114,116 |
2 | ||
| 90179-15001 |
AE114,CE114 |
2 | ||
| 48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48071-12140 |
AE111,114,CE114,116 |
1 | ||
| 48071-12140 |
AE114,CE114 |
1 | ||
| 48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48072-12140 |
AE111,114,CE114,116 |
1 | ||
| 48072-12140 |
AE114,CE114 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-1H270 |
AE114,CE114 |
1 | ||
| 48231-1H270 |
AE114,CE114,116 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-1H270 |
AE114,CE114 |
1 | ||
| 48231-1H270 |
AE114,CE114,116 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 48258-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 48258-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-12170 |
AE114,CE114 |
1 | ||
| 48341-12170 |
AE114,CE114,116 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-12170 |
AE114,CE114,116 |
1 | ||
| 48341-12170 |
AE114,CE114 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-12040 |
AE114,CE114,116 |
2 | ||
| 48409-12040 |
AE114,CE114 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32020 |
AE114,CE114,116 |
2 | ||
| 48452-32020 |
AE114,CE114 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80008 |
AE114,CE114,116 |
1 | ||
| 48530-19695 |
AE114,CE114 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-19145 |
AE114,CE114 |
1 | ||
| 48540-19255 |
AE114,CE114,116 |
1 | ||
| 48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-12090 |
AE111,114,CE114 TOKAIGOMU |
1 | ||
| 48559-12090 |
AE114,CE114 TOKAIGOMU |
1 | ||
| 48559-12080 |
AE111,114,CE114,116 TOYOGOMU |
1 | ||
| 48559-12080 |
AE114,CE114 TOYOGOMU |
1 | ||
| 48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-12090 |
AE114,CE114 TOKAIGOMU |
1 | ||
| 48559-12080 |
AE114,CE114 TOYOGOMU |
1 | ||
| 48559-12090 |
AE111,114,CE114 TOKAIGOMU |
1 | ||
| 48559-12080 |
AE111,114,CE114,116 TOYOGOMU |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12106 |
AE114,CE114 |
2 | ||
| 90179-12106 |
AE114,CE114,116 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12152 |
AE114,CE114,116 *12−1.25PX86−26 |
2 | ||
| 90119-12152 |
AE114,CE114 *12−1.25PX86−26 |
2 | ||
| 90119-12150 |
AE114,CE114 *12−1.25PX71−34 |
6 | ||
| 90119-12150 |
AE114,CE114,116 *12−1.25PX71−34 |
6 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12152 |
AE114,CE114,116 *12−1.25PX86−26 |
2 | ||
| 90119-12152 |
AE114,CE114 *12−1.25PX86−26 |
2 | ||
| 90119-12150 |
AE114,CE114 *12−1.25PX71−34 |
6 | ||
| 90119-12150 |
AE114,CE114,116 *12−1.25PX71−34 |
6 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12152 |
AE114,CE114,116 *12−1.25PX86−26 |
2 | ||
| 90119-12152 |
AE114,CE114 *12−1.25PX86−26 |
2 | ||
| 90119-12150 |
AE114,CE114 *12−1.25PX71−34 |
6 | ||
| 90119-12150 |
AE114,CE114,116 *12−1.25PX71−34 |
6 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90119-12152 |
AE114,CE114,116 *12−1.25PX86−26 |
2 | ||
| 90119-12152 |
AE114,CE114 *12−1.25PX86−26 |
2 | ||
| 90119-12150 |
AE114,CE114 *12−1.25PX71−34 |
6 | ||
| 90119-12150 |
AE114,CE114,116 *12−1.25PX71−34 |
6 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-12230 |
AE114,CE114,116 |
1 | ||
| 48710-12230 |
AE114,CE114 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-12230 |
AE114,CE114,116 |
1 | ||
| 48710-12230 |
AE114,CE114 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12130 |
AE114,CE114,116 |
1 | ||
| 48730-12130 |
AE114,CE114 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12130 |
AE114,CE114,116 |
1 | ||
| 48730-12130 |
AE114,CE114 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-14015 |
AE11#,CE11#,EE111 |
1 | ||
| 90179-14015 |
AE11#,CE11#,EE111 |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
AE11#,CE11#,EE111 |
1 | ||
| 90387-15027 |
AE11#,CE11#,EE111 |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 48753-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 48753-12050 |
AE11#,CE11#,EE111 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-14015 |
AE11#,CE11#,EE111 |
1 | ||
| 90179-14015 |
AE11#,CE11#,EE111 |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
AE11#,CE11#,EE111 |
1 | ||
| 90387-15027 |
AE11#,CE11#,EE111 |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-12080 |
AE11#,CE11#,EE111 |
2 | ||
| 48780-12080 |
AE110,114,CE11#,EE111 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE11#,CE11#,EE111 |
4 | ||
| 90119-12152 |
AE11#,CE11#,EE111 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12152 |
AE11#,CE11#,EE111 |
4 | ||
| 90119-12152 |
AE11#,CE11#,EE111 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
AE114,CE114,116 |
8 | ||
| 90179-12091 |
AE114,CE114 |
8 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
AE114,CE114,116 |
8 | ||
| 90179-12091 |
AE114,CE114 |
8 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
AE114,CE114,116 |
8 | ||
| 90179-12091 |
AE114,CE114 |
8 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
AE114,CE114,116 |
8 | ||
| 90179-12091 |
AE114,CE114 |
8 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-12260 |
AE114,CE114,116 |
1 | ||
| 48812-12260 |
AE114,CE114 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-12230 |
AE114,CE114,116 |
2 | ||
| 48818-12230 |
AE114,CE114 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE11#,CE11# |
4 | ||
| 90179-10183 |
AE11#,CE11# |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10183 |
AE11#,CE11# |
4 | ||
| 90179-10183 |
AE11#,CE11# |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-12050 |
AE114,CE114,116 |
1 | ||
| 48830-12050 |
AE114,CE114 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-20030 |
AE11#,CE11# |
2 | ||
| 48832-20030 |
AE11#,CE11# |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-12050 |
AE114,CE114,116 |
1 | ||
| 48830-12050 |
AE114,CE114 |
1 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 91611-60816 | ||||
