Toyota Corolla AE114 ROOF HEADLINING & SILENCER PAD

Manufacturers Home
Toyota
JP
COROLLA
AE114-AEMNK (1995)
6402 - ROOF HEADLINING & SILENCER PAD

AE114-AEMNK (1995)

Toyota Corolla

Production May 1995 - Aug 2000

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9704- )

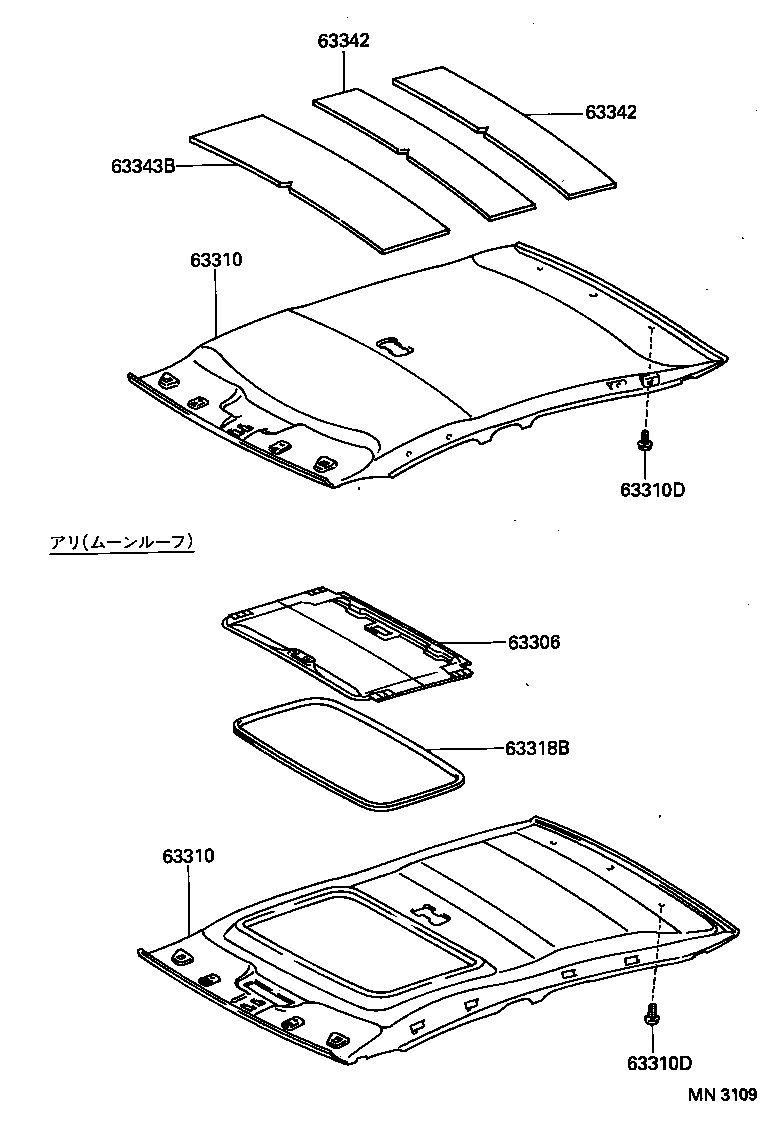

Click highlighted areas on diagram

MOON ROOF

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-1A590B1	AE11#,EE111..(3FC,4FC,5F,6F)..(GT,SESAL,XESAL) MEDIUM CHARCOAL,TRIM1#	04/1997 - 04/1998	1
63310-1A450A0	AE110,114,CE11#,EE111..SESAL,XESAL IVORY,TRIM4#	05/1995 - 04/1997	1
63310-1A450B0	AE11#,CE11#,EE111 LT. GRAY,TRIM1#	05/1995 - 04/1997	1
63310-1A460B0	AE11#,CE11#,EE111..SCRU,SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),LT. GRAY,TRIM1#	05/1995 - 04/1997	1
63310-1A460A0	AE110,114,CE11#,EE111..SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),IVORY,TRIM4#	05/1995 - 04/1997	1
63310-1A630B2	AE110,114,EE111..(3FC,4FC,5F)..XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),LT.GRAY,TRIM1#	04/1997 - 04/1998	1
63310-1A590B2	AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX LT.GRAY,TRIM1#	04/1997 - 04/1998	1
63310-1A590B1	AE11#,CE11#,EE111 MEDIUM CHARCOAL,TRIM1#	04/1998 - 08/2000	1
63310-1A630B1	AE110,114,CE113,116,EE111..(3FC,4FC,5F)..XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),MEDIUM CHARCOAL,TRIM1#	04/1997 - 08/2000	1
63310D - CLIP, ROOF HEADLINING
90467-05021B6	AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM11,14	04/1997 - 04/1998	4
90467-05021A0	AE110,114,CE11#,EE111..SESAL,XESAL IVORY,TRIM4#	05/1995 - 04/1997	3
90467-05021B8	AE110,114,CE11#,EE111..XESAL LI. GRAY,TRIM11	04/1997 - 04/1998	4
90467-05021B8	AE11#,CE11#,EE111 LI. GRAY,TRIM1#	05/1995 - 04/1997	3
90467-05021P0	AE11#,CE11#,EE111..GT,SESAL,XESAL SHADOW GRAY,TRIM1#	04/1998 - 10/1999	4
90467-05021A0	EE111..(3FC,4F)..XESAL;AE110,114,CE110,114..XESAL IVORY,TRIM4#	04/1997 - 08/2000	3
90467-05021B6	AE11#,CE11#,EE111 MD.CHARCOAL,TRIM1#	04/1998 - 08/2000	4
90467-05021P0	AE110,114,CE11#,EE111..SESAL,XESAL SHADOW GRAY,TRIM11,14	04/1997 - 04/1998	4
Common parts
90467-0612922

(9505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63310 - HEADLINING ASSY, ROOF
63310-1A590B1	AE11#,EE111..(3FC,4FC,5F,6F)..(GT,SESAL,XESAL) MEDIUM CHARCOAL,TRIM1#	04/1997 - 04/1998	1
63310-1A450A0	AE110,114,CE11#,EE111..SESAL,XESAL IVORY,TRIM4#	05/1995 - 04/1997	1
63310-1A450B0	AE11#,CE11#,EE111 LT. GRAY,TRIM1#	05/1995 - 04/1997	1
63310-1A460B0	AE11#,CE11#,EE111..SCRU,SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),LT. GRAY,TRIM1#	05/1995 - 04/1997	1
63310-1A460A0	AE110,114,CE11#,EE111..SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),IVORY,TRIM4#	05/1995 - 04/1997	1
63310-1A630B2	AE110,114,EE111..(3FC,4FC,5F)..XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),LT.GRAY,TRIM1#	04/1997 - 04/1998	1
63310-1A590B2	AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX LT.GRAY,TRIM1#	04/1997 - 04/1998	1
63310-1A590B1	AE11#,CE11#,EE111 MEDIUM CHARCOAL,TRIM1#	04/1998 - 08/2000	1
63310-1A630B1	AE110,114,CE113,116,EE111..(3FC,4FC,5F)..XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),MEDIUM CHARCOAL,TRIM1#	04/1997 - 08/2000	1
63310 - HEADLINING ASSY, ROOF
63310-1A590B1	AE11#,EE111..(3FC,4FC,5F,6F)..(GT,SESAL,XESAL) MEDIUM CHARCOAL,TRIM1#	04/1997 - 04/1998	1
63310-1A450A0	AE110,114,CE11#,EE111..SESAL,XESAL IVORY,TRIM4#	05/1995 - 04/1997	1
63310-1A450B0	AE11#,CE11#,EE111 LT. GRAY,TRIM1#	05/1995 - 04/1997	1
63310-1A460B0	AE11#,CE11#,EE111..SCRU,SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),LT. GRAY,TRIM1#	05/1995 - 04/1997	1
63310-1A460A0	AE110,114,CE11#,EE111..SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),IVORY,TRIM4#	05/1995 - 04/1997	1
63310-1A630B2	AE110,114,EE111..(3FC,4FC,5F)..XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),LT.GRAY,TRIM1#	04/1997 - 04/1998	1
63310-1A590B2	AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX LT.GRAY,TRIM1#	04/1997 - 04/1998	1
63310-1A590B1	AE11#,CE11#,EE111 MEDIUM CHARCOAL,TRIM1#	04/1998 - 08/2000	1
63310-1A630B1	AE110,114,CE113,116,EE111..(3FC,4FC,5F)..XESAL ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ),MEDIUM CHARCOAL,TRIM1#	04/1997 - 08/2000	1
63310D - CLIP, ROOF HEADLINING
90467-05021B6	AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM11,14	04/1997 - 04/1998	4
90467-05021A0	AE110,114,CE11#,EE111..SESAL,XESAL IVORY,TRIM4#	05/1995 - 04/1997	3
90467-05021B8	AE110,114,CE11#,EE111..XESAL LI. GRAY,TRIM11	04/1997 - 04/1998	4
90467-05021B8	AE11#,CE11#,EE111 LI. GRAY,TRIM1#	05/1995 - 04/1997	3
90467-05021P0	AE11#,CE11#,EE111..GT,SESAL,XESAL SHADOW GRAY,TRIM1#	04/1998 - 10/1999	4
90467-05021A0	EE111..(3FC,4F)..XESAL;AE110,114,CE110,114..XESAL IVORY,TRIM4#	04/1997 - 08/2000	3
90467-05021B6	AE11#,CE11#,EE111 MD.CHARCOAL,TRIM1#	04/1998 - 08/2000	4
90467-05021P0	AE110,114,CE11#,EE111..SESAL,XESAL SHADOW GRAY,TRIM11,14	04/1997 - 04/1998	4
63310D - CLIP, ROOF HEADLINING
90467-05021B6	AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM11,14	04/1997 - 04/1998	4
90467-05021A0	AE110,114,CE11#,EE111..SESAL,XESAL IVORY,TRIM4#	05/1995 - 04/1997	3
90467-05021B8	AE110,114,CE11#,EE111..XESAL LI. GRAY,TRIM11	04/1997 - 04/1998	4
90467-05021B8	AE11#,CE11#,EE111 LI. GRAY,TRIM1#	05/1995 - 04/1997	3
90467-05021P0	AE11#,CE11#,EE111..GT,SESAL,XESAL SHADOW GRAY,TRIM1#	04/1998 - 10/1999	4
90467-05021A0	EE111..(3FC,4F)..XESAL;AE110,114,CE110,114..XESAL IVORY,TRIM4#	04/1997 - 08/2000	3
90467-05021B6	AE11#,CE11#,EE111 MD.CHARCOAL,TRIM1#	04/1998 - 08/2000	4
90467-05021P0	AE110,114,CE11#,EE111..SESAL,XESAL SHADOW GRAY,TRIM11,14	04/1997 - 04/1998	4
63342 - PAD, ROOF SILENCER, NO.2
63341-16010	AE11#,CE11#,EE111	05/1995 - 04/1997	2
63342-12060	AE11#,CE11#,EE111	05/1995 - 04/1997	2
63341-12160	AE11#,CE11#,EE111	04/1997 - 08/2000	2
63342 - PAD, ROOF SILENCER, NO.2
63341-16010	AE11#,CE11#,EE111	05/1995 - 04/1997	2
63342-12060	AE11#,CE11#,EE111	05/1995 - 04/1997	2
63341-12160	AE11#,CE11#,EE111	04/1997 - 08/2000	2
63343B - PAD, ROOF SILENCER, REAR
63343-12050	AE11#,CE11#,EE111	05/1995 - 04/1997	1
63343-12050	AE11#,CE11#,EE111	04/1997 - 08/2000	1

AE114-AEMNK (1995)

(9704- )

(9505- )
