AE114-AEMDK (1995)
Toyota Corolla
Production
May 1995
-
Aug 2000
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )DX,LX,XESAL

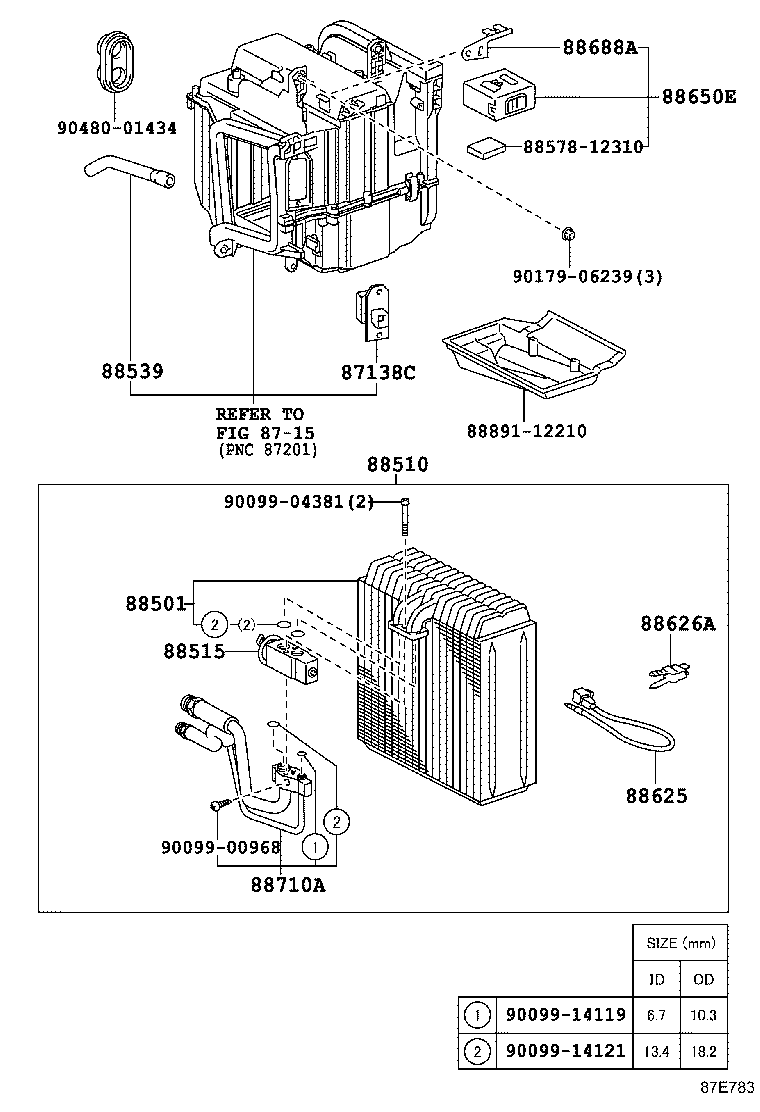

Click highlighted areas on diagram
ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 87138-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12430 |
AE110,114,CE11#,EE111..DX,LX,XESAL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12430 |
AE110,114,CE11#,EE111..DX,LX,XESAL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88501-12420 |
AE110,114,CE11#,EE111..DX,LX,XESAL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88501-12420 |
AE110,114,CE110,114,EE111..DX,LX,XESAL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AE11#,CE11#,EE111 |
1 | ||
| 88515-20100 |
AE11#,CE11#,EE111 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12120 |
AE11#,CE11#,EE111 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12280 |
AE11#,CE11#,EE111 |
1 | ||
| 88625-12280 |
AE11#,CE11#,EE111 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AE11#,CE11#,EE111 |
1 | ||
| 88626-28010 |
AE11#,CE11#,EE111 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-1E040 |
AE110,114;CE110,113,EE111..DX |
1 | ||
| 88650-1E040 |
AE11#;CE110,EE111..DX |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-1A090 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 88688-1A090 |
AE110,114,CE11#,EE111..DX,LX,XESAL |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12330 |
AE11#,CE11#,EE111 |
1 | ||
| 88710-12330 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 88578-12310 | ||||
| 88891-12210 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90179-06239 | ||||
| 90480-01434 | ||||
| Linked diagrams | ||||
| 8715 | ||||
