AE111-AEPGK (1995)
Toyota Corolla
Production
May 1995
-
Apr 1997
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )AE111..4FC

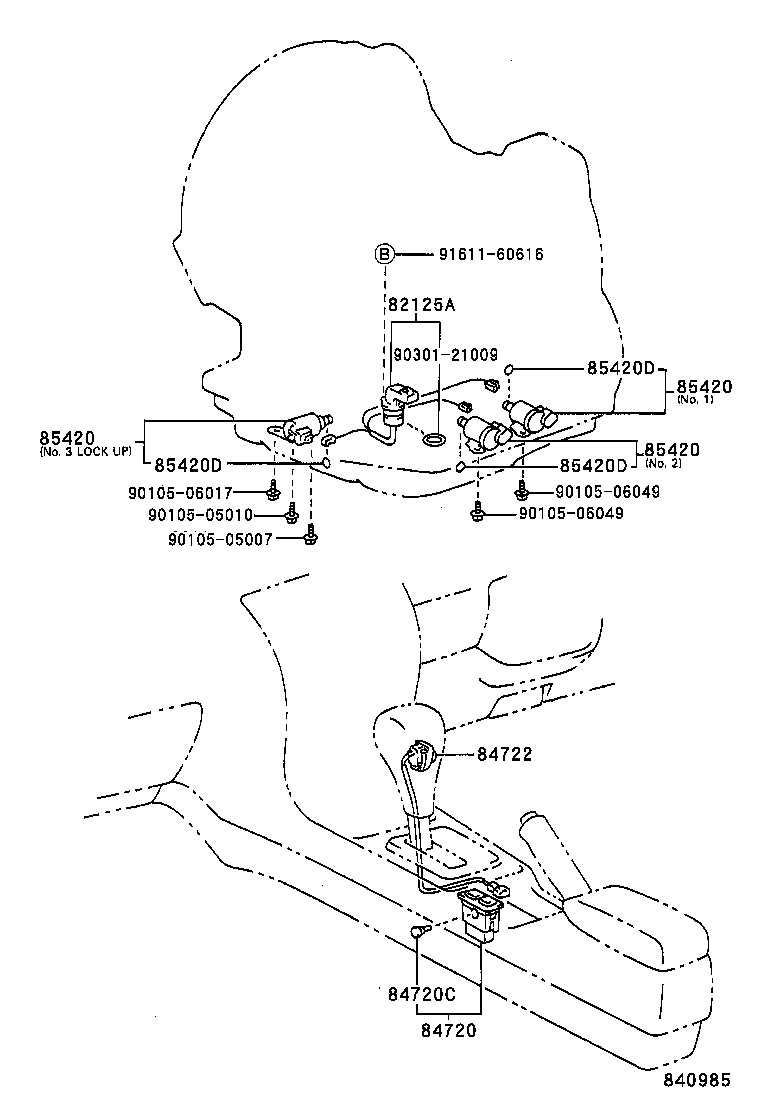

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-12350 |
AE111..4FC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-12070 |
AE111..4FC |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10420 |
AE111..4FC |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-12060B0 |
AE11#,CE110..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12140 |
AE111..4FC NO.3(LOCK UP) |
1 | ||
| 85420-12120 |
AE111..4FC NO.2 |
1 | ||
| 85420-12100 |
AE111..4FC NO.1 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12140 |
AE111..4FC NO.3(LOCK UP) |
1 | ||
| 85420-12120 |
AE111..4FC NO.2 |
1 | ||
| 85420-12100 |
AE111..4FC NO.1 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12140 |
AE111..4FC NO.3(LOCK UP) |
1 | ||
| 85420-12120 |
AE111..4FC NO.2 |
1 | ||
| 85420-12100 |
AE111..4FC NO.1 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AE111..4FC |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AE111..4FC |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
AE111..4FC |
3 | ||
| Common parts | ||||
| 90105-05007 | ||||
| 90105-05010 | ||||
| 90105-06017 | ||||
| 90105-06049 | ||||
| 90301-21009 | ||||
| 91611-60616 | ||||
