AE111-AEPGK (1995)
Toyota Corolla
ILLUST NO. 4 OF 6(9505-9704)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE11#,CE11#,EE111 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE11#,CE11#,EE111 15A |
1 | ||
| 90982-09007 |
AE11#,CE11#,EE111 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AE11#,CE11#,EE111 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AE11#,CE11#,EE111 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
AE11#,CE11#,EE111 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
AE11#,CE11#,EE111 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
AE11#,CE11#,EE111 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE11#,CE11#,EE111 15A |
1 | ||
| 90982-09007 |
AE11#,CE11#,EE111 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AE11#,CE11#,EE111 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AE11#,CE11#,EE111 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
AE11#,CE11#,EE111 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
AE11#,CE11#,EE111 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
AE11#,CE11#,EE111 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE11#,CE11#,EE111 40A,緑 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12061 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82641-12090 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82641-12060 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE11#,CE11#,EE111 NO.7 |
1 | ||
| 82671-30360 |
AE11#,CE11#,EE111 NO.6 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE11#,CE11#,EE111 NO.7 |
1 | ||
| 82671-30360 |
AE11#,CE11#,EE111 NO.6 |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30360 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12350 |
AE11#,CE11#,EE111 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12210 |
AE11#,CE11#,EE111 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12020 |
AE11#,CE11#,EE111 |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-12200 |
AE11#,CE11#,EE111 |
1 | ||
| 82683-12201 |
AE11#,CE11#,EE111 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12020 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82730-12060 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-12010 |
AE11#,CE11#,EE111 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-12010 |
AE11#,CE11#,EE111 |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-12020 |
AE11#,CE11#,EE111 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE11#,CE11#,EE111 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE11#,CE11#,EE111 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE11#,CE11#,EE111 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-12070 |
AE11#,CE110,EE111..ATM |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE11#,CE11#,EE111 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AE11#,CE11#,EE111 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-12120 |
AE11#,CE110,EE111..ATM |
1 | ||
| 85933-12121 |
AE11#,CE110,EE111..ATM |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12250 |
AE11#,CE11#,EE111..LX,SCRU,SESAL |
1 | ||
| 85980-12270 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-12030 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40027 | ||||
| 90159-50222 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90179-06178 | ||||
| 93315-14012 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

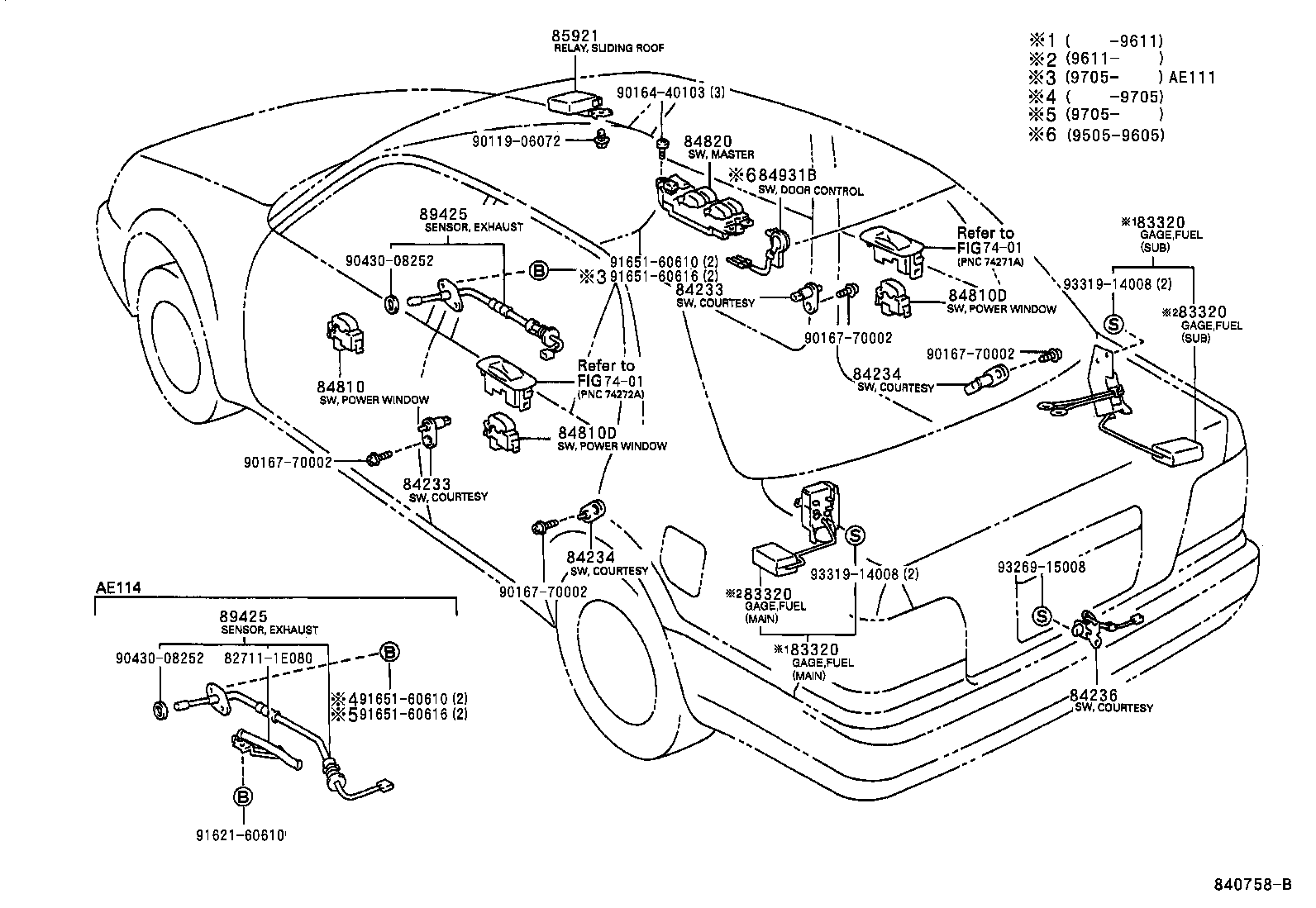

ILLUST NO. 6 OF 6(9505- )
ROOF,FLOOR,DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80271 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 83320-12571 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80271 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 83320-12571 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80271 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 83320-12571 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80271 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 83320-12571 |
AE110,111,EE111..SCRU,SESAL,XESAL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AE11#,CE11#,EE111 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12160 |
AE11#,CE11#,EE111 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
AE11#,CE11#,EE111 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12170 |
AE11#,CE11#,EE111 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-12130 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE11#,CE11#..SCRU,SESAL |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
AE11#,CE11#..SCRU,SESAL |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10040 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-16030 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12061 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19575 |
AE111 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19575 |
AE111 |
1 | ||
| Common parts | ||||
| 82711-1E080 | ||||
| 90119-06072 | ||||
| 90164-40103 | ||||
| 90167-70002 | ||||
| 90430-08252 | ||||
| 91621-60610 | ||||
| 91651-60610 | ||||
| 91651-60616 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 3 OF 6(9505-9704)
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12381 |
AE11#,CE11#,EE111 |
1 | ||
| 84332-12380 |
AE11#,CE11#,EE111 |
1 | ||
| 84332-12370 |
AE11#,CE11#,EE111 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE11#,CE11#,EE111 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20270 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20270 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12350 |
AE11#,CE11#,EE111 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
AE11#,CE11#,EE111 14V 0.84W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10680 |
AE11#,CE11#,EE111 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16040 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 84870-16020 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
AE11#,CE11#,EE111 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01015 |
AE11#,CE11#,EE111 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE11#,CE11#,EE111 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12100 |
AE11#,CE11#,EE111 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AE11#,CE11#,EE111 |
1 | ||
ILLUST NO. 2 OF 6(9505- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE11#,CE11#,EE111 15A |
1 | ||
| 90982-09007 |
AE11#,CE11#,EE111 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AE11#,CE11#,EE111 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AE11#,CE11#,EE111 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
AE11#,CE11#,EE111 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
AE11#,CE11#,EE111 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
AE11#,CE11#,EE111 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE11#,CE11#,EE111 15A |
1 | ||
| 90982-09007 |
AE11#,CE11#,EE111 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09010 |
AE11#,CE11#,EE111 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AE11#,CE11#,EE111 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
AE11#,CE11#,EE111 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
AE11#,CE11#,EE111 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
AE11#,CE11#,EE111 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AE11#,CE11#,EE111 |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-12010 |
AE11#,CE11#,EE111 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12200 |
AE11#,CE11#,EE111 上側 |
1 | ||
| 82661-12220 |
AE11#,CE11#,EE111 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12200 |
AE11#,CE11#,EE111 上側 |
1 | ||
| 82661-12220 |
AE11#,CE11#,EE111 下側 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-12020 |
AE11#,CE11#,EE111 |
1 | ||
| 82720-12021 |
AE11#,CE11#,EE111 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30370 |
AE11# |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12310 |
AE11#,CE11#,EE111 |
1 | ||
| 82672-12311 |
AE11#,CE11#,EE111 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-12010 |
AE11#,CE11#,EE111 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12010 |
AE11#,CE11#,EE111 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE11#,CE11#,EE111 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE11#,CE11#,EE111 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE11#,CE11#,EE111 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04004 |
AE11#,CE11#,EE111 |
1 | ||
| 85927C - RELAY, COOLING FAN, NO.4 | ||||
| 90987-02012 |
AE11#,CE11#,EE111 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
AE11#,CE11#,EE111 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 90119-06183 | ||||
| 90119-06539 | ||||
| 91511-G0620 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 2302 | ||||
| 8202 | ||||

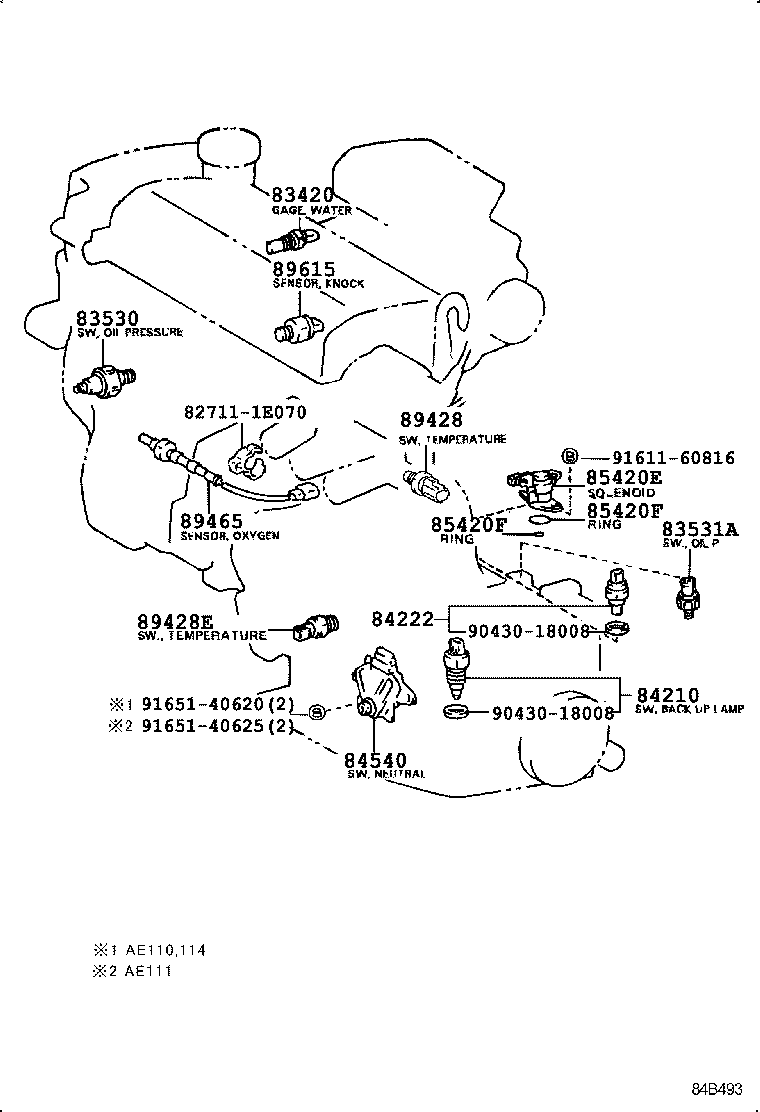

ILLUST NO. 1 OF 6(9505-9704)AE11# ; (9704- )AE110,114
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
AE11# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AE11#,EE111 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12210 |
AE111..4FC MATSUSHITA |
1 | ||
| 84540-12200 |
AE111..4FC 東海理化 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE11#,EE111 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12280 |
AE111,114 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12030 |
AE11# TOYOTA |
1 | ||
| 89615-22030 |
AE11#,EE111 MATSUSHITA |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 90430-18008 | ||||
| 91611-60816 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||
ILLUST NO. 5 OF 6(9505- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AE11#,CE11#,EE111 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12380 |
AE11#,CE11#,EE111..DX,LX,SCRU,XESAL |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E050 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84310-1A820 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84310-1E070 |
AE111 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
AE11#,CE11#,EE111..DX,LX,SCRU,XESAL |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AE11#,CE11#,EE111 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A560 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84652-21021 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84652-1A400 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12020 |
AE11#,CE110,EE111..ATM |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 5 OF 6(9605- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12070 |
AE11#,CE11#,EE111 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12380 |
AE11#,CE11#,EE111..DX,LX,SCRU,XESAL |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-20080 |
AE11#,CE11#,EE111..DX,LX,SCRU,XESAL |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1E050 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84310-1A820 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84310-1E070 |
AE111 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
AE11#,CE11#,EE111 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A560 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84652-21021 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 84652-1A400 |
AE11#,CE11#,EE111..SCRU,XESAL |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12020 |
AE11#,CE110,EE111..ATM |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
