AE110-AEPNK (1995)
Toyota Corolla

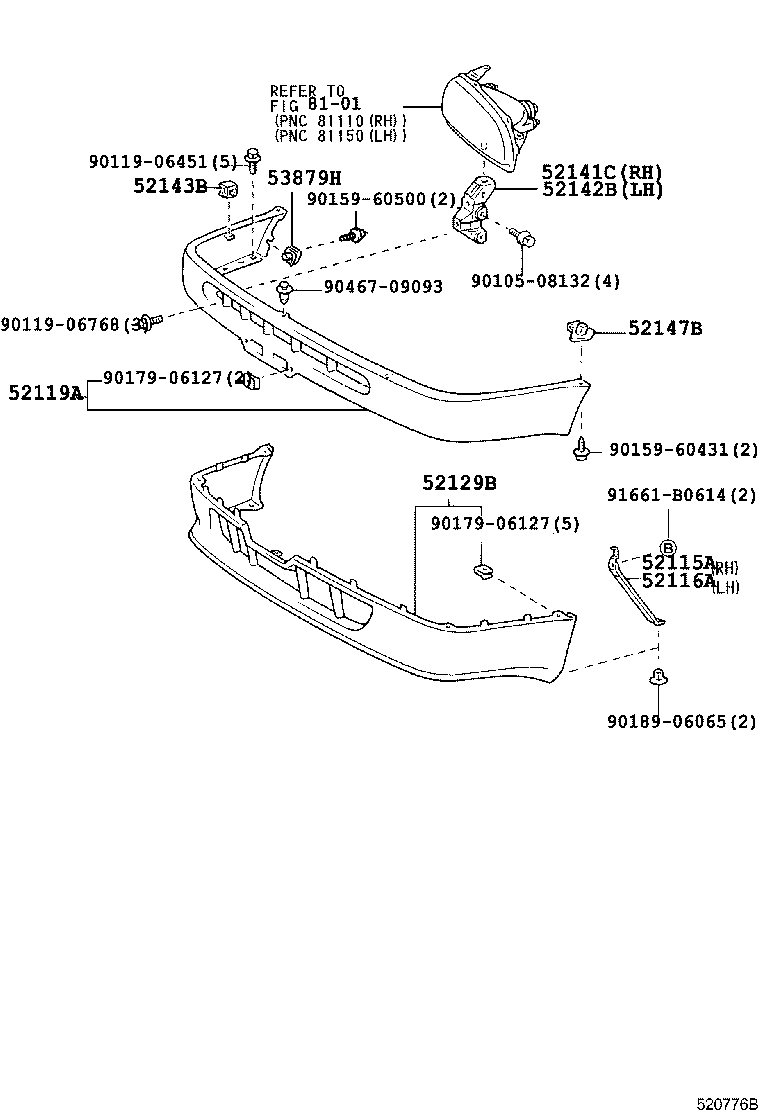

(9505-9704)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12320 |
AE11#,CE11#,EE111 |
1 | ||
| 52115-12320 |
AE11#,CE11#,EE111 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12290 |
AE11#,CE11#,EE111 |
1 | ||
| 52116-12290 |
AE11#,CE11#,EE111 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-1E430B2 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL GRAY M.M,199 |
1 | ||
| 52119-1E430E0 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL LT.GARYISH BEIGE ME,1A5 |
1 | ||
| 52119-1E500A1 |
AE110,114,CE11#,EE111..XESAL ﾘﾐﾃﾂﾄﾞ *(C),WHITE PEARL MC.,057 |
1 | ||
| 52119-1E430C0 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL SILVER M,040 |
1 | ||
| 52119-1E500B4 |
AE11#,CE11#,EE111 DK.GRAY ME.,1B4 |
1 | ||
| 52119-1E500C0 |
AE110..4FC..XESAL BLACK ME.,205 |
1 | ||
| 52119-1E500B2 |
AE11#,CE11#,EE111 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52119-1E500D0 |
AE110..4FC;AE111,114,CE11#,EE111;AE110..5F..(DX,LX,SESAL) RED MM,3K4 |
1 | ||
| 52119-1E500A1 |
AE110,114,CE11#,EE111..XESAL ﾘﾐﾃﾂﾄﾞ *(X),WHITE PEARL MC.,057 |
1 | ||
| 52119-1E500G0 |
AE11#,CE11#,EE111 DK.GREEN M.M.,6P2 |
1 | ||
| 52119-1E500B5 |
AE11#,CE11#,EE111 CRYSTAL SILVER PEARL,1C1 |
1 | ||
| 52119-1E500J0 |
AE11#,CE11#,EE111 DK.BLUE M.M.,8L2 |
1 | ||
| 52119-1E500B1 |
AE11#,CE11#,EE111 SILVER ME,199 |
1 | ||
| 52119-1E330 |
AE11#,CE11#,EE111 |
1 | ||
| 52119-1E500A0 |
AE11#,CE11#,EE111 SUPER WHITE 2,040 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-12030J0 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL DK.BLUE M.M.,8L2 |
1 | ||
| 52129-12030G0 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL DK GREEN MICA,6M1 |
1 | ||
| 52129-12030B0 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52129-12030B0 |
AE110,114,CE11#,EE111..LX,SESAL,XESAL WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52129-12030D0 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL RED MM,3K4 |
1 | ||
| 52129-12030G1 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL MD.GREEN M.M.,6P0 |
1 | ||
| 52129-12030B1 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL BL.GRAY ME,182 |
1 | ||
| 52129-12030A0 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL SUPER WHITE 2,040 |
1 | ||
| 52129-12030G0 |
AE110,114,CE11#,EE111..LX,SESAL,XESAL DK GREEN MICA,6M1 |
1 | ||
| 52129-12030B1 |
AE110,114,CE11#,EE111..LX,SESAL,XESAL BL.GRAY ME,182 |
1 | ||
| 52129-12030B2 |
AE110,114,CE11#,EE111..LX,SESAL,XESAL SILVER ME,199 |
1 | ||
| 52129-12030A0 |
AE110,114,CE11#,EE111..LX,SESAL,XESAL SUPER WHITE 2,040 |
1 | ||
| 52129-12030B2 |
AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL SILVER ME,199 |
1 | ||
| 52129-12030J0 |
AE110,114,CE11#,EE111..LX,SESAL,XESAL DK.BLUE M.M.,8L2 |
1 | ||
| 52129-12030D0 |
AE110,114,CE11#,EE111..LX,SESAL,XESAL RED MM,3K4 |
1 | ||
| 52141C - ARM, FRONT BUMPER, RH | ||||
| 52141-12420 |
AE110,114,CE11#,EE111 |
1 | ||
| 52141-12420 |
AE11#,CE11#,EE111 |
1 | ||
| 52142B - ARM, FRONT BUMPER, LH | ||||
| 52142-12350 |
AE110,114,CE11#,EE111 |
1 | ||
| 52142-12350 |
AE11#,CE11#,EE111 |
1 | ||
| 52143B - BRACKET, FRONT BUMPER SIDE | ||||
| 52143-12340 |
AE11#,CE11#,EE111 |
2 | ||
| 52143-12340 |
AE11#,CE11#,EE111 |
2 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-16080 |
AE11#,CE11#,EE111 |
2 | ||
| 52147-16080 |
AE11#,CE11#,EE111 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-12010 |
AE11#,CE11#,EE111 |
2 | ||
| 53879-12010 |
AE11#,CE11#,EE111 |
2 | ||
| Common parts | ||||
| 90105-08132 | ||||
| 90119-06451 | ||||
| 90119-06768 | ||||
| 90159-60431 | ||||
| 90159-60500 | ||||
| 90179-06127 | ||||
| 90189-06065 | ||||
| 90467-09093 | ||||
| 91661-B0614 | ||||
| Linked diagrams | ||||
| 8101 | ||||

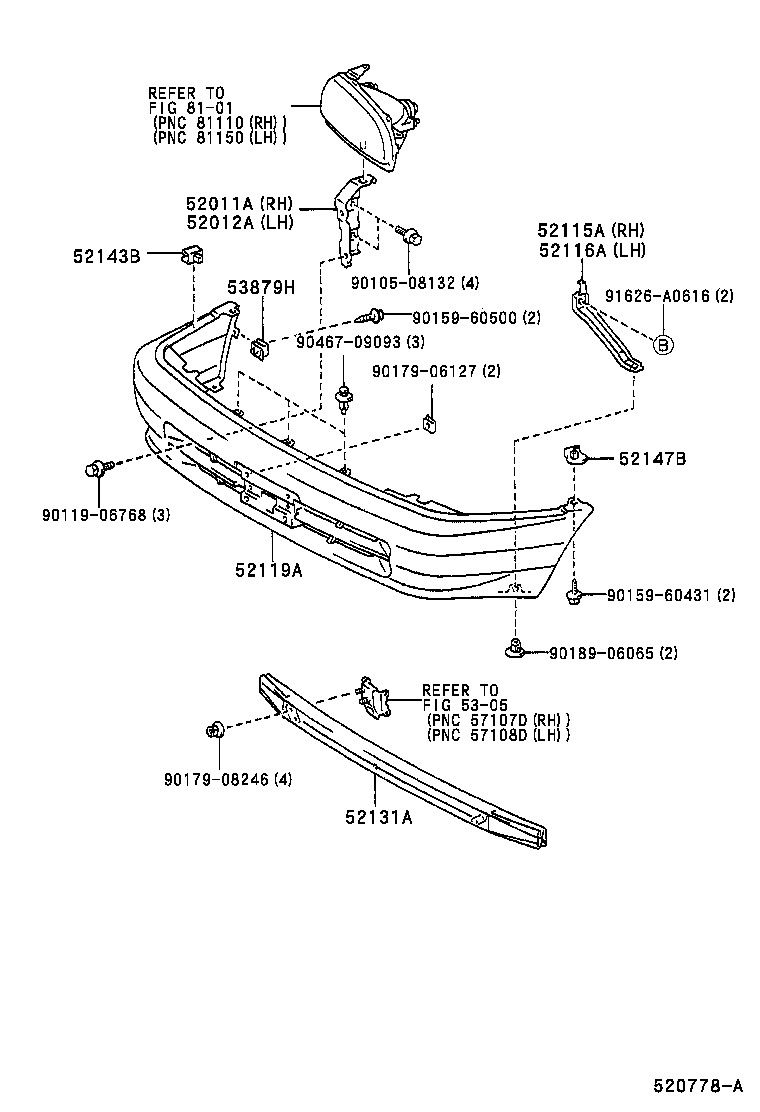

(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52141-12440 |
AE11#,CE11#,EE111 |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52142-12370 |
AE11#,CE11#,EE111 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12320 |
AE11#,CE11#,EE111 |
1 | ||
| 52115-12320 |
AE11#,CE11#,EE111 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12290 |
AE11#,CE11#,EE111 |
1 | ||
| 52116-12290 |
AE11#,CE11#,EE111 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-1E430B2 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL GRAY M.M,199 |
1 | ||
| 52119-1E430E0 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL LT.GARYISH BEIGE ME,1A5 |
1 | ||
| 52119-1E500A1 |
AE110,114,CE11#,EE111..XESAL ﾘﾐﾃﾂﾄﾞ *(C),WHITE PEARL MC.,057 |
1 | ||
| 52119-1E430C0 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL SILVER M,040 |
1 | ||
| 52119-1E500B4 |
AE11#,CE11#,EE111 DK.GRAY ME.,1B4 |
1 | ||
| 52119-1E500C0 |
AE110..4FC..XESAL BLACK ME.,205 |
1 | ||
| 52119-1E500B2 |
AE11#,CE11#,EE111 WARM GRAY PEARL ME.,1A5 |
1 | ||
| 52119-1E500D0 |
AE110..4FC;AE111,114,CE11#,EE111;AE110..5F..(DX,LX,SESAL) RED MM,3K4 |
1 | ||
| 52119-1E500A1 |
AE110,114,CE11#,EE111..XESAL ﾘﾐﾃﾂﾄﾞ *(X),WHITE PEARL MC.,057 |
1 | ||
| 52119-1E500G0 |
AE11#,CE11#,EE111 DK.GREEN M.M.,6P2 |
1 | ||
| 52119-1E500B5 |
AE11#,CE11#,EE111 CRYSTAL SILVER PEARL,1C1 |
1 | ||
| 52119-1E500J0 |
AE11#,CE11#,EE111 DK.BLUE M.M.,8L2 |
1 | ||
| 52119-1E500B1 |
AE11#,CE11#,EE111 SILVER ME,199 |
1 | ||
| 52119-1E330 |
AE11#,CE11#,EE111 |
1 | ||
| 52119-1E500A0 |
AE11#,CE11#,EE111 SUPER WHITE 2,040 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-12180 |
AE11#,CE11#,EE111 |
1 | ||
| 52143B - BRACKET, FRONT BUMPER SIDE | ||||
| 52143-12340 |
AE11#,CE11#,EE111 |
2 | ||
| 52143-12340 |
AE11#,CE11#,EE111 |
2 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-16080 |
AE11#,CE11#,EE111 |
2 | ||
| 52147-16080 |
AE11#,CE11#,EE111 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-12010 |
AE11#,CE11#,EE111 |
2 | ||
| 53879-12010 |
AE11#,CE11#,EE111 |
2 | ||
| Common parts | ||||
| 90105-08132 | ||||
| 90119-06768 | ||||
| 90159-60431 | ||||
| 90159-60500 | ||||
| 90179-06127 | ||||
| 90179-08246 | ||||
| 90189-06065 | ||||
| 90467-09093 | ||||
| 91626-A0616 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 8101 | ||||
