AE110-AEPEK (1995)
Toyota Corolla

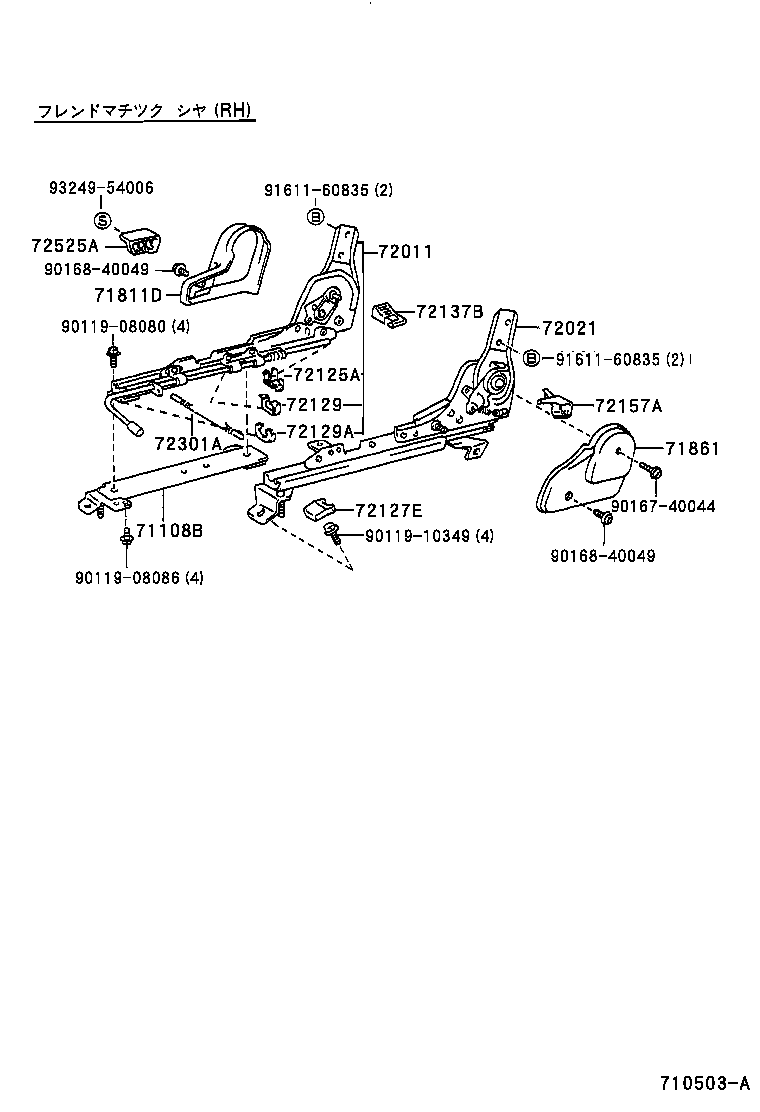

ILLUST NO. 2 OF 2(9505- )AE114..4FC..SESAL ; (9505- )AE110..4FC..LX,SESAL,XESAL
ﾌﾚﾝﾄﾞﾏﾁｯｸｼｬ(ﾗｲﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-12010 |
AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
1 | ||
| 71108-12010 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71108-12010 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280E0 |
AE110,114,CE11#..SESAL ｼ-ﾄ = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71811-12410B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280P0 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM16 |
1 | ||
| 71811-16230B7 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410E1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SABLE,TRIM4# |
1 | ||
| 71811-16230B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B5 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71861-12220P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 71861-12270B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE110,114..4FC..SESAL OAK,TRIM4# |
1 | ||
| 71861-12220E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 71861-20130B6 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71861-20130B6 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12280 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12260 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 72010-12600 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12230 |
AE110,111,CE110,113..GT,SESAL |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72125-10010 |
EE111..4F;AE114,CE110,114;EE111..3FC..(DX,LX);AE110,111..DX,GT,LX,SESAL |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
AE11#,CE11#,EE111 |
4 | ||
| 72129-12010 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20020 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72129-20020 |
AE11#,CE11#,EE111 |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72137-12070C0 |
EE111..3FC..XESAL;AE110,114..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72157-12030C0 |
EE111..3FC..XESAL;AE110..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12230 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72301-12230 |
AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
1 | ||
| 72301-12090 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72301-12230 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090E1 |
AE110..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-16010B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 72525-12100E2 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 72525-12090E1 |
AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-12100P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 72525-16010B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-16010B9 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08086 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 91611-60835 | ||||
| 93249-54006 | ||||
ILLUST NO. 1 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12450 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 71011-20430 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12440 |
AE11#,CE11#,EE111 |
1 | ||
| 71011-20440 |
AE11#,CE11#,EE111 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-12500 |
AE11#,CE11#,EE111 |
1 | ||
| 71013-12631 |
AE11#,CE11#,EE111 |
1 | ||
| 71013-12630 |
AE11#,CE11#,EE111 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-12630 |
AE11#,CE11#,EE111 |
1 | ||
| 71013-12631 |
AE11#,CE11#,EE111 |
1 | ||
| 71014-12410 |
AE11#,CE11#,EE111 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1L160B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E840B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L020B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L160E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71071-1L170E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71072-1E840E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71071-1L620B1 |
AE110,114..SESAL MD.GRAY,TRIM1# |
1 | ||
| 71071-1L020E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71072-1E840B8 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. GRAY,TRIM1# |
1 | ||
| 71072-1E840P0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71072-1E840B7 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. GRAY,TRIM1# |
1 | ||
| 71071-1N040E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71072-1E840P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1L620B3 |
AE110,114,CE113,116..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1N200E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71072-1E840P0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1L620K0 |
AE110,114,CE11#..SESAL MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-1N200E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1E710B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E850B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H450B1 |
AE110,114,CE11#..SESAL L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71072-1E710E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71072-1E850E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71072-1H070E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71072-1H700E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71072-1H450B5 |
AE110,114..4FC..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71072-1H450B5 |
AE110,114..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71072-1H850E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71072-1H850E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K720E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71073-1K350E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71073-1K350B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K720B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K840E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71073-1L210B1 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
1 | ||
| 71073-1L211B2 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71073-1L211B2 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71073-1L210B2 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71073-1L820E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71073-1L820E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71073-1L120E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71073-1L211B1 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H440B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H660B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H660E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71074-1H440E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71074-1H800E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71074-1K150B1 |
AE110,114,CE11#..SESAL L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71074-1K151B1 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
1 | ||
| 71074-1K540E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71074-1K150B4 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71074-1K040E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71074-1K540E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71074-1K151B4 |
AE110,114..4FC..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1L170B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L010B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L010E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71410-1L170E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71410-1L240E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71410-1L171B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71410-1L171B5 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71410-1N440E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71410-1N280E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71410-1N440E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71410-1L171B5 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1E700B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E700E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71420-1H030E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71420-1H030B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H200E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71420-1H032B7 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-1H031B3 |
AE110,114,CE11#..SESAL ***,L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71420-1K220E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71420-1K070E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71420-1H031B7 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71420-1K220E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K750B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K570E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71430-1K570B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K750E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71430-1L260E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71430-1K752B4 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71430-1K751B4 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71430-1K752B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71040-12660E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71040-12200E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71040-12660E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71430-1K751B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71430-1K752B4 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K510B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K510E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71440-1L060E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71440-1L060B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71070-12070B0 |
AE110,114..4FC..SESAL ***,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71440-1L190E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71070-12070B1 |
AE110,114..4FC..SESAL ***,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71440-1L061B3 |
AE110,114,CE11#..SESAL ***,L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71440-1L061B6 |
AE110,114,CE11#..SESAL ***,L ｾﾚｸｼﾖﾝ-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71070-12130E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71070-12140E0 |
AE110,114..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P) & L ｾﾚｸｼﾖﾝ,QUARTZ,TRIM14 |
1 | ||
| 71440-1L062B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71440-1L062B6 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71070-12490E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71070-12071B1 |
AE110,114..4FC..SESAL ***,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-12490E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71440-1L062B6 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12860 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 71511-12850 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-12850 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-12850 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-1A060 |
AE110,114,CE11#..SESAL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12860 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 71052-12050 |
AE110,114,CE11#..SESAL |
1 | ||
| 71511-1A050 |
AE110,114,CE11#..SESAL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12580 |
AE11#,CE11#,EE111 |
1 | ||
| 71551-12610 |
AE110,114,CE11#,EE111 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-12150 |
AE11#,CE11#,EE111 |
1 | ||
| 71551-12610 |
AE110,114,CE11#,EE111 |
1 | ||
| 71552-12210 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A600E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DEEP BLUE,TRIM4# |
1 | ||
| 71910-1A510B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM16 |
2 | ||
| 71910-1A600B0 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71910-1A600B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71910-1A600E0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DEEP BLUE,TRIM4# |
1 | ||
| 71910-1A510B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM16 |
1 | ||
| 71910-1A510E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM46 |
1 | ||
| 71910-1A700B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A510E0 |
AE110,114,CE11#..SESAL OAK,TRIM46 |
2 | ||
| 71910-1A601B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-1A601B1 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-1A770E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
2 | ||
| 71910-1E150B1 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,ME. GRAY,TRIM1# |
1 | ||
| 71910-1A700E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
2 | ||
| 71910-1E150B1 |
AE110,CE110..SESAL ME. GRAY,TRIM11 |
2 | ||
| 71910-1E150B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,ME. CHARCOAL,TRIM1# |
1 | ||
| 71910-1E070E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
2 | ||
| 71910-1E010E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
2 | ||
| 71910-1E070E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
2 | ||
| 71910-1A601B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-1E150B0 |
AE110,114,CE113,116..SESAL ME. CHARCOAL,TRIM10,14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070L2 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020B0 |
AE110..5F..XESAL;AE110..DX,LX,SESAL;AE111,114,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71930-12070B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-12040L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-12040L2 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-12040B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71930-44010B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-32020B0 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-12070B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-44010B2 |
AE110,114,CE11#,EE111 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,CE11#,EE111 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070L2 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020B0 |
AE110..5F..XESAL;AE110..DX,LX,SESAL;AE111,114,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71930-12070B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-12040L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-12040L2 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-12040B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71930-44010B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-32020B0 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-12070B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-44010B2 |
AE110,114,CE11#,EE111 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,CE11#,EE111 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
ILLUST NO. 2 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280E0 |
AE110,114,CE11#..SESAL ｼ-ﾄ = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71811-12410B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280P0 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM16 |
1 | ||
| 71811-16230B7 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410E1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SABLE,TRIM4# |
1 | ||
| 71811-16230B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280E0 |
AE110,114,CE11#..SESAL ｼ-ﾄ = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71811-12410B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280P0 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM16 |
1 | ||
| 71811-16230B7 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410E1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SABLE,TRIM4# |
1 | ||
| 71811-16230B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12260E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71812-12260E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71812-12220E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
1 | ||
| 71812-12260B0 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16200B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.GRAY,TRIM1# |
1 | ||
| 71812-16190B7 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL);CE11#,EE111..(4F,4FC,5F)..(SESAL,XESAL) MD.GRAY,TRIM11 |
1 | ||
| 71812-16190B8 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-16190B8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL);CE11#,EE111..(4F,4FC,5F)..(SESAL,XESAL) MD.CHARCOAL,TRIM14 |
1 | ||
| 71812-16200B3 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-16200B3 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-12220P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B5 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71861-12220P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 71861-12270B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE110,114..4FC..SESAL OAK,TRIM4# |
1 | ||
| 71861-12220E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 71861-20130B6 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71861-20130B6 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B5 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71861-12220P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 71861-12270B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE110,114..4FC..SESAL OAK,TRIM4# |
1 | ||
| 71861-12220E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 71861-20130B6 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71861-20130B6 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
1 | ||
| 71862-20130B6 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71862-20130B6 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-20130B5 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12280 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12260 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 72010-12600 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12280 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12260 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 72010-12600 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12580 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72020-12570 |
AE11#,CE11#,EE111 |
1 | ||
| 72012-12210 |
AE11#,CE11#,EE111 |
1 | ||
| 72012-12290 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72020-12580 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12230 |
AE110,111,CE110,113..GT,SESAL |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12230 |
AE110,111,CE110,113..GT,SESAL |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72021-12320 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-12290 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72022-12270 |
AE110,111,CE110,113,EE111 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72125-10010 |
EE111..4F;AE114,CE110,114;EE111..3FC..(DX,LX);AE110,111..DX,GT,LX,SESAL |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72125-10010 |
EE111..4F;AE114,CE110,114;EE111..3FC..(DX,LX);AE110,111..DX,GT,LX,SESAL |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
AE11#,CE11#,EE111 |
4 | ||
| 72129-12010 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
AE11#,CE11#,EE111 |
4 | ||
| 72129-12010 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20020 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72129-20020 |
AE11#,CE11#,EE111 |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20020 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72129-20020 |
AE11#,CE11#,EE111 |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72137-12070C0 |
EE111..3FC..XESAL;AE110,114..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72137-12070C0 |
EE111..3FC..XESAL;AE110,114..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72138-12080C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72138-12080C0 |
EE111..3FC..XESAL;AE110,114..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72157-12030C0 |
EE111..3FC..XESAL;AE110..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72157-12030C0 |
EE111..3FC..XESAL;AE110..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72158-12030C0 |
AE110..5F..XESAL;CE110,EE111..XESAL;AE110..4FC..(SESAL,XESAL) BLACK,TRIM11,14 |
1 | ||
| 72158-12030C0 |
AE110..5F..XESAL;AE110,EE111..ATM..(SESAL,XESAL) BLACK,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-12030 |
AE11#,CE11#,EE111 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-12030 |
AE11#,CE11#,EE111 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-12030 |
AE11#,CE11#,EE111 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010P2 |
AE110,114..SESAL MD.GRAY,TRIM1# |
1 | ||
| 72457-22020B1 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010P0 |
AE110,114,CE113,116..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 72457-22020E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-12040 |
AE11#,CE11#,EE111 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090E1 |
AE110..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-16010B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 72525-12100E2 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 72525-12090E1 |
AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-12100P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 72525-16010B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-16010B9 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090E1 |
AE110..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-16010B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 72525-12100E2 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 72525-12090E1 |
AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-12100P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 72525-16010B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-16010B9 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010B9 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72526-16010B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 72526-12040E2 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
1 | ||
| 72526-16010B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90507-18014 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
(9505- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 1 OF 2(9505-9704)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12450 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 71011-20430 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12440 |
AE11#,CE11#,EE111 |
1 | ||
| 71011-20440 |
AE11#,CE11#,EE111 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-12500 |
AE11#,CE11#,EE111 |
1 | ||
| 71013-12631 |
AE11#,CE11#,EE111 |
1 | ||
| 71013-12630 |
AE11#,CE11#,EE111 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-12630 |
AE11#,CE11#,EE111 |
1 | ||
| 71013-12631 |
AE11#,CE11#,EE111 |
1 | ||
| 71014-12410 |
AE11#,CE11#,EE111 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1L160B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E840B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L020B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L160E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71071-1L170E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71072-1E840E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71071-1L620B1 |
AE110,114..SESAL MD.GRAY,TRIM1# |
1 | ||
| 71071-1L020E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71072-1E840B8 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. GRAY,TRIM1# |
1 | ||
| 71072-1E840P0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71072-1E840B7 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. GRAY,TRIM1# |
1 | ||
| 71071-1N040E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71072-1E840P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1L620B3 |
AE110,114,CE113,116..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1N200E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71072-1E840P0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1L620K0 |
AE110,114,CE11#..SESAL MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-1N200E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1E710B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E850B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H450B1 |
AE110,114,CE11#..SESAL L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71072-1E710E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71072-1E850E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71072-1H070E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71072-1H700E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71072-1H450B5 |
AE110,114..4FC..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71072-1H450B5 |
AE110,114..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71072-1H850E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71072-1H850E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K720E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71073-1K350E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71073-1K350B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K720B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K840E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71073-1L210B1 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
1 | ||
| 71073-1L211B2 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71073-1L211B2 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71073-1L210B2 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71073-1L820E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71073-1L820E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71073-1L120E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71073-1L211B1 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H440B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H660B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H660E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71074-1H440E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71074-1H800E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71074-1K150B1 |
AE110,114,CE11#..SESAL L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71074-1K151B1 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
1 | ||
| 71074-1K540E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71074-1K150B4 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71074-1K040E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71074-1K540E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71074-1K151B4 |
AE110,114..4FC..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1L170B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L010B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1L010E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71410-1L170E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71410-1L240E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71410-1L171B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71410-1L171B5 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71410-1N440E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71410-1N280E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71410-1N440E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71410-1L171B5 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1E700B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E700E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71420-1H030E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71420-1H030B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1H200E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71420-1H032B7 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71420-1H031B3 |
AE110,114,CE11#..SESAL ***,L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71420-1K220E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71420-1K070E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71420-1H031B7 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71420-1K220E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K750B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K570E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71430-1K570B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K750E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71430-1L260E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71430-1K752B4 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71430-1K751B4 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71430-1K752B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71040-12660E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71040-12200E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71040-12660E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71430-1K751B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71430-1K752B4 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K510B0 |
AE110,114,CE11#..SESAL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K510E0 |
AE110,114,CE11#..SESAL ***,OAK,TRIM4# |
1 | ||
| 71440-1L060E0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71440-1L060B0 |
AE110,114,CE11#..SESAL ***,G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71070-12070B0 |
AE110,114..4FC..SESAL ***,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71440-1L190E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71070-12070B1 |
AE110,114..4FC..SESAL ***,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71440-1L061B3 |
AE110,114,CE11#..SESAL ***,L ｾﾚｸｼﾖﾝ-*104,MD.GRAY,TRIM11 |
1 | ||
| 71440-1L061B6 |
AE110,114,CE11#..SESAL ***,L ｾﾚｸｼﾖﾝ-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71070-12130E0 |
AE110,114,CE11#..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71070-12140E0 |
AE110,114..SESAL ***,L ﾘﾐﾃﾂﾄﾞ *(P) & L ｾﾚｸｼﾖﾝ,QUARTZ,TRIM14 |
1 | ||
| 71440-1L062B3 |
AE110,114,CE11#..SESAL ***,MD.GRAY,TRIM11 |
1 | ||
| 71440-1L062B6 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM14 |
1 | ||
| 71070-12490E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71070-12071B1 |
AE110,114..4FC..SESAL ***,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-12490E0 |
AE110,114,CE11#..SESAL ***,ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71440-1L062B6 |
AE110,114,CE11#..SESAL ***,MD.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12860 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 71511-12850 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-12850 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-12850 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-1A060 |
AE110,114,CE11#..SESAL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12860 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 71052-12050 |
AE110,114,CE11#..SESAL |
1 | ||
| 71511-1A050 |
AE110,114,CE11#..SESAL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12580 |
AE11#,CE11#,EE111 |
1 | ||
| 71551-12610 |
AE110,114,CE11#,EE111 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-12150 |
AE11#,CE11#,EE111 |
1 | ||
| 71551-12610 |
AE110,114,CE11#,EE111 |
1 | ||
| 71552-12210 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AE11#,CE11#,EE111 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AE11#,CE11#,EE111 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A600E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DEEP BLUE,TRIM4# |
1 | ||
| 71910-1A510B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM16 |
2 | ||
| 71910-1A600B0 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71910-1A600B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71910-1A600E0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DEEP BLUE,TRIM4# |
1 | ||
| 71910-1A510B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM16 |
1 | ||
| 71910-1A510E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM46 |
1 | ||
| 71910-1A700B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A510E0 |
AE110,114,CE11#..SESAL OAK,TRIM46 |
2 | ||
| 71910-1A601B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-1A601B1 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-1A770E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
2 | ||
| 71910-1E150B1 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,ME. GRAY,TRIM1# |
1 | ||
| 71910-1A700E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
2 | ||
| 71910-1E150B1 |
AE110,CE110..SESAL ME. GRAY,TRIM11 |
2 | ||
| 71910-1E150B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,ME. CHARCOAL,TRIM1# |
1 | ||
| 71910-1E070E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
2 | ||
| 71910-1E010E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
2 | ||
| 71910-1E070E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
2 | ||
| 71910-1A601B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-1E150B0 |
AE110,114,CE113,116..SESAL ME. CHARCOAL,TRIM10,14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070L2 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020B0 |
AE110..5F..XESAL;AE110..DX,LX,SESAL;AE111,114,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71930-12070B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-12040L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-12040L2 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-12040B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71930-44010B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-32020B0 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-12070B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-44010B2 |
AE110,114,CE11#,EE111 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,CE11#,EE111 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070L2 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020B0 |
AE110..5F..XESAL;AE110..DX,LX,SESAL;AE111,114,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71930-12070B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-12040L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-12040L2 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-12040B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71930-44010B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-32020B0 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-12070B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-44010B2 |
AE110,114,CE11#,EE111 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,CE11#,EE111 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
ILLUST NO. 1 OF 2(9505- )AE114..4FC..SESAL ; (9505- )AE110..4FC..LX,SESAL,XESAL
ﾌﾚﾝﾄﾞﾏﾁｯｸｼｬ(ﾗｲﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1L160B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1E840B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L020B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1L160E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71071-1L170E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 71072-1E840E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71071-1L620B1 |
AE110,114..SESAL MD.GRAY,TRIM1# |
1 | ||
| 71071-1L020E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 71072-1E840B8 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. GRAY,TRIM1# |
1 | ||
| 71072-1E840P0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71072-1E840B7 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. GRAY,TRIM1# |
1 | ||
| 71071-1N040E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
1 | ||
| 71072-1E840P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1L620B3 |
AE110,114,CE113,116..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1N200E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
1 | ||
| 71072-1E840P0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71071-1L620K0 |
AE110,114,CE11#..SESAL MIDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-1N200E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
1 | ||
| 71107A - HOLDER SUB-ASSY, FRONT SEAT ARMREST, RH | ||||
| 71107-12010 |
AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
1 | ||
| 71107-12010 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71107-12010 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12860 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 71511-12850 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-12850 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-12850 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 71511-1A060 |
AE110,114,CE11#..SESAL |
1 | ||
| 71570 - CUSHION ASSY, SIDE SEAT, FRONT | ||||
| 71570-12020B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71570-12021P0 |
AE110,114..4FC..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71570-12021B8 |
AE110,114..4FC..SESAL MD.GRAY,TRIM1# |
1 | ||
| 71570-12021B7 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) MD.GRAY,TRIM1# |
1 | ||
| 71570-12020E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71570-12021P0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) MD.CHARCOAL,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A600E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DEEP BLUE,TRIM4# |
1 | ||
| 71910-1A510B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM16 |
2 | ||
| 71910-1A600B0 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71910-1A600B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71910-1A600E0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DEEP BLUE,TRIM4# |
1 | ||
| 71910-1A510B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM16 |
1 | ||
| 71910-1A510E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM46 |
1 | ||
| 71910-1A700B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A510E0 |
AE110,114,CE11#..SESAL OAK,TRIM46 |
2 | ||
| 71910-1A601B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.GRAY,TRIM1# |
1 | ||
| 71910-1A601B1 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-1A770E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
2 | ||
| 71910-1E150B1 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,ME. GRAY,TRIM1# |
1 | ||
| 71910-1A700E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
2 | ||
| 71910-1E150B1 |
AE110,CE110..SESAL ME. GRAY,TRIM11 |
2 | ||
| 71910-1E150B0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,ME. CHARCOAL,TRIM1# |
1 | ||
| 71910-1E070E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(R),MD. CHARCOAL,TRIM14 |
2 | ||
| 71910-1E010E0 |
AE110,114,CE11#..SESAL L ﾘﾐﾃﾂﾄﾞ *(P),QUARTZ,TRIM14 |
2 | ||
| 71910-1E070E0 |
AE110,114,CE11#..SESAL ﾘﾋﾞｴ-ﾙ *(Z),MD. CHARCOAL,TRIM14 |
2 | ||
| 71910-1A601B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-1E150B0 |
AE110,114,CE113,116..SESAL ME. CHARCOAL,TRIM10,14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070L2 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020B0 |
AE110..5F..XESAL;AE110..DX,LX,SESAL;AE111,114,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71930-12070B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-12040L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-12040L2 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-12040B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71930-44010B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-32020B0 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-12070B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-44010B2 |
AE110,114,CE11#,EE111 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,CE11#,EE111 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070L2 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020B0 |
AE110..5F..XESAL;AE110..DX,LX,SESAL;AE111,114,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71930-12070B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71931-12040L2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71930-32020E0 |
AE110,114..4FC..SESAL ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-12040L2 |
AE110,114..4FC..SESAL ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,右側 |
1 | ||
| 71931-12040B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020E0 |
AE110,114,CE11#,EE111..SESAL,XESAL ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-32020B0 |
AE11#,CE11#,EE111 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B0 |
AE110,114..4FC..(LX,SESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71931-12040B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71930-44010B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-32020B0 |
AE11#;EE111..3FC..XESAL;CE11#,EE111..DX,LX ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71930-12070P8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD. CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-44010B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71930-12070B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,EE111..(3FC,4FC,5F)..(SESAL,XESAL) ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-32020E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4#,左側 |
1 | ||
| 71931-32020P2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,DK.CHARCOAL,TRIM1# |
1 | ||
| 71930-44010B2 |
AE110,114,CE11#,EE111 ﾛｯｸ付,DK.CHARCOAL,TRIM1# |
2 | ||
| 71931-12040P9 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 71931-32020P2 |
AE110,114,CE11#,EE111 ﾛｯｸ無,DK.CHARCOAL,TRIM1# |
2 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-20040P0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 72658-20040E2 |
AE110,114..4FC..SESAL OAK,TRIM4# |
1 | ||
| 72658-2301023 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1# |
1 | ||
| 72658-2301023 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM1# |
1 | ||
| 72658-2301023 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,GRAY,TRIM11,14 |
1 | ||
| 72658-20040P0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72658-20040E2 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08497 | ||||
ILLUST NO. 2 OF 2(9505-9704)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280E0 |
AE110,114,CE11#..SESAL ｼ-ﾄ = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71811-12410B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280P0 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM16 |
1 | ||
| 71811-16230B7 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410E1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SABLE,TRIM4# |
1 | ||
| 71811-16230B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280E0 |
AE110,114,CE11#..SESAL ｼ-ﾄ = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71811-12410B1 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280P0 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM16 |
1 | ||
| 71811-16230B7 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410E1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SABLE,TRIM4# |
1 | ||
| 71811-16230B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71811-12410B1 |
AE110,114..4FC..SESAL ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12260E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71812-12260E0 |
AE110,114..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 71812-12220E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
1 | ||
| 71812-12260B0 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16200B2 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.GRAY,TRIM1# |
1 | ||
| 71812-16190B7 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL);CE11#,EE111..(4F,4FC,5F)..(SESAL,XESAL) MD.GRAY,TRIM11 |
1 | ||
| 71812-16190B8 |
AE110,114,CE11#,EE111 MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-16190B8 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL);CE11#,EE111..(4F,4FC,5F)..(SESAL,XESAL) MD.CHARCOAL,TRIM14 |
1 | ||
| 71812-16200B3 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-16200B3 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71812-12220P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B5 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71861-12220P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 71861-12270B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE110,114..4FC..SESAL OAK,TRIM4# |
1 | ||
| 71861-12220E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 71861-20130B6 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71861-20130B6 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B5 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 71861-12220P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE114..4FC..SESAL;AE110..4FC..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 71861-12270B0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270E0 |
AE110,114..4FC..SESAL OAK,TRIM4# |
1 | ||
| 71861-12220E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 71861-20130B6 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71861-20130B6 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-12270B0 |
AE110,114..4FC..(LX,SESAL) SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
1 | ||
| 71862-20130B6 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 71862-20130B6 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 71862-20130B5 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12280 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12260 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 72010-12600 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12280 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72011-12260 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 72010-12600 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72011-12280 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12580 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72020-12570 |
AE11#,CE11#,EE111 |
1 | ||
| 72012-12210 |
AE11#,CE11#,EE111 |
1 | ||
| 72012-12290 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72020-12580 |
AE110,114..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12650 |
AE110,111,CE110..SCRU,SESAL |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12650 |
AE110,111,CE110..SCRU,SESAL |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72137-12070C0 |
EE111..3FC..XESAL;AE110,114..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72137-12070C0 |
EE111..3FC..XESAL;AE110,114..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72138-12080C0 |
AE110,114,CE11#,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72138-12080C0 |
EE111..3FC..XESAL;AE110,114..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12510 |
AE110..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
1 | ||
| 72140-12510 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72140-12490 |
AE110,111,CE110,EE111 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72157-12030C0 |
EE111..3FC..XESAL;AE110..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM11,14 |
1 | ||
| 72157-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72157-12030C0 |
EE111..3FC..XESAL;AE110..SESAL,XESAL BLACK,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12030C0 |
AE110,CE110,EE111..SESAL,XESAL BLACK,TRIM1#,4# |
1 | ||
| 72158-12030C0 |
AE110..5F..XESAL;CE110,EE111..XESAL;AE110..4FC..(SESAL,XESAL) BLACK,TRIM11,14 |
1 | ||
| 72158-12030C0 |
AE110..5F..XESAL;AE110,EE111..ATM..(SESAL,XESAL) BLACK,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12230 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72301-12230 |
AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
1 | ||
| 72301-12090 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72301-12230 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12230 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72301-12230 |
AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
1 | ||
| 72301-12090 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 72301-12230 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12140 |
AE110,114..4FC..(LX,SESAL) ﾊﾝﾃﾞｲ ｷﾔﾌﾞ-*104 |
1 | ||
| 72301-12160 |
AE11#,CE11#,EE111 |
1 | ||
| 72301-12140 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010P2 |
AE110,114..SESAL MD.GRAY,TRIM1# |
1 | ||
| 72457-22020B1 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010P0 |
AE110,114,CE113,116..SESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 72457-22020E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090E1 |
AE110..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-16010B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 72525-12100E2 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 72525-12090E1 |
AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-12100P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 72525-16010B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-16010B9 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090E1 |
AE110..4FC..SESAL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-16010B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 72525-12100E2 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM46 |
1 | ||
| 72525-12090E1 |
AE110..4FC..(SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,OAK,TRIM4# |
1 | ||
| 72525-12100P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM16 |
1 | ||
| 72525-16010B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-16010B9 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE114..4FC..SESAL;AE110..4FC..(LX,SESAL,XESAL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010B9 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
1 | ||
| 72526-16010B8 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 72526-12040E2 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
1 | ||
| 72526-16010B8 |
EE111..3FC..XESAL;CE11#,EE111..4FC,5F;AE110,114..SESAL,XESAL MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90386-12046 | ||||
| 91511-60814 | ||||
| 91511-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
