AE110-AEPEK (1995)
Toyota Corolla
(9505- )AE110,111..4FC
A240L,A245E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-12040 |
AE110,111..4FC 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 33481-12040 |
AE110,111..4FC 歯数=35,ﾏｰｸ 35X29−31 |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12012 |
AE110..4FC |
1 | ||
| 35105-12012 |
AE110..4FC |
1 | ||
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
AE11#,CE110..4FC |
1 | ||
| 90210-13002 |
AE11#,CE110,113..4FC |
1 | ||
| 35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING) | ||||
| 90341-08001 |
AE11#,CE110..4FC |
1 | ||
| 90341-08001 |
AE11#,CE110..4FC |
1 | ||
| 35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2) | ||||
| 90301-06196 |
AE11#,CE110..4FC |
1 | ||
| 90301-06196 |
AE11#,CE110..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41206-12010 |
AE110..4FC |
1 | ||
| 41206-12010 |
AE110..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30020 |
AE110,111..4FC |
1 | ||
| 90366-30020 |
AE110,111..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30019 |
AE110,111..4FC |
1 | ||
| 90366-30019 |
AE110,111..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-12190 |
AE110..4FC |
1 | ||
| 41221-12310 |
AE110,EE111..3FC,4F,5F |
1 | ||
| 41221-12310 |
AE110,EE111..3FC,4F,5F |
1 | ||
| 41221-12190 |
AE110..4FC |
1 | ||
| 41221-12160 |
AE110,EE111..3FC,4F,5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AE110,111,CE110,EE111..ATM |
8 | ||
| 90101-11353 |
AE110,111,CE110,113,EE111..ATM |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12050 |
AE110,111,EE111..ATM |
4 | ||
| 41222-12050 |
AE110,111,EE111..ATM |
4 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12030 |
AE110,111..4FC |
1 | ||
| 41231-12030 |
AE110,111..4FC |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-17021 |
AE110..4FC |
1 | ||
| 41301-17021 |
AE110..4FC |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90368-38002 |
AE110,EE111..ATM |
1 | ||
| 90368-38002 |
AE110..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
AE111..5F;AE110,EE111..4F,4FC,5F |
1 | ||
| 90368-38010 |
AE111..6F;AE110,EE111..4F,4FC,5F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90201-41010 |
AE110,EE111..ATM 厚さ=2.00 |
1 | ||
| 90201-41012 |
AE110,111,EE111..3FC,4F,5F 厚さ=2.10 |
1 | ||
| 90201-41012 |
AE110,111,EE111..3FC,4F,5F,6F 厚さ=2.10 |
1 | ||
| 90201-41010 |
AE110,EE111..ATM 厚さ=2.00 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-41024 |
AE110,111..4FC 厚さ=2.00,ﾏｰｸ V |
1 | ||
| 90201-41025 |
AE110,111..4FC 厚さ=2.35,ﾏｰｸ A |
1 | ||
| 90201-41029 |
AE110,111..4FC 厚さ=2.55,ﾏｰｸ E |
1 | ||
| 90201-41030 |
AE110,111..4FC 厚さ=2.60,ﾏｰｸ F |
1 | ||
| 90201-41028 |
AE110,111..4FC 厚さ=2.50,ﾏｰｸ D |
1 | ||
| 90201-41034 |
AE110,111..4FC 厚さ=2.80,ﾏｰｸ K |
1 | ||
| 90201-41031 |
AE110,111..4FC 厚さ=2.65,ﾏｰｸ G |
1 | ||
| 90201-41026 |
AE110,111..4FC 厚さ=2.40,ﾏｰｸ B |
1 | ||
| 90201-41027 |
AE110,111..4FC 厚さ=2.45,ﾏｰｸ C |
1 | ||
| 90201-41036 |
AE110,111..4FC 厚さ=2.90,ﾏｰｸ M |
1 | ||
| 90201-41042 |
AE110,111..4FC 厚さ=2.25,ﾏｰｸ T |
1 | ||
| 90201-41043 |
AE110,111..4FC 厚さ=2.30,ﾏｰｸ U |
1 | ||
| 90201-41041 |
AE110,111..4FC 厚さ=2.20,ﾏｰｸ S |
1 | ||
| 90201-41044 |
AE110,111..4FC 厚さ=2.05,ﾏｰｸ W |
1 | ||
| 90201-41035 |
AE110,111..4FC 厚さ=2.85,ﾏｰｸ L |
1 | ||
| 90201-41039 |
AE110,111..4FC 厚さ=2.10,ﾏｰｸ Q |
1 | ||
| 90201-41033 |
AE110,111..4FC 厚さ=2.75,ﾏｰｸ J |
1 | ||
| 90201-41032 |
AE110,111..4FC 厚さ=2.70,ﾏｰｸ H |
1 | ||
| 90201-41040 |
AE110,111..4FC 厚さ=2.15,ﾏｰｸ R |
1 | ||
| 90201-41024 |
AE110,111..4FC 厚さ=2.00,ﾏｰｸ V |
1 | ||
| 90201-41025 |
AE110,111..4FC 厚さ=2.35,ﾏｰｸ A |
1 | ||
| 90201-41034 |
AE110,111..4FC 厚さ=2.80,ﾏｰｸ K |
1 | ||
| 90201-41036 |
AE110,111..4FC 厚さ=2.90,ﾏｰｸ M |
1 | ||
| 90201-41026 |
AE110,111..4FC 厚さ=2.40,ﾏｰｸ B |
1 | ||
| 90201-41028 |
AE110,111..4FC 厚さ=2.50,ﾏｰｸ D |
1 | ||
| 90201-41035 |
AE110,111..4FC 厚さ=2.85,ﾏｰｸ L |
1 | ||
| 90201-41030 |
AE110,111..4FC 厚さ=2.60,ﾏｰｸ F |
1 | ||
| 90201-41039 |
AE110,111..4FC 厚さ=2.10,ﾏｰｸ Q |
1 | ||
| 90201-41032 |
AE110,111..4FC 厚さ=2.70,ﾏｰｸ H |
1 | ||
| 90201-41033 |
AE110,111..4FC 厚さ=2.75,ﾏｰｸ J |
1 | ||
| 90201-41029 |
AE110,111..4FC 厚さ=2.55,ﾏｰｸ E |
1 | ||
| 90201-41027 |
AE110,111..4FC 厚さ=2.45,ﾏｰｸ C |
1 | ||
| 90201-41041 |
AE110,111..4FC 厚さ=2.20,ﾏｰｸ S |
1 | ||
| 90201-41043 |
AE110,111..4FC 厚さ=2.30,ﾏｰｸ U |
1 | ||
| 90201-41040 |
AE110,111..4FC 厚さ=2.15,ﾏｰｸ R |
1 | ||
| 90201-41042 |
AE110,111..4FC 厚さ=2.25,ﾏｰｸ T |
1 | ||
| 90201-41044 |
AE110,111..4FC 厚さ=2.05,ﾏｰｸ W |
1 | ||
| 90201-41031 |
AE110,111..4FC 厚さ=2.65,ﾏｰｸ G |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
AE110,111,EE111 |
2 | ||
| 41331-12011 |
AE110,111,EE111 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
AE110,111,EE111 |
2 | ||
| 41341-12030 |
AE110,111,EE111 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
AE110,111,CE110,113,EE111 |
1 | ||
| 90250-06058 |
AE110,111,CE110,EE111 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-12140 |
AE111..6F;AE110,EE111 |
1 | ||
| 41342-12140 |
AE111..5F;AE110,EE111 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
AE110,111,EE111 |
2 | ||
| 41351-12020 |
AE110,111,EE111 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17040 |
AE110,111,CE110..4FC 厚さ=1.10 |
2 | ||
| 41361-17020 |
AE110,111,CE110..4FC 厚さ=1.00 |
2 | ||
| 41361-17010 |
AE110,111,CE110..4FC 厚さ=0.95 |
2 | ||
| 41361-17050 |
AE110,111,CE110..4FC 厚さ=1.15 |
2 | ||
| 41361-17010 |
AE110,111,CE110..4FC 厚さ=0.95 |
2 | ||
| 41361-17060 |
AE110,111,CE110..4FC 厚さ=1.20 |
2 | ||
| 41361-17020 |
AE110,111,CE110..4FC 厚さ=1.00 |
2 | ||
| 41361-17040 |
AE110,111,CE110..4FC 厚さ=1.10 |
2 | ||
| 41361-22140 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22020 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22040 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-17030 |
AE110,111,CE110..4FC 厚さ=1.05 |
2 | ||
| 41361-22150 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22160 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22020 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-17060 |
AE110,111,CE110..4FC 厚さ=1.20 |
2 | ||
| 41361-22040 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22140 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-17030 |
AE110,111,CE110..4FC 厚さ=1.05 |
2 | ||
| 41361-22030 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-22160 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22150 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-17050 |
AE110,111,CE110..4FC 厚さ=1.15 |
2 | ||
| 41361-22030 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-17020 |
AE110,111,CE110,113,EE111..ATM 厚さ=1.00 |
2 | ||
| 41361-17040 |
AE110,111,CE110,113,EE111..ATM 厚さ=1.10 |
2 | ||
| 41361-17060 |
AE110,111,CE110,113,EE111..ATM 厚さ=1.20 |
2 | ||
| 41361-17010 |
AE110,111,CE110,113,EE111..ATM 厚さ=0.95 |
2 | ||
| 41361-17030 |
AE110,111,CE110,113,EE111..ATM 厚さ=1.05 |
2 | ||
| 41361-17050 |
AE110,111,CE110,113,EE111..ATM 厚さ=1.15 |
2 | ||

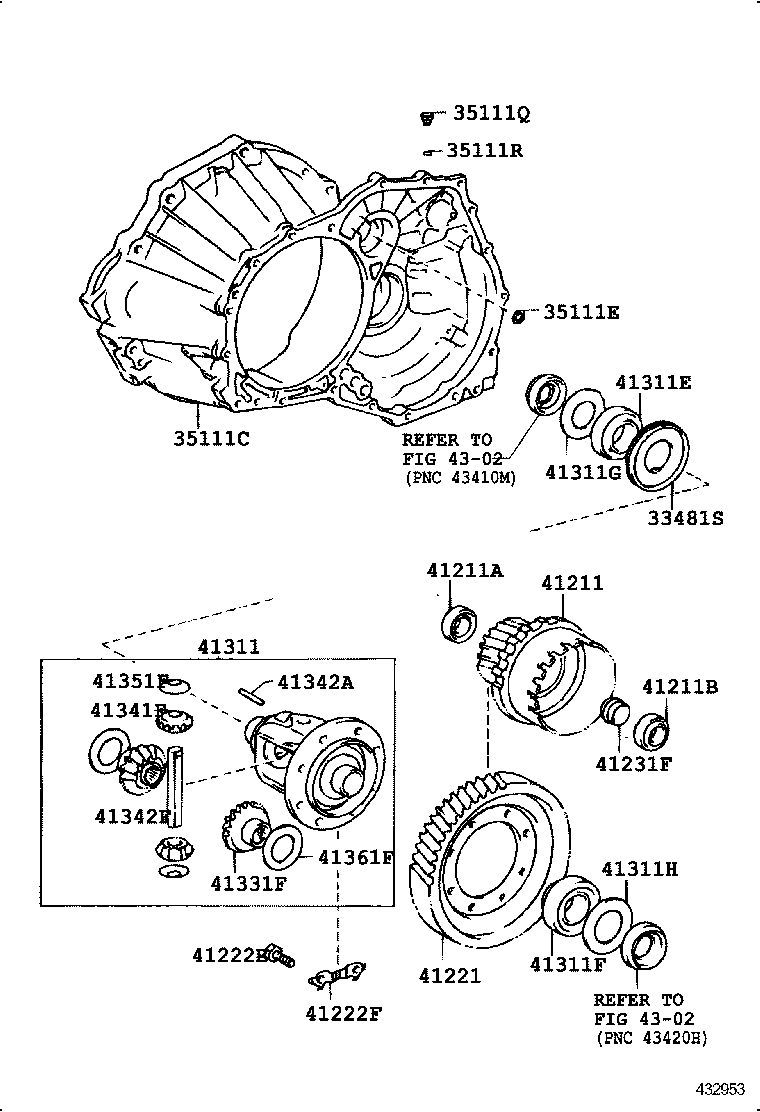

| Linked diagrams | ||||
| 4302 | ||||
