AE110-AEPDK (1995)

Toyota Corolla

Production May 1995 - Aug 2000
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )4AFE,5AFE..4FC

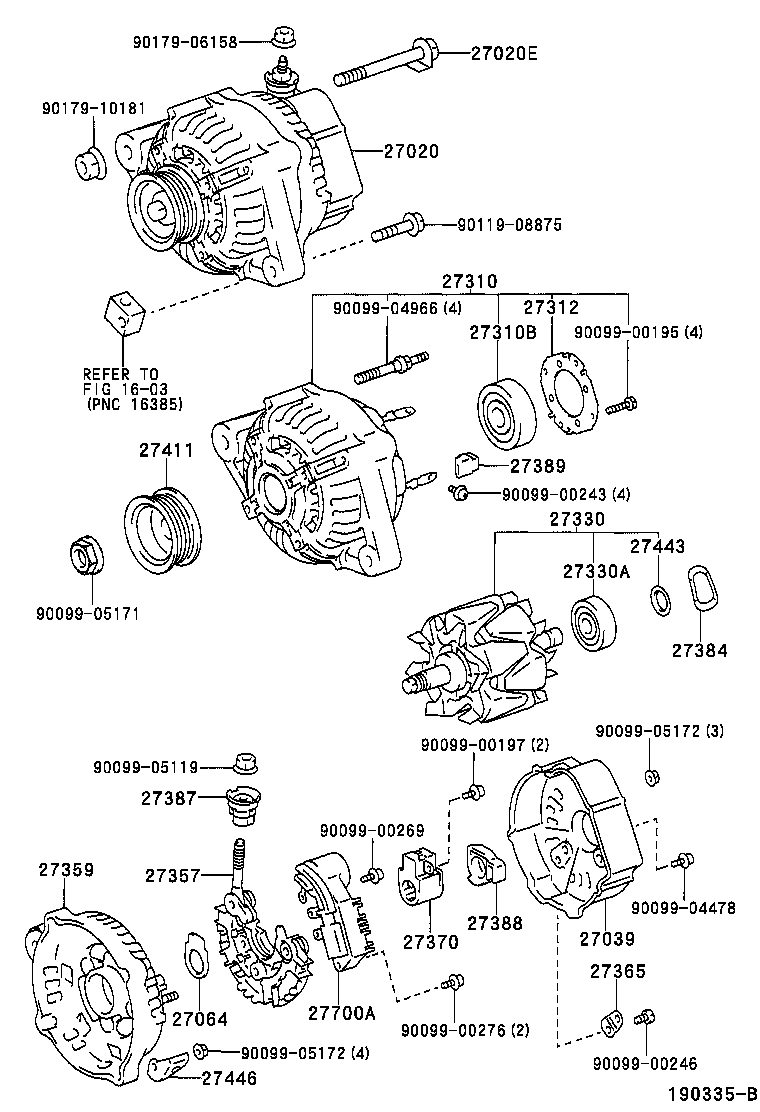

Click highlighted areas on diagram

12V 70A,12V 80A

diagram 1603 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27446 27700A 9009900195 9009900197 9009900243 9009900246 9009900269 9009900276 9009904478 9009904966 9009905119 9009905171 9009905172 9009905172 9011908875 9017906158 9017910181
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-15140

4AFE,5AFE..AE11#..4FC

12V 70A

 1
27060-16460

4AFE,5AFE..AE110,114..4FC

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10336

4AFE,5AFE..AE110,114

 1
90105-10336

4AFE,5AFE..AE11#

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27039-55080

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27064-42010

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-15180

4AFE,5AFE..AE11#..4FC

 1
27310-16430

4AFE,5AFE..AE110,114..4FC

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
90099-10192

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27312 - PLATE, RETAINER
27312-42010

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27312-42010

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27330-76030

3CE..CE113..5F;2C,3CE..CE110,114,116;4AFE,5AFE,4EFE..AE110,114,EE111..ATM

 1
27330-16390

3CE..CE11#..5F;4AFE,5AFE,4EFE..AE110,114,EE111..ATM

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE,5AFE,2C,3CE,4EFE..AE110,114,CE11#,EE111

 1
90099-10140

4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27357-55080

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-15180

4AFE,5AFE..AE11#..4FC

 1
27359-15180

4AFE,5AFE..AE110,114..4FC

 1
27365 - PLATE, TERMINAL
27365-55080

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27365-55080

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27370-75060

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27384 - WASHER
27384-50030

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27384-50030

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27387 - INSULATOR, TERMINAL
27387-42020

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27387-42021

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27387-42020

2C..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 1
27388-42010

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 1
27389 - INSULATOR, TERMINAL
27389-42010

2C,3CE..CE11#;4A#,5AFE,4EFE..AE11#,EE111..ATM

 4
27389-42010

2C..CE11#;4AFE,5AFE,4EFE..AE11#,EE111..ATM

 4
27411 - PULLEY, ALTERNATOR
27411-42030

4AFE,5AFE..AE11#..4FC

 1
27411-42030

4AFE,5AFE..AE110,114..4FC

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AFE,5AFE,2C,4EFE..AE11#,CE11#,EE111

 1
27443-63020

4A#,5AFE,2C,3CE,4EFE..AE11#,CE11#,EE111

 1
27446 - CLIP, ALTERNATOR CORD
27446-15170

4AFE,5AFE..AE11#

 1
27446-15170

4AFE,5AFE..AE110,114

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

4A#,5AFE..AE11#

 1
27700-74040

4AFE,5AFE..AE11#

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90119-08875
90179-06158
90179-10181
