AE110-AEMEK (1995)

Toyota Corolla

Production May 1995 - Aug 2000
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )4A#,5AFE

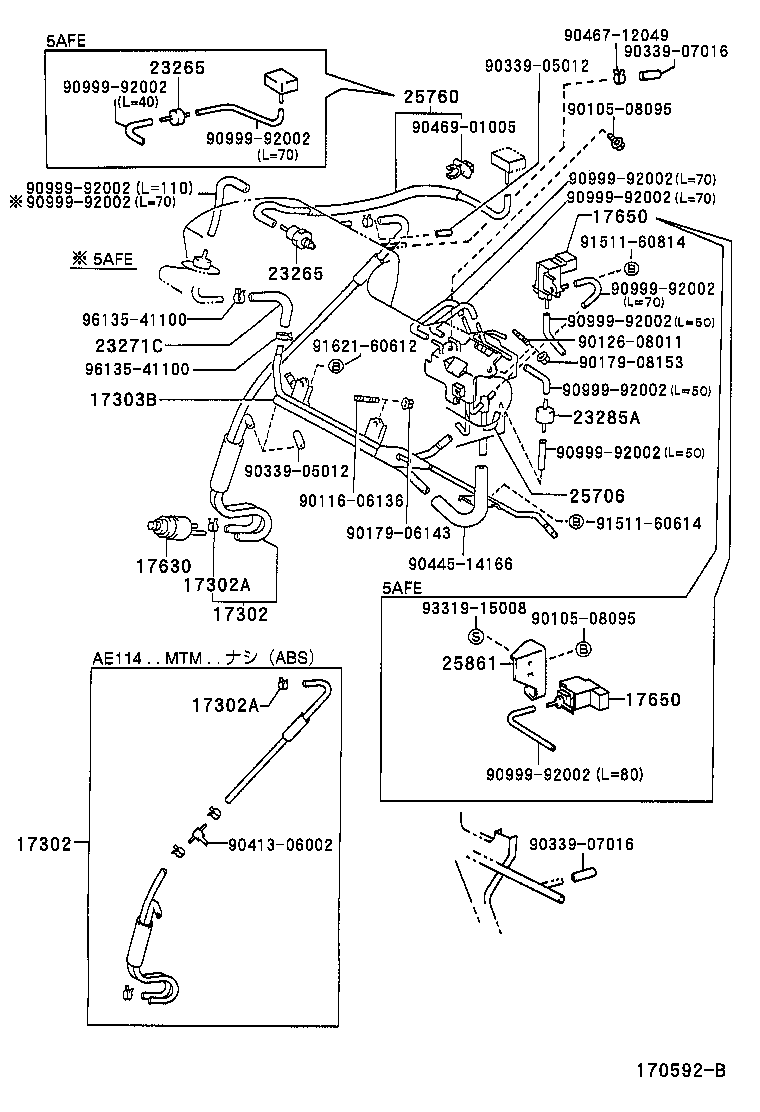

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9505-9704)4AFE,5AFE ; (9704- )5AFE

Click highlighted areas on diagram

diagram 17302 17302 17302A 17302A 17303B 17630 17650 17650 23265 23265 23271C 23285A 25706 25760 25861 9010508095 9010508095 9011606136 9012608011 9017906143 9017908153 9033905012 9033905012 9033907016 9033907016 9041306002 9044514166 9046712049 9046901005 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9151160614 9151160814 9162160612 9331915008 9613541100 9613541100
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-15010

4AFE..AE114..4FC;4AFE,5AFE..AE110,111

 1
17302-15010

4AFE,5AFE..AE110,114

 1
17302-15010

4AFE,5AFE..AE110,111;4AFE..AE114..SESAL,XESAL

 1
17302 - HOSE SUB-ASSY, AIR
17302-15010

4AFE..AE114..4FC;4AFE,5AFE..AE110,111

 1
17302-15010

4AFE,5AFE..AE110,114

 1
17302-15010

4AFE,5AFE..AE110,111;4AFE..AE114..SESAL,XESAL

 1
17302A - CLIP, HOSE
96132-51000

4A#,5AFE..AE11#..GT,LX,SESAL,XESAL

 2
96132-51000

4AFE..AE114..SESAL,XESAL;4AFE,5AFE..AE110,111..LX,SCRU,SESAL,XESAL

 2
96132-51000

4AFE..AE114..4FC;4AFE,5AFE..AE110,111..LX,SCRU,SESAL,XESAL

 2
17302A - CLIP, HOSE
96132-51000

4A#,5AFE..AE11#..GT,LX,SESAL,XESAL

 2
96132-51000

4AFE..AE114..SESAL,XESAL;4AFE,5AFE..AE110,111..LX,SCRU,SESAL,XESAL

 2
96132-51000

4AFE..AE114..4FC;4AFE,5AFE..AE110,111..LX,SCRU,SESAL,XESAL

 2
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-15090

5AFE..AE110

 1
17303-15090

5AFE..AE110

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15080

4AFE,5AFE..AE11#

 1
17630-15080

4AFE,5AFE..AE110,114

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12143

5AFE..AE110

 1
90910-12143

5AFE..AE110

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12143

5AFE..AE110

 1
90910-12143

5AFE..AE110

 1
23265 - FILTER, GAS, NO.1
90917-11030

5AFE..AE110

 1
90917-11030

5AFE..AE110

 1
23265 - FILTER, GAS, NO.1
90917-11030

5AFE..AE110

 1
90917-11030

5AFE..AE110

 1
23271C - HOSE, FUEL
90910-05214

4AFE,5AFE..AE110,114

 1
90910-05214

4AFE,5AFE..AE11#

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-15020

5AFE..AE110

 1
25861-15020

5AFE..AE110

 1
Common parts
90105-08095
90116-06136
90126-08011
90179-06143
90179-08153
90339-05012
90339-07016
90413-06002
90445-14166
90467-12049
90469-01005
90999-92002
91511-60614
91511-60814
91621-60612
93319-15008
96135-41100
