Toyota Corolla AE110 POWER STEERING TUBE

AE110-AEMDK (1995)

Toyota Corolla

Production May 1995 - Aug 2000

Engine 5AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

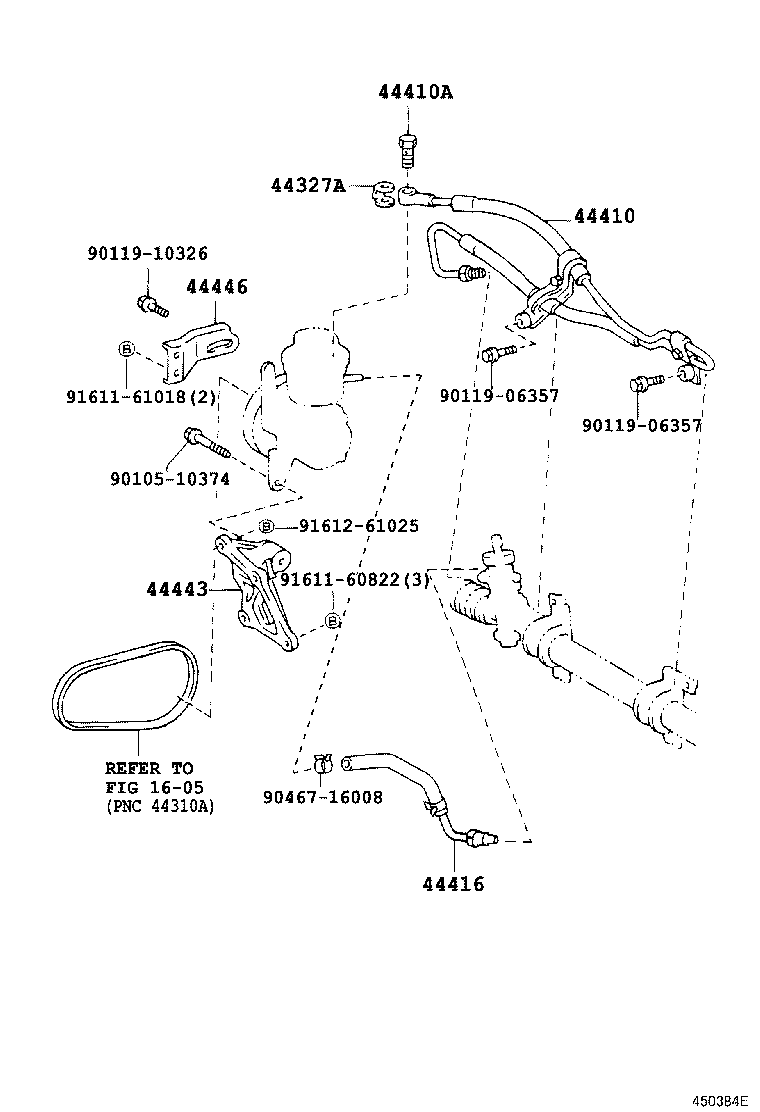

TOYOTA

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010	AE110,114,CE11#	04/1997 - 08/2000	1
44327-12010	AE11#,CE11#	05/1995 - 04/1997	1
44410 - TUBE ASSY, PRESSURE FEED
44410-12371	AE110 KOYO GEAR ASSY	05/1995 - 04/1997	1
44410-12391	AE110 TOYOTA GEAR ASSY	05/1995 - 04/1997	1
44410-12371	AE110 KOYO GEAR ASSY	04/1997 - 08/2000	1
44410-12391	AE110 TOYOTA GEAR ASSY	04/1997 - 08/2000	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16012	AE11#,CE11#	05/1995 - 04/1997	1
90401-16012	AE110,114,CE11#	04/1997 - 08/2000	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-12181	AE11# TOYOTA GEAR ASSY	05/1995 - 04/1997	1
44406-12171	AE11# KOYO GEAR ASSY	05/1995 - 04/1997	1
44406-12171	AE110,114 KOYO GEAR ASSY	04/1997 - 08/2000	1
44406-12181	AE110,114 TOYOTA GEAR ASSY	04/1997 - 08/2000	1
44443 - BRACKET, PUMP
44443-12100	AE11#	05/1995 - 04/1997	1
44443-12100	AE110,114	04/1997 - 08/2000	1
44446 - STRUT, ADJUSTING
44446-12060	AE11#	05/1995 - 04/1997	1
44446-12060	AE110,114	04/1997 - 08/2000	1
Common parts
90105-10374
90119-06357
90119-10326
90467-16008
91611-60822
91611-61018
91612-61025
Linked diagrams
1605

Click highlighted areas on diagram

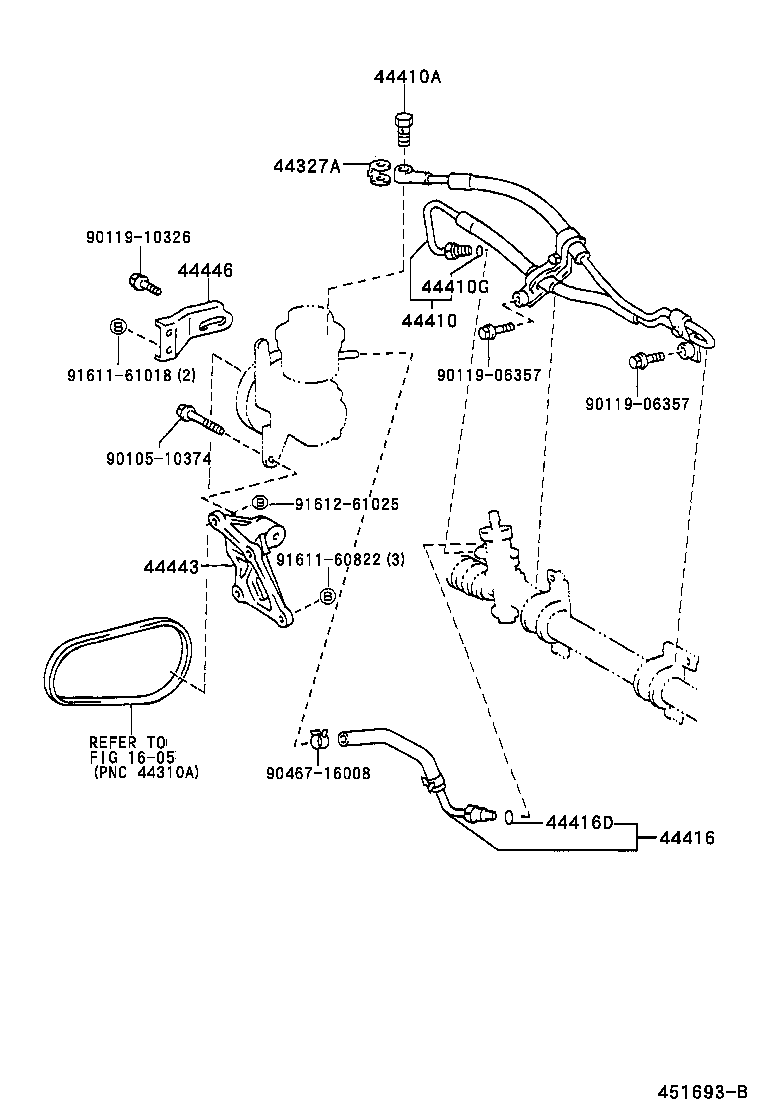

KOYO

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010	AE110,114,CE11#	04/1997 - 08/2000	1
44327-12010	AE11#,CE11#	05/1995 - 04/1997	1
44410 - TUBE ASSY, PRESSURE FEED
44410-12371	AE110 KOYO GEAR ASSY	05/1995 - 04/1997	1
44410-12391	AE110 TOYOTA GEAR ASSY	05/1995 - 04/1997	1
44410-12371	AE110 KOYO GEAR ASSY	04/1997 - 08/2000	1
44410-12391	AE110 TOYOTA GEAR ASSY	04/1997 - 08/2000	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16012	AE11#,CE11#	05/1995 - 04/1997	1
90401-16012	AE110,114,CE11#	04/1997 - 08/2000	1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009	AE11#	05/1995 - 04/1997	1
90301-07009	AE11#	04/1997 - 08/2000	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-12181	AE11# TOYOTA GEAR ASSY	05/1995 - 04/1997	1
44406-12171	AE11# KOYO GEAR ASSY	05/1995 - 04/1997	1
44406-12171	AE110,114 KOYO GEAR ASSY	04/1997 - 08/2000	1
44406-12181	AE110,114 TOYOTA GEAR ASSY	04/1997 - 08/2000	1
44416D - RING, O(FOR RETURN TUBE)
90301-07009	AE11#	05/1995 - 04/1997	1
90301-07009	AE11#	04/1997 - 08/2000	1
44443 - BRACKET, PUMP
44443-12100	AE11#	05/1995 - 04/1997	1
44443-12100	AE110,114	04/1997 - 08/2000	1
44446 - STRUT, ADJUSTING
44446-12060	AE11#	05/1995 - 04/1997	1
44446-12060	AE110,114	04/1997 - 08/2000	1
Common parts
90105-10374
90119-06357
90119-10326
90467-16008
91611-60822
91611-61018
91612-61025
Linked diagrams
1605
