Toyota Corolla AE109 EXHAUST PIPE

AE109V-AXMDK (1996)

Toyota Corolla

Production May 1996 - Jun 2002

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

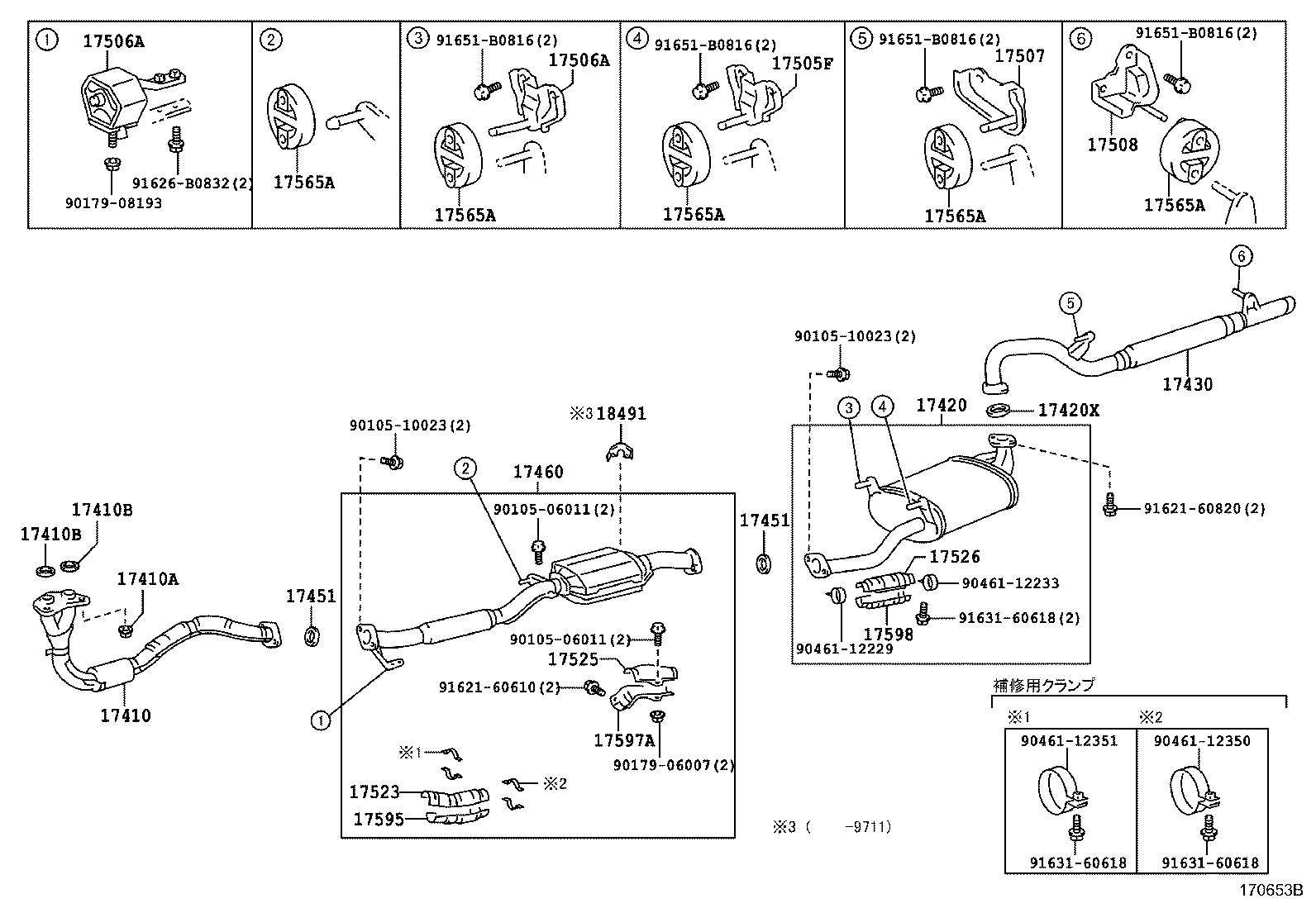

(9605-9704)4AFE..AE109

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1A520	4AFE..AE104,109	05/1997 - 12/2999	1
17410-1A520	4AFE..AE109	04/1997 - 05/1997	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	4A#..AE101,104,109	06/1991 - 12/2999	3
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE101,104,109	06/1991 - 12/2999	2
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE101,104,109	06/1991 - 12/2999	2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16700	4AFE,3CE..AE109,CE105	05/1996 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039	4AFE,2C,3CE..AE101,104,109,CE102,104,106,107,108,109..CTD,DX,DXJ,GL,L,LX,SEG,SEL,SJ,XE	06/1991 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1A730	4AFE,3CE..AE109,CE105	05/1996 - 12/2999	1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-16140	4AFE..AE109	05/1996 - 04/1997	1
17460-16210	4AFE..AE104,109 ﾅｼ(ﾊｲｷｵﾝｾﾝｻ)	11/1997 - 12/2999	1
17460-16160	4AFE..AE109 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ)	04/1997 - 11/1997	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-64020	4AFE..AE109 ﾘﾔ	05/1996 - 12/2999	1
17506-16130	4AFE..AE109 ﾌﾛﾝﾄ	07/1996 - 12/2999	1
17506-16100	4AFE..AE109 ﾌﾛﾝﾄ	05/1996 - 07/1996	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-64020	4AFE..AE109 ﾘﾔ	05/1996 - 12/2999	1
17506-16130	4AFE..AE109 ﾌﾛﾝﾄ	07/1996 - 12/2999	1
17506-16100	4AFE..AE109 ﾌﾛﾝﾄ	05/1996 - 07/1996	1
17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3
17523-16220	4AFE..AE109	04/1997 - 05/1997	1
17523-16220	4AFE..AE104,109	05/1997 - 12/2999	1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17595-16380	4AFE..AE109	04/1997 - 05/1997	1
17595-16380	4AFE..AE104,109	05/1997 - 12/2999	1
Common parts
90105-06011
90105-10023
90179-06007
90179-08193
90461-12229
90461-12233
90461-12334
90461-12350
90461-12351
90461-12390
91621-60820
91626-B0832
91631-60618
91651-B0816

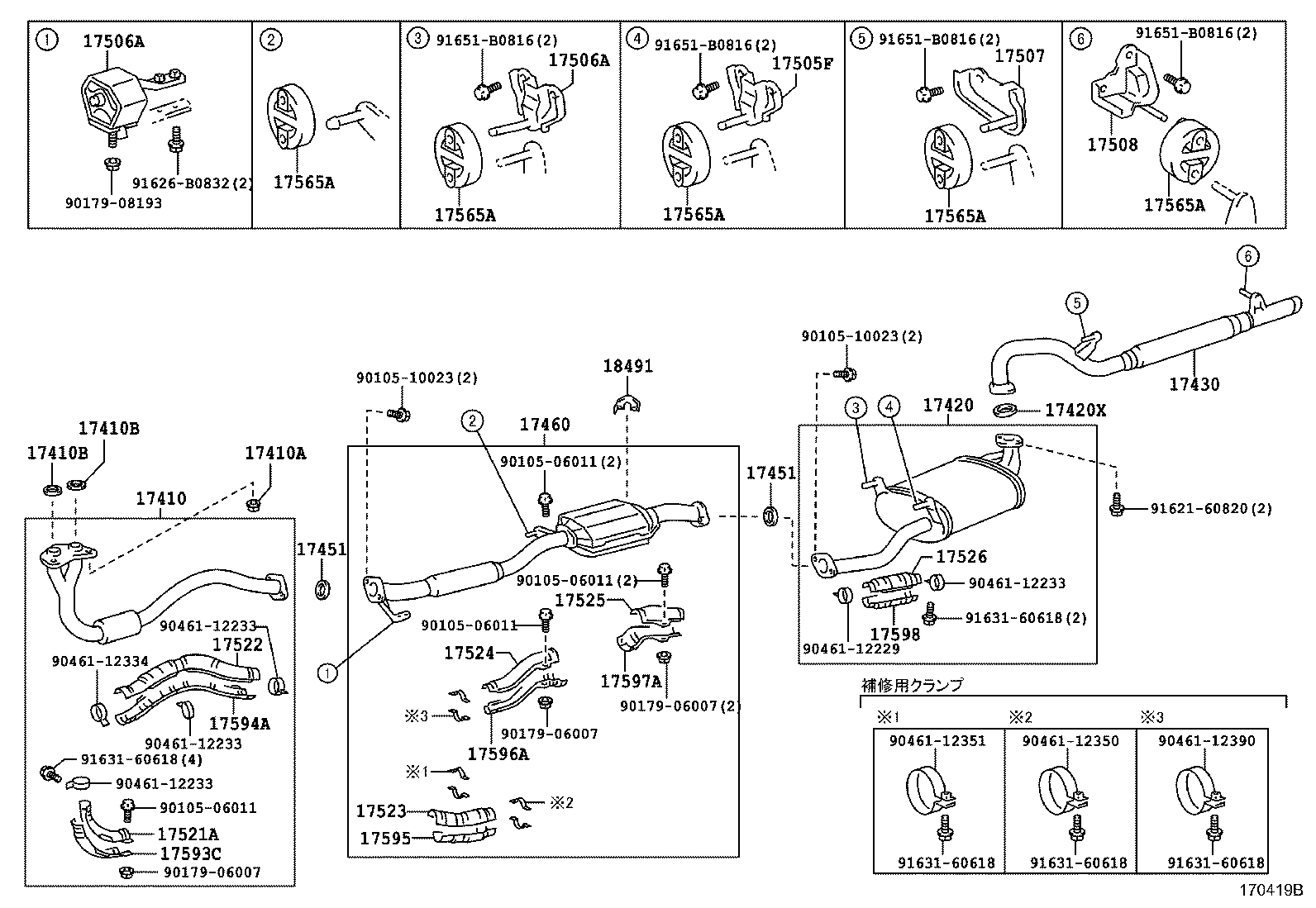

(9704- )4AFE..AE109

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1A520	4AFE..AE104,109	05/1997 - 12/2999	1
17410-1A520	4AFE..AE109	04/1997 - 05/1997	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	4A#..AE101,104,109	06/1991 - 12/2999	3
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE101,104,109	06/1991 - 12/2999	2
17410B - GASKET, EXHAUST PIPE
90917-06064	4AFE..AE101,104,109	06/1991 - 12/2999	2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-16700	4AFE,3CE..AE109,CE105	05/1996 - 12/2999	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039	4AFE,2C,3CE..AE101,104,109,CE102,104,106,107,108,109..CTD,DX,DXJ,GL,L,LX,SEG,SEL,SJ,XE	06/1991 - 12/2999	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1A730	4AFE,3CE..AE109,CE105	05/1996 - 12/2999	1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-16140	4AFE..AE109	05/1996 - 04/1997	1
17460-16210	4AFE..AE104,109 ﾅｼ(ﾊｲｷｵﾝｾﾝｻ)	11/1997 - 12/2999	1
17460-16160	4AFE..AE109 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ)	04/1997 - 11/1997	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-64020	4AFE..AE109 ﾘﾔ	05/1996 - 12/2999	1
17506-16130	4AFE..AE109 ﾌﾛﾝﾄ	07/1996 - 12/2999	1
17506-16100	4AFE..AE109 ﾌﾛﾝﾄ	05/1996 - 07/1996	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-64020	4AFE..AE109 ﾘﾔ	05/1996 - 12/2999	1
17506-16130	4AFE..AE109 ﾌﾛﾝﾄ	07/1996 - 12/2999	1
17506-16100	4AFE..AE109 ﾌﾛﾝﾄ	05/1996 - 07/1996	1
17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3
17523-16220	4AFE..AE109	04/1997 - 05/1997	1
17523-16220	4AFE..AE104,109	05/1997 - 12/2999	1
17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3
17595-16380	4AFE..AE109	04/1997 - 05/1997	1
17595-16380	4AFE..AE104,109	05/1997 - 12/2999	1
Common parts
90105-06011
90105-10023
90179-06007
90179-08193
90461-12229
90461-12233
90461-12350
90461-12351
91621-60610
91621-60820
91626-B0832
91631-60618
91651-B0816

AE109V-AXMDK (1996)

(9605-9704)4AFE..AE109

(9704- )4AFE..AE109
