AE104G-AWPNK (1995)
Toyota Corolla

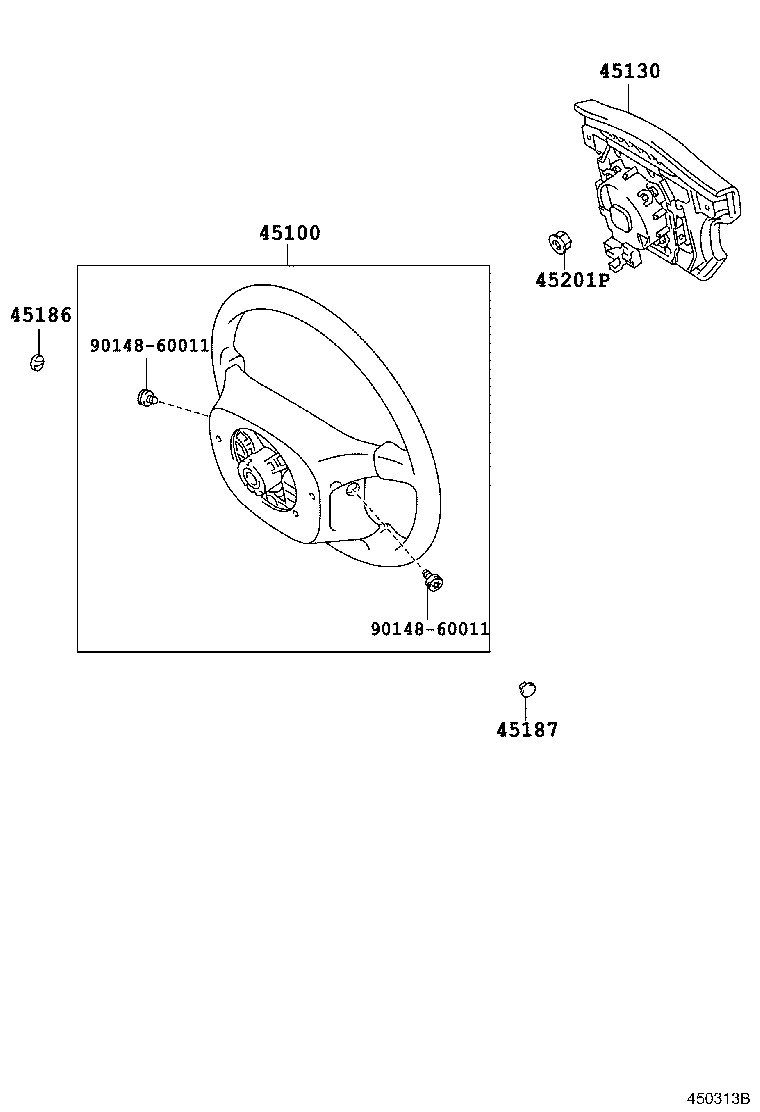

(9612- )
4-SPOKE,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B0 |
AE100,104,CE100,101 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45100-12790B0 |
AE10#,CE100,108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
AE100,104,CE100 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(F),SHADOW GRAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(C),SHADOW GLAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..4FC..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
AE10#,CE100,108,EE104 ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE106,108,109,EE103,104..GL,L ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ & ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..4FC..LT ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B0 |
AE100,104,CE100,101 ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(C),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GLAY,TRIM12 |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(F),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM12 |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-20020P0 |
AE10#,CE100,104,106,109,EE101,106,107..CTD,DX,G,GT,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(C),SHADOW GLAY,TRIM12 |
2 | ||
| 45186-44010B2 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-10010B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45186-44010B5 |
AE100,104,CE100,101 ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
2 | ||
| 45186-33050B1 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
2 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20010P0 |
AE10#,CE100,104,106,109,EE101,106,107..CTD,DX,G,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
AE100,104,109,CE100,106,109,EE102,103..CTD,DX,DXJ,G,LT GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
CE106,108,109,EE103,104..GL,L ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
EE102..3FC..02S;EE102,103..5F..(DX,DXJ);AE100,101,104,CE10#,EE104 |
1 | ||
| Common parts | ||||
| 90148-60011 | ||||

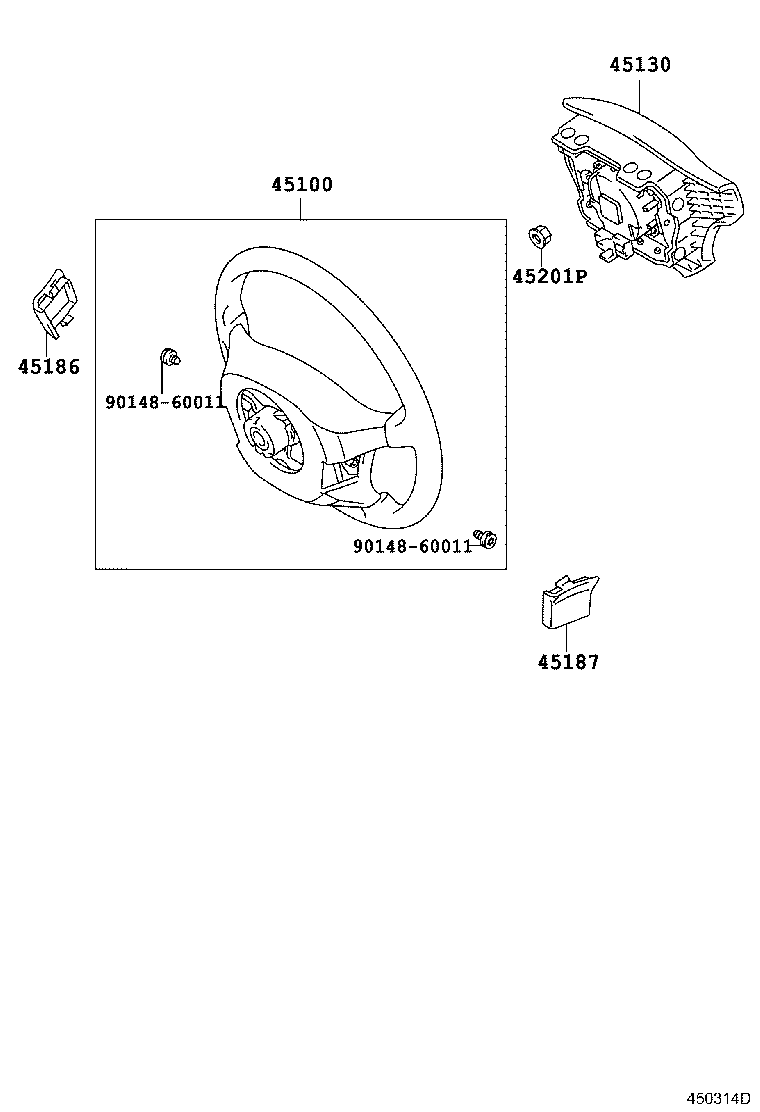

(9612- )
4-SPOKE,ｱﾘ(ﾃﾞﾝｷｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B0 |
AE100,104,CE100,101 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45100-12790B0 |
AE10#,CE100,108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
AE100,104,CE100 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(F),SHADOW GRAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(C),SHADOW GLAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..4FC..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
AE10#,CE100,108,EE104 ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE106,108,109,EE103,104..GL,L ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ & ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..4FC..LT ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B0 |
AE100,104,CE100,101 ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(C),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GLAY,TRIM12 |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(F),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM12 |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-20020P0 |
AE10#,CE100,104,106,109,EE101,106,107..CTD,DX,G,GT,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(C),SHADOW GLAY,TRIM12 |
2 | ||
| 45186-44010B2 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-10010B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45186-44010B5 |
AE100,104,CE100,101 ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
2 | ||
| 45186-33050B1 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
2 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20010P0 |
AE10#,CE100,104,106,109,EE101,106,107..CTD,DX,G,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
AE100,104,109,CE100,106,109,EE102,103..CTD,DX,DXJ,G,LT GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
CE106,108,109,EE103,104..GL,L ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
EE102..3FC..02S;EE102,103..5F..(DX,DXJ);AE100,101,104,CE10#,EE104 |
1 | ||
| Common parts | ||||
| 90148-60011 | ||||
(9106-9804)
4-SPOKE,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B0 |
AE100,104,CE100,101 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45100-12790B0 |
AE10#,CE100,108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
AE100,104,CE100 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(F),SHADOW GRAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(C),SHADOW GLAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..4FC..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-33010B0 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
AE10#,CE100,108,EE104 ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE106,108,109,EE103,104..GL,L ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ & ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..4FC..LT ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B0 |
AE100,104,CE100,101 ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(C),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GLAY,TRIM12 |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(F),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM12 |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010B0 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
AE10#,CE100,104,EE101..G,LT,SJ,XE |
2 | ||
| 45146-20140 |
AE10#,CE100,108,EE104 |
2 | ||
| 45146-20230 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE ｱﾘ(ｷｶｲｼｷ *80) |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20140 |
AE10#,CE100,104,EE101..G,LT,SJ,XE |
2 | ||
| 45146-20140 |
AE10#,CE100,108,EE104 |
2 | ||
| 45146-20230 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE ｱﾘ(ｷｶｲｼｷ *80) |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-20020P0 |
AE10#,CE100,104,106,109,EE101,106,107..CTD,DX,G,GT,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(C),SHADOW GLAY,TRIM12 |
2 | ||
| 45186-44010B2 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45186-10010B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45186-44010B5 |
AE100,104,CE100,101 ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
2 | ||
| 45186-33050B1 |
AE100,104,CE100,101 DK.CHARCOAL,TRIM1# |
2 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20010P0 |
AE10#,CE100,104,106,109,EE101,106,107..CTD,DX,G,GT,LT,LX,SEG,SEL,XE SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
AE100,104,109,CE100,106,109,EE102,103..CTD,DX,DXJ,G,LT GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45187-10010B0 |
CE106,108,109,EE103,104..GL,L ｱﾘ(ｷｶｲｼｷ *80),GRAY,TRIM1# |
1 | ||
| 45186-44010B2 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
EE102..3FC..02S;EE102,103..5F..(DX,DXJ);AE100,101,104,CE10#,EE104 |
1 | ||
| Common parts | ||||
| 90148-60011 | ||||
| 90149-60085 | ||||
| 90159-50265 | ||||
| 93510-14012 | ||||
| 93560-15012 | ||||
(9106-9804)CTD,DX,DXJ,GL,L,LX
2-SPOKE,PP(ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12660P0 |
AE10#,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12610P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX 2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12880B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B0 |
AE100,104,CE100,101 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45100-12790B0 |
AE10#,CE100,108,EE104 3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12860B0 |
AE100,104,CE100 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-12820B0 |
AE100,104,109,CE10#,EE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(F),SHADOW GRAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾘﾐﾃﾂﾄﾞS *(C),SHADOW GLAY,TRIM12 |
1 | ||
| 45100-13010B1 |
AE100,104..4FC..LT 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12150 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX |
1 | ||
| 45105-12210 |
AE10#,CE100 |
1 | ||
| 45105-12210 |
AE10#,CE100,108,EE104 |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-04014 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX |
1 | ||
| 45126 - PLATE, STEERING WHEEL PAD SET | ||||
| 45126-16040 |
AE10#,CE10#,EE10#..CTD,DX,GL,L,LX,SEG,SEL |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12721P0 |
AE10#,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A100B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A050B0 |
AE100,104,CE100,108,EE104 ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12870B0 |
AE10#,CE100,108,EE104 ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12670P0 |
AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-12880B0 |
CE106,108,109,EE103,104..GL,L ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A010B0 |
AE100,104,109,CE10#,EE10# ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ & ｷｶｲｼｷ *80),SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..4FC..LT ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,SHADOW GRAY,TRIM1# |
1 | ||
| 45130-1A130B0 |
AE100,104,CE100,101 ｱﾘ(ﾃﾞﾝｷｼｷ *80),DK.CHARCOAL,TRIM1# |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(C),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GLAY,TRIM12 |
1 | ||
| 45130-1A130B1 |
AE100,104..LT ﾘﾐﾃﾂﾄﾞS *(F),ｱﾘ(ﾃﾞﾝｷｼｷ *80),SHADOW GRAY,TRIM12 |
1 | ||
| 45142 - SEAT, HORN BUTTON CONTACT, NO.1 | ||||
| 45142-12100 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-12110B0 |
AE100,104,CE10#,EE101,107,108..GL,L,XE ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12130B0 |
AE100,104,CE10#,EE101,102,103,104..CTD,DX,DXJ,GL,L,LX ｱﾘ(2-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12210B0 |
AE10#,CE100,108,EE104 SHADOW GRAY,TRIM1# |
1 | ||
| 45180-12210B0 |
AE10#,CE100 SHADOW GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AE10#,CE10#,EE10# |
1 | ||
| 90179-12071 |
EE102..3FC..02S;EE102,103..5F..(DX,DXJ);AE100,101,104,CE10#,EE104 |
1 | ||
| Common parts | ||||
| 90159-50294 | ||||
| 90167-40049 | ||||
| 90168-30006 | ||||
| 93560-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
