AE104G-AWPGK (1995)
Toyota Corolla

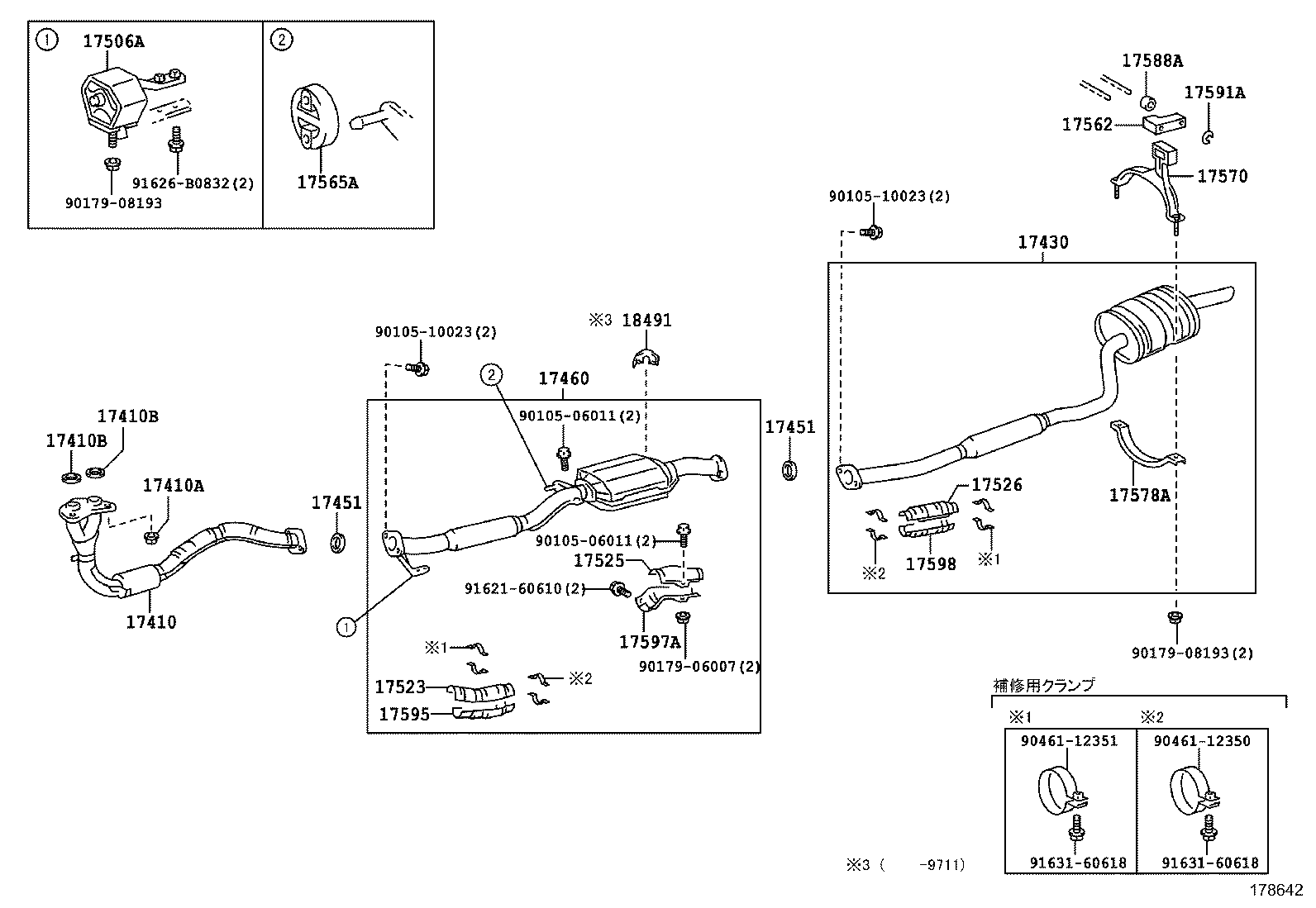

(9505-9705)4AFE..AE104
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A240 |
4AFE..AE104,109 |
1 | ||
| 17410-1A240 |
4AFE..AE104 |
1 | ||
| 17410-1A520 |
4AFE..AE104,109 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4A#..AE101,104,109 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101,104,109 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101,104,109 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-1A530 |
4AFE..AE104 |
1 | ||
| 17430-1A531 |
4AFE..AE104 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
4AFE..AE104 |
2 | ||
| 90917-06039 |
4AFE,3CE..AE104,109,CE105 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
4AFE..AE104 |
2 | ||
| 90917-06039 |
4AFE,3CE..AE104,109,CE105 |
2 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-16100 |
4AFE..AE104 |
1 | ||
| 17460-16160 |
4AFE..AE104 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 17460-16210 |
4AFE..AE104,109 ﾅｼ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-16110 |
4AFE..AE104 |
1 | ||
| 17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2 | ||||
| 17522-16260 |
4AFE..AE104,109 |
1 | ||
| 17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3 | ||||
| 17523-16210 |
4AFE..AE104,109 |
1 | ||
| 17523-16210 |
4AFE..AE104 |
1 | ||
| 17523-16220 |
4AFE..AE104,109 |
1 | ||
| 17524 - PROTECTOR, EXHAUST PIPE, UPPER NO.4 | ||||
| 17524-16050 |
4AFE..AE104,109 |
1 | ||
| 17525 - PROTECTOR, EXHAUST PIPE, UPPER NO.5 | ||||
| 17525-16020 |
4AFE..AE104,109 |
1 | ||
| 17526 - PROTECTOR, EXHAUST PIPE, UPPER NO.6 | ||||
| 17526-16050 |
4AFE,3CE..AE104,109,CE105 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-16240 |
4A#,5AFE,2C,3CE..AE100,101,104,CE100,101 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-11160 |
4AFE..AE104 |
1 | ||
| 17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT | ||||
| 17570-16020 |
4A#,3CE..AE101,104,CE101 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-16030 |
4A#..AE101,104 |
1 | ||
| 17578-16050 |
4A#..AE101,104 |
1 | ||
| 17588A - SPACER, EXHAUST PIPE HANGER | ||||
| 17588-16020 |
4A#,5AFE,2C,3CE..AE100,101,104,CE100,101 |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-16020 |
4A#,5AFE,2C,3CE..AE100,101,104,CE100,101 |
2 | ||
| 17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-16320 |
4AFE..AE104,109 |
1 | ||
| 17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3 | ||||
| 17595-16350 |
4AFE..AE104,109 |
1 | ||
| 17595-16380 |
4AFE..AE104,109 |
1 | ||
| 17595-16350 |
4AFE..AE104 |
1 | ||
| 17596A - PROTECTOR, EXHAUST PIPE, LOWER NO.4 | ||||
| 17596-16160 |
4AFE..AE104,109 |
1 | ||
| 17597A - PROTECTOR, EXHAUST PIPE, LOWER NO.5 | ||||
| 17597-16060 |
4AFE..AE104,109 |
1 | ||
| 17598 - PROTECTOR, EXAUST PIPE, LOWER NO.6 | ||||
| 17598-16040 |
4AFE,3CE..AE104,109,CE105 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-10023 | ||||
| 90179-06007 | ||||
| 90179-08193 | ||||
| 90461-12233 | ||||
| 90461-12334 | ||||
| 90461-12350 | ||||
| 90461-12351 | ||||
| 90461-12390 | ||||
| 91621-60610 | ||||
| 91626-B0832 | ||||
| 91631-60618 | ||||

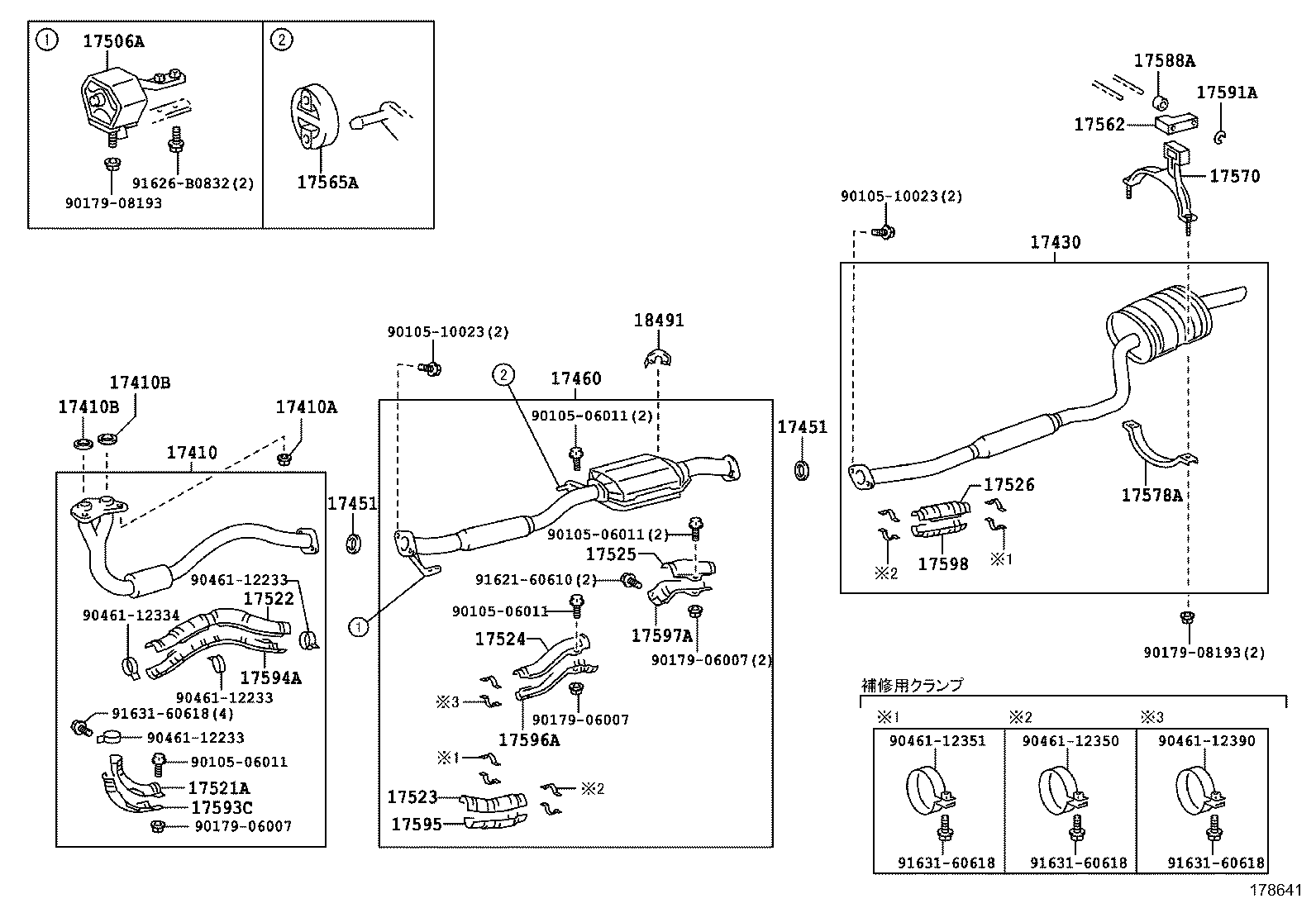

(9705- )4AFE..AE104
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A240 |
4AFE..AE104,109 |
1 | ||
| 17410-1A240 |
4AFE..AE104 |
1 | ||
| 17410-1A520 |
4AFE..AE104,109 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4A#..AE101,104,109 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101,104,109 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06064 |
4AFE..AE101,104,109 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-1A530 |
4AFE..AE104 |
1 | ||
| 17430-1A531 |
4AFE..AE104 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
4AFE..AE104 |
2 | ||
| 90917-06039 |
4AFE,3CE..AE104,109,CE105 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
4AFE..AE104 |
2 | ||
| 90917-06039 |
4AFE,3CE..AE104,109,CE105 |
2 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-16100 |
4AFE..AE104 |
1 | ||
| 17460-16160 |
4AFE..AE104 ｱﾘ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 17460-16210 |
4AFE..AE104,109 ﾅｼ(ﾊｲｷｵﾝｾﾝｻ) |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-16110 |
4AFE..AE104 |
1 | ||
| 17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3 | ||||
| 17523-16210 |
4AFE..AE104,109 |
1 | ||
| 17523-16210 |
4AFE..AE104 |
1 | ||
| 17523-16220 |
4AFE..AE104,109 |
1 | ||
| 17525 - PROTECTOR, EXHAUST PIPE, UPPER NO.5 | ||||
| 17525-16020 |
4AFE..AE104,109 |
1 | ||
| 17526 - PROTECTOR, EXHAUST PIPE, UPPER NO.6 | ||||
| 17526-16050 |
4AFE,3CE..AE104,109,CE105 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-16240 |
4A#,5AFE,2C,3CE..AE100,101,104,CE100,101 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-11160 |
4AFE..AE104 |
1 | ||
| 17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT | ||||
| 17570-16020 |
4A#,3CE..AE101,104,CE101 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-16030 |
4A#..AE101,104 |
1 | ||
| 17578-16050 |
4A#..AE101,104 |
1 | ||
| 17588A - SPACER, EXHAUST PIPE HANGER | ||||
| 17588-16020 |
4A#,5AFE,2C,3CE..AE100,101,104,CE100,101 |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-16020 |
4A#,5AFE,2C,3CE..AE100,101,104,CE100,101 |
2 | ||
| 17595 - PROTECTOR, EXHAUST PIPE, LOWER NO.3 | ||||
| 17595-16350 |
4AFE..AE104,109 |
1 | ||
| 17595-16380 |
4AFE..AE104,109 |
1 | ||
| 17595-16350 |
4AFE..AE104 |
1 | ||
| 17597A - PROTECTOR, EXHAUST PIPE, LOWER NO.5 | ||||
| 17597-16060 |
4AFE..AE104,109 |
1 | ||
| 17598 - PROTECTOR, EXAUST PIPE, LOWER NO.6 | ||||
| 17598-16040 |
4AFE,3CE..AE104,109,CE105 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-10023 | ||||
| 90179-06007 | ||||
| 90179-08193 | ||||
| 90461-12350 | ||||
| 90461-12351 | ||||
| 91621-60610 | ||||
| 91626-B0832 | ||||
| 91631-60618 | ||||
