AE104G-AWMNK (1995)

Toyota Corolla

Production May 1995 - Aug 2000
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9705)AE104

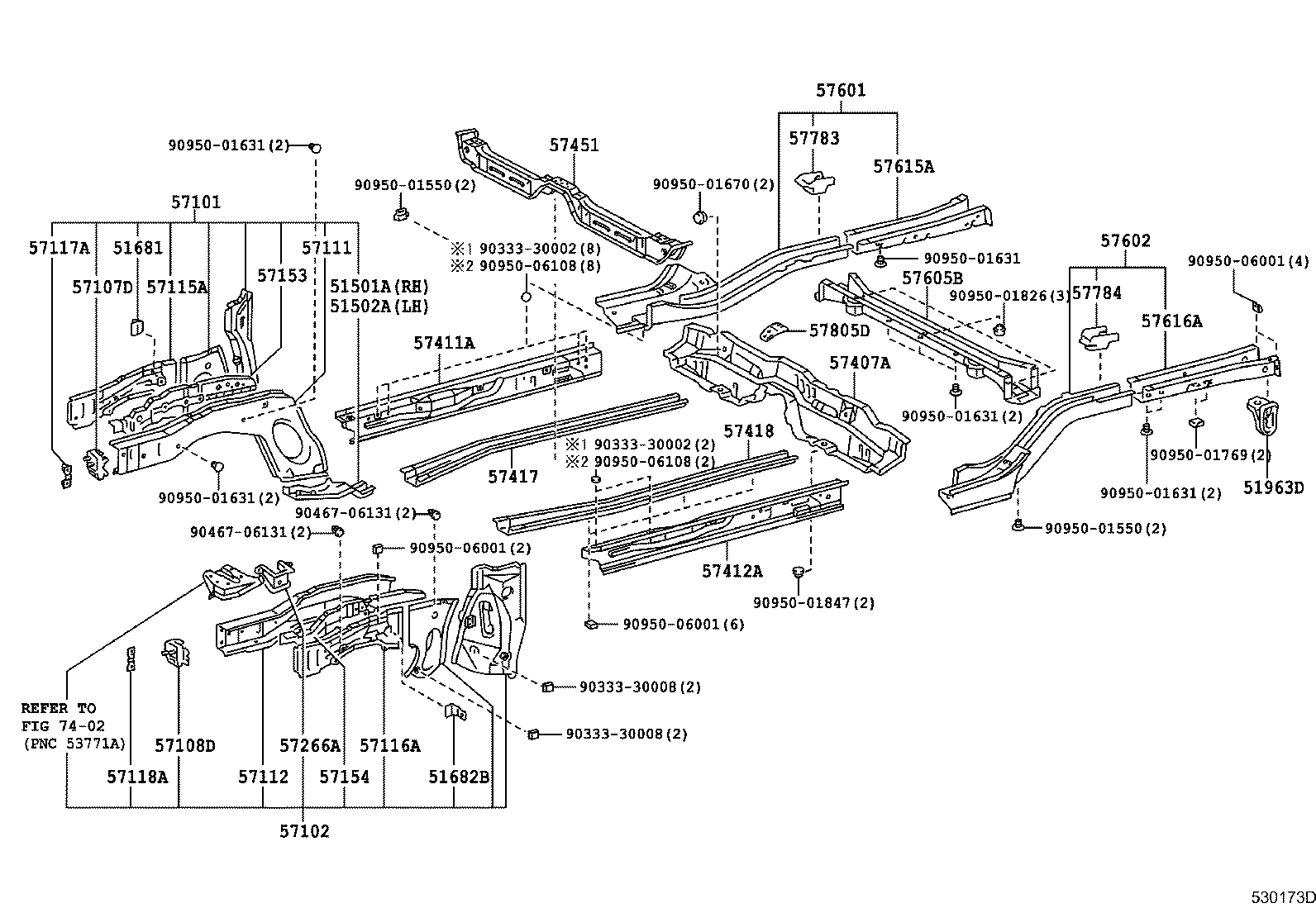

Click highlighted areas on diagram

diagram 51501A 51502A 51681 51682B 51963D 57101 57102 57107D 57108D 57111 57112 57115A 57116A 57117A 57118A 57153 57154 57266A 57407A 57411A 57412A 57417 57418 57451 57601 57602 57605B 57615A 57616A 57783 57784 57805D 7402 9033330002 9033330002 9033330008 9033330008 9046706131 9046706131 9095001550 9095001550 9095001631 9095001631 9095001631 9095001631 9095001631 9095001670 9095001769 9095001826 9095001847 9095006001 9095006001 9095006001 9095006108 9095006108
Part # Description Qty Price
51501A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51501-13010

AE10#,CE10#,EE10#

 1
51502A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51502-13010

AE10#,CE10#,EE10#

 1
51681 - BRACKET, FLEXIBLE HOSE
51681-12050

AE10#,CE10#,EE10#

 1
51682B - BRACKET, FLEXIBLE HOSE, LH
51682-12060

AE10#,CE10#,EE10#

 1
51963D - HOOK, TRANSPORT, REAR LH
51096-12040

AE100,101,104,CE100

 1
51096-12040

AE100,101,104,CE100,101

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12450

AE10#

 1
57101-12451

AE100,101,104

 1
57101-12942

AE100,101,104

 1
57101-12451

AE10#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12411

AE10#,EE10#

 1
57102-12410

AE10#,EE10#

 1
57102-12956

AE100,101,104

 1
57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57125-12090

AE100,101,104,CE100,101

 1
57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57126-12050

AE100,101,104,CE100,101

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12200

AE10#,CE10#,EE10#

 1
57111-12201

AE10#,CE10#,EE10#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-12142

AE10#,CE10#,EE10#

 1
57112-12141

AE10#,CE10#,EE10#

 1
57112-12140

AE10#,CE10#,EE10#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-12060

AE10#,CE10#,EE10#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12060

AE10#,CE10#,EE10#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-12110

AE10#,CE10#,EE10#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57117-12110

AE10#,CE10#,EE10#

 1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57016-12050

AE10#

 1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57017-12030

AE10#,EE10#

 1
57017-13010

AE10#,CE10#,EE10#

 1
57266A - BRACKET, ENGINE MOUNTING, LH
57208-12120

AE10#,EE10#

 1
57208-12121

AE10#,EE10#

 1
57208-12100

AE10#,EE10#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12460

AE10#,CE10#,EE10#..4DS,V,WG

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12460

AE10#,CE10#,EE10#..4DS,V,WG

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12100

AE10#,CE10#,EE10#

 1
57417-13010

AE10#,CE10#,EE10#

 1
57417-12100

AE100,101,104,CE100

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-12060

AE10#,CE10#,EE10#

 1
57418-13010

AE10#,CE10#,EE10#

 1
57418-12060

AE100,101,104,CE100

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12141

AE104,109,CE105,109

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-13900

AE104

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-13900

AE104

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-12901

AE10#,CE100,104,EE101..4DS,WG

 1
57615-12903

AE100,104,CE100

 1
57615-12903

AE100,101,104,CE100

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-12901

AE10#,CE100,104,EE101..4DS,WG

 1
57616-12905

AE100,101,104,CE100,101

 1
57616-12905

AE100,101,104,CE100

 1
57783 - BRACKET, NO.8 BODY MOUNTING, RH
57783-12010

AE104

 1
57784 - BRACKET, NO.8 BODY MOUNTING, LH
57784-12010

AE104

 1
57805D - REINFORCEMENT ASSY, NO.1 SEAT LEG, REAR NO.1
57805-12060

AE100,101,104,CE100,101

 1
Common parts
90333-30002
90333-30008
90467-06131
90950-01550
90950-01631
90950-01670
90950-01769
90950-01826
90950-01847
90950-06001
90950-06108
Linked diagrams
7402

(9705- )AE104

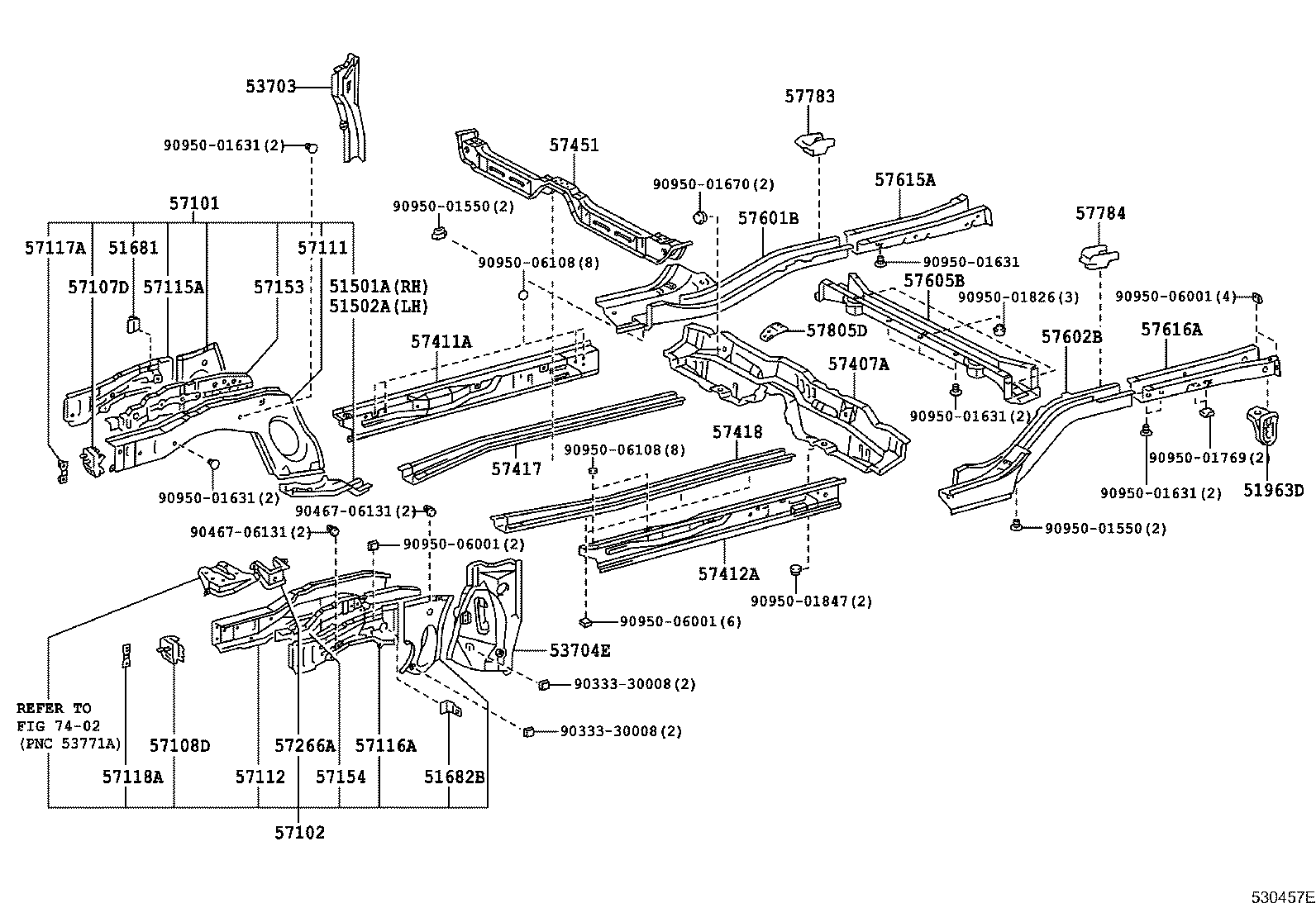

Click highlighted areas on diagram

diagram 51501A 51502A 51681 51682B 51963D 53703 53704E 57101 57102 57107D 57108D 57111 57112 57115A 57116A 57117A 57118A 57153 57154 57266A 57407A 57411A 57412A 57417 57418 57451 57601B 57602B 57605B 57615A 57616A 57783 57784 57805D 7402 9033330008 9033330008 9046706131 9046706131 9095001550 9095001550 9095001631 9095001631 9095001631 9095001631 9095001631 9095001670 9095001769 9095001826 9095001847 9095006001 9095006001 9095006001 9095006108 9095006108
Part # Description Qty Price
51501A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51501-13010

AE10#,CE10#,EE10#

 1
51502A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51502-13010

AE10#,CE10#,EE10#

 1
51681 - BRACKET, FLEXIBLE HOSE
51681-12050

AE10#,CE10#,EE10#

 1
51682B - BRACKET, FLEXIBLE HOSE, LH
51682-12060

AE10#,CE10#,EE10#

 1
51963D - HOOK, TRANSPORT, REAR LH
51096-12040

AE100,101,104,CE100

 1
51096-12040

AE100,101,104,CE100,101

 1
53703 - APRON SUB-ASSY, FRONT FENDER, REAR RH
53703-12030

AE100,101,104,CE10#,EE10#

 1
53704E - APRON SUB-ASSY, FRONT FENDER, REAR LH
53704-12020

AE10#,CE10#,EE10#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12450

AE10#

 1
57101-12451

AE100,101,104

 1
57101-12942

AE100,101,104

 1
57101-12451

AE10#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12411

AE10#,EE10#

 1
57102-12410

AE10#,EE10#

 1
57102-12956

AE100,101,104

 1
57107D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57125-12090

AE100,101,104,CE100,101

 1
57108D - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57126-12050

AE100,101,104,CE100,101

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12200

AE10#,CE10#,EE10#

 1
57111-12201

AE10#,CE10#,EE10#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-12142

AE10#,CE10#,EE10#

 1
57112-12141

AE10#,CE10#,EE10#

 1
57112-12140

AE10#,CE10#,EE10#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-12060

AE10#,CE10#,EE10#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12060

AE10#,CE10#,EE10#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-12110

AE10#,CE10#,EE10#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57117-12110

AE10#,CE10#,EE10#

 1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57016-12050

AE10#

 1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57017-12030

AE10#,EE10#

 1
57017-13010

AE10#,CE10#,EE10#

 1
57266A - BRACKET, ENGINE MOUNTING, LH
57208-12120

AE10#,EE10#

 1
57208-12121

AE10#,EE10#

 1
57208-12100

AE10#,EE10#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12460

AE10#,CE10#,EE10#..4DS,V,WG

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12460

AE10#,CE10#,EE10#..4DS,V,WG

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12100

AE10#,CE10#,EE10#

 1
57417-13010

AE10#,CE10#,EE10#

 1
57417-12100

AE100,101,104,CE100

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-12060

AE10#,CE10#,EE10#

 1
57418-13010

AE10#,CE10#,EE10#

 1
57418-12060

AE100,101,104,CE100

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12141

AE104,109,CE105,109

 1
57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57601-13903

AE104

 1
57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57602-13902

AE104

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-12901

AE10#,CE100,104,EE101..4DS,WG

 1
57615-12903

AE100,104,CE100

 1
57615-12903

AE100,101,104,CE100

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-12901

AE10#,CE100,104,EE101..4DS,WG

 1
57616-12905

AE100,101,104,CE100,101

 1
57616-12905

AE100,101,104,CE100

 1
57783 - BRACKET, NO.8 BODY MOUNTING, RH
57783-12010

AE104

 1
57784 - BRACKET, NO.8 BODY MOUNTING, LH
57784-12010

AE104

 1
57805D - REINFORCEMENT ASSY, NO.1 SEAT LEG, REAR NO.1
57805-12060

AE100,101,104,CE100,101

 1
Common parts
90333-30008
90467-06131
90950-01550
90950-01631
90950-01670
90950-01769
90950-01826
90950-01847
90950-06001
90950-06108
Linked diagrams
7402
