AE104-AEPNK (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109-9405)AE104..4FC

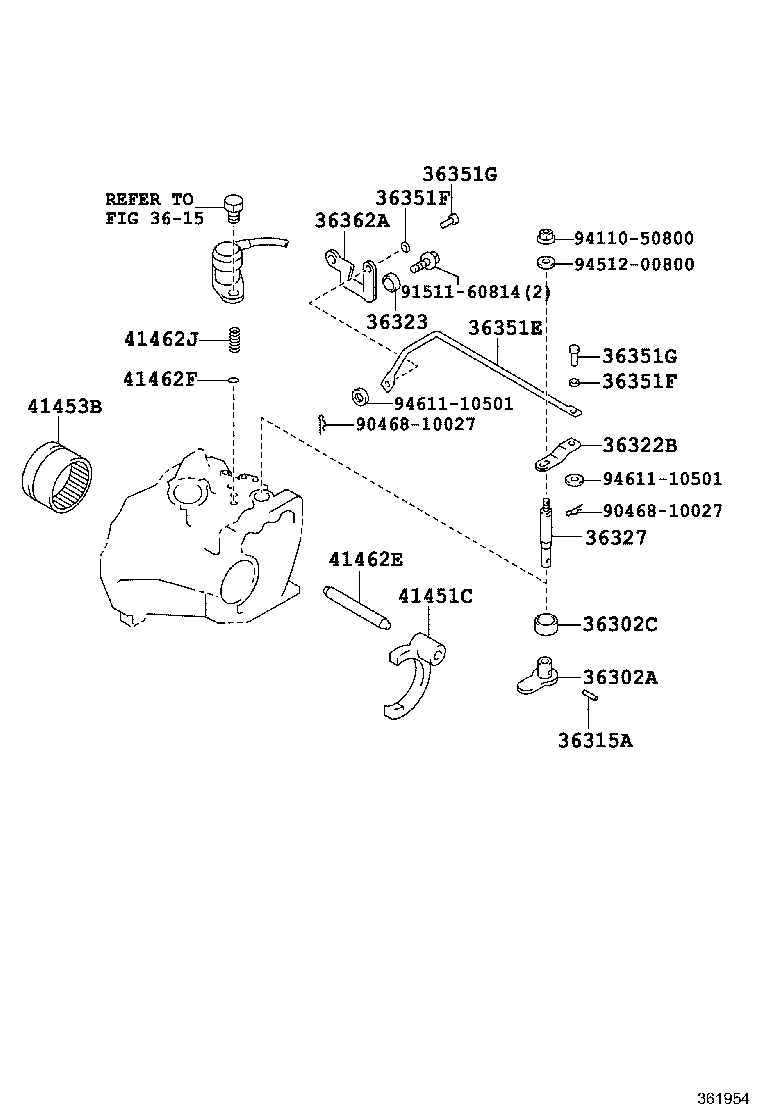

Click highlighted areas on diagram

A241H

diagram 3615 36302A 36302C 36315A 36322B 36323 36327 36351E 36351F 36351F 36351G 36351G 36362A 41451C 41453B 41462E 41462F 41462J 9046810027 9046810027 9151160814 9411050800 9451200800 9461110501 9461110501
Part # Description Qty Price
36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1
36302-12020

AE104..4FC

 1
36302C - SPACER (FOR TRANSFER SHIFT LEVER)
90560-18008

AE104..4FC

 1
36315A - PIN, TRANSFER GEAR SHIFT FORK SHAFT
36315-12020

AE104..4FC

 1
36322B - LEVER, TRANSFER SHIFT, NO.2
36322-12020

AE104..4FC

 1
36323 - GUIDE, TRANSFER SHIFT LEVER
36323-12020

AE104..4FC

 1
36327 - SHAFT, TRANSFER SHIFT LEVER
36327-12020

AE104..4FC

 1
36351E - ROD, TRANSFER SHIFT
36351-12010

AE104..4FC

 1
36351F - WASHER, WAVE (FOR TRANSFER SHIFT ROD)
90206-05002

AE104..4FC

 2
36351F - WASHER, WAVE (FOR TRANSFER SHIFT ROD)
90206-05002

AE104..4FC

 2
36351G - PIN, W/HOLE (FOR TRANSFER SHIFT ROD)
90240-05002

AE104..4FC

 2
36351G - PIN, W/HOLE (FOR TRANSFER SHIFT ROD)
90240-05002

AE104..4FC

 2
36362A - LEVER, TRANSFER SHIFT, OUTER
36362-12020

AE104..4FC

 1
41451C - FORK, DIFFERENTIAL LOCK SHIFT
41451-12030

AE104..4FC

 1
41453B - SLEEVE, DIFFERENTIAL LOCK
41453-12030

AE104..4FC

 1
41462E - SHAFT, DIFFERENTIAL LOCK SHIFT FORK
41462-12030

AE104..4FC

 1
41462F - BALL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)
90360-08009

AE104..4FC

 1
41462J - SPRING, COMPRESSION (FOR DIFFERENTIAL LOCK SHIFT FORK S
90501-12114

AE104..4FC

 1
Common parts
90468-10027
91511-60814
94110-50800
94512-00800
94611-10501
Linked diagrams
3615
