AE104-AEPEK (1991)
Toyota Corolla

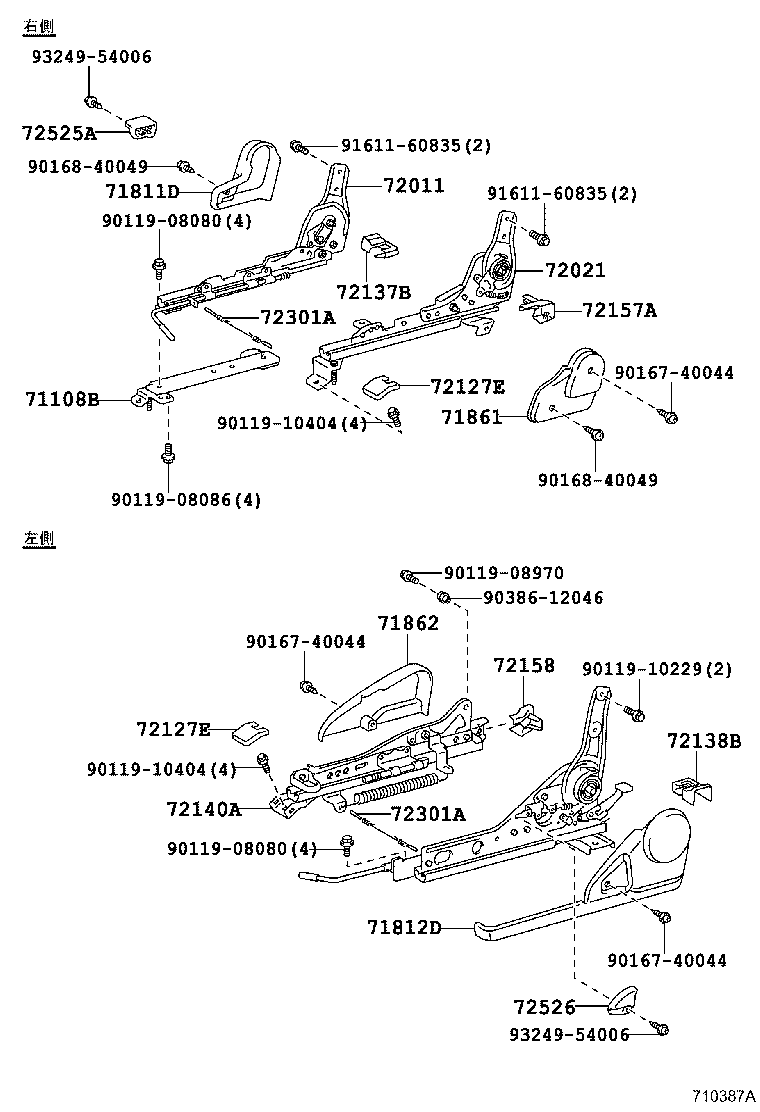

ILLUST NO. 2 OF 2(9308- )AE100,104..ATM..LX,SEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-12010 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280W3 |
AE100,104,CE100,104,EE101..SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71811-12280K0 |
AE100,104,CE100,104,EE101..SEL,XE TAUPE,TRIM9# |
1 | ||
| 71811-12280P0 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71811-12280K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71812-12220W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71812-12260B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12220P0 |
AE10#,CE10#,EE10#..4DS,V,WG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,TAUPE,TRIM9# |
1 | ||
| 71812-12260K0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,TAUPE,TRIM9# |
1 | ||
| 71812-12260B0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260J0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71861-12270K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71861-12270B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12280 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72010-12610 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-12330 |
AE104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
3 | ||
| 72127-12010P0 |
CE106,109,EE106,107..DX,GL;AE10#,CE100,104,108,EE101,108..G,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
3 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
3 | ||
| 72127-12010P0 |
CE106,109,EE106,107..DX,GL;AE10#,CE100,104,108,EE101,108..G,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
3 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72137-12030K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72137-12030W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72138-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72138-12040C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12650 |
AE104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72140-12480 |
AE104,CE104 |
1 | ||
| 72140-12500 |
AE100,101,CE100,108,EE101,104,108..4DS,WG |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12040W3 |
AE104,CE104 DARK BLUE,TRIM8# |
1 | ||
| 72157-12040K0 |
AE104,CE104 TAUPE,TRIM9# |
1 | ||
| 72157-12040P0 |
AE104,CE104,109 SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12040C0 |
AE104,CE104 BLACK,TRIM1#,9# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12040W3 |
AE104,CE104 DARK BLUE,TRIM8# |
1 | ||
| 72158-12040P0 |
AE104,CE104,109 SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12040K0 |
AE104,CE104 TAUPE,TRIM9# |
1 | ||
| 72158-12040C0 |
AE104,CE104 BLACK,TRIM1#,9# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72301-12090 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72301-12230 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72301-12090 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72301-12230 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 72525-12100W3 |
AE100,104,CE100,104,EE101..LX,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72525-12100K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72525-12100K0 |
AE100,104,CE100,104,EE101..LX,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72525-12090P0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72526-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08086 | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90386-12046 | ||||
| 91611-60835 | ||||
| 93249-54006 | ||||
ILLUST NO. 1 OF 2(9109-9401)CE106,108,109,EE106,107,108..CTD,DX,L; (9401- )AE109,CE105,106,107,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71072-1H110B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H110K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13211B0 |
CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1K110J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 71073-1K160B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K160K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 71073-1K110B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K110K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71073-1K180K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 71073-1K180B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1K111K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71073-1K111B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H050K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71074-1H050B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H050J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 71074-1H060B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H150K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 71074-1H060K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 71074-1H150B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H051K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71074-1H051B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1K610K0 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71410-1K610J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1K610B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K611B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1K611K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1E530B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E530K0 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71420-1E530J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-1E531B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E531K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1K340B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-1K340K0 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71430-1K340J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1K341K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71430-1K341B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K270B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K270J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1K270K0 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71440-1K271B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K271K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12170 |
AE10#,CE100,104..SEG,SEL |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12120 |
AE10#,CE100,104..SEG,SEL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
1 | ||
| 71511-12850 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12430 |
AE101..4DS..GT;AE10#,CE100,104,EE101..G,SEL,SJ,XE |
1 | ||
| 71610-12370 |
AE10#,CE100,104,EE101..GT,SEL,XE |
1 | ||
| 71610-12360 |
AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12240 |
AE10#,CE10#,EE10#..CTD,DX,GL,GT,L,LX,SEG,SEL,XE |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AE10#,CE10#,EE10# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AE10#,CE10#,EE10# |
1 | ||
ILLUST NO. 1 OF 2(9308- )AE100,104..ATM..LX,SEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71072-1H110B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-1H110K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13211B0 |
CE106,108,109,EE102,103,104..DX,L SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1H050K0 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71074-1H050B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H050J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
1 | ||
| 71074-1H060B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H150K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 71074-1H060K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
1 | ||
| 71074-1H150B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-1H051K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
1 | ||
| 71074-1H051B1 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
1 | ||
| 71107A - HOLDER SUB-ASSY, FRONT SEAT ARMREST, RH | ||||
| 71107-12010 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1E530B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E530K0 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71420-1E530J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-1E531B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1E531K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1K270B0 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K270J0 |
AE100,104,CE100,104..SEL ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1K270K0 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71440-1K271B1 |
AE100,104,CE100,104..SEL ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-1K271K1 |
AE100,104,CE100,104..SEL ***,TAUPE,TRIM9# |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12120 |
AE10#,CE100,104..SEG,SEL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
1 | ||
| 71511-12850 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12760 |
AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
CE106,109,EE103,107..GL;AE100,101,104,CE100,104,EE101 |
1 | ||
| 71570 - CUSHION ASSY, SIDE SEAT, FRONT | ||||
| 71570-12010B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71570-12010K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-12240 |
AE10#,CE10#,EE10#..CTD,DX,GL,GT,L,LX,SEG,SEL,XE |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AE10#,CE10#,EE10# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A300K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
2 | ||
| 71910-1A26016 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A350B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A300J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
2 | ||
| 71910-1A350K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
2 | ||
| 71910-1A260K1 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
2 | ||
| 71910-1A30016 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A301K2 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
2 | ||
| 71910-1A301K2 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9#,左側 |
1 | ||
| 71910-1A640B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71910-1A301B0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71910-1A301B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A640K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9#,右側 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1A300K1 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
2 | ||
| 71910-1A26016 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A350B0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A300J0 |
AE100,104,CE100,104..SEL DARK BLUE,TRIM8# |
2 | ||
| 71910-1A350K0 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
2 | ||
| 71910-1A260K1 |
AE100,104,CE100,104..SEL SE ﾘﾐﾃﾂﾄﾞ ｻﾙ-ﾝ-*104,TAUPE,TRIM9# |
2 | ||
| 71910-1A30016 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A301K2 |
AE100,104,CE100,104..SEL TAUPE,TRIM9# |
2 | ||
| 71910-1A301K2 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9#,左側 |
1 | ||
| 71910-1A640B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1#,右側 |
1 | ||
| 71910-1A301B0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1#,左側 |
1 | ||
| 71910-1A301B0 |
AE100,104,CE100,104..SEL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A640K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9#,右側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-12040J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-12070K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040B0 |
CE106,109,EE103,107..GL;AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-12040J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-12070K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040B0 |
CE106,109,EE103,107..GL;AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-12040J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-12070K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040B0 |
CE106,109,EE103,107..GL;AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070B0 |
AE10#,CE100,EE101..SEG,SEL,XE ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,TAUPE,TRIM9# |
2 | ||
| 71930-12070J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,TAUPE,TRIM9# |
2 | ||
| 71931-12040B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71931-12040J0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-12070B0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71930-12070K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ付,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040K0 |
AE100,104..ATM..(LX,SEL) ﾛｯｸ無,ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71931-12040B0 |
CE106,109,EE103,107..GL;AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 72658C - KNOB, FRONT SEAT LOCK HANDLE | ||||
| 72658-20040P0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 72658-20040K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90119-08497 | ||||
ILLUST NO. 2 OF 2(9106- )AE100,104,CE100,104,EE101..DX,LX ; (9109-9401)V,WG..CTD,DX,GL,L,LT ; (94
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12280W3 |
AE100,104,CE100,104,EE101..SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71811-12280W3 |
AE100,104,CE100,104,EE101..SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71811-12280K0 |
AE100,104,CE100,104,EE101..SEL,XE TAUPE,TRIM9# |
1 | ||
| 71811-12280K0 |
AE100,104,CE100,104,EE101..SEL,XE TAUPE,TRIM9# |
1 | ||
| 71811-12280P0 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12280P0 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12410K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71811-12410K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71811-12280K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71811-12280K0 |
AE10#,CE100,104,EE101..SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12220K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71812-12220K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71812-12220W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71812-12220W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71812-12260B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12220P0 |
AE10#,CE10#,EE10#..4DS,V,WG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12220P0 |
AE10#,CE10#,EE10#..4DS,V,WG SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,TAUPE,TRIM9# |
1 | ||
| 71812-12260K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,TAUPE,TRIM9# |
1 | ||
| 71812-12260K0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,TAUPE,TRIM9# |
1 | ||
| 71812-12260K0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,TAUPE,TRIM9# |
1 | ||
| 71812-12260B0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260B0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12260J0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,DARK BLUE,TRIM8# |
1 | ||
| 71812-12260J0 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ,DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71861-12220W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71861-12270K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71861-12270K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 71861-12270B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12270B0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71861-12220K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12210W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71862-12210W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 71862-12210K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-12280 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72011-12280 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72010-12590 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72010-12610 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72010-12610 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12650 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72020-12650 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72020-12650 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72020-12650 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72020-12560 |
AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72020-12560 |
AE100,101,104,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
3 | ||
| 72127-12010W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
3 | ||
| 72127-12010P0 |
CE106,109,EE106,107..DX,GL;AE10#,CE100,104,108,EE101,108..G,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010P0 |
CE106,109,EE106,107..DX,GL;AE10#,CE100,104,108,EE101,108..G,GT,L,LT,LX,SEG,SEL,SJ,XE SHADOW GRAY,TRIM1# |
3 | ||
| 72127-12010C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
3 | ||
| 72127-12010C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
3 | ||
| 72127-12010K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
3 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12580 |
AE104,CE104..SEL,XE |
1 | ||
| 72130-12580 |
AE104,CE104..SEL,XE |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-12030C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 72137-12030C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72137-12030K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72137-12030K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72137-12030W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72137-12030W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72138-12040W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72138-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72138-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72138-12040C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 72138-12040C0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE BLACK,TRIM1#,9# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
CE106,EE102..05S;AE100,101,CE100,108,109,EE101,103,104..DX,G,GL,GT,L,LT,SJ BLACK,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12650 |
AE104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72140-12650 |
AE104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72140-12480 |
AE104,CE104 |
1 | ||
| 72140-12480 |
AE104,CE104 |
1 | ||
| 72140-12500 |
AE100,101,CE100,108,EE101,104,108..4DS,WG |
1 | ||
| 72140-12500 |
AE100,101,CE100,108,EE101,104,108..4DS,WG |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12040W3 |
AE104,CE104 DARK BLUE,TRIM8# |
1 | ||
| 72157-12040W3 |
AE104,CE104 DARK BLUE,TRIM8# |
1 | ||
| 72157-12040K0 |
AE104,CE104 TAUPE,TRIM9# |
1 | ||
| 72157-12040K0 |
AE104,CE104 TAUPE,TRIM9# |
1 | ||
| 72157-12040P0 |
AE104,CE104,109 SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12040P0 |
AE104,CE104,109 SHADOW GRAY,TRIM1# |
1 | ||
| 72157-12040C0 |
AE104,CE104 BLACK,TRIM1#,9# |
1 | ||
| 72157-12040C0 |
AE104,CE104 BLACK,TRIM1#,9# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12040W3 |
AE104,CE104 DARK BLUE,TRIM8# |
1 | ||
| 72158-12040W3 |
AE104,CE104 DARK BLUE,TRIM8# |
1 | ||
| 72158-12040P0 |
AE104,CE104,109 SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12040P0 |
AE104,CE104,109 SHADOW GRAY,TRIM1# |
1 | ||
| 72158-12040K0 |
AE104,CE104 TAUPE,TRIM9# |
1 | ||
| 72158-12040K0 |
AE104,CE104 TAUPE,TRIM9# |
1 | ||
| 72158-12040C0 |
AE104,CE104 BLACK,TRIM1#,9# |
1 | ||
| 72158-12040C0 |
AE104,CE104 BLACK,TRIM1#,9# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72301-12160 |
AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
1 | ||
| 72301-12090 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72301-12090 |
AE10#,CE100,104,EE101..G,GT,SEL,SJ,XE |
1 | ||
| 72301-12230 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72301-12230 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12140 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72301-12140 |
AE100,104..4FC..SEL ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72301-12160 |
AE10#,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72301-12160 |
AE10#,CE100,104,108,EE101,104,108..4DS,WG |
1 | ||
| 72301-12140 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72301-12140 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸｼﾔ ｼﾖｳ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12090K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 72525-12090K0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,TAUPE,TRIM9# |
1 | ||
| 72525-12100W3 |
AE100,104,CE100,104,EE101..LX,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72525-12100W3 |
AE100,104,CE100,104,EE101..LX,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72525-12100K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72525-12100K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72525-12100K0 |
AE100,104,CE100,104,EE101..LX,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72525-12100K0 |
AE100,104,CE100,104,EE101..LX,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72525-12090P0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12090P0 |
AE100,104..ATM..(LX,SEL) ﾌﾚﾝﾄﾞﾏﾁﾂｸ ｼﾔ,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE10#,CE10#,EE10#..CTD,DX,G,GL,GT,L,LT,LX,SEL,SJ,XE SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040P0 |
AE10#,CE10#,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72526-12040W3 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE DARK BLUE,TRIM8# |
1 | ||
| 72526-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| 72526-12040K0 |
AE10#,CE100,104,EE101..LX,SEG,SEL,XE TAUPE,TRIM9# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90386-12046 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
