AE104-AEPEK (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

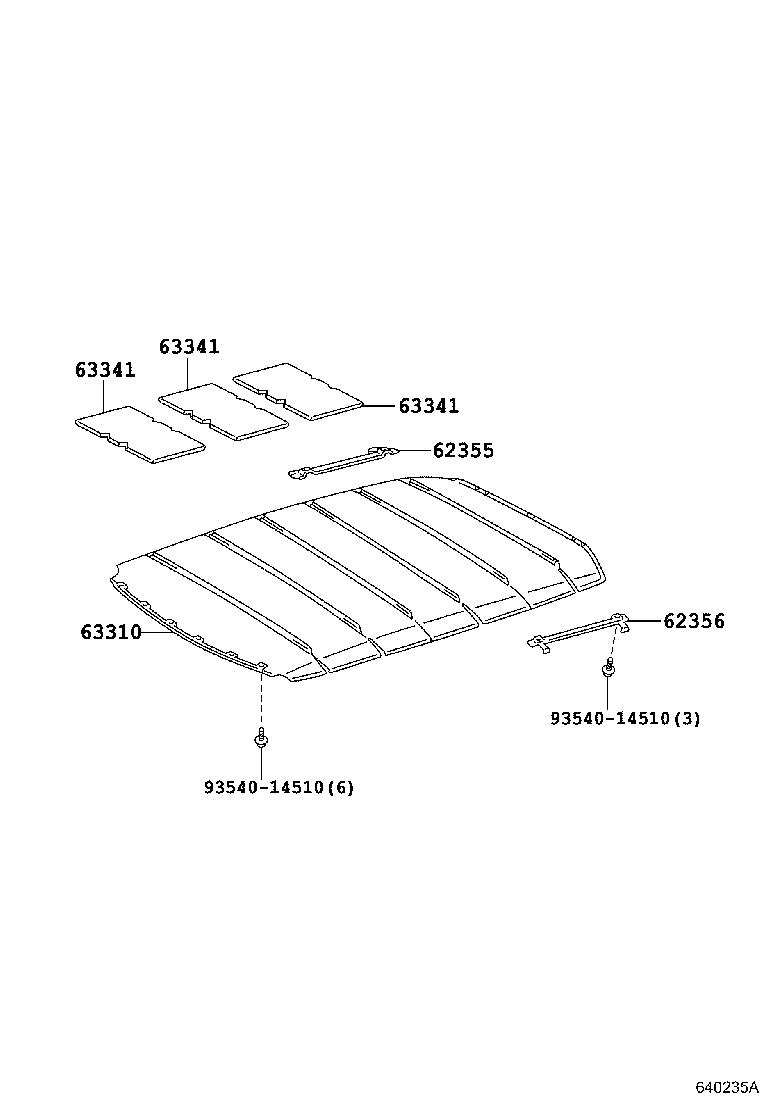

Click highlighted areas on diagram

diagram 62355 62356 63310 63341 63341 63341 9354014510 9354014510
Part # Description Qty Price
62355 - RETAINER, QUARTER WINDOW INSIDE TRIM, RH
62355-13020

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
62356 - RETAINER, QUARTER WINDOW INSIDE TRIM, LH
62356-13020

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
63310 - HEADLINING ASSY, ROOF
63310-1A220K1

AE10#,CE100,104..SEG,SEL

LIGHT TAUPE,TRIM9#

 1
63310-1A221W5

AE10#,CE100,104..SEG,SEL

LIGHT BLUE,TRIM8#

 1
63310-1A220W5

AE10#,CE100,104..SEG,SEL

LIGHT BLUE,TRIM8#

 1
63310-1A230K1

AE10#,CE100,104..SEG,SEL,XE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT TAUPE,TRIM9#

 1
63310-1A230W5

AE10#,CE100,104..SEG,SEL,XE

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM8#

 1
63310-1A221K1

AE10#,CE100,104..SEG,SEL

LIGHT TAUPE,TRIM9#

 1
63310-1A230S3

AE10#,CE100,104..4DS..(GT,SEG,SEL,XE)

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1#

 1
63310-1A221S3

AE10#,CE100,104..4DS..(GT,SEG,SEL)

LIGHT GRAY,TRIM1#

 1
63310-1A220S3

AE10#,CE100,104..GT,SEG,SEL

LIGHT GRAY,TRIM1#

 1
63310-13170S3

AE109,CE102,105,106,107,108,109,EE102,103,104

LIGHT GRAY,TRIM1#

 1
Common parts
93540-14510
