AE104-AEPEK (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE104,CE104

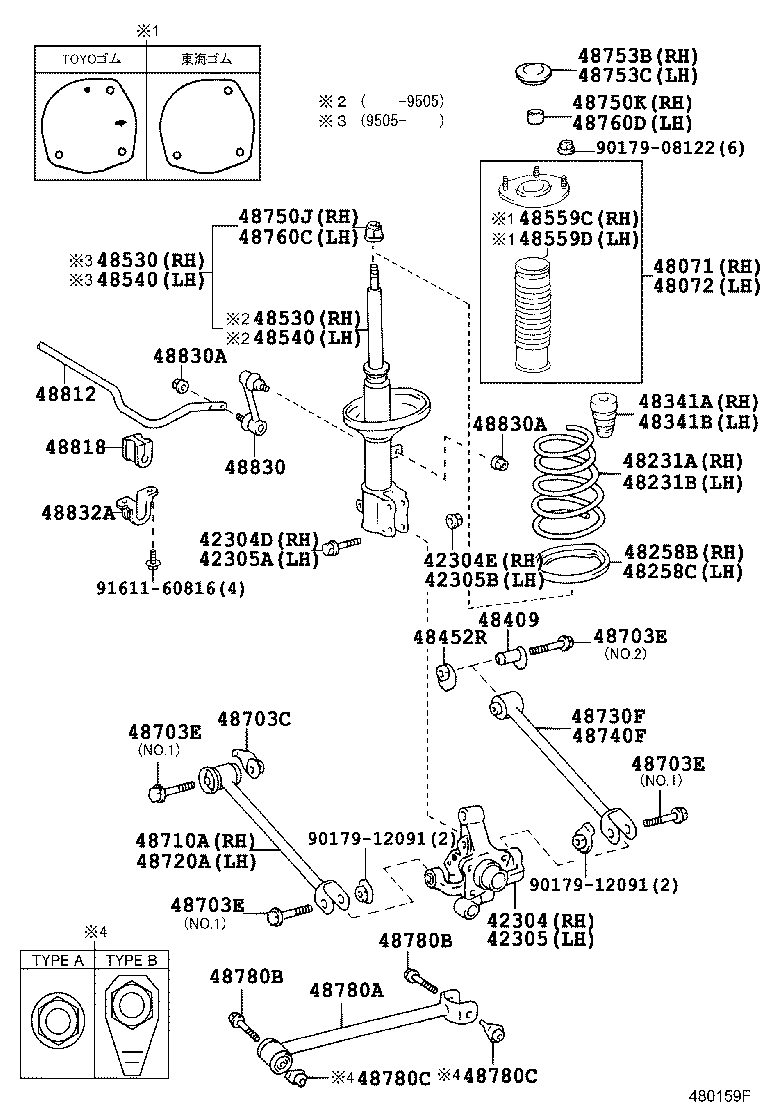

Click highlighted areas on diagram

diagram 42304 42304D 42304E 42305 42305A 42305B 48071 48072 48231A 48231B 48258B 48258C 48341A 48341B 48409 48452R 48530 48530 48540 48540 48559C 48559D 48703C 48703E 48703E 48703E 48703E 48710A 48720A 48730F 48740F 48750J 48750K 48753B 48753C 48760C 48760D 48780A 48780B 48780B 48780C 48780C 48812 48818 48830 48830A 48830A 48832A 9017908122 9017912091 9017912091 9161160816
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-12110

AE104,CE104

 1
42304-12120

AE104,CE104

ｱﾘ(ABS)

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-12110

AE104,CE104

 1
42305-12120

AE104,CE104

ｱﾘ(ABS)

 1
48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48071-12080

AE10#,CE100,104,EE101

 1
48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48072-12080

AE10#,CE100,104,EE101

 1
48231A - SPRING, COIL, REAR RH
48231-1E110

AE104,CE104

 1
48231B - SPRING, COIL, REAR LH
48231-1E110

AE104,CE104

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-12030

AE10#,CE100,104,EE101

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-12030

AE10#,CE100,104,EE101

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-13090

CE102,106,107,108,EE102,103,104,106,107,108

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-13090

CE102,106,107,108,EE102,103,104,106,107,108

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-12760

AE104,CE104

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-12760

AE104,CE104

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-12700

AE104,CE104

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-12700

AE104,CE104

 1
48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1
48559-12070

AE10#,CE100,104,EE101

 1
48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1
48559-12070

AE10#,CE100,104,EE101

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12106

AE104,CE104

BODY SIDE

 2
90179-12064

AE104,CE104

CARRIER SIDE

 4
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-12180

AE104,CE104

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-12180

AE104,CE104

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-12070

AE104,CE104

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48730-12070

AE104,CE104

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90179-14015

AE100,101,104,CE100,101,104,EE101

 1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-15012

AE10#,CE100,104,EE101

 1
48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753-12010

AE10#,CE100,104,EE101

 1
48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48753-12010

AE10#,CE100,104,EE101

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90179-14015

AE100,101,104,CE100,101,104,EE101

 1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-15012

AE10#,CE100,104,EE101

 1
48780A - ROD ASSY, STRUT, REAR
48780-12010

AE10#,CE100,104,EE101..DX,G,LT,LX,SEG,SEL,SJ,XE

 2
48780B - BOLT(FOR STRUT ROD)
90119-12152

AE100,101,104,CE100,104,EE101

 4
48780B - BOLT(FOR STRUT ROD)
90119-12152

AE100,101,104,CE100,104,EE101

 4
48780C - NUT(FOR STRUT ROD)
90179-12062

AE10#,CE100,104,EE101

ｷﾔﾘｱ ｻｲﾄﾞ

 2
90179-12063

AE104..4DS;AE100,101,CE100,104,EE101

ﾎﾞﾃﾞｰ側

 2
48780C - NUT(FOR STRUT ROD)
90179-12062

AE10#,CE100,104,EE101

ｷﾔﾘｱ ｻｲﾄﾞ

 2
90179-12063

AE104..4DS;AE100,101,CE100,104,EE101

ﾎﾞﾃﾞｰ側

 2
48812 - BAR, STABILIZER, REAR
48812-12210

AE104..4FC

 1
48818 - BUSH, STABILIZER, REAR
48818-12130

AE104..4FC

 2
48818-12190

AE104..4FC

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10183

AE100,101,104,CE100,101,104,EE101

 4
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10183

AE100,101,104,CE100,101,104,EE101

 4
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-12070

AE104,CE104

 2
Common parts
90179-08122
90179-12091
91611-60816
