AE104-AEPEK (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE104,109..4FC

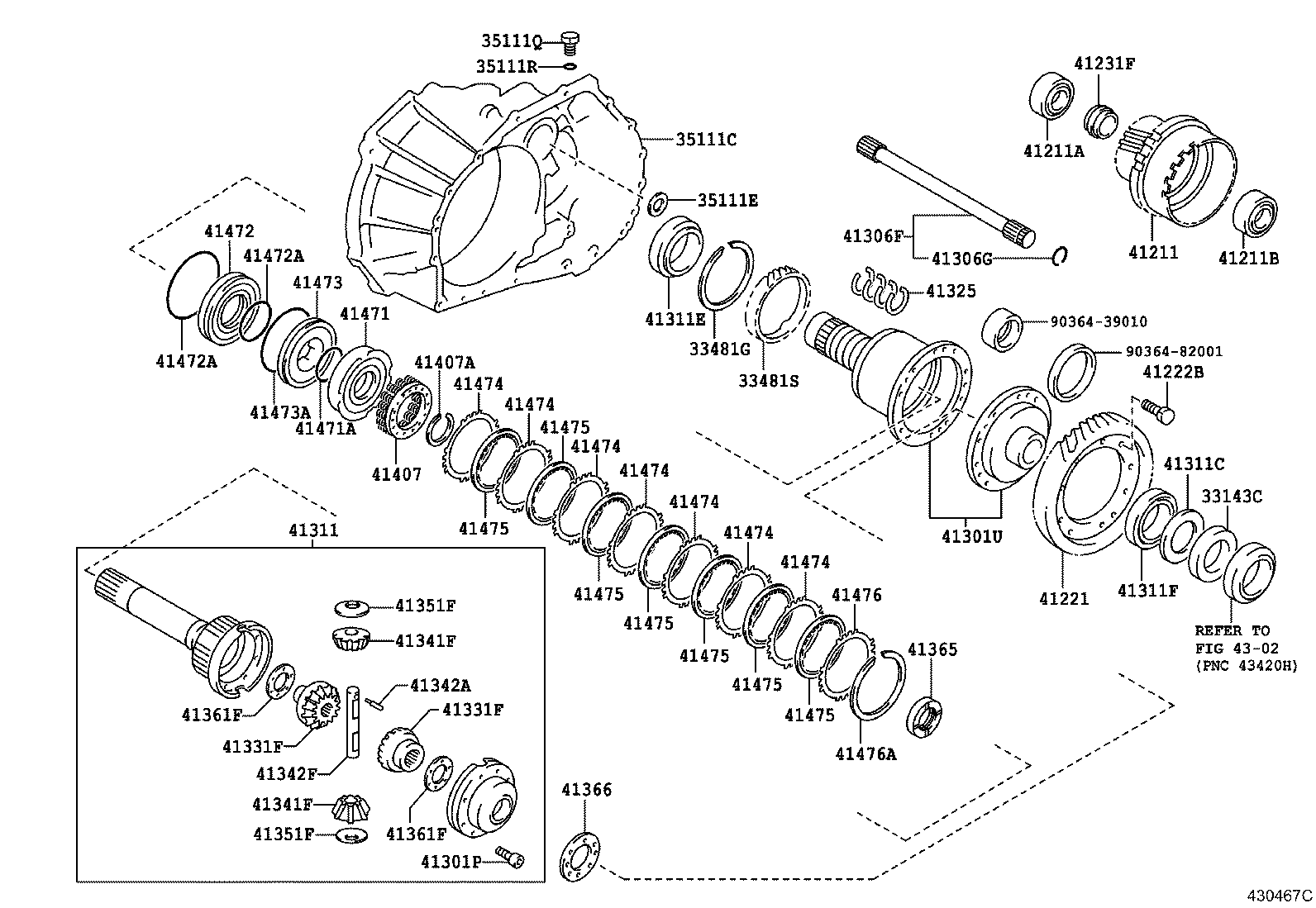

Click highlighted areas on diagram

A241H

diagram 33143C 33481G 33481S 35111C 35111E 35111Q 35111R 41211 41211A 41211B 41221 41222B 41231F 41301P 41301U 41306F 41306G 41311 41311C 41311E 41311F 41325 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41365 41366 41407 41407A 41471 41471A 41472 41472A 41472A 41473 41473A 41474 41474 41474 41474 41474 41474 41474 41475 41475 41475 41475 41475 41475 41475 41476 41476A 4302 9036439010 9036482001
Part # Description Qty Price
35111C - HOUSING, TRANSAXLE
35105-12040

AE104..4FC

 1
35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
90210-13002

AE10#,CE100,101,102,106,107,108..4FC

 1
35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING)
90341-08001

AE10#,CE100,106,108..4FC

 1
35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
90301-06196

AE10#,CE100,106,108..4FC

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-30037

AE104,CE100,106,108..4FC

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90366-30036

AE104,CE100,106,108..4FC

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12310

AE100..5F;EE103..3FC;EE101,104..3FC,4F

 1
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-17010

AE104,109,CE100,101,102,106,107,108..4FC

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12020

AE10#,EE101

 1
Common parts
90364-39010
90364-82001
Linked diagrams
4302
