AE104-AEPEK (1991)
Toyota Corolla
ILLUST NO. 1 OF 5(9210-9305)4FC ; (9305- )AE100,104,109,CE100,101,102,106,107,108..4FC
A240L,A240E,A241L,A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35156-20010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
AE10#..4FC |
6 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
AE10#..4FC |
3 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-20020 |
AE10#,CE100,101,102,106,107,108..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12020 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-20010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12360 |
AE104..4FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-20010 |
AE10#..4FC |
1 | ||
| 35423-20010 |
AE10#..4FC |
1 | ||
| 35423-20010 |
AE10#..ATM |
1 | ||
| 35423-20010 |
AE100,104..4FC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,XE) 外側 |
1 | ||
| 90501-12135 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,SJ,XE) 外側 |
1 | ||
| 90501-26048 |
AE10#..ATM..(DX,G,LT,LX,SEG,SEL,XE) 外側 |
1 | ||
| 90501-14101 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE100,104..4FC 外側 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,XE) 外側 |
1 | ||
| 90501-12135 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,SJ,XE) 外側 |
1 | ||
| 90501-26048 |
AE10#..ATM..(DX,G,LT,LX,SEG,SEL,XE) 外側 |
1 | ||
| 90501-14101 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE100,104..4FC 外側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
AE10#,CE100,106,108,EE10#..ATM 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
AE10#,CE100,106,108,EE10#..ATM 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-20010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35424-20010 |
AE10#..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23065 |
AE10#,CE100..4FC 外側 |
1 | ||
| 90501-24018 |
AE104..4FC 外側 |
1 | ||
| 90501-26053 |
AE104..4FC 内側 |
1 | ||
| 90501-19023 |
AE104,CE100,106,108..4FC 内側 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23065 |
AE10#,CE100..4FC 外側 |
1 | ||
| 90501-24018 |
AE104..4FC 外側 |
1 | ||
| 90501-26053 |
AE104..4FC 内側 |
1 | ||
| 90501-19023 |
AE104,CE100,106,108..4FC 内側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE104..4FC |
1 | ||
| 90301-29187 |
AE10#..ATM |
1 | ||
| 90301-29187 |
AE10#..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE104..4FC |
1 | ||
| 90301-29187 |
AE10#..ATM |
1 | ||
| 90301-29187 |
AE10#..4FC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12020 |
AE10#..4FC |
1 | ||
| 35425-12020 |
AE104..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25012 |
AE10#..4FC..(G,LT,SEG,SEL,SJ,XE) |
1 | ||
| 90501-23063 |
AE104..4FC |
1 | ||
| 90501-25012 |
AE104..4FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
AE10#..4FC 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
AE10#..4FC 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-12020 |
AE100,104..4FC |
1 | ||
| 35426-12020 |
AE10#..4FC |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23050 |
AE10#..4FC |
1 | ||
| 90501-25001 |
AE100,104..4FC |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE10#,CE100,101,102,106,107,108..4FC 下側 |
1 | ||
| 90301-20002 |
AE10#,CE100,106,108..4FC 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE10#,CE100,101,102,106,107,108..4FC 下側 |
1 | ||
| 90301-20002 |
AE10#,CE100,106,108..4FC 上側 |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-26040 |
AE10#,CE100,106,108..4FC |
1 | ||
| 90501-26040 |
AE101,104,CE100,106,108..4FC..(DX,GL,GT,L,LX,SEL,XE) |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
AE10#..4FC |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-12010 |
AE10#,CE100,106,108..ATM |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
AE10#,CE100,106,108,EE10#..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-12020 |
AE10#,CE100,106,108..4FC |
1 | ||

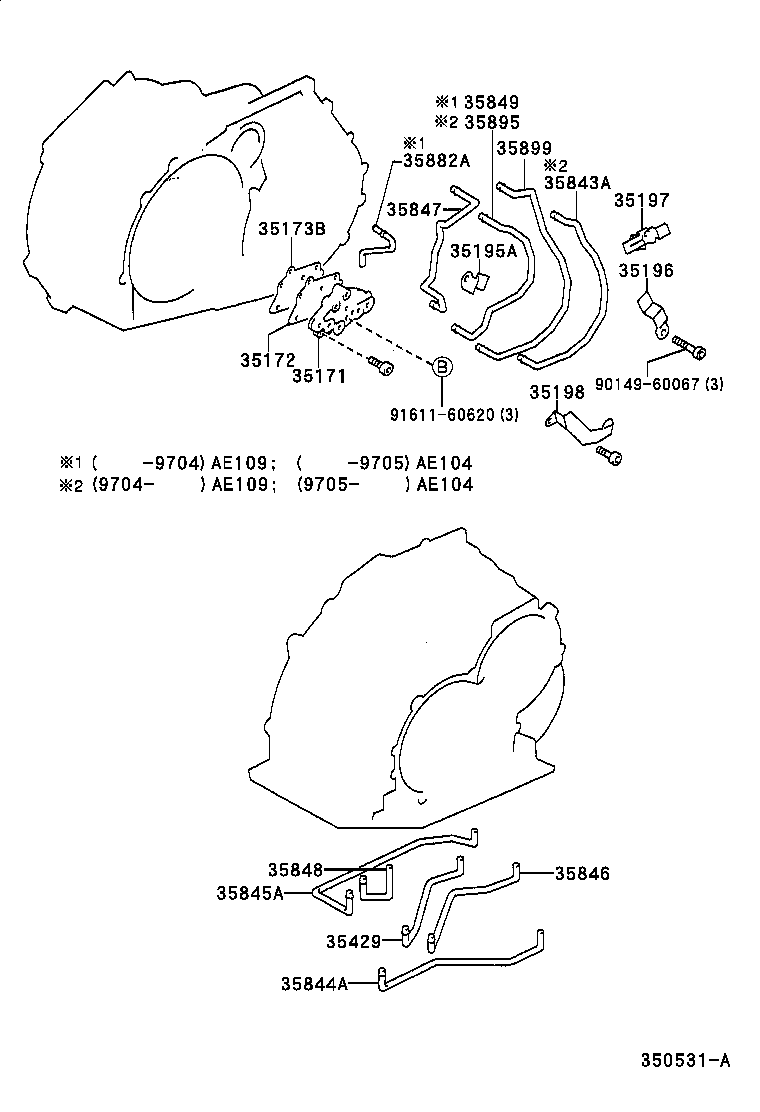

ILLUST NO. 4 OF 5(9109- )AE104,109..4FC
A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35172 - GASKET, TRANSAXLE HOUSING COVER | ||||
| 35172-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35845A - TUBE, DIRECT CLUTCH ACCUMULATOR | ||||
| 35845-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-12040 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35849 - TUBE, GOVERNOR APPLY | ||||
| 35849-20010 |
AE100,104,109,CE100,106,108..4FC |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| Common parts | ||||
| 90149-60067 | ||||
| 91611-60620 | ||||
ILLUST NO. 4 OF 5(9106-9305)AE100,101,CE100,106,108..4FC ; (9305-)AE100,CE100,101,102,106,107,10
A240L,A240E,A241L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35172 - GASKET, TRANSAXLE HOUSING COVER | ||||
| 35172-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35845A - TUBE, DIRECT CLUTCH ACCUMULATOR | ||||
| 35845-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-12040 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-12030 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35849 - TUBE, GOVERNOR APPLY | ||||
| 35849-20010 |
AE100,104,109,CE100,106,108..4FC |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| Common parts | ||||
| 90105-06020 | ||||
| 90949-01136 | ||||
| 90949-01444 | ||||
| 91611-60620 | ||||
| 91611-B0614 | ||||
ILLUST NO. 1 OF 5(9106-9210)4FC
A240L,A240E,A241L,A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35156-20010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
AE10#..4FC |
6 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
AE10#..4FC |
3 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-20020 |
AE10#,CE100,101,102,106,107,108..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12020 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-20010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12360 |
AE104..4FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-20010 |
AE10#..4FC |
1 | ||
| 35423-20010 |
AE10#..4FC |
1 | ||
| 35423-20010 |
AE10#..ATM |
1 | ||
| 35423-20010 |
AE100,104..4FC |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,XE) 外側 |
1 | ||
| 90501-12135 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,SJ,XE) 外側 |
1 | ||
| 90501-26048 |
AE10#..ATM..(DX,G,LT,LX,SEG,SEL,XE) 外側 |
1 | ||
| 90501-14101 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE100,104..4FC 外側 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,XE) 外側 |
1 | ||
| 90501-12135 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE10#..4FC..(G,LT,SEG,SEL,SJ,XE) 外側 |
1 | ||
| 90501-26048 |
AE10#..ATM..(DX,G,LT,LX,SEG,SEL,XE) 外側 |
1 | ||
| 90501-14101 |
AE104..4FC 内側 |
1 | ||
| 90501-26048 |
AE100,104..4FC 外側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
AE10#,CE100,106,108,EE10#..ATM 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
AE10#,CE100,106,108,EE10#..ATM 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-20010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35424-20010 |
AE10#..4FC |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23065 |
AE10#,CE100..4FC 外側 |
1 | ||
| 90501-24018 |
AE104..4FC 外側 |
1 | ||
| 90501-26053 |
AE104..4FC 内側 |
1 | ||
| 90501-19023 |
AE104,CE100,106,108..4FC 内側 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23065 |
AE10#,CE100..4FC 外側 |
1 | ||
| 90501-24018 |
AE104..4FC 外側 |
1 | ||
| 90501-26053 |
AE104..4FC 内側 |
1 | ||
| 90501-19023 |
AE104,CE100,106,108..4FC 内側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE104..4FC |
1 | ||
| 90301-29187 |
AE10#..ATM |
1 | ||
| 90301-29187 |
AE10#..4FC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12020 |
AE10#..4FC |
1 | ||
| 35425-12020 |
AE104..4FC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25012 |
AE10#..4FC..(G,LT,SEG,SEL,SJ,XE) |
1 | ||
| 90501-23063 |
AE104..4FC |
1 | ||
| 90501-25012 |
AE104..4FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
AE10#..4FC 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
AE10#..4FC 上側 |
1 | ||
| 90301-29187 |
AE10#,CE100,106,108,EE10#..ATM 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-12020 |
AE100,104..4FC |
1 | ||
| 35426-12020 |
AE10#..4FC |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23050 |
AE10#..4FC |
1 | ||
| 90501-25001 |
AE100,104..4FC |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE10#,CE100,101,102,106,107,108..4FC 下側 |
1 | ||
| 90301-20002 |
AE10#,CE100,106,108..4FC 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AE10#,CE100,101,102,106,107,108..4FC 下側 |
1 | ||
| 90301-20002 |
AE10#,CE100,106,108..4FC 上側 |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-26040 |
AE10#,CE100,106,108..4FC |
1 | ||
| 90501-26040 |
AE101,104,CE100,106,108..4FC..(DX,GL,GT,L,LX,SEL,XE) |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
AE10#..4FC |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-12010 |
AE10#,CE100,106,108..ATM |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
AE10#,CE100,106,108,EE10#..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-12010 |
AE10#,CE100,106,108..4FC |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-12020 |
AE10#,CE100,106,108..4FC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
