AE104-AEPEK (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

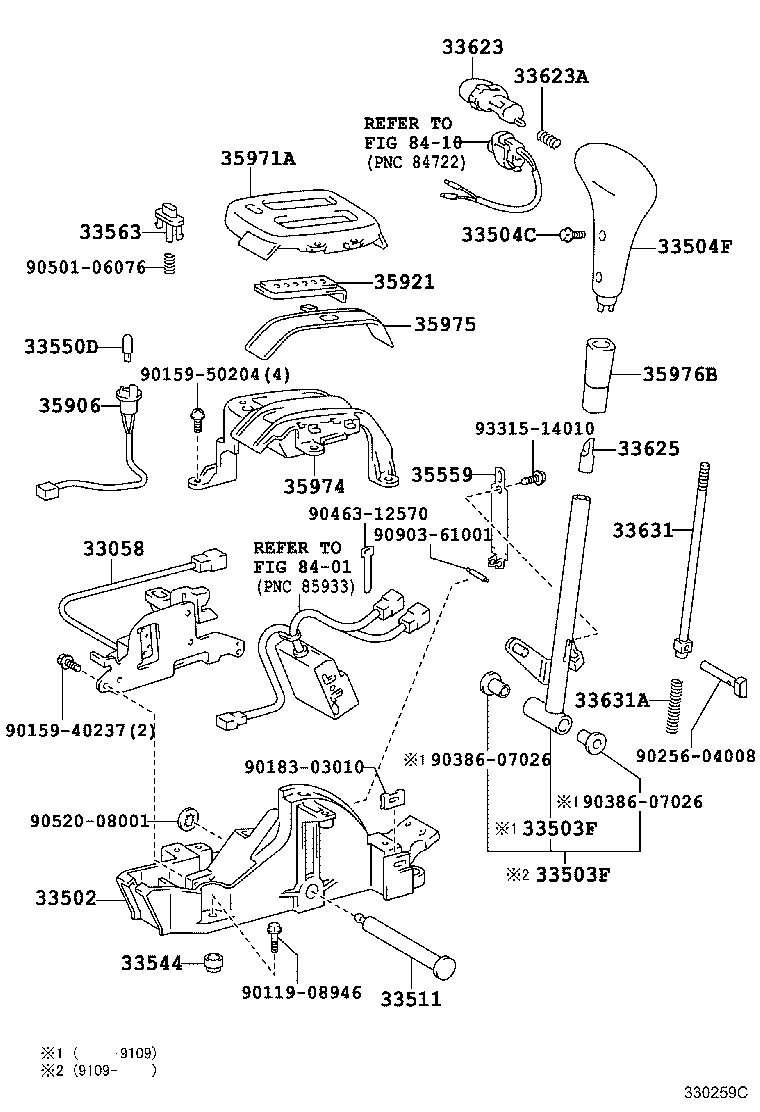

ILLUST NO. 1 OF 2(9106-9505)4FC

Click highlighted areas on diagram

diagram 33058 33502 33503F 33503F 33504C 33504F 33511 33544 33550D 33563 33623 33623A 33625 33631 33631A 35559 35906 35921 35971A 35974 35975 35976B 8401 8410 9011908946 9015940237 9015950204 9018303010 9025604008 9038607026 9038607026 9046312570 9050106076 9052008001 9090361001 9331514010
Part # Description Qty Price
33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33058-12040

AE10#,CE100,106,108..4FC

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33521-12220

AE10#,CE100..4FC

 1
33521-12221

AE10#,CE100,106,108..4FC

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-12020

AE10#,CE100..4FC

 1
33503-12481

AE10#,CE100,106,108..4FC

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-12020

AE10#,CE100..4FC

 1
33503-12481

AE10#,CE100,106,108..4FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40244

AE10#,CE100,106,108..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-12180K0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

TAUPE,TRIM9#

 1
33542-12180J0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

DARK BLUE,TRIM8#

 1
33542-12180B0

AE10#,CE100,106,108..4FC

SHADOW GRAY,TRIM1#

 1
33542-12181B0

AE10#,CE100,106,108..4FC

SHADOW GRAY,TRIM1#

 1
33542-12181K0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

TAUPE,TRIM9#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-33010

AE10#,CE100..4FC

 1
33511-12100

AE10#,CE100,106,108..4FC

 1
33544 - INSERT, SHIFT LEVER, NO.1
33544-33010

AE10#,CE100,106,108..4FC

 4
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

AE10#,CE100,106,108..4FC

12V 3.4W

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-12050

AE10#,CE100,106,108..4FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-12100B0

AE10#,CE100,106,108..4FC

SHADOW GRAY,TRIM1#

 1
33623-12100J0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

DARK BLUE,TRIM8#

 1
33623-12100K0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

TAUPE,TRIM9#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07037

AE10#,CE100,106,108..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-12020

AE10#,CE100,106,108..4FC

 1
33631 - ROD, DETENT
33631-12120

AE10#,CE100,106,108..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07082

AE10#,CE100,106,108..4FC

 1
90501-07074

AE10#,CE100,106,108..4FC

 1
35559 - SPRING, MANUAL DETENT
35559-33010

AE10#,CE100,106,108..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12120

AE10#,CE100,106,108..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12330

AE10#,CE100,106,108..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-12280J0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

DARK BLUE,TRIM8#

 1
35971-12280B0

AE10#,CE100,106,108..4FC

SHADOW GRAY,TRIM1#

 1
35971-12280K0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

TAUPE,TRIM9#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12130

AE10#,CE100,106,108..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12200K0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

TAUPE,TRIM9#

 1
35975-12200B0

AE10#,CE100,106,108..4FC

SHADOW GRAY,TRIM1#

 1
35975-12200J0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

DARK BLUE,TRIM8#

 1
35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
35976-12080J0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

DARK BLUE,TRIM8#

 1
35976-12080B0

AE10#,CE100,106,108..4FC

SHADOW GRAY,TRIM1#

 1
35976-12080K0

AE10#,CE100..4FC..(LX,SEG,SEL,XE)

TAUPE,TRIM9#

 1
Common parts
90119-08946
90159-40237
90159-50204
90183-03010
90256-04008
90386-07026
90463-12570
90501-06076
90520-08001
90903-61001
93315-14010
Linked diagrams
8401
8410

ILLUST NO. 2 OF 2(9106-9505)ATM

Click highlighted areas on diagram

diagram 33574A 33574F 33820B 33821B 33821E 33823 33823C 9015960081 9017908061 9017908070 9046814016 9046814016 9046814032 9161160816 9165160614 9356015014
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-12050

AE101,104..4FC

 1
33574-12050

AE101,104..4FC..(GT,SEL,XE)

 1
33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT)
33574-12030

AE10#,CE100,106,108,EE10#..ATM

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12550

AE104..4FC

 1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90480-01391

AE10#,CE100,106,108,EE10#..ATM

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01742

AE104..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12110

AE100,104..4FC

 1
33823-12110

AE10#..4FC

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-61022

AE100..4FC..(G,SEL,XE);AE101,104,109,CE100,106,108..4FC

 2
Common parts
90159-60081
90179-08061
90179-08070
90468-14016
90468-14032
91611-60816
91651-60614
93560-15014
