AE104-AEPEK (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )4AFE..AE104

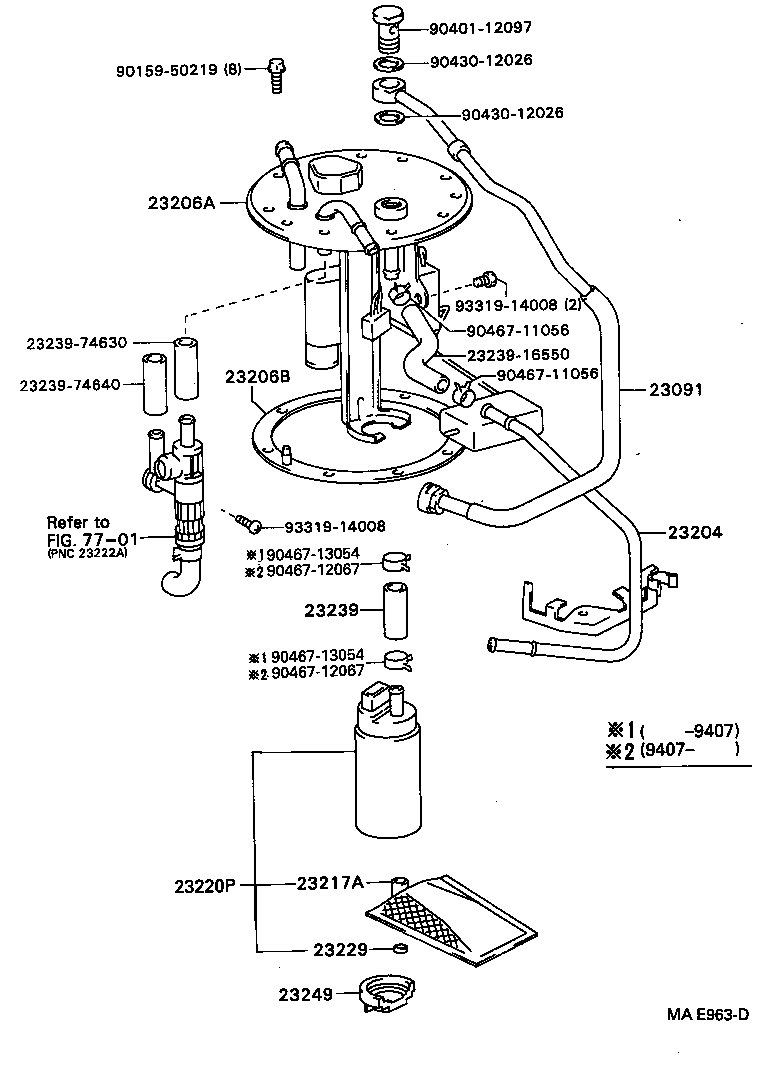

Click highlighted areas on diagram

diagram 23091 23204 23206A 23206B 23217A 23220P 23229 23239 2323916550 2323974630 2323974640 23249 7701 9015950219 9040112097 9043012026 9043012026 9046711056 9046711056 9046712067 9046712067 9046713054 9046713054 9331914008 9331914008
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-16080

4AFE..AE104

 1
23206A - BRACKET, FUEL PUMP
23206-16550

4AFE..AE104

 1
23206-16590

4AFE..AE104

ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝｶﾝﾚｲﾁ ｼﾖｳ

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-12030

4A#,5AFE..AE100,101,104

 1
23217A - FILTER, FUEL PUMP
23217-16451

4AFE..AE104

 1
23217-16450

4AFE..AE104

 1
23220P - PUMP ASSY, FUEL
23220-74020

4A#,5AFE..AE10#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4A#,5AFE..AE10#

 1
23239 - HOSE
23239-63010

4A#,5AFE..AE10#

 1
23239-11010

4A#,5AFE..AE10#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

4A#,5AFE..AE10#

 1
Common parts
23239-16550
23239-74630
23239-74640
90159-50219
90401-12097
90430-12026
90467-11056
90467-12067
90467-13054
93319-14008
Linked diagrams
7701
