AE104-AEMEK (1991)

Toyota Corolla

Production Sep 1991 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE104,109,CE105,109

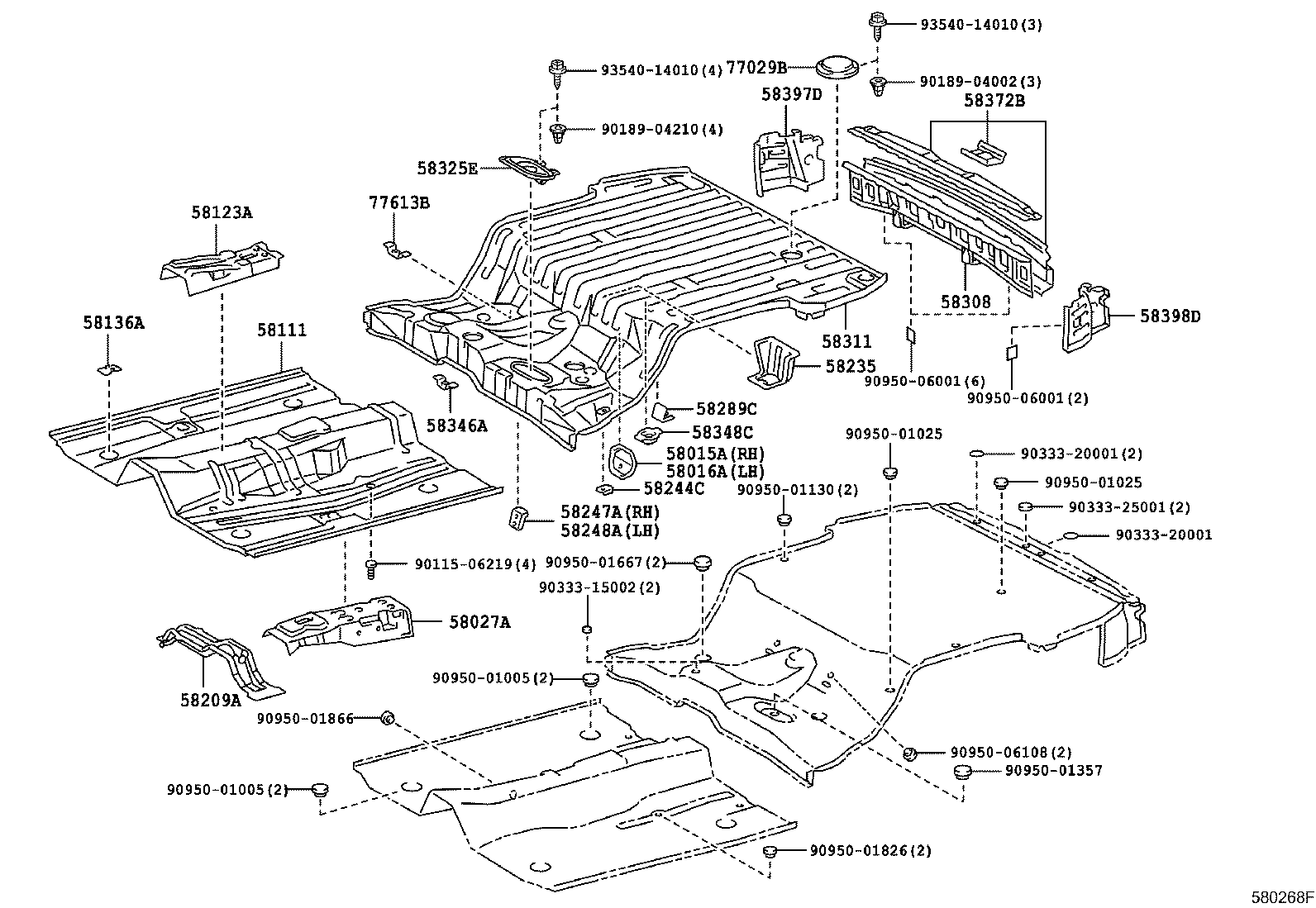

Click highlighted areas on diagram

diagram 58015A 58016A 58027A 58111 58123A 58136A 58209A 58235 58244C 58247A 58248A 58289C 58308 58311 58325E 58346A 58348C 58372B 58397D 58398D 77029B 77613B 9011506219 9018904002 9018904210 9033315002 9033320001 9033320001 9033325001 9095001005 9095001005 9095001025 9095001025 9095001130 9095001357 9095001667 9095001826 9095001866 9095006001 9095006001 9095006108 9354014010 9354014010
Part # Description Qty Price
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-13020

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58015-12040

AE100,101,104,CE100,101,104,EE101

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-12010

AE100,101,104,CE100,101,104,EE101

 1
58016-13010

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-12130

AE104,CE104,109

 1
58111 - PAN, FRONT FLOOR
58111-12270

AE104,CE104,109

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-12030

AE104,CE104,109

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

AE10#,CE10#,EE10#

 2
58136-12030

AE10#,CE10#,EE10#

 2
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-13040

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-13040

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-13110

CE102,106,107,108,EE102,103,104,106,107,108

 1
58311 - PAN, REAR FLOOR
58311-12210

AE100,101,104,CE100,101,104,EE101..4DS,WG

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12080

AE10#,CE10#,EE10#

 1
58348C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-12020

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 2
58348-12020

AE10#,CE100,104,EE101..4DS,WG

 1
58372B - PANEL, BODY LOWER BACK, LOWER
58307-13110

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58397D - PANEL, REAR FLOOR END DUST SEAL, RH
58397-13040

AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108

 1
58398D - PANEL, REAR FLOOR END DUST SEAL, LH
58398-13030

CE102,106,107,108,EE102,103,104,106,107,108

 1
Common parts
90115-06219
90189-04002
90189-04210
90333-15002
90333-20001
90333-25001
90950-01005
90950-01025
90950-01130
90950-01357
90950-01667
90950-01826
90950-01866
90950-06001
90950-06108
93540-14010
