AE104-AEMDK (1991)
Toyota Corolla

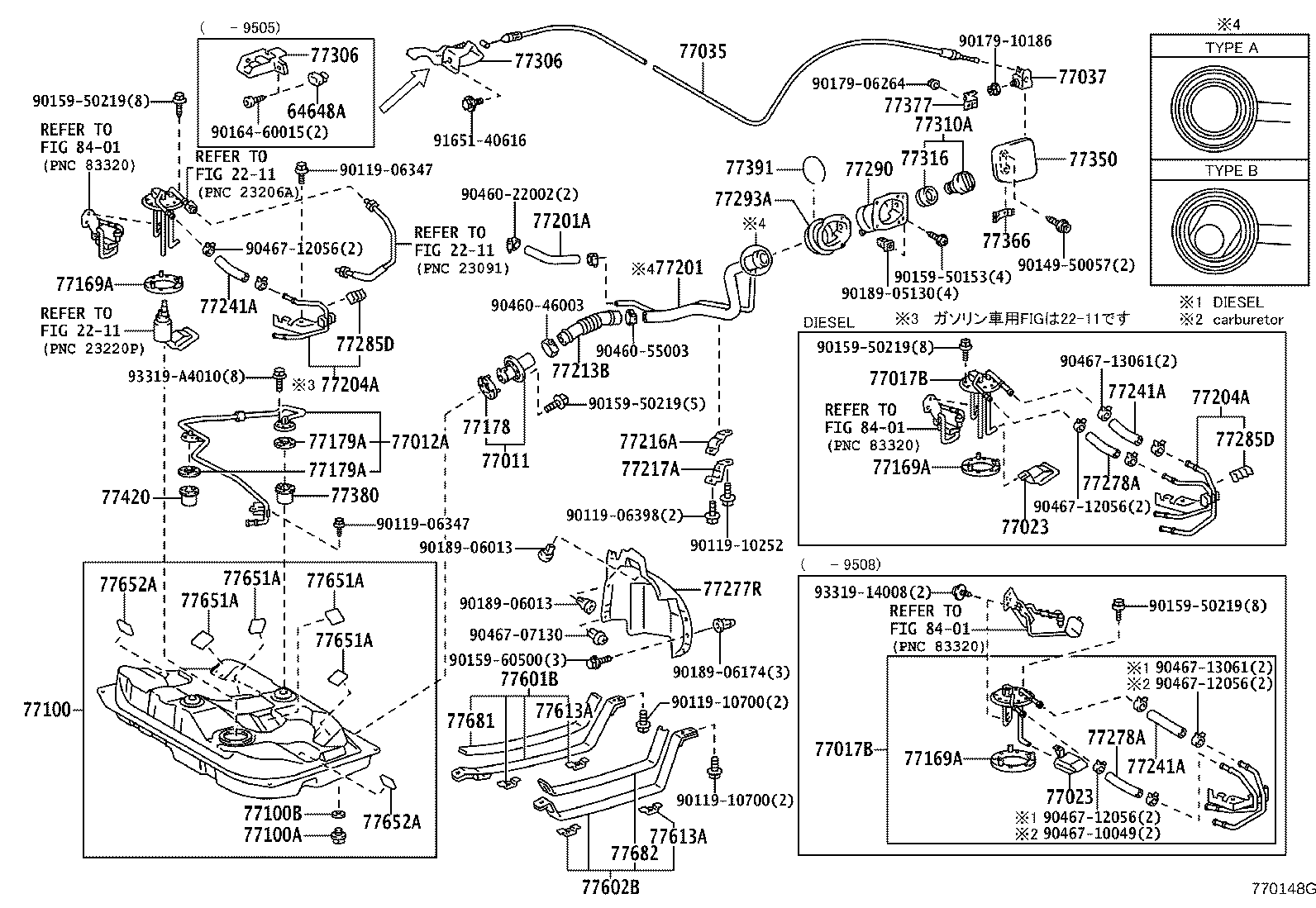

ILLUST NO. 1 OF 2(9109-9505)AE104,CE104
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
AE104,CE104,109 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32030 |
AE104 |
1 | ||
| 77023-32030 |
AE104,CE104 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32030 |
AE104 |
1 | ||
| 77023-32030 |
AE104,CE104 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12190 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12930 |
AE104 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE104 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE104 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE10#,CE10#,EE10# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12460 |
AE104,CE104 |
1 | ||
| 77201-13160 |
CE102,106,107,108,EE102,103,104,106,107,108 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
AE100,101,104,CE100,101,104,EE101 長さ=220 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-13030 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12130 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 77277-13041 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12090 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12060 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE10#,EE10# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE10#,CE10#,EE10# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12280 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE10#,CE10#,EE10# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-13040 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-13020 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,EE101;CE100..SEL,XE 100X60 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,EE101;CE100..SEL,XE 100X60 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,EE101;CE100..SEL,XE 100X60 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104 |
1 | ||
| 77681-32060 |
AE100,101,104,CE100,101,102,104,106,107,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104,106,108,EE102,103,104 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AE104,CE104 |
1 | ||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77682-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104,106,108,EE102,103,104 |
1 | ||
| 77681-32060 |
AE100,101,104,CE100,101,102,104,106,107,108,EE10# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90149-50057 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60500 | ||||
| 90179-05078 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05130 | ||||
| 90189-06028 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-07130 | ||||
| 90467-11009 | ||||
| 90467-11056 | ||||
| 90467-12039 | ||||
| 90467-12056 | ||||
| 90467-13054 | ||||
| 90467-13061 | ||||
| 90467-13063 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9109-9401)CE106,108,EE106,107,108 ; (9401- )CE102,106,107,108,EE102,103,104
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
AE104,CE104,109 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32030 |
AE104 |
1 | ||
| 77023-32030 |
AE104,CE104 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32030 |
AE104 |
1 | ||
| 77023-32030 |
AE104,CE104 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12190 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12930 |
AE104 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE104 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE104 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AE10#,CE10#,EE10# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12460 |
AE104,CE104 |
1 | ||
| 77201-13160 |
CE102,106,107,108,EE102,103,104,106,107,108 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
AE100,101,104,CE100,101,104,EE101 長さ=220 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-13030 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-13010 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12130 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 77277-13041 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12090 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12060 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE10#,EE10# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE10#,CE10#,EE10# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12280 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12040 |
AE10#,CE10#,EE10# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
AE10#,CE10#,EE10#..BZT,DX,G,GL,GT,L,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE10#,CE10#,EE10# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-13040 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-13020 |
CE102,106,107,108,EE102,103,104,106,107,108 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,EE101;CE100..SEL,XE 100X60 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,EE101;CE100..SEL,XE 100X60 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,EE101;CE100..SEL,XE 100X60 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
AE10#,EE101;CE100..SEL,XE 100X60 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
AE100,101,104,CE100,104,106,108,EE10# |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104 |
1 | ||
| 77681-32060 |
AE100,101,104,CE100,101,102,104,106,107,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104,106,108,EE102,103,104 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AE104,CE104 |
1 | ||
| 77681-12030 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77682-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77681-32060 |
AE104,CE104,106,108,EE102,103,104 |
1 | ||
| 77681-32060 |
AE100,101,104,CE100,101,102,104,106,107,108,EE10# |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06398 | ||||
| 90119-10252 | ||||
| 90119-10700 | ||||
| 90149-50057 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60500 | ||||
| 90164-60015 | ||||
| 90179-06264 | ||||
| 90179-10186 | ||||
| 90189-05130 | ||||
| 90189-06013 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-55003 | ||||
| 90467-07130 | ||||
| 90467-10049 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 91651-40616 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

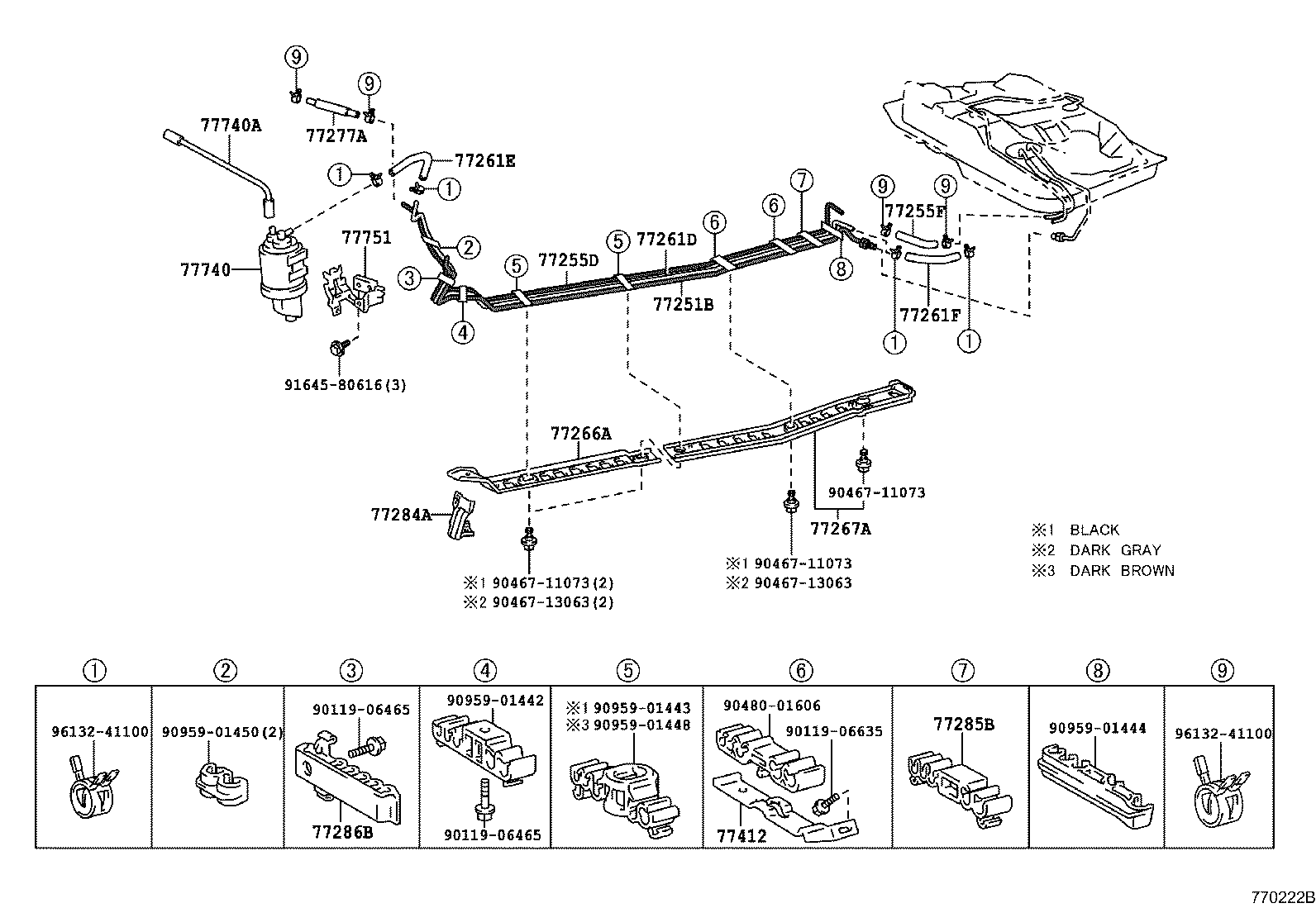

ILLUST NO. 2 OF 2(9109-9505)AE104
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12520 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12460 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CE100,101,102,104,106,107,108 *H,L=130 |
1 | ||
| 95333-06020 |
AE10#,EE101 *H,L=130 |
1 | ||
| 95333-06020 |
AE100,101,104,EE101,102,103,104 *H,L=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12380 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,104,CE100,101,102,104,106,107,108,EE101,102,103,104 *H,L=160 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12132 |
EE101,102,103,104 長さ=380 |
1 | ||
| 90447-12139 |
AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE 長さ=500 |
1 | ||
| 90447-12134 |
AE104 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-12020 |
AE10#,CE104,109,EE101,102,103,104 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12020 |
AE10#,CE10#,EE101,102,103,104 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77412-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12610 |
AE10#,EE101,102,103,104 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04128 |
AE10#..DX,G,LT,LX,SEG,SEL,XE 長さ=410 |
1 | ||
| 95413-49939 |
AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE 長さ=390 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12080 |
AE10#,EE101,102,103,104 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06635 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90480-01606 | ||||
| 90959-01442 | ||||
| 90959-01443 | ||||
| 90959-01444 | ||||
| 90959-01448 | ||||
| 90959-01450 | ||||
| 91645-80616 | ||||
| 96132-41100 | ||||
ILLUST NO. 2 OF 2(9106-9505)AE100,101,EE101 ; (9401-9508)EE102,103,104
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12520 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12460 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CE100,101,102,104,106,107,108 *H,L=130 |
1 | ||
| 95333-06020 |
AE10#,EE101 *H,L=130 |
1 | ||
| 95333-06020 |
AE100,101,104,EE101,102,103,104 *H,L=130 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12380 |
AE100,101,EE101,102,103,104 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AE100,101,104,CE100,101,102,104,106,107,108,EE101,102,103,104 *H,L=160 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12100 |
AE10#,CE10#,EE10# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12132 |
EE101,102,103,104 長さ=380 |
1 | ||
| 90447-12139 |
AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE 長さ=500 |
1 | ||
| 90447-12134 |
AE104 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12030 |
AE10#,CE10#,EE10# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-12020 |
AE10#,CE104,109,EE101,102,103,104 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12020 |
AE10#,CE10#,EE101,102,103,104 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12020 |
AE10#,CE100,104,106,108,EE10# |
1 | ||
| 77412-12020 |
AE10#,CE10#,EE10# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12610 |
AE10#,EE101,102,103,104 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04128 |
AE10#..DX,G,LT,LX,SEG,SEL,XE 長さ=410 |
1 | ||
| 95413-49939 |
AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE 長さ=390 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12080 |
AE10#,EE101,102,103,104 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06635 | ||||
| 90467-11073 | ||||
| 90467-13063 | ||||
| 90480-01606 | ||||
| 90929-01093 | ||||
| 90959-01442 | ||||
| 90959-01443 | ||||
| 90959-01444 | ||||
| 90959-01448 | ||||
| 90959-01450 | ||||
| 91645-80616 | ||||
| 96132-41100 | ||||
| 96135-41100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
