AE101G-AWMVF (1996)
Toyota Corolla
Production
May 1996
-
May 1997
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

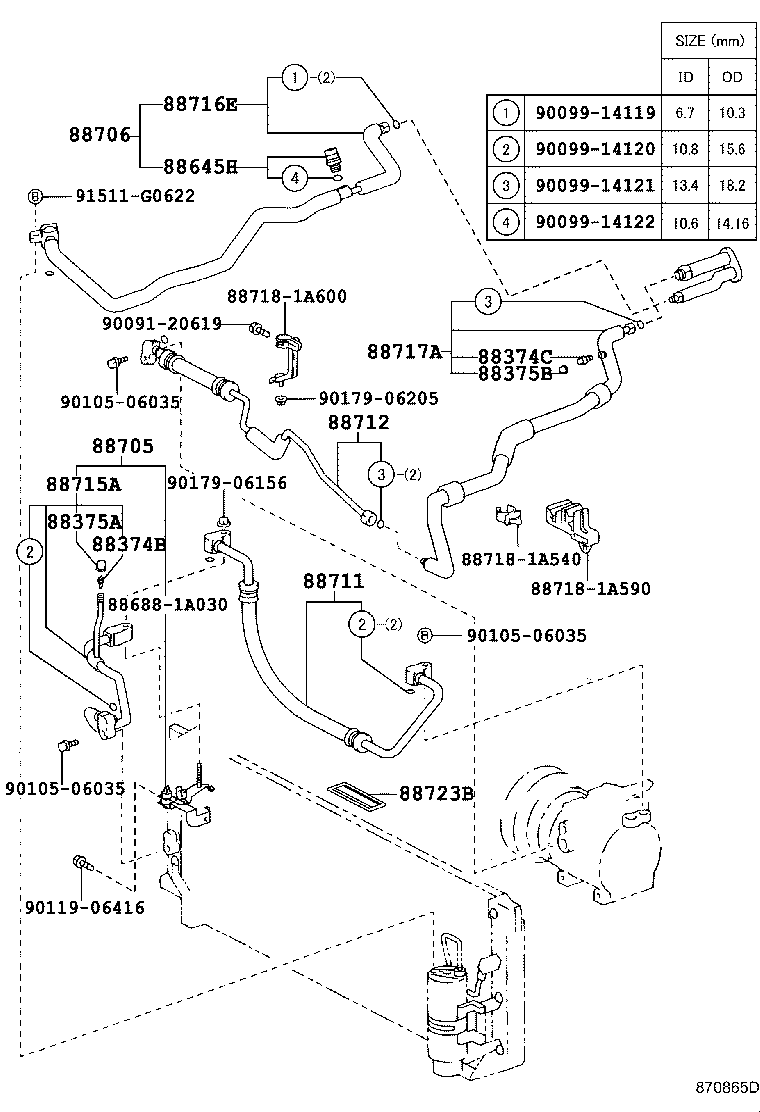

ILLUST NO. 2 OF 2(9605- )AE101
Click highlighted areas on diagram
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-24010 |
AE10#,CE10#,EE10# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE10#,CE10#,EE10# |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-12010 |
AE10#..G,GT,SEG,SEL |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-12080 |
AE10#..G,GT,SEG,SEL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12640 |
AE10#..G,SEG,SEL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-12840 |
AE10#..DX,G,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 88712-1A530 |
AE101 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12380 |
AE10#..G,GT,SEG,SEL |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1A330 |
AE100,101,104 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88704-12380 |
AE10#..G,GT,SEG,SEL |
1 | ||
| 88717-1A020 |
AE100,101,104 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12050 |
AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 88723-12110 |
AE10#,CE100 ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| Common parts | ||||
| 88688-1A030 | ||||
| 88718-1A540 | ||||
| 88718-1A590 | ||||
| 88718-1A600 | ||||
| 90091-20619 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-06035 | ||||
| 90119-06416 | ||||
| 90179-06156 | ||||
| 90179-06205 | ||||
| 91511-G0622 | ||||
