AE101G-AWMVF (1996)

Toyota Corolla

Production May 1996 - May 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

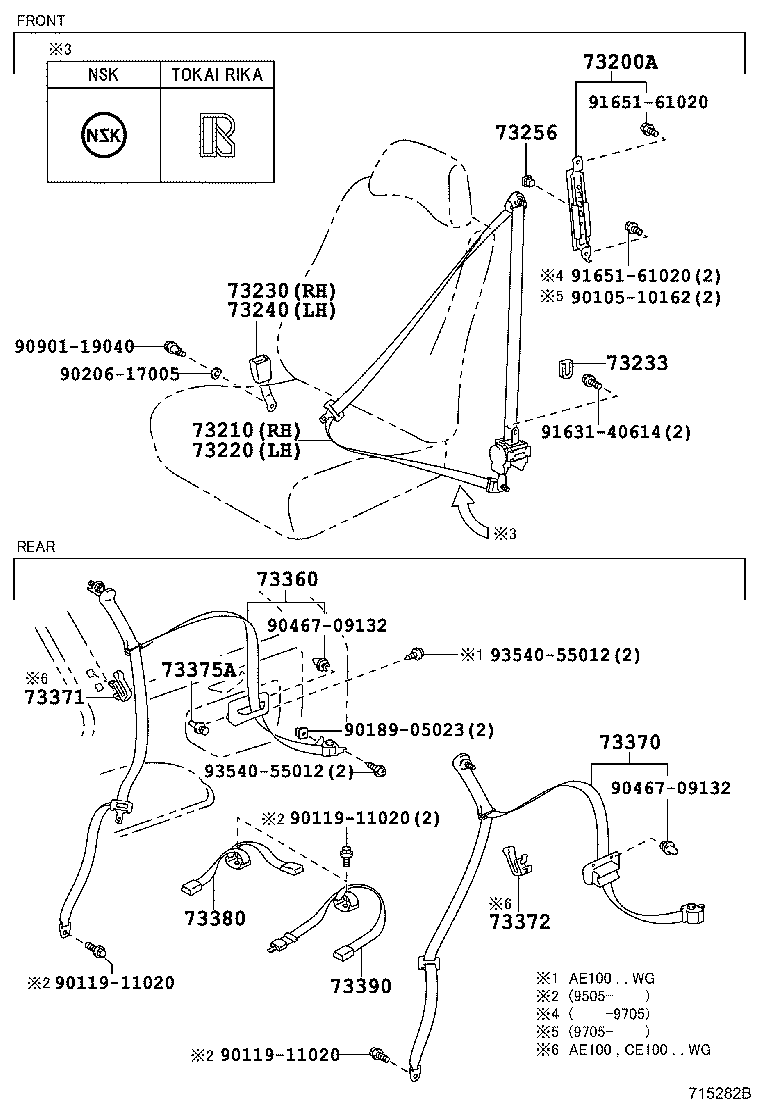

Click highlighted areas on diagram

diagram 73200A 73210 73220 73230 73233 73240 73256 73360 73370 73371 73372 73375A 73380 73390 9010510162 9011911020 9011911020 9011911020 9018905023 9020617005 9046709132 9046709132 9090119040 9163140614 9165161020 9165161020 9354055012 9354055012
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12020P0

AE100,101,104,CE100,104,EE101

SHADOW GRAY,TRIM1#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-13080B0

AE100,101,104,CE100

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-13030B0

AE100,101,104,CE100

ｱﾘ(ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ),SHADOW GRAY,TRIM1#

 1
73256 - KNOB, SHOULDER BELT ANCHOR ADJUST
73256-1201003

AE100,101,104,CE100,104,EE101

SHADOW GRAY,TRIM1#

 2
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-12010B0

CE106,EE106..05S;AE10#,CE100,104,108,109,EE101,107,108

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-12010B0

CE106,EE106..05S;AE10#,CE100,104,108,109,EE101,107,108

SHADOW GRAY,TRIM1#

 1
Common parts
90105-10162
90119-11020
90189-05023
90206-17005
90467-09132
90901-19040
91631-40614
91651-61020
93540-55012
