AE101G-AWFVF (1997)
Toyota Corolla

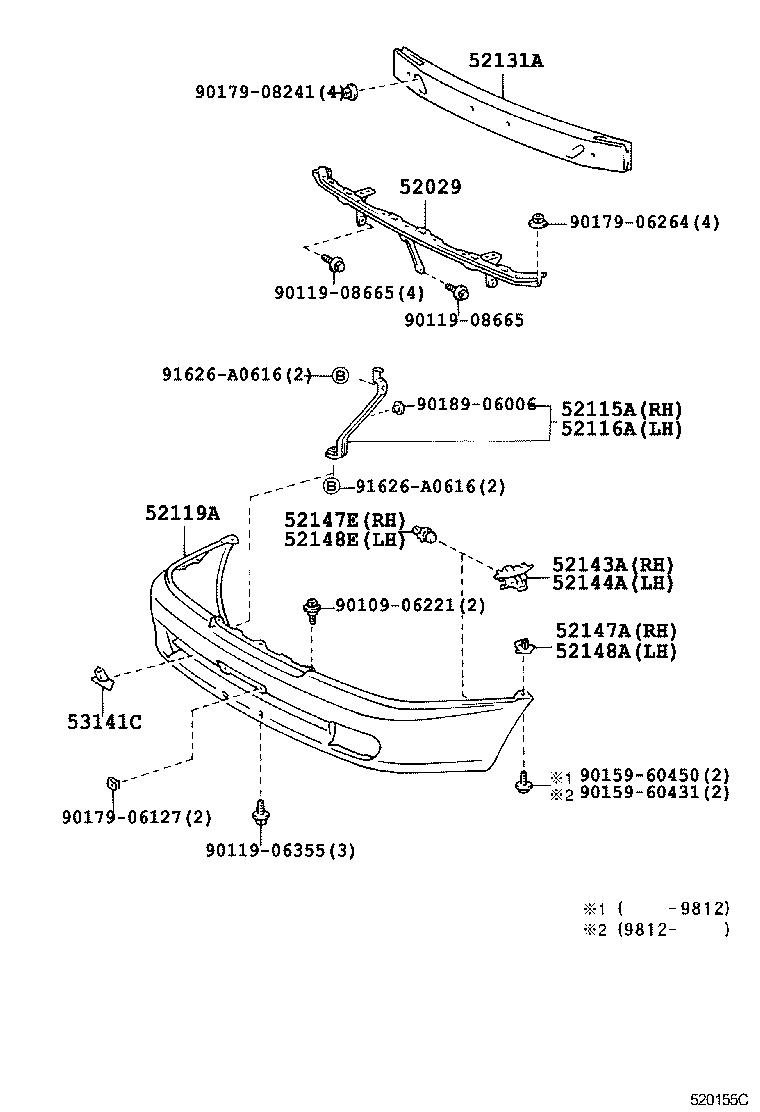

ILLUST NO. 1 OF 2(9705- )AE100,101,104,CE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-12010 |
AE10#,CE10#,EE10#..4DS,V,WG |
1 | ||
| 52029-13010 |
AE10#,CE10#,EE10# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12340 |
AE10#,CE10#,EE10# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12270 |
AE10#,CE10#,EE10# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-13170C0 |
AE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),BLACK ME,205 |
1 | ||
| 52119-13180C0 |
AE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BLACK ME,205 |
1 | ||
| 52119-13180A0 |
AE100,101,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-13170B1 |
AE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SILVER ME,199 |
1 | ||
| 52119-13170A0 |
AE100,101,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),SUPER WHITE 2,040 |
1 | ||
| 52119-13160A0 |
AE100,104,CE100,101 ｱﾘ(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SUPER WHITE 2,040 |
1 | ||
| 52119-13180B0 |
AE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),GRAY M.M.,2CK ,2DB |
1 | ||
| 52119-13180B1 |
AE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ & ﾌﾛﾝﾄﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),SILVER ME,199 |
1 | ||
| 52119-13150A0 |
AE100,104,CE100,101 SUPER WHITE 2,040 |
1 | ||
| 52119-13170B0 |
AE101 ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ),GRAY M.M.,2CK ,2DB |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-12180 |
AE100,101,104,CE100,101 |
1 | ||
| 52143A - ARM, FRONT BUMPER, INNER RH | ||||
| 52143-12300 |
AE10#,CE10#,EE10# |
1 | ||
| 52143-13020 |
AE100,101,104,CE100,101 |
1 | ||
| 52144A - ARM, FRONT BUMPER, INNER LH | ||||
| 52143-12300 |
AE10#,CE10#,EE10# |
1 | ||
| 52143-13020 |
AE100,101,104,CE100,101 |
1 | ||
| 52147A - BRACKET, FRONT BUMPER STAY, RH | ||||
| 52147-16080 |
AE10#,CE10#,EE10# |
1 | ||
| 52147-12170 |
AE10#,CE10#,EE10# |
1 | ||
| 52148A - BRACKET, FRONT BUMPER STAY, LH | ||||
| 52147-16080 |
AE10#,CE10#,EE10# |
1 | ||
| 52147-12170 |
AE10#,CE10#,EE10# |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-13020C0 |
AE101 BLACK,040 ,199 ,2CK ,2DB |
4 | ||
| 53141-13020C0 |
AE101 BLACK,040 ,199 ,2CK ,2DB |
4 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90119-06355 | ||||
| 90119-08665 | ||||
| 90159-60431 | ||||
| 90159-60450 | ||||
| 90179-06127 | ||||
| 90179-06264 | ||||
| 90179-08241 | ||||
| 90189-06006 | ||||
| 91626-A0616 | ||||

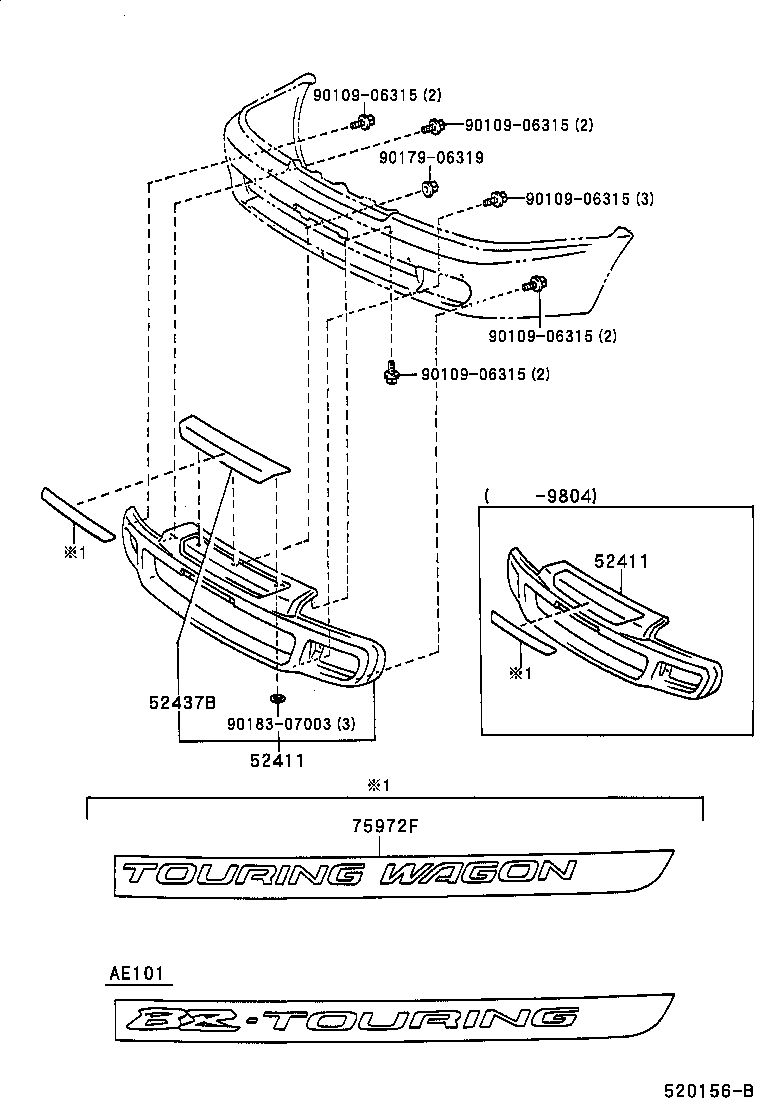

ILLUST NO. 2 OF 2(9705- )AE100,101,104,CE100,101
ｱﾘ(ﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52411 - GUARD, FRONT BUMPER | ||||
| 52401-13110A0 |
AE100,101,104,CE101 SUPER WHITE 2,040 |
1 | ||
| 52401-13110B1 |
AE101 GRAY M.M,2CK ,2DB |
1 | ||
| 52401-13110B2 |
AE101 SILVER ME,199 |
1 | ||
| 52401-13080 |
AE100,101,104,CE100 |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52401-13110A0 |
AE100,101,104,CE101 SUPER WHITE 2,040 |
1 | ||
| 52401-13110B1 |
AE101 GRAY M.M,2CK ,2DB |
1 | ||
| 52401-13110B2 |
AE101 SILVER ME,199 |
1 | ||
| 52401-13080 |
AE100,101,104,CE100 |
1 | ||
| 52437B - COVER, FRONT BUMPER GUARD BASE | ||||
| 52437-13040 |
AE100,101,104,CE101 |
1 | ||
| 75972F - STRIPE, FRONT BUMPER | ||||
| 75972-13040 |
AE101 |
1 | ||
| 75972-13030 |
AE100,104,CE100,101 |
1 | ||
| Common parts | ||||
| 90109-06315 | ||||
| 90179-06319 | ||||
| 90183-07003 | ||||
