AE101-AGPGK (1992)
Toyota Corolla
ILLUST NO. 3 OF 3(9205- )
| Part # | Description | Qty | Price |
|---|

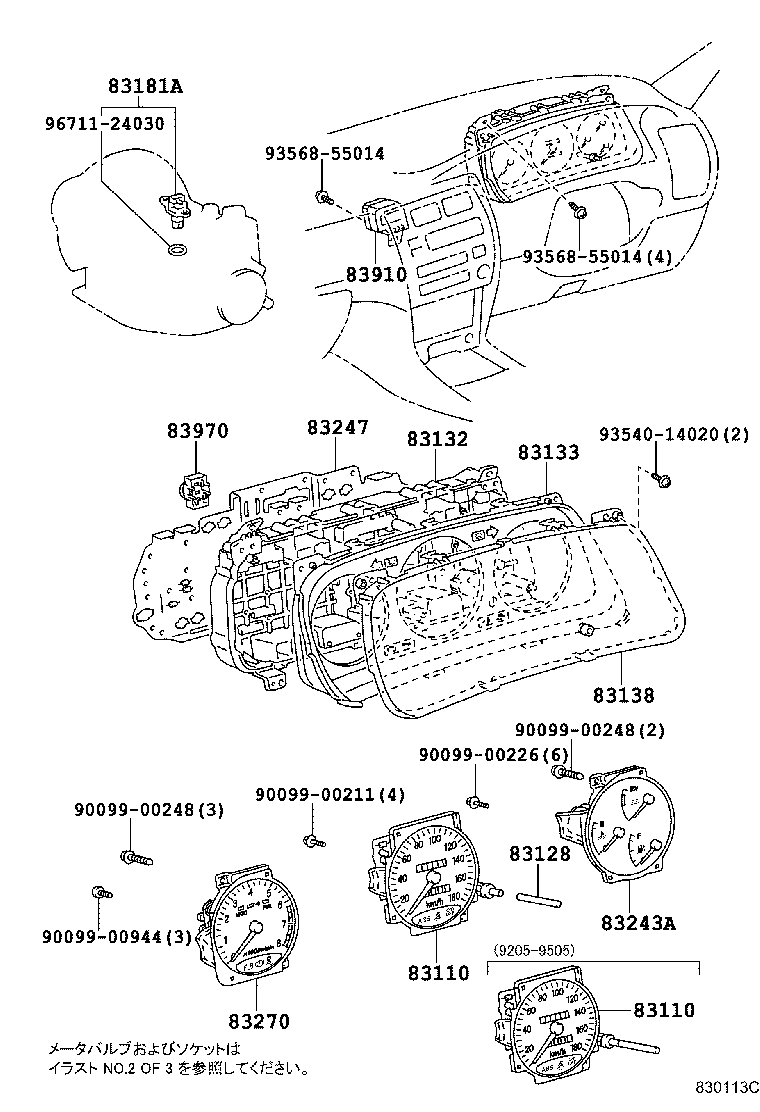

ILLUST NO. 1 OF 3(9205-9505)3DS ; (9605- )AE101
ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E870 |
AE101..3DS DENSO |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E870 |
AE101..3DS DENSO |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H010 |
AE100..G,LT,XE;AE100,101..4DS..4FC..(GT,SEG,SEL);AE104,CE100,101,EE101..G,LT,SEL,XE |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12060 |
CE100,101,102,106,107,108..4FC |
1 | ||
| 83181-12020 |
AE100,101,EE10#..4F,4FC,5F,6F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1H010 |
AE101 |
1 | ||
| 83243-1H251 |
AE101..3DS |
1 | ||
| 83243-1H550 |
AE101..3DS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1H050 |
AE101..4FC..SJ |
1 | ||
| 83242-1E710 |
AE10#..G,LT,SEG,SEL,XE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12460 |
AE10#,CE10#,EE10# JECO |
1 | ||
| 83910-12480 |
AE10#,CE10#,EE10# RHYTHM |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00226 | ||||
| 90099-00248 | ||||
| 90099-00944 | ||||
| 93540-14020 | ||||
| 93568-55014 | ||||
| 96711-24030 | ||||

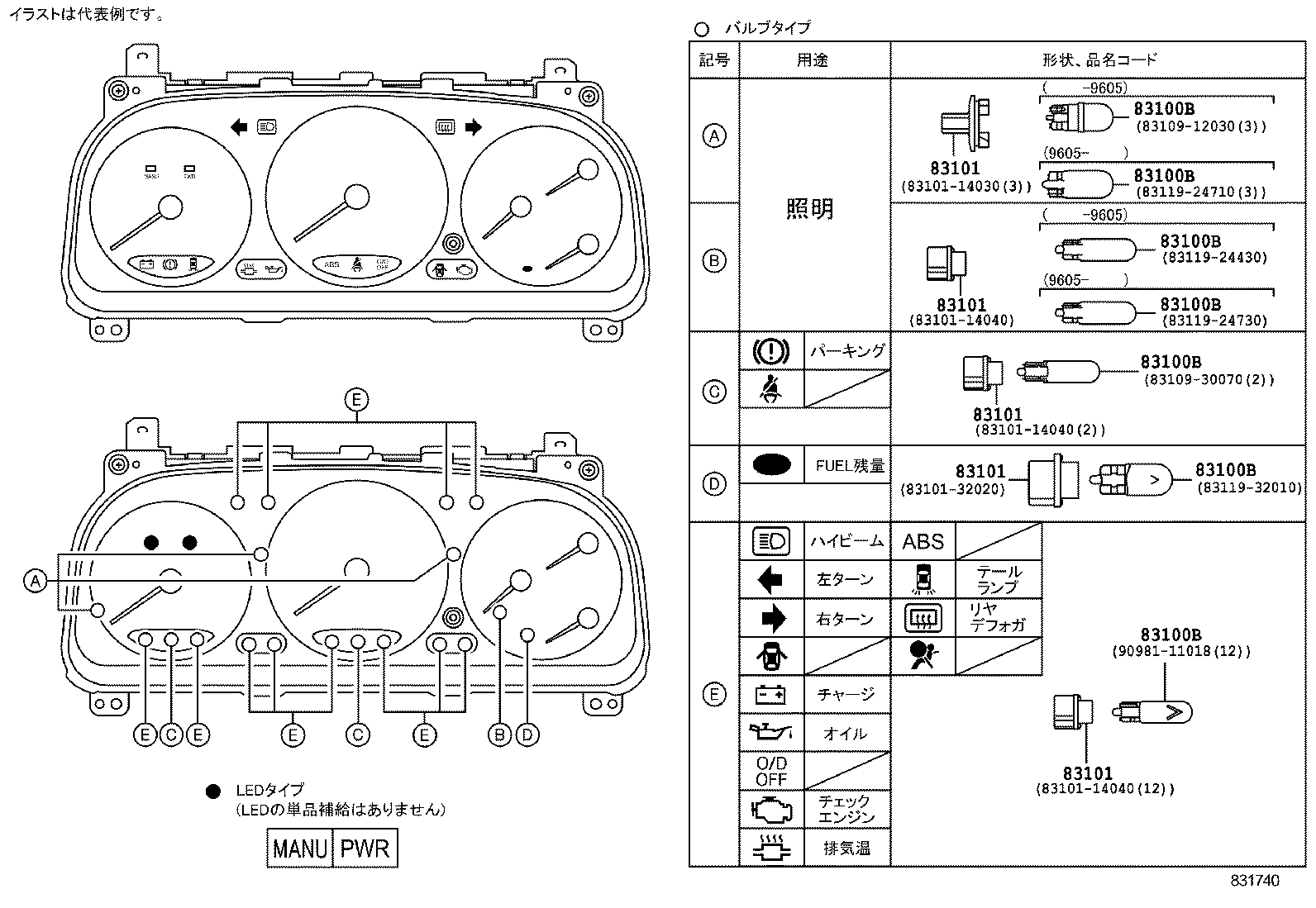

ILLUST NO. 2 OF 3(9205-9505)3DS ; (9605- )AE101
ﾊﾞﾙﾌﾞ&ｿｹｯﾄ - ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ&ﾃﾞﾝｱﾂｹｲｱﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24250 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-12030 |
AE101..3DS 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
3 | ||
| 83119-32010 |
AE101..3DS 14V 3.0W |
1 | ||
| 83109-30070 |
AE101..3DS 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
2 | ||
| 83119-24430 |
AE101..3DS 12V 1.4W ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
1 | ||
| 83109-12030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-30070 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
2 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24250 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-12030 |
AE101..3DS 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
3 | ||
| 83119-32010 |
AE101..3DS 14V 3.0W |
1 | ||
| 83109-30070 |
AE101..3DS 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
2 | ||
| 83119-24430 |
AE101..3DS 12V 1.4W ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
1 | ||
| 83109-12030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-30070 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
2 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24250 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-12030 |
AE101..3DS 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
3 | ||
| 83119-32010 |
AE101..3DS 14V 3.0W |
1 | ||
| 83109-30070 |
AE101..3DS 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
2 | ||
| 83119-24430 |
AE101..3DS 12V 1.4W ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
1 | ||
| 83109-12030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-30070 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
2 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24250 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-12030 |
AE101..3DS 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
3 | ||
| 83119-32010 |
AE101..3DS 14V 3.0W |
1 | ||
| 83109-30070 |
AE101..3DS 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
2 | ||
| 83119-24430 |
AE101..3DS 12V 1.4W ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
1 | ||
| 83109-12030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-30070 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
2 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24250 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-12030 |
AE101..3DS 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
3 | ||
| 83119-32010 |
AE101..3DS 14V 3.0W |
1 | ||
| 83109-30070 |
AE101..3DS 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
2 | ||
| 83119-24430 |
AE101..3DS 12V 1.4W ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
1 | ||
| 83109-12030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-30070 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
2 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24250 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-12030 |
AE101..3DS 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
3 | ||
| 83119-32010 |
AE101..3DS 14V 3.0W |
1 | ||
| 83109-30070 |
AE101..3DS 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
2 | ||
| 83119-24430 |
AE101..3DS 12V 1.4W ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
1 | ||
| 83109-12030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-30070 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
2 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24250 |
AE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE 14V 3.78W,ﾌﾞﾙｰ ｷｬｯﾌﾟ付き,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-12030 |
AE101..3DS 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
3 | ||
| 83119-32010 |
AE101..3DS 14V 3.0W |
1 | ||
| 83109-30070 |
AE101..3DS 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
2 | ||
| 83119-24430 |
AE101..3DS 12V 1.4W ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀ & ﾃﾞﾝｱﾂｹｲｱﾘ) |
1 | ||
| 83109-12030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12V 3.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
4 | ||
| 83109-30070 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 14V 2.0W,ｿｹｯﾄなし,ｱﾅﾛｸﾞ(ﾀｺﾒｰﾀｱﾘ) |
2 | ||
| 90981-11018 |
AE10#,CE10#,EE10# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12W 3.4W |
5 | ||
| 83101-14030 |
AE101..3DS 12V 3.4W |
3 | ||
| 83101-14040 |
AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ);AE101,104..5F..(LX,SEG) 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..3DS 14V 3.0W LONG LIFE |
1 | ||
| 83101-14040 |
AE104..LX;AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ) 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12W 3.4W |
5 | ||
| 83101-14030 |
AE101..3DS 12V 3.4W |
3 | ||
| 83101-14040 |
AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ);AE101,104..5F..(LX,SEG) 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..3DS 14V 3.0W LONG LIFE |
1 | ||
| 83101-14040 |
AE104..LX;AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ) 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12W 3.4W |
5 | ||
| 83101-14030 |
AE101..3DS 12V 3.4W |
3 | ||
| 83101-14040 |
AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ);AE101,104..5F..(LX,SEG) 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..3DS 14V 3.0W LONG LIFE |
1 | ||
| 83101-14040 |
AE104..LX;AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ) 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12W 3.4W |
5 | ||
| 83101-14030 |
AE101..3DS 12V 3.4W |
3 | ||
| 83101-14040 |
AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ);AE101,104..5F..(LX,SEG) 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..3DS 14V 3.0W LONG LIFE |
1 | ||
| 83101-14040 |
AE104..LX;AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ) 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE100,101,104,CE100,101,104,EE101..G,GT,LT,SEG,SEL,XE 12W 3.4W |
5 | ||
| 83101-14030 |
AE101..3DS 12V 3.4W |
3 | ||
| 83101-14040 |
AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ);AE101,104..5F..(LX,SEG) 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..3DS 14V 3.0W LONG LIFE |
1 | ||
| 83101-14040 |
AE104..LX;AE100,CE10#,EE10#;AE101..3DS..4FC..GT;AE101..4FC..(SEG,SJ) 12V 1.4W |
1 | ||
