AE101-AGMVF (1992)
Toyota Corolla
Production
May 1992
-
May 1995
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205-9505)3DS

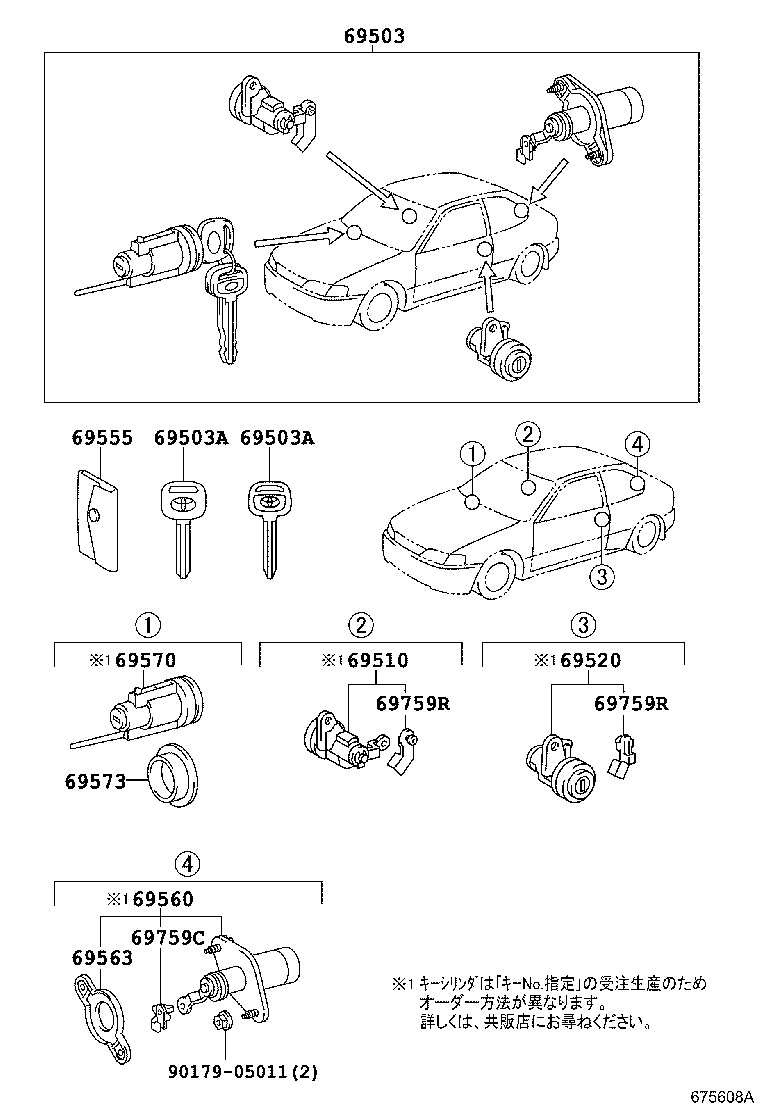

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-1A560 |
AE101..3DS |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE10#,CE100,104,EE101..3DS,4DS ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
AE10#,CE100,104,EE101..DX,GT,LX,SEL,SJ,XE ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE10#,CE100,104,EE101..3DS,4DS ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
AE10#,CE100,104,EE101..DX,GT,LX,SEL,SJ,XE ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-12140 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-12140 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20030 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE10#,EE10# |
1 | ||
| 69555-95J00 |
AE10#,CE10#,EE10# |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-12450 |
AE101..3DS |
1 | ||
| 69563 - PAD, BACK DOOR LOCK CYLINDER | ||||
| 69563-12070 |
AE101..3DS |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-12100 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
