AE101-AGMVF (1992)
Toyota Corolla
Production
May 1992
-
May 1995
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205-9505)3DS

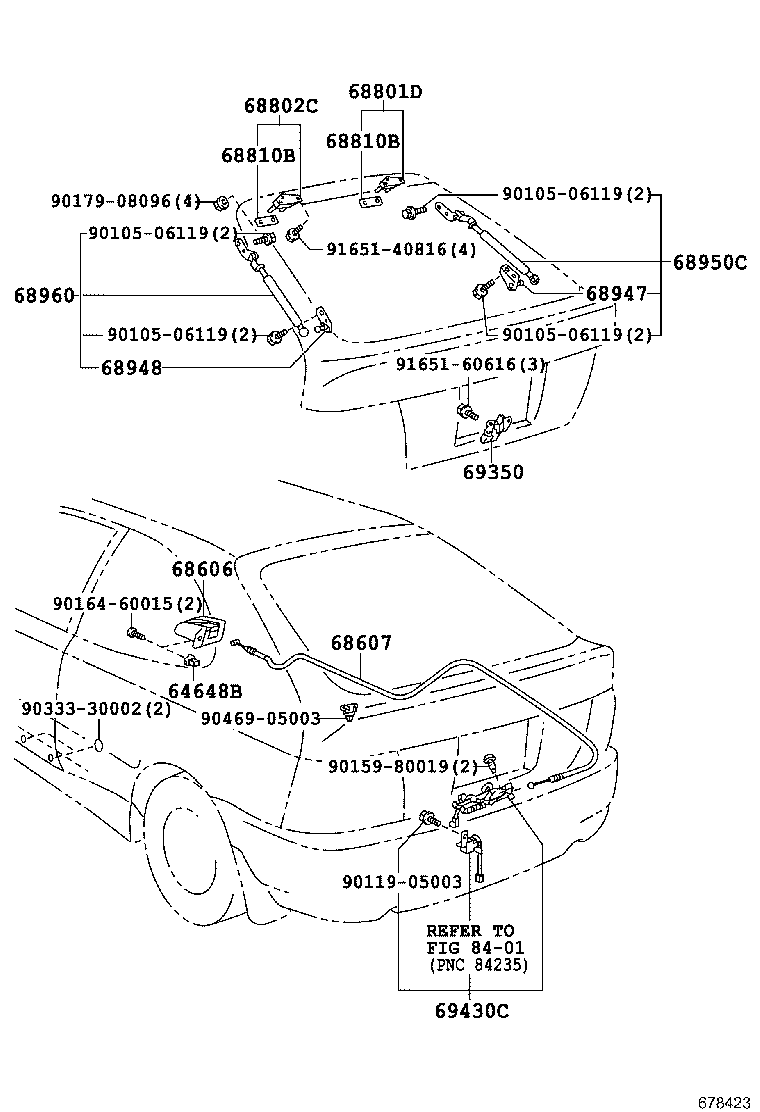

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648B - GROMMET, BACK DOOR LOCK OPENER | ||||
| 64648-12010 |
AE101..3DS |
2 | ||
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64640-1209003 |
AE101..3DS SHADOW GRAY,TRIM1# |
1 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-12620 |
AE101..3DS |
1 | ||
| 68801D - HINGE SUB-ASSY, BACK DOOR, RH | ||||
| 68801-12090 |
AE101..3DS T=1.1(PAD) |
1 | ||
| 68801-12070 |
AE101..3DS T=1.6(PAD) |
1 | ||
| 68802C - HINGE SUB-ASSY, BACK DOOR, LH | ||||
| 68801-12070 |
AE101..3DS T=1.6(PAD) |
1 | ||
| 68801-12090 |
AE101..3DS T=1.1(PAD) |
1 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 68838-14022 |
AE101..3DS 厚さ=1.1 |
2 | ||
| 68838-12010 |
AE101..3DS 厚さ=1.6 |
2 | ||
| 68863-13010 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 68838-14022 |
AE101..3DS 厚さ=1.1 |
2 | ||
| 68838-12010 |
AE101..3DS 厚さ=1.6 |
2 | ||
| 68863-13010 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-12030 |
AE101..3DS |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-12030 |
AE101..3DS |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19845 |
AE101..3DS ｱﾘ(*RS) |
1 | ||
| 68950-19835 |
AE101..3DS |
1 | ||
| 68950-19845 |
AE101..3DS..GT |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-19535 |
AE101..3DS ｱﾘ(*RS) |
1 | ||
| 68960-19525 |
AE101..3DS |
1 | ||
| 68960-19535 |
AE101..3DS..GT |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-12120 |
AE101..3DS |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-12311 |
AE101..3DS |
1 | ||
| 69430-12310 |
AE101..3DS |
1 | ||
| Common parts | ||||
| 90105-06119 | ||||
| 90119-05003 | ||||
| 90159-80019 | ||||
| 90164-60015 | ||||
| 90179-08096 | ||||
| 90333-30002 | ||||
| 90469-05003 | ||||
| 91651-40816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
