AE101-AGMGK (1992)

Toyota Corolla

Production May 1992 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205-9505)3DS

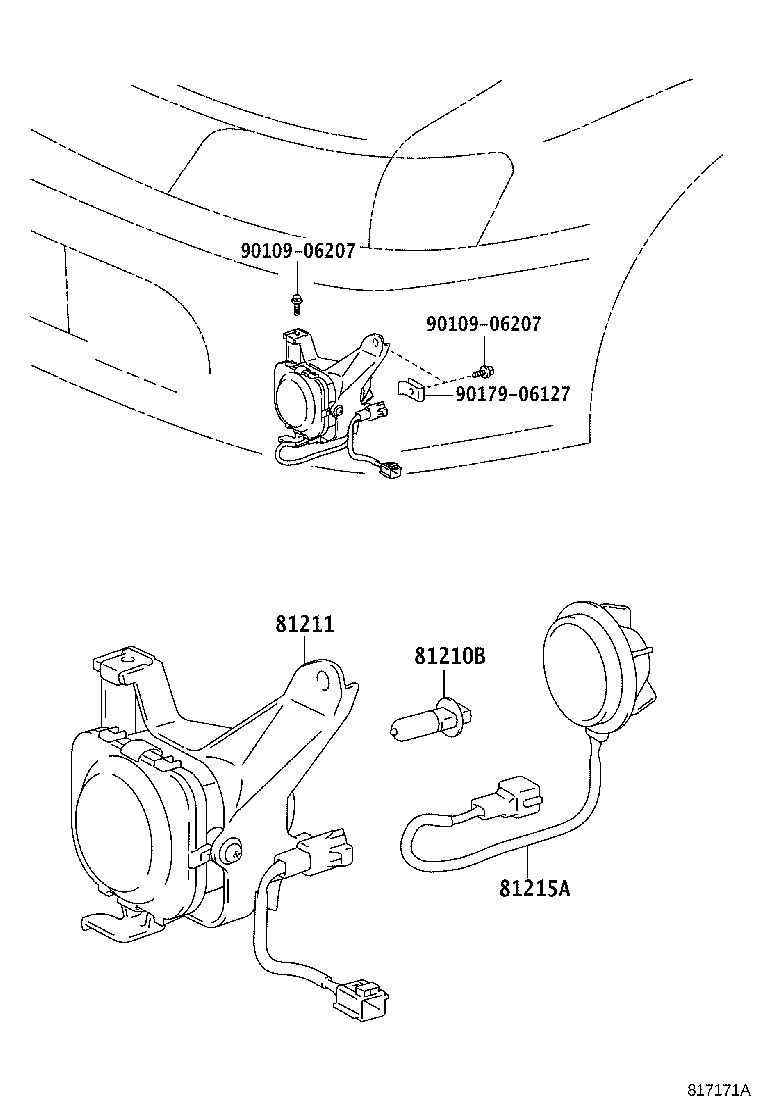

Click highlighted areas on diagram

diagram 81210B 81211 81215A 9010906207 9010906207 9017906127
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13018

AE101..3DS

12V 55W,ﾊﾛｹﾞﾝ

 2
81211 - LENS, FOG LAMP
81221-12070

AE101..3DS

左側

 1
81211-12080

AE101..3DS

右側

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-12080

AE101..3DS

 2
Common parts
90109-06207
90179-06127
