AE101-AGMGK (1992)

Toyota Corolla

Production May 1992 - May 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205-9505)3DS

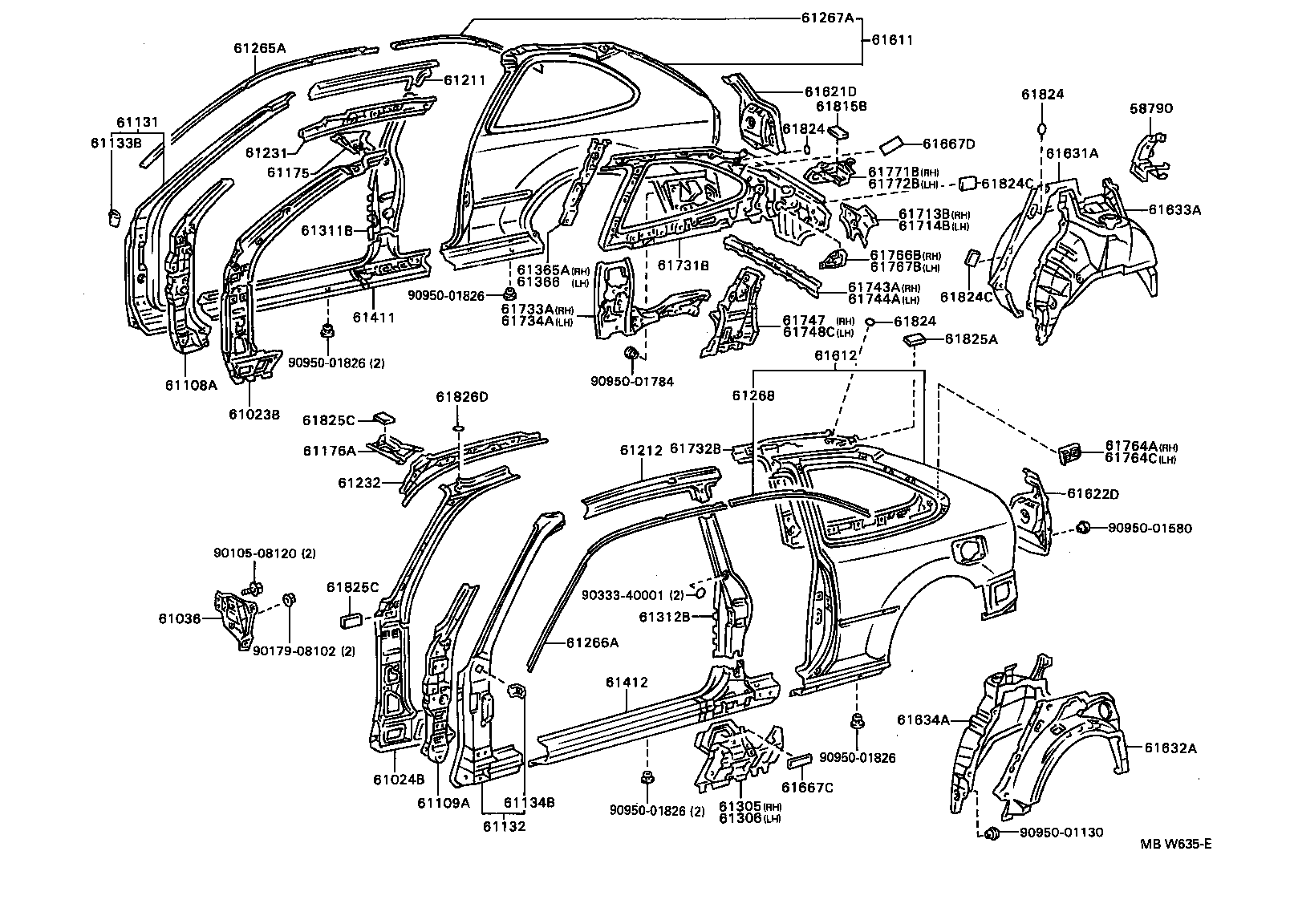

Click highlighted areas on diagram

diagram 58790 61023B 61024B 61036 61108A 61109A 61131 61132 61133B 61134B 61175 61176A 61211 61212 61231 61232 61265A 61266A 61267A 61268 61305 61306 61311B 61312B 61365A 61366 61411 61412 61611 61612 61621D 61622D 61631A 61632A 61633A 61634A 61667C 61667D 61713B 61714B 61731B 61732B 61733A 61734A 61743A 61744A 61747 61748C 61764A 61764C 61766B 61767B 61771B 61772B 61815B 61824 61824 61824 61824C 61824C 61825A 61825C 61825C 61826D 9010508120 9017908102 9033340001 9095001130 9095001580 9095001784 9095001826 9095001826 9095001826 9095001826
Part # Description Qty Price
58790 - CARRIER ASSY, JACK
58790-12100

AE101..3DS

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-12050

AE100,101,104,CE100,101,104,EE101

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-12050

AE100,101,104,CE100,101,104,EE101

 1
61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61036-12050

AE10#,CE10#,EE10#

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-12110

AE10#,CE10#,EE10#

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-12100

AE10#,CE10#,EE10#

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-12420

AE101..SJ

ｱﾘ(*RS)

 1
61131-12410

AE101..SJ

 1
61131-12410

AE101..3DS

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-12420

AE101..3DS

 1
61132-12420

AE101..SJ

 1
61132-12430

AE101..SJ

ｱﾘ(*RS)

 1
61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH
61133-12190

AE10#,CE10#,EE10#

 1
61134B - BRACKET, FRONT BODY PILLAR OUTER, LH
61133-12190

AE10#,CE10#,EE10#

 1
61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61175-12080

AE10#,CE10#,EE10#

 1
61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61176-12080

AE10#,CE10#,EE10#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-12330

AE101..3DS

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-12330

AE101..3DS

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-12770

AE101..3DS

 1
61231-12780

AE101..3DS

ｱﾘ(*MR)

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-12650

AE101..3DS

 1
61232-12660

AE101..3DS

ｱﾘ(*MR)

 1
61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH
61265-12200

AE101..3DS

 1
61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH
61266-12200

AE101..3DS

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-12160

AE101..3DS

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-12160

AE101..3DS

 1
61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61305-12100

AE101..3DS

 1
61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61306-12100

AE101..3DS

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-12220

AE101..3DS

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-12260

AE101..3DS

 1
61365A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, NO.3
61365-12160

AE101..3DS

 1
61366 - REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH
61366-12100

AE101..3DS

 1
61411 - PANEL, ROCKER, OUTER RH
61411-12560

AE101..3DS

 1
61411-12560

AE101..SJ

 1
61411-12570

AE101..SJ

ｱﾘ(*RS)

 1
61412 - PANEL, ROCKER, OUTER LH
61412-12550

AE101..SJ

 1
61412-12550

AE101..3DS

 1
61412-12560

AE101..SJ

ｱﾘ(*RS)

 1
61611 - PANEL, QUARTER, RH
61601-1E924

AE101..3DS

 1
61601-1E925

AE101..3DS

ｱﾘ(*RS)

 1
61601-1E924

AE101..SJ

 1
61601-1E925

AE101..SJ

ｱﾘ(*RS)

 1
61612 - PANEL, QUARTER, LH
61602-1E930

AE101..3DS

 1
61602-1E930

AE101..SJ

 1
61602-1E931

AE101..3DS

ｱﾘ(*RS)

 1
61602-1E931

AE101..SJ

ｱﾘ(*RS)

 1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-12907

AE101..3DS

 1
61622D - TROUGH, BACK DOOR OPENING, LH
61622-12907

AE101..3DS

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-12210

AE10#,CE100,104,EE101..3DS,4DS

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-12210

AE10#,CE100,104,EE101..3DS,4DS

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-12560

AE101..3DS

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-12540

AE101..3DS

 1
61667C - SEAL, QAURTER PANEL, NO.1
61667-12050

AE101..3DS

 2
61667D - SEAL, QUARTER PANEL
61667-12050

AE101..3DS

 2
61713B - REINFORCE, ROOF SIDE, OUTER RH
61713-12090

AE101..3DS

 1
61714B - REINFORCE, ROOF SIDE, OUTER LH
61714-12080

AE101..3DS

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-12590

AE101..3DS

 1
61731-12610

AE101..3DS

ｱﾘ(*MR)

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-12550

AE101..3DS

 1
61732-12570

AE101..SJ

ｱﾘ(*66 & *MR)

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-12903

AE101..3DS

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-12903

AE101..3DS

 1
61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH
61743-12040

AE101..3DS

 1
61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH
61744-12040

AE101..3DS

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-12901

AE101..3DS

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-12901

AE101..3DS

 1
61764A - PLATE, QUARTER WINDOW LOCK GUSSET
61764-12060

AE101..3DS

 1
61764C - PLATE, QUARTER WINDOW LOCK GUSSET
61765-12070

AE101..3DS

 1
61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61766-12270

AE101..3DS

 1
61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61767-12230

AE101..3DS

 1
61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH
61771-12040

AE101..3DS

 1
61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH
61772-12040

AE101..3DS

 1
61815B - COVER, ROOF SIDE, INNER UPPER RH
61815-32020

AE101..3DS

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-12040

AE101..3DS

ｱﾘ(*MR)

 8
61824-12040

AE101..3DS

 10
61824 - PLATE, NOISE CONTROL, NO.1
61824-12040

AE101..3DS

ｱﾘ(*MR)

 8
61824-12040

AE101..3DS

 10
61824 - PLATE, NOISE CONTROL, NO.1
61824-12040

AE101..3DS

ｱﾘ(*MR)

 8
61824-12040

AE101..3DS

 10
61824C - PAD, NOISE SHUTTER, NO.1
61826-12020

AE101..3DS

 4
61824C - PAD, NOISE SHUTTER, NO.1
61826-12020

AE101..3DS

 4
61825A - PLATE, NOISE CONTROL, NO.2
61825-12040

AE101..3DS

 2
61825C - PAD, NOISE SHUTTER, NO.2
61815-32020

AE10#,CE10#,EE10#

 4
61825C - PAD, NOISE SHUTTER, NO.2
61815-32020

AE10#,CE10#,EE10#

 4
61826D - PLATE, NOISE CONTROL, NO.3
61824-12040

AE101..3DS

ｱﾘ(*MR)

 8
61824-12040

AE101..3DS

 10
Common parts
90105-08120
90179-08102
90333-40001
90950-01130
90950-01580
90950-01784
90950-01826
