AE101-AEPVF (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

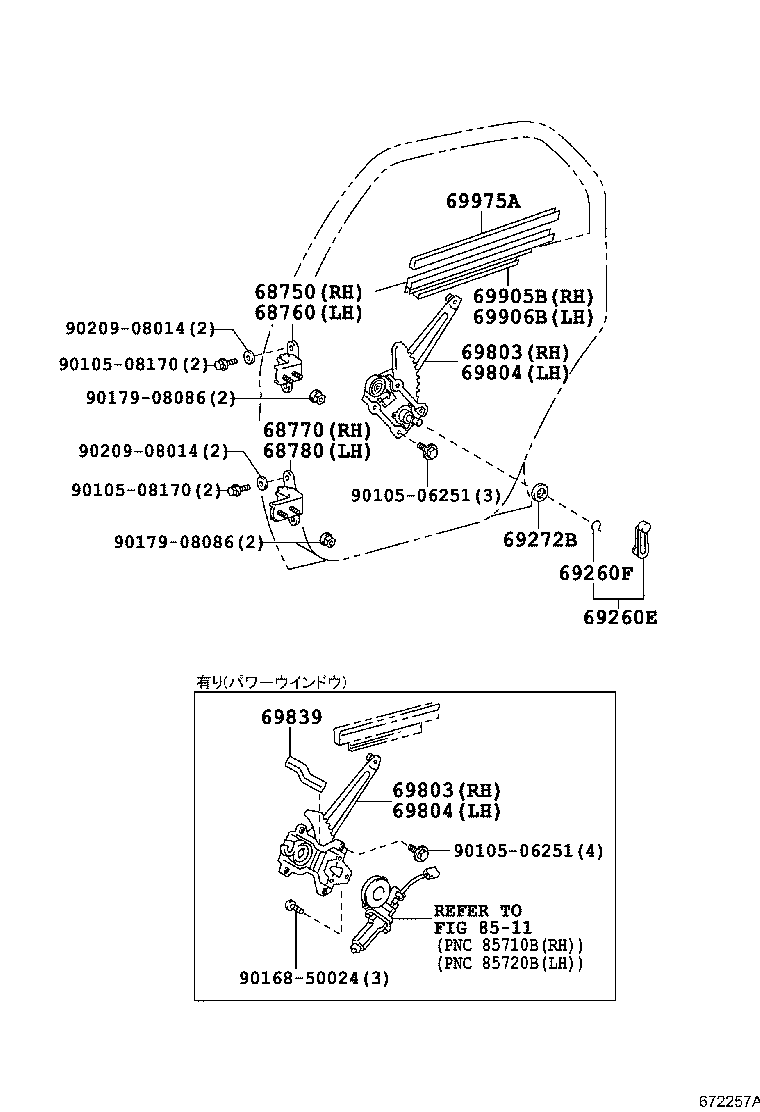

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69839 69905B 69906B 69975A 8511 9010506251 9010506251 9010508170 9010508170 9016850024 9017908086 9017908086 9020908014 9020908014
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-12070

AE10#,CE10#,EE10#..4DS,V,WG

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-12070

AE10#,CE10#,EE10#..4DS,V,WG

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12080

AE10#,CE10#,EE10#..4DS,V,WG

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12070

AE10#,CE10#,EE10#..4DS,V,WG

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12080

CE101;AE100,101,104,CE100,104..(4DS,WG)..(BZT,G,GT,SEG,SEL)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12080

CE101;AE100,101,104,CE100,104..(4DS,WG)..(BZT,G,GT,SEG,SEL)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12080

CE101;AE100,101,104,CE100,104..(4DS,WG)..(BZT,G,GT,SEG,SEL)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12080

CE101;AE100,101,104,CE100,104..(4DS,WG)..(BZT,G,GT,SEG,SEL)

 1
69839 - PAD, REAR DOOR WINDOW REGULATOR
69839-12010

AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)

 4
69839-12010

AE10#,CE100,104..G,GT,LT,SEG,SEL,XE

 4
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-12110

AE10#,CE10#,EE10#..4DS,V,WG

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-12100

AE10#,CE10#,EE10#..4DS,V,WG

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-12010

AE10#,CE10#,EE10#..4DS,V,WG

 2
Common parts
90105-06251
90105-08170
90168-50024
90179-08086
90209-08014
Linked diagrams
8511
