AE101-AEPVF (1991)
Toyota Corolla
Production
Jun 1991
-
May 1995
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9106-9505)4AGE

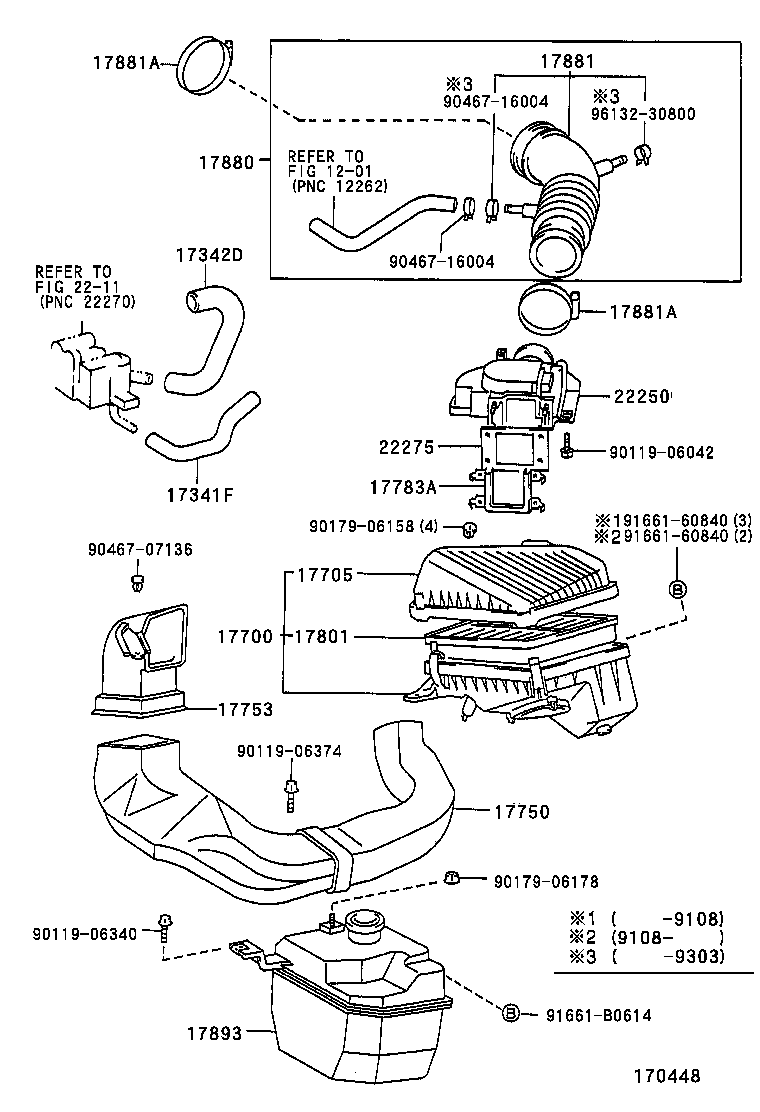

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-16200 |
4AGE..AE101 |
1 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-16110 |
4AGE..AE101 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16750 |
4AGE..AE101 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16420 |
4AGE..AE101 |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17750-16010 |
4AGE..AE101 |
1 | ||
| 17753 - INLET, AIR CLEANER, NO.3 | ||||
| 17753-16010 |
4AGE..AE101 |
1 | ||
| 17783A - RETAINER, AIR CLEANER INLET | ||||
| 17783-16020 |
4AGE..AE101 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15070 |
4A#,5AFE..AE10# (J) |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-16180 |
4AGE..AE101 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-16300 |
4AGE..AE101 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4AGE..AE101 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
4AGE..AE101 |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-02010 |
4A#,5AFE..AE10# (L) |
1 | ||
| 17893-15040 |
4A#,5AFE..AE10# (J) |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-16110 |
4AGE..AE101 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-41010 |
4AGE..AE101 |
1 | ||
| Common parts | ||||
| 90119-06042 | ||||
| 90119-06340 | ||||
| 90119-06374 | ||||
| 90179-06158 | ||||
| 90179-06178 | ||||
| 90467-07136 | ||||
| 90467-16004 | ||||
| 91661-60840 | ||||
| 91661-B0614 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
