AE101-AEMVF (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9401)AE10#,CE100,104,EE101..4DS,WG ; (9401-9505)4DS,V,WG ; (9505-9705) ; (970

Click highlighted areas on diagram

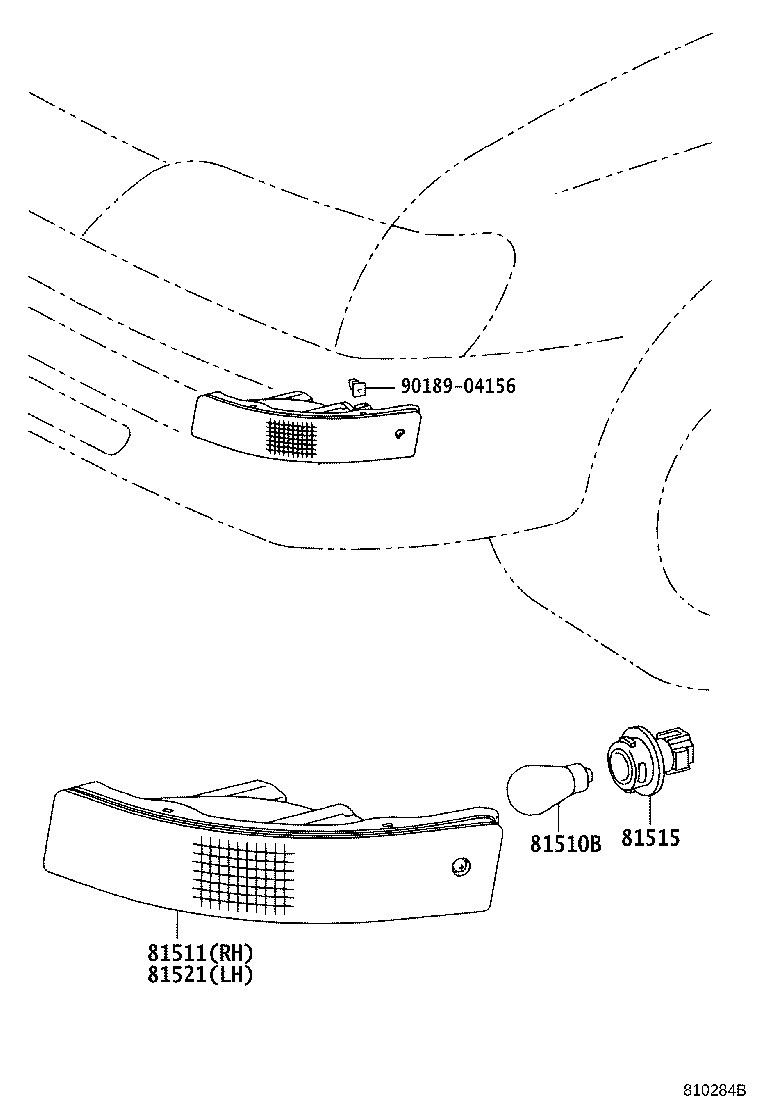

diagram 81510B 81511 81515 81521 9018904156
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE10#,CE10#,EE10#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12670

AE10#,CE10#,EE10#..4DS,V,WG

 1
81511-12770

AE10#,CE100,104,EE101..4DS,WG

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-12520

AE10#,CE10#,EE10#

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12750

AE10#,CE100,104,EE101..4DS,WG

 1
81521-12520

AE10#,CE10#,EE10#..4DS,V,WG

 1
Common parts
90189-04156

(9106-9305) ; (9205-9505)3DS ; (9305-9401)CE106,108,109,EE106,107,108

Click highlighted areas on diagram

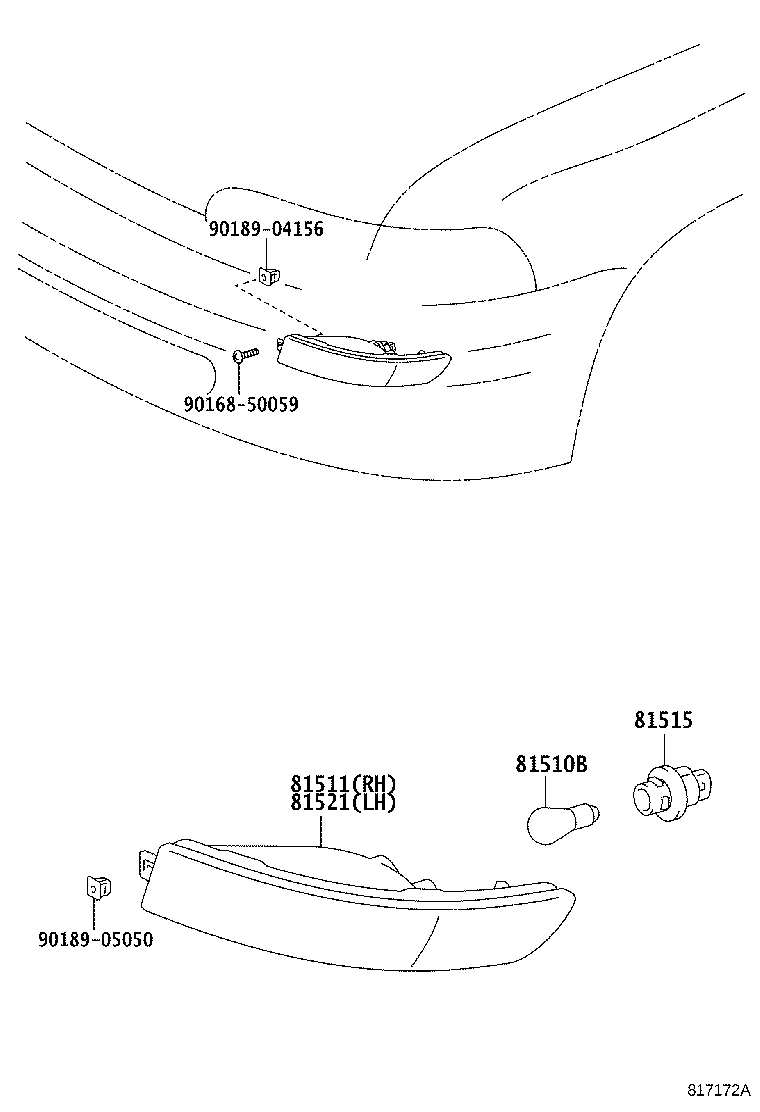

diagram 81510B 81511 81515 81521 9016850059 9018904156 9018905050
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE10#,CE10#,EE10#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12670

AE10#,CE10#,EE10#..4DS,V,WG

 1
81511-12770

AE10#,CE100,104,EE101..4DS,WG

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-12520

AE10#,CE10#,EE10#

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12750

AE10#,CE100,104,EE101..4DS,WG

 1
81521-12520

AE10#,CE10#,EE10#..4DS,V,WG

 1
Common parts
90168-50059
90189-04156
90189-05050
