AE101-AEMVF (1991)
Toyota Corolla
Production
Jun 1991
-
May 1995
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9106-9505)4DS

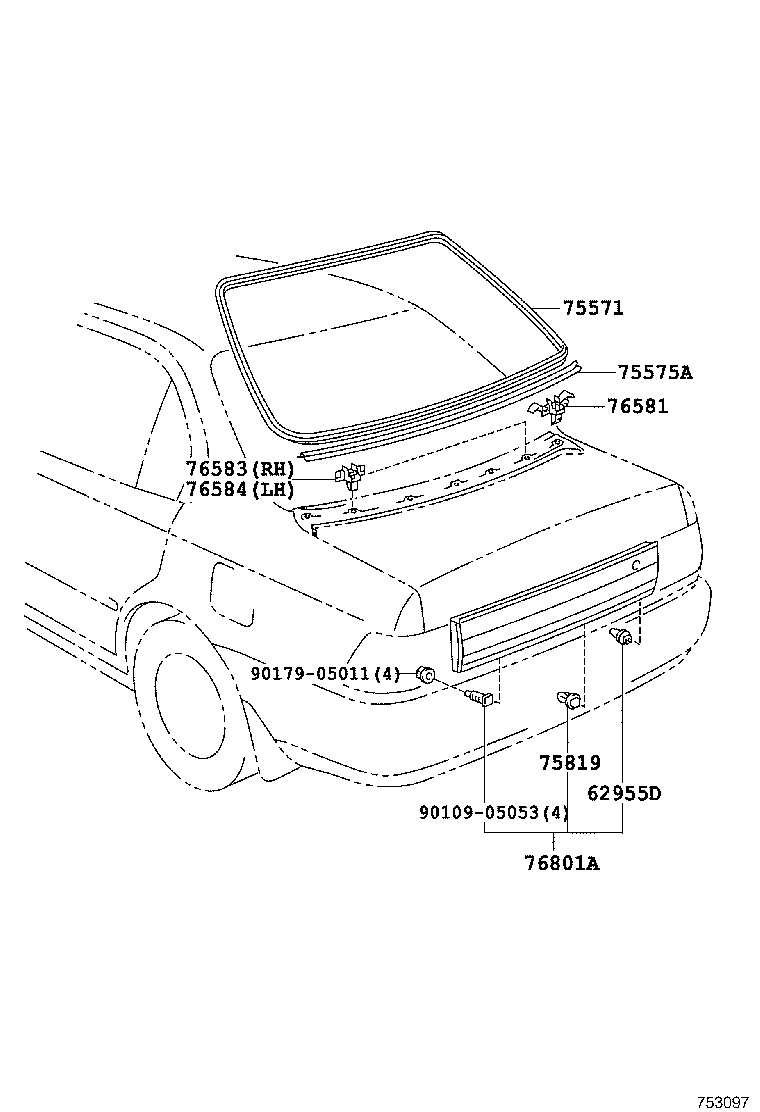

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62955D - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH | ||||
| 62955-12040 |
AE10#,CE100,104,EE101..4DS |
6 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-12580 |
AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE) |
1 | ||
| 75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-12360 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING | ||||
| 75819-12040 |
AE10#,CE100,104,EE101..4DS |
6 | ||
| 76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING | ||||
| 76581-12080 |
AE10#,CE100,104,EE101..4DS |
5 | ||
| 76583 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH | ||||
| 76583-12080 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 76584 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH | ||||
| 76584-12050 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-12410 |
AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE) |
1 | ||
| 76801-12440 |
AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE) |
1 | ||
| 76801-12410 |
AE10#,CE100,EE101..GT,LX,SEG,SEL,XE ﾀｲﾌﾟ A |
1 | ||
| Common parts | ||||
| 90109-05053 | ||||
| 90179-05011 | ||||
(9109-9401)V,WG ; (9401- )AE100,101..WG ; (9505- )AE104,CE100,101
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-12580 |
AE10#,CE100,104,EE101..4DS..(GT,LX,SEG,SEL,XE) |
1 | ||
