AE101-AEMVF (1991)
Toyota Corolla

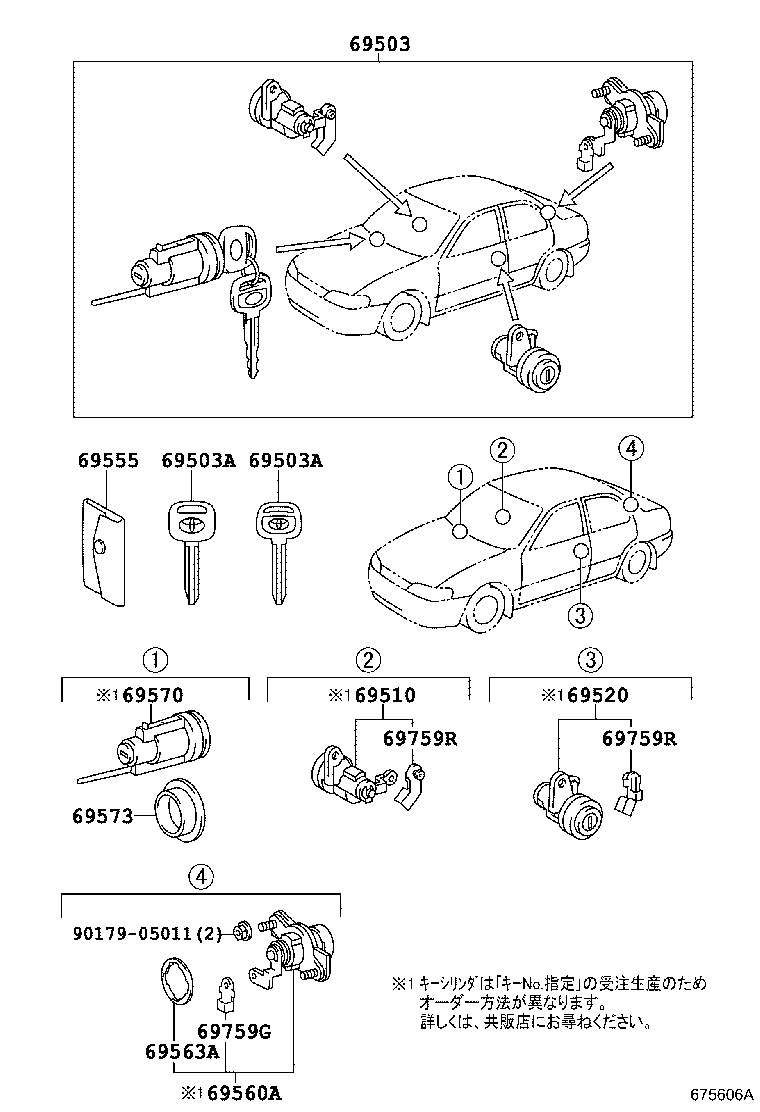

(9106-9505)4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-1A680 |
AE10#,CE100,104,EE101..4DS..(DX,GT,LX,SEL,XE) |
1 | ||
| 69005-1A330 |
AE10#,CE100,104,EE101..4DS..(DX,GT,LX,SEL,XE) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE10#,CE100,104,EE101..3DS,4DS ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
AE10#,CE100,104,EE101..DX,GT,LX,SEL,SJ,XE ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00193 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE10#,CE100,104,EE101..3DS,4DS ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
AE10#,CE100,104,EE101..DX,GT,LX,SEL,SJ,XE ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00193 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ |
2 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-12140 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-12140 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20030 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE10#,EE10# |
1 | ||
| 69555-95J00 |
AE10#,CE10#,EE10# |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-12490 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69560-12280 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-12070 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-12100 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||

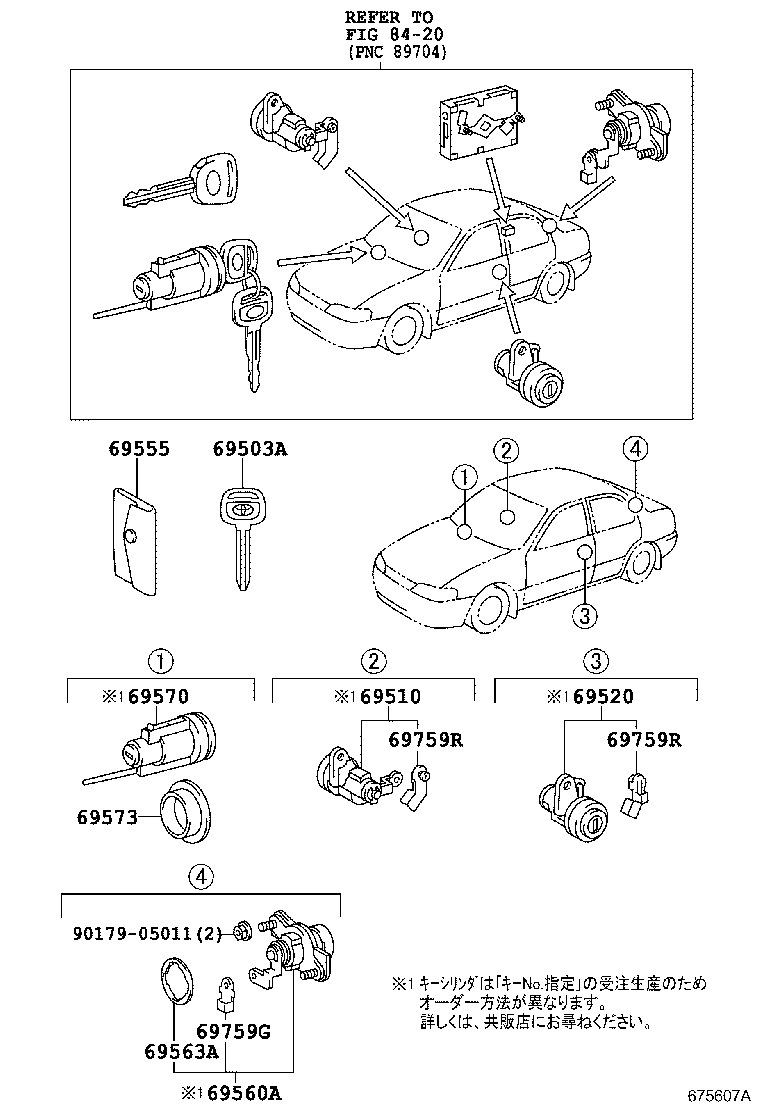

(9106-9505)4DS
ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE10#,CE100,104,EE101..3DS,4DS ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
AE10#,CE100,104,EE101..DX,GT,LX,SEL,SJ,XE ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00193 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ |
2 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-12140 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-12140 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20030 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE10#,EE10# |
1 | ||
| 69555-95J00 |
AE10#,CE10#,EE10# |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-12490 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69560-12280 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-12070 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-12100 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AE10#,CE100,104,EE101..4DS |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
| Linked diagrams | ||||
| 8420 | ||||

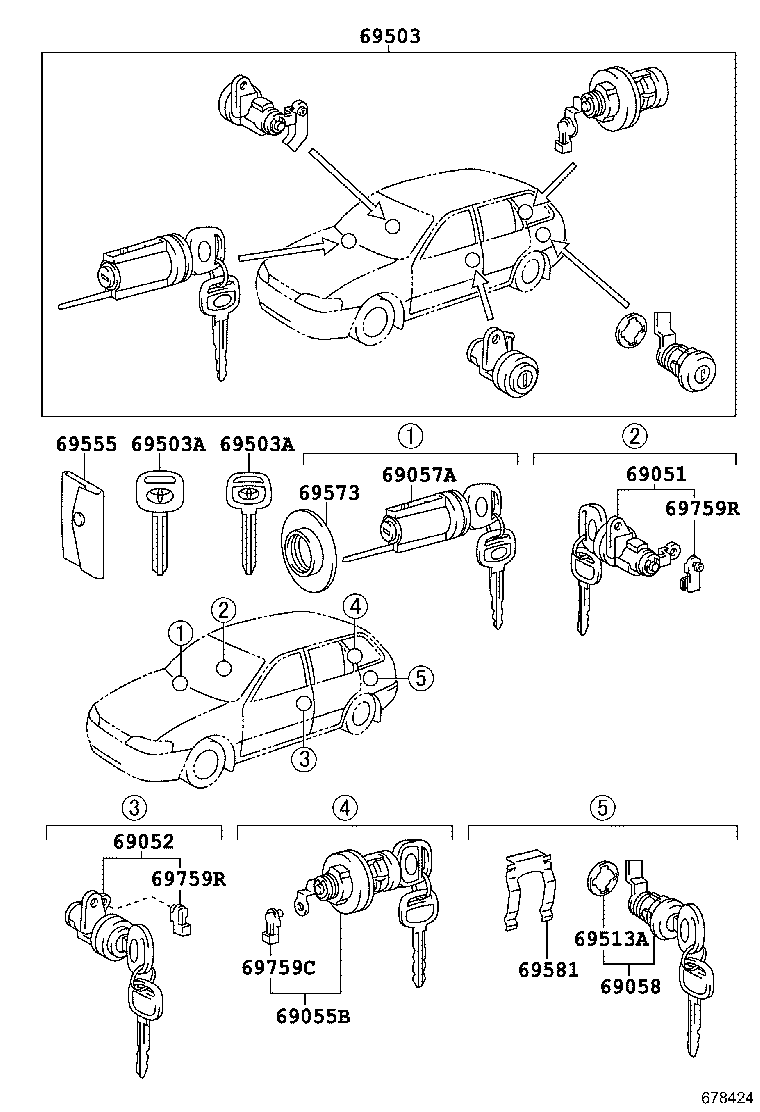

(9109- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-1A680 |
AE10#,CE100,104,EE101..4DS..(DX,GT,LX,SEL,XE) |
1 | ||
| 69005-1A330 |
AE10#,CE100,104,EE101..4DS..(DX,GT,LX,SEL,XE) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE10#,CE100,104,EE101..3DS,4DS ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
AE10#,CE100,104,EE101..DX,GT,LX,SEL,SJ,XE ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00193 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00186 |
AE10#,CE100,104,EE101..3DS,4DS ﾏｽﾀｰｷｰ |
2 | ||
| 90999-00185 |
AE10#,CE100,104,EE101..DX,GT,LX,SEL,SJ,XE ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00193 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG ﾏｽﾀｰｷｰ |
2 | ||
| 69555 - COVER, KEY | ||||
| 69555-20030 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE100,104,EE101..3DS,4DS |
1 | ||
| 69555-17020 |
AE10#,CE10#,EE10# |
1 | ||
| 69555-95J00 |
AE10#,CE10#,EE10# |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12010 |
AE10#,CE10#,EE10# |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-24080 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..3DS,V,WG |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
AE10#,CE10#,EE10# 左側 |
1 | ||
| 69759-12080 |
AE10#,CE10#,EE10# 右側 |
1 | ||
