AE101-AEMVF (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

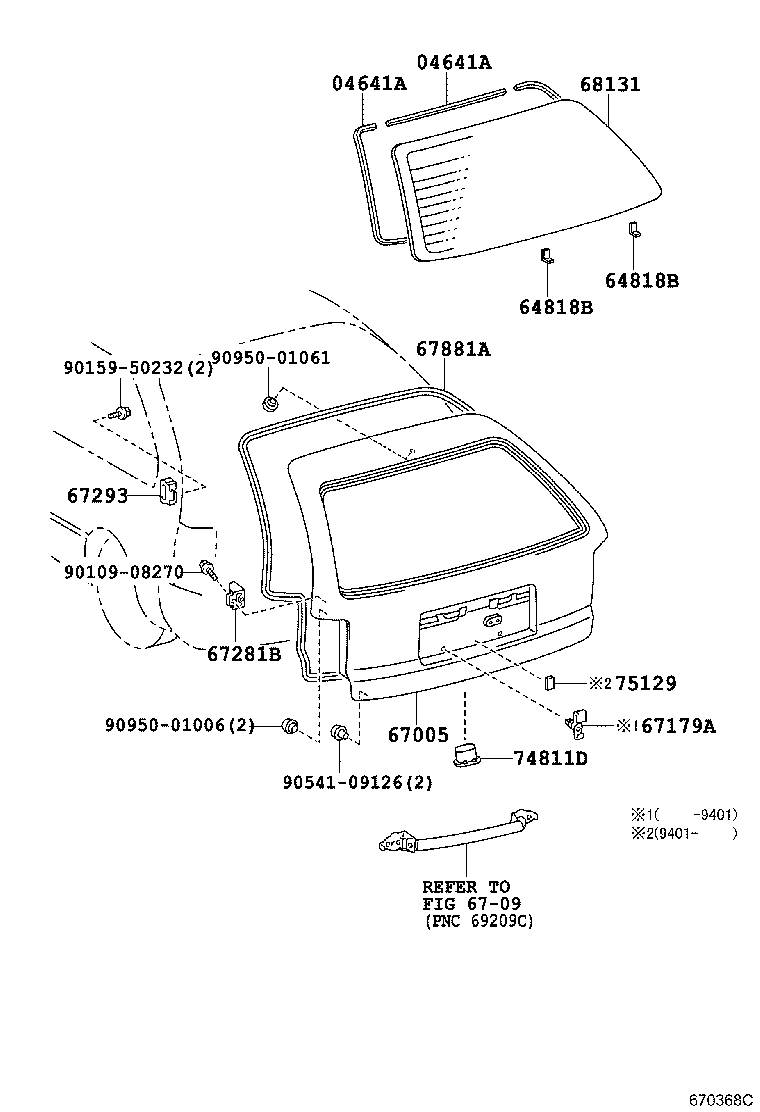

ILLUST NO. 2 OF 2(9109- )V,WG

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 04641A 04641A 64818B 64818B 67005 6709 67179A 67281B 67293 67881A 68131 74811D 75129 9010908270 9015950232 9054109126 9095001006 9095001061
Part # Description Qty Price
67281B - STOPPER, BACK DOOR, LOWER
67281-13060

AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-13020

AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG

 2
Common parts
90109-08270
90159-50232
90541-09126
90950-01006
90950-01061
Linked diagrams
6709
