AE101-AEMVF (1991)

Toyota Corolla

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)4DS

Click highlighted areas on diagram

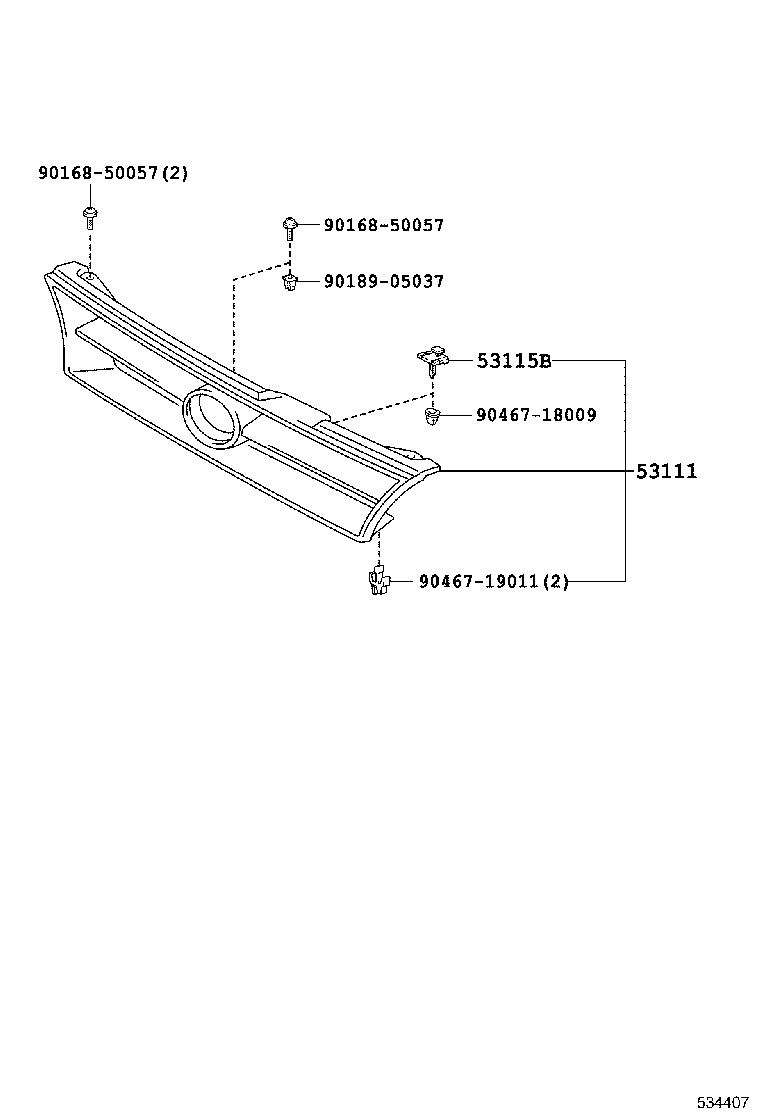

diagram 53111 53115B 9016850057 9016850057 9016850057 9018905037 9046718009 9046719011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-12860

AE10#,CE100,EE101..GT,LX,SEG,SEL,XE

ﾀｲﾌﾟ B

 1
53101-1A060

AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)

 1
53101-12860

AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)

 1
53115B - BRACKET, RADIATOR GRILLE
53115-16010

AE10#,CE10#,EE10#

 1
Common parts
90168-50057
90189-05037
90467-18009
90467-19011

(9109-9505)V,WG ; (9505- )AE109,CE102,105,106,107,108,109,EE10#

Click highlighted areas on diagram

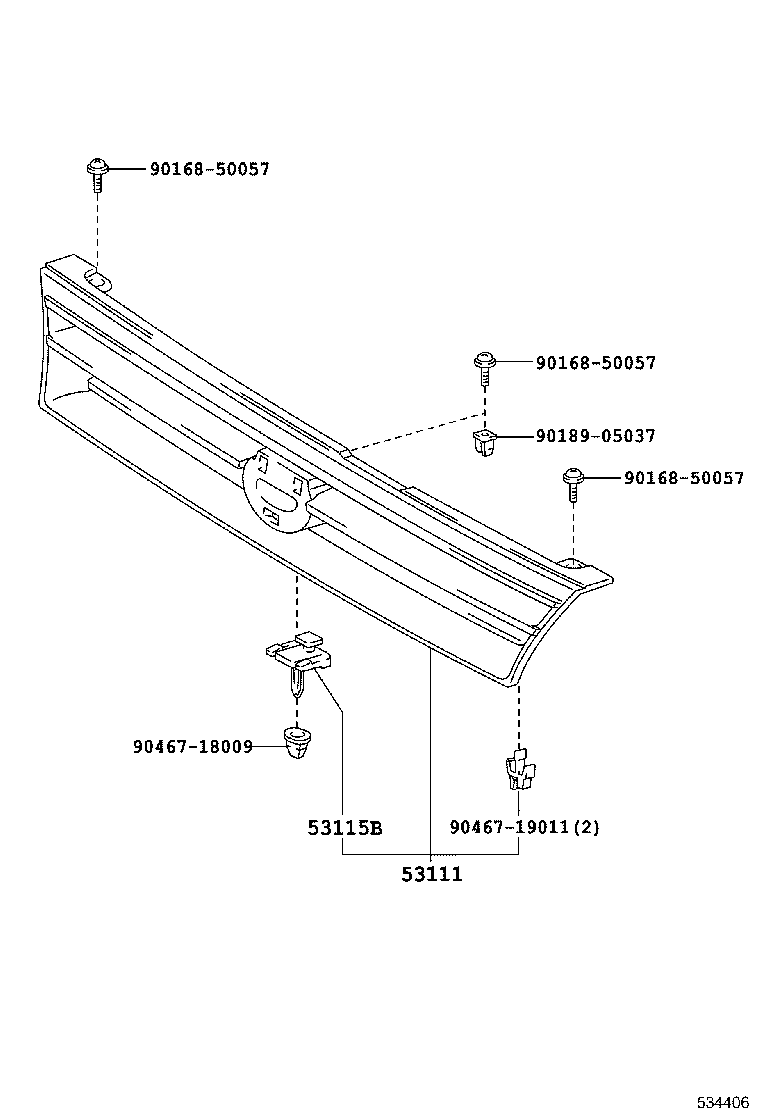

diagram 53111 53115B 9016850057 9016850057 9018905037 9046718009 9046719011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-12860

AE10#,CE100,EE101..GT,LX,SEG,SEL,XE

ﾀｲﾌﾟ B

 1
53101-1A060

AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)

 1
53101-12860

AE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)

 1
53115B - BRACKET, RADIATOR GRILLE
53115-16010

AE10#,CE10#,EE10#

 1
Common parts
90168-50057
90189-05037
90467-18009
90467-19011
