Toyota Corolla AE101 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
JP
COROLLA
AE101-AEMVF (1991)
4103 - DISC WHEEL & WHEEL CAP

AE101-AEMVF (1991)

Toyota Corolla

Production Jun 1991 - May 1995

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

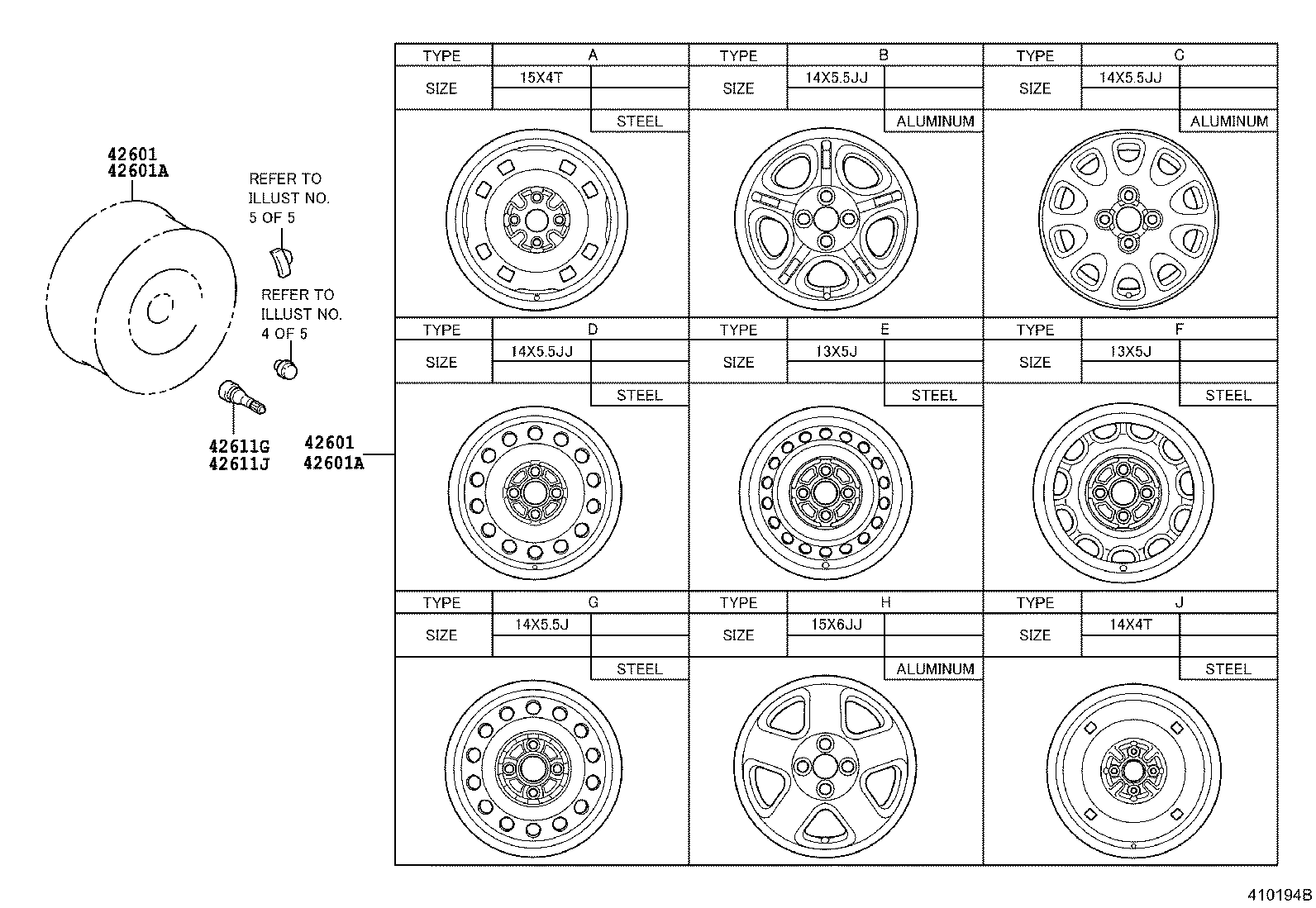

ILLUST NO. 1 OF 7(9106- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1A21001	AE101,104,CE104..GT,SEG,SEL 14X5.5J,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	06/1991 - 02/1992	4
42611-1A130	AE10#,CE100,104,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1995	4
42611-1A120	AE101,104..G,GT,LT,SJ 14X5.5JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	4
42601 - WHEEL, DISC
42611-1A21001	AE101,104,CE104..GT,SEG,SEL 14X5.5J,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	06/1991 - 02/1992	4
42611-1A130	AE10#,CE100,104,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1995	4
42611-1A120	AE101,104..G,GT,LT,SJ 14X5.5JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A21001	AE101,104,CE104..GT,SEG,SEL 14X5.5J,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	06/1991 - 02/1992	1
42611-1A010	AE10#,CE100,104,EE101 15X4T,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1995	1
42611-1A130	AE10#,CE100,104,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1995	1
42611-1A120	AE101,104..G,GT,LT,SJ 14X5.5JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	1
42611-1A130	AE100,101,CE100,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1992	1
42611-17040	AE101 14X4T,TYPE Q:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 12/1992	1
42601A - WHEEL, DISC (FOR SPARE)
42611-1A21001	AE101,104,CE104..GT,SEG,SEL 14X5.5J,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	06/1991 - 02/1992	1
42611-1A010	AE10#,CE100,104,EE101 15X4T,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1995	1
42611-1A130	AE10#,CE100,104,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1995	1
42611-1A120	AE101,104..G,GT,LT,SJ 14X5.5JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	1
42611-1A130	AE100,101,CE100,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1992	1
42611-17040	AE101 14X4T,TYPE Q:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 12/1992	1
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AE10#,CE10#,EE10#	06/1991 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AE10#,CE10#,EE10#	06/1991 - 12/2999	1

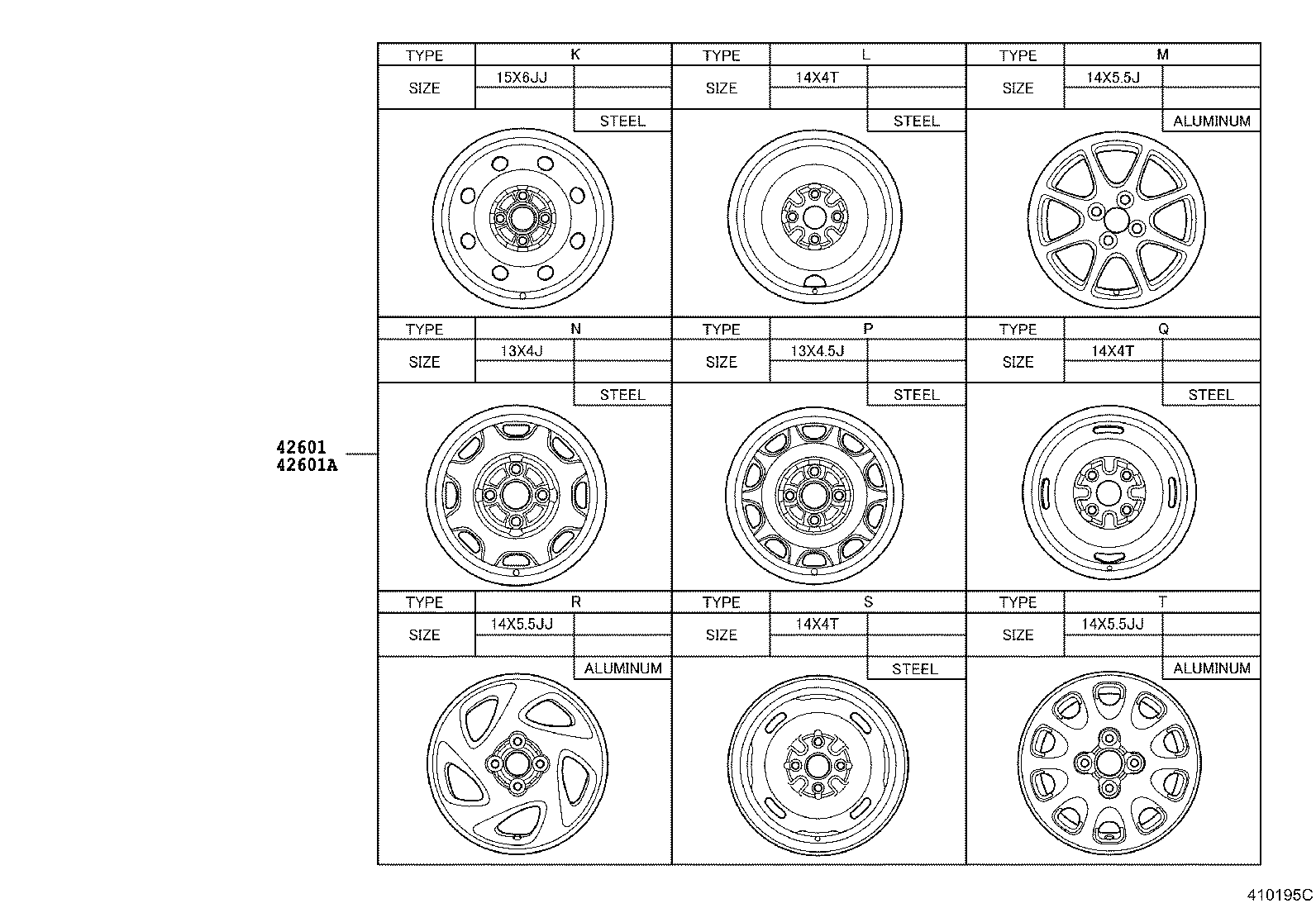

ILLUST NO. 2 OF 7(9106- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1A21001	AE101,104,CE104..GT,SEG,SEL 14X5.5J,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	06/1991 - 02/1992	4
42611-1A130	AE10#,CE100,104,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1995	4
42611-1A120	AE101,104..G,GT,LT,SJ 14X5.5JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A21001	AE101,104,CE104..GT,SEG,SEL 14X5.5J,TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	06/1991 - 02/1992	1
42611-1A010	AE10#,CE100,104,EE101 15X4T,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1995	1
42611-1A130	AE10#,CE100,104,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1995	1
42611-1A120	AE101,104..G,GT,LT,SJ 14X5.5JJ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	1
42611-1A130	AE100,101,CE100,EE101..G,LT,SEG,SEL,XE 14X5.5JJ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1992	1
42611-17040	AE101 14X4T,TYPE Q:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 12/1992	1

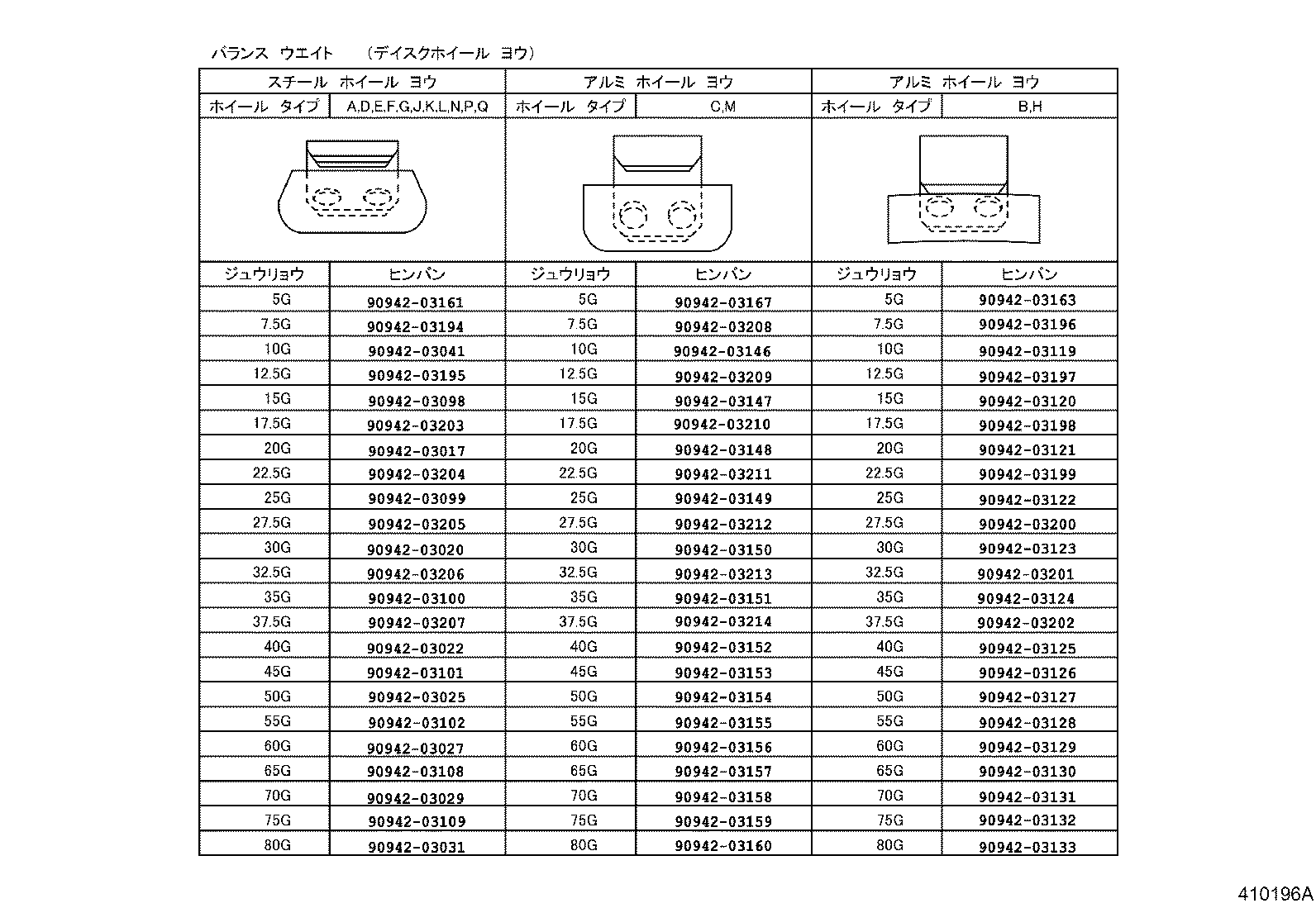

ILLUST NO. 6 OF 7(9106- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03119
90942-03120
90942-03121
90942-03122
90942-03123
90942-03124
90942-03125
90942-03126
90942-03127
90942-03128
90942-03129
90942-03130
90942-03131
90942-03132
90942-03133
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03161
90942-03163
90942-03167
90942-03194
90942-03195
90942-03196
90942-03197
90942-03198
90942-03199
90942-03200
90942-03201
90942-03202
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214

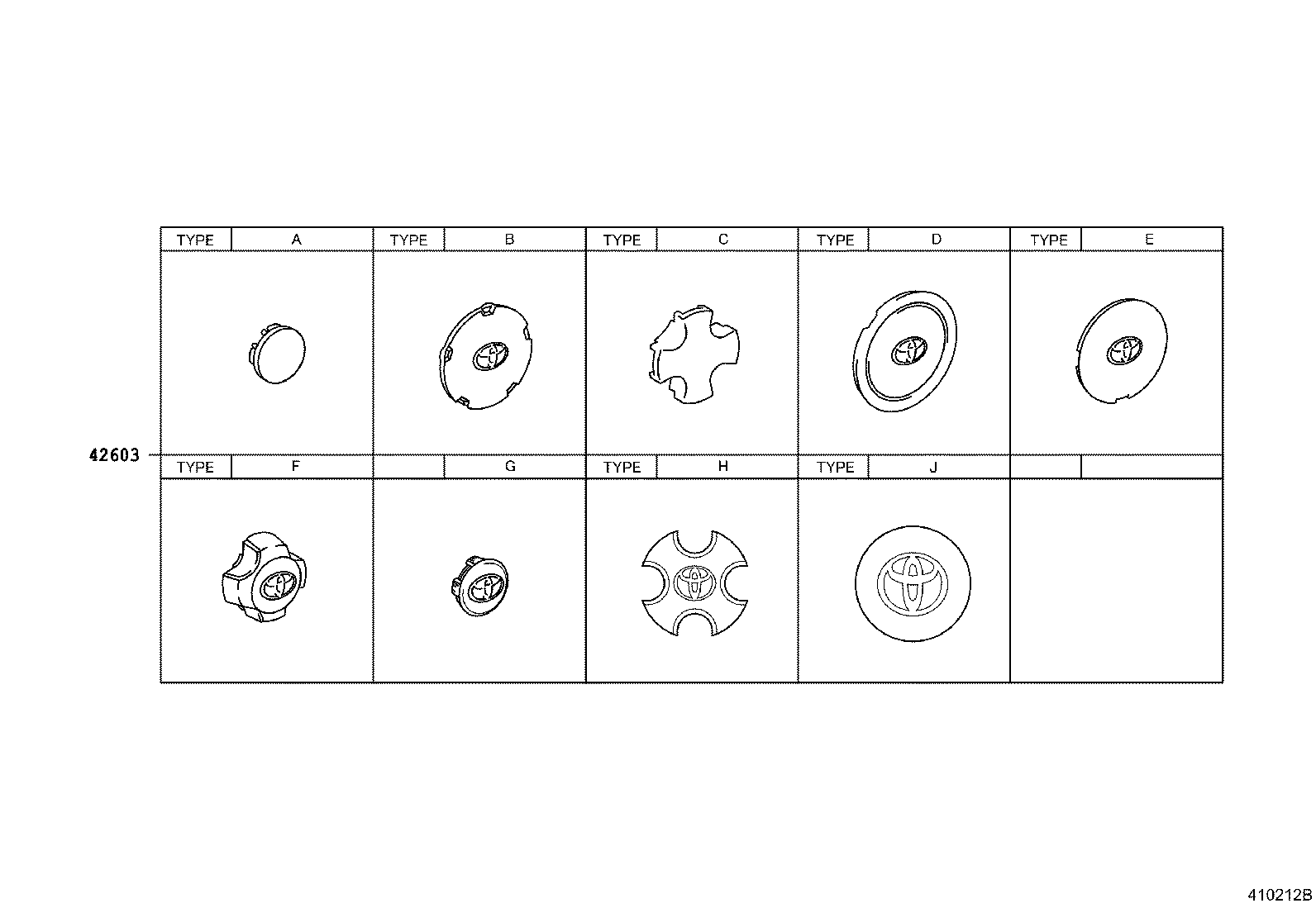

ILLUST NO. 4 OF 7(9106- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12530	AE104..SEL,XE;AE100,101,CE100,104,EE101..G,LT,SEG,SEL,XE TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	4
42603-12520	AE101,104..G,GT,LT,SJ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1997	4

Part #

Description

Qty

Price

42603 - ORNAMENT SUB-ASSY, WHEEL HUB

42603-12530

AE104..SEL,XE;AE100,101,CE100,104,EE101..G,LT,SEG,SEL,XE

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

42603-12520

AE101,104..G,GT,LT,SJ

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

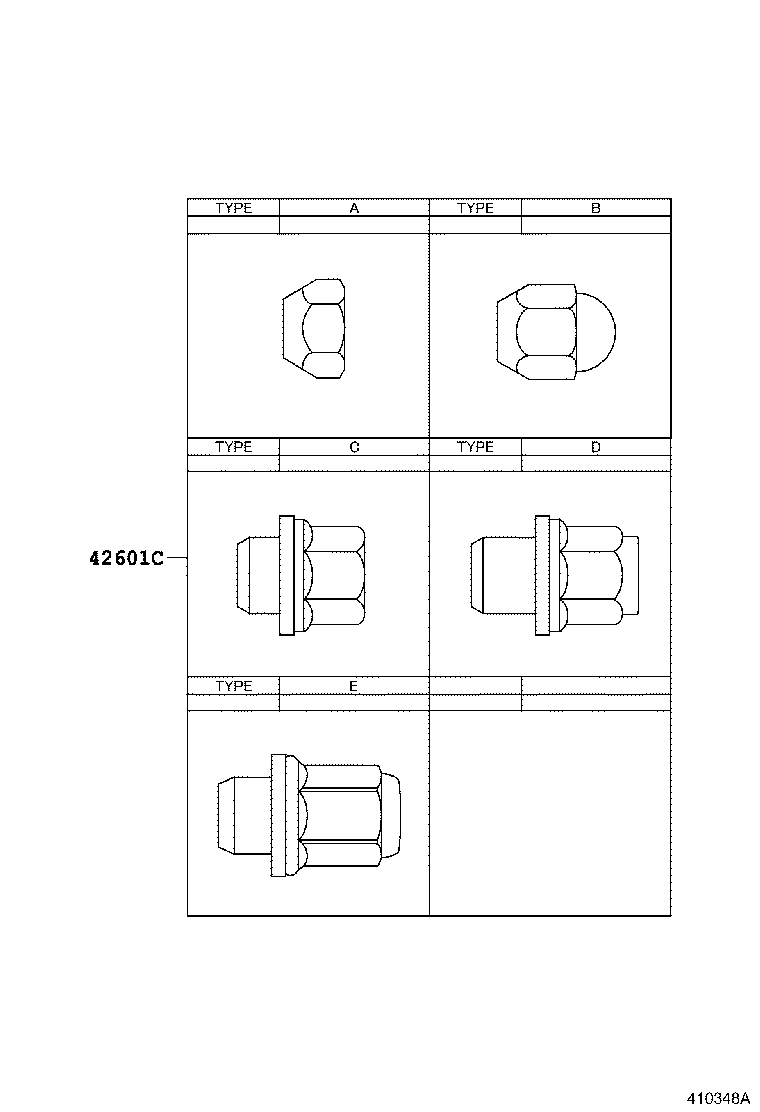

ILLUST NO. 5 OF 7(9106- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601C - NUT, HUB (FOR AXLE)
90942-01007	CE106,109,EE107..GL;AE10#,CE100,104,108,EE101,108 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1993	16
90942-01021	AE101..4DS..GT;AE100..4FC..SEL TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1993	16
90942-01062	AE101,104..G,GT,LT,SJ TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	16
90942-01033	AE104..SEL,XE;AE100,101,CE100,104,EE101..BZT,G,LT,SEG,SEL,XE TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ｱﾙﾐﾎｲ-ﾙ)	06/1991 - 05/1997	16
90942-01021	AE101..4DS..GT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1993 - 01/1994	16

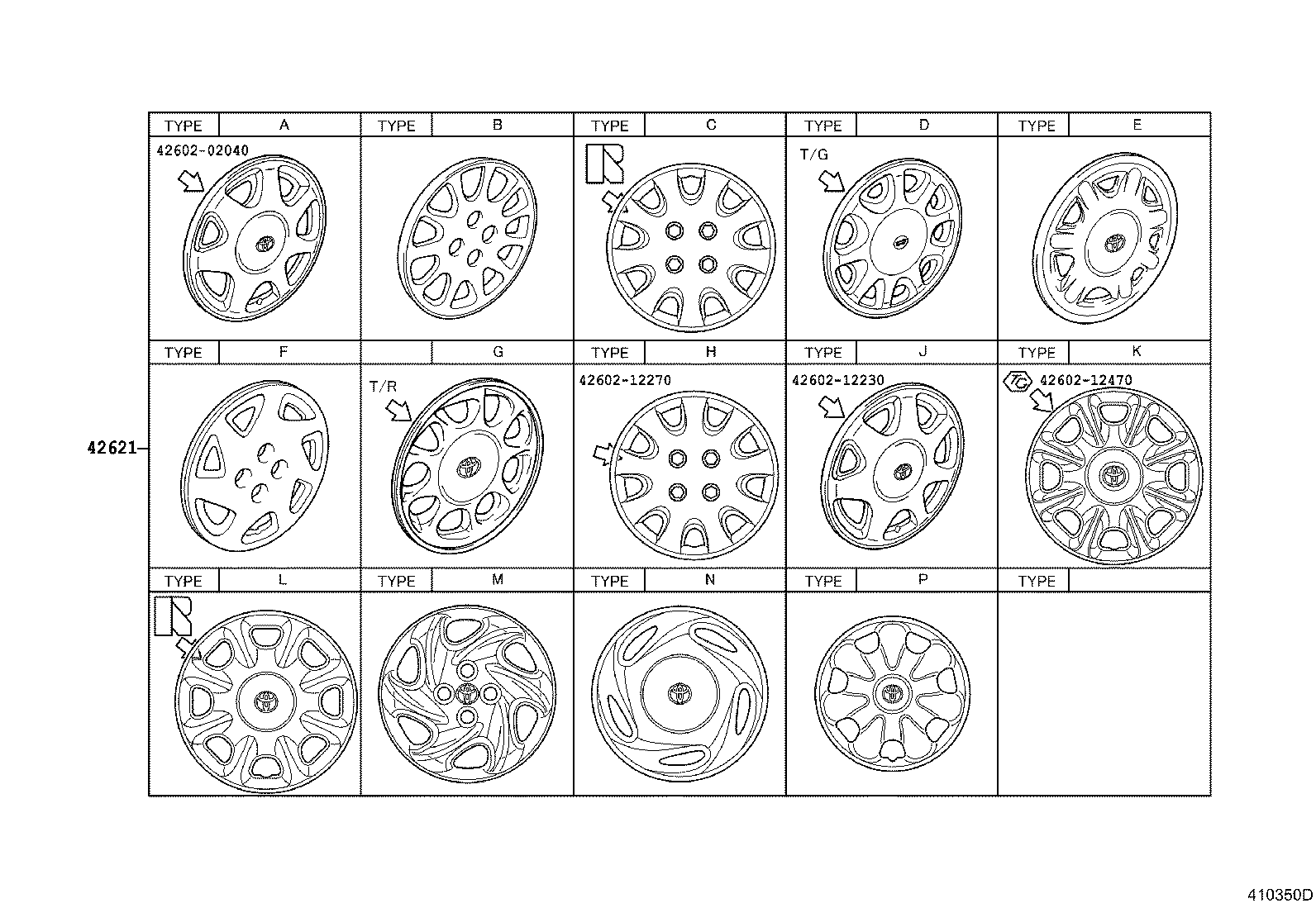

ILLUST NO. 3 OF 7(9106- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42621 - CAP, WHEEL
42602-12230	AE101..4DS..GT TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ	06/1991 - 05/1993	4
42602-02040	AE101..4DS..GT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1992 - 05/1993	4
42602-12320	AE101..4DS..GT TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 05/1995	4

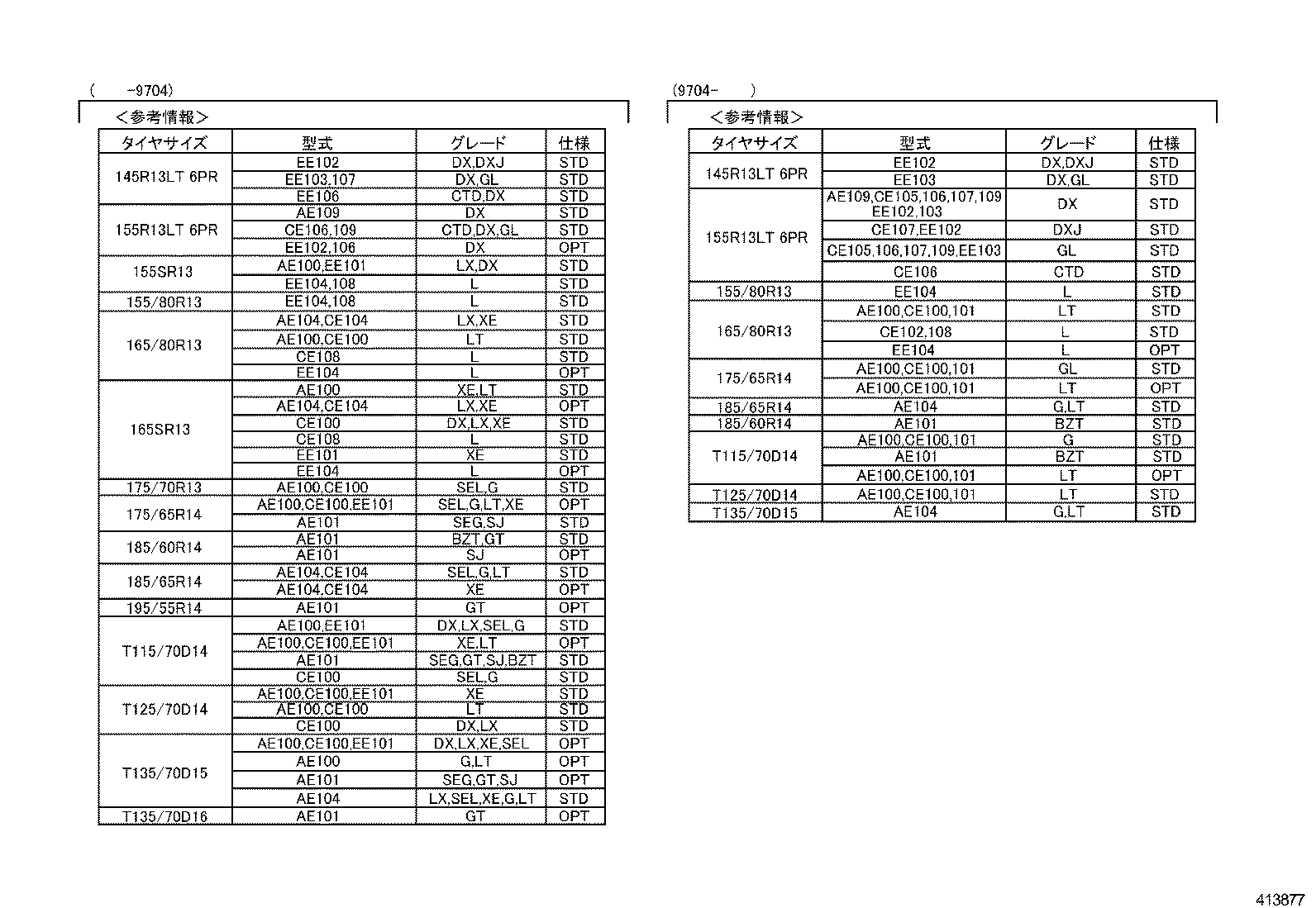

ILLUST NO. 7 OF 7(9106- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
