AE101-AEMVF (1991)
Toyota Corolla

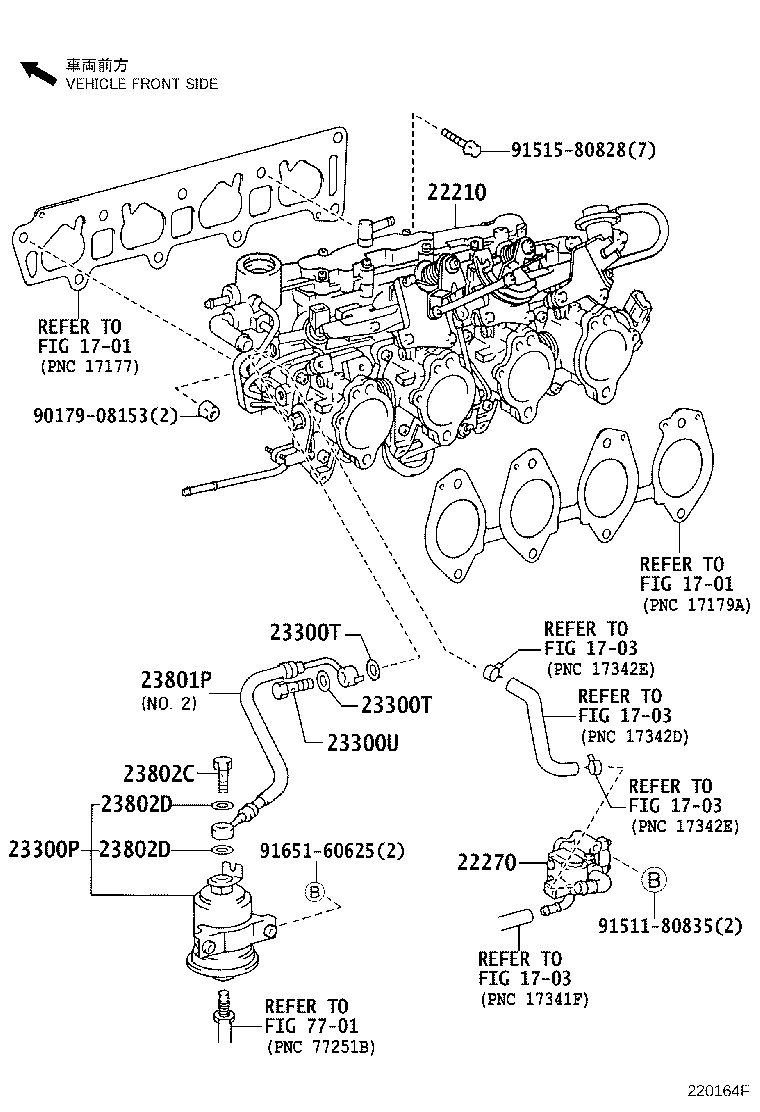

ILLUST NO. 1 OF 2(9106- )4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16571 |
4AGE..AE101 |
1 | ||
| 22210-16572 |
4AGE..AE101 |
1 | ||
| 22210-16620 |
4AGE..AE101..5F |
1 | ||
| 22210-16621 |
4AGE..AE101..5F |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-16030 |
4AGE..AE101 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19295 |
4A#,5AFE..AE10# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4A#,5AFE..AE10# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4A#,5AFE..AE10# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4A#,5AFE..AE10#..DX,G,GT,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-16061 |
4AGE..AE101 |
1 | ||
| 90923-01380 |
4AGE..AE101 NO.2 |
1 | ||
| 23801-16060 |
4AGE..AE101 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
4A#,5AFE..AE10# |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
4AGE..AE101 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12026 |
4AGE..AE101 |
2 | ||
| Common parts | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91515-80828 | ||||
| 91651-60625 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1703 | ||||
| 7701 | ||||

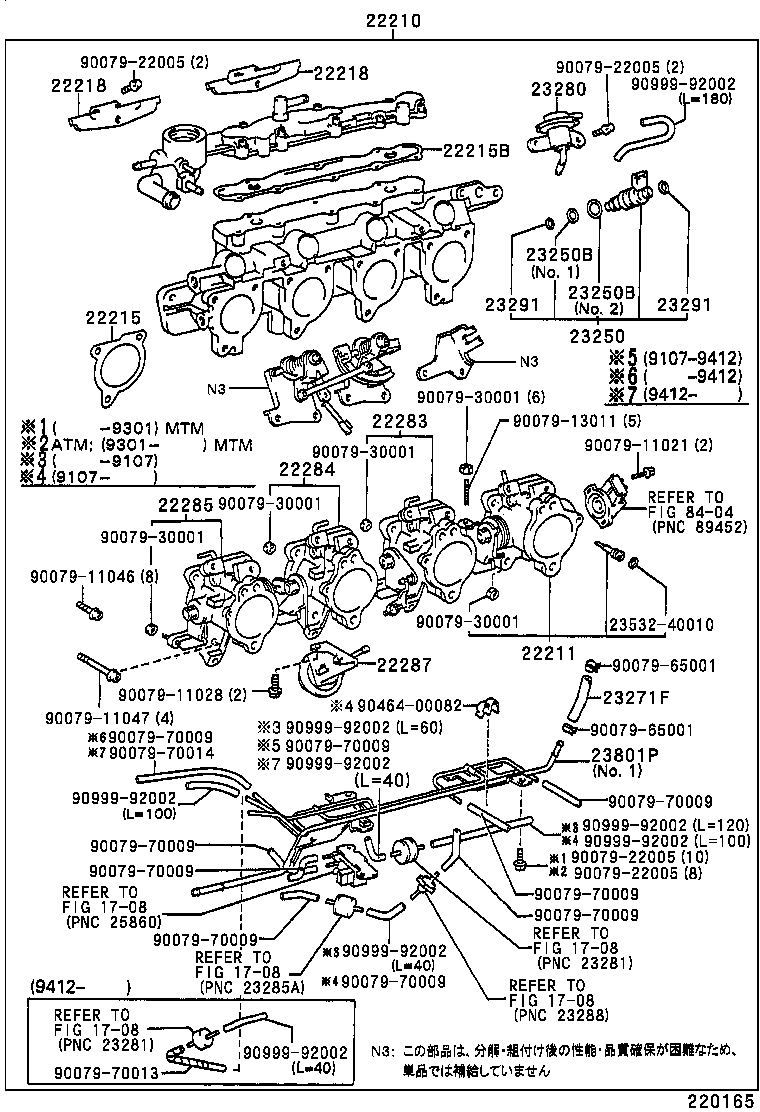

ILLUST NO. 2 OF 2(9106-9505)4AGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16571 |
4AGE..AE101 |
1 | ||
| 22210-16572 |
4AGE..AE101 |
1 | ||
| 22210-16620 |
4AGE..AE101..5F |
1 | ||
| 22210-16621 |
4AGE..AE101..5F |
1 | ||
| 22211 - BODY, THROTTLE | ||||
| 22211-16570 |
4AGE..AE101 |
1 | ||
| 22211-16571 |
4AGE..AE101 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-16571 |
4AGE..AE101 |
4 | ||
| 22215-16572 |
4AGE..AE101 |
4 | ||
| 22215B - GASKET, THROTTLE BODY COVER, NO.2 | ||||
| 22224-16760 |
4AGE..AE101 |
1 | ||
| 22218 - COVER(FOR THROTTLE BODY) | ||||
| 22218-16571 |
4AGE..AE101 |
1 | ||
| 22218-16571 |
4AGE..AE101..5F |
2 | ||
| 22218 - COVER(FOR THROTTLE BODY) | ||||
| 22218-16571 |
4AGE..AE101 |
1 | ||
| 22218-16571 |
4AGE..AE101..5F |
2 | ||
| 22283 - BODY, THROTTLE, NO.2 | ||||
| 22283-16571 |
4AGE..AE101 |
1 | ||
| 22283-16570 |
4AGE..AE101 |
1 | ||
| 22284 - BODY, THROTTLE, NO.3 | ||||
| 22284-16570 |
4AGE..AE101 |
1 | ||
| 22284-16571 |
4AGE..AE101 |
1 | ||
| 22285 - BODY, THROTTLE, NO.4 | ||||
| 22285-16572 |
4AGE..AE101 |
1 | ||
| 22285-16571 |
4AGE..AE101 |
1 | ||
| 22285-16570 |
4AGE..AE101 |
1 | ||
| 22287 - OPENER | ||||
| 22287-16570 |
4AGE..AE101 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-19015 |
4AGE..AE101 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
4AGE..AE101 NO.1 |
4 | ||
| 90301-17007 |
4AGE..AE101 NO.2 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-14006 |
4AGE..AE101 NO.1 |
4 | ||
| 90301-17007 |
4AGE..AE101 NO.2 |
4 | ||
| 23271F - HOSE, FUEL | ||||
| 95333-06010 |
4AGE..AE101 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-16140 |
4AGE..AE101 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75010 |
4AGE..AE101 |
8 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-75010 |
4AGE..AE101 |
8 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-16061 |
4AGE..AE101 |
1 | ||
| 90923-01380 |
4AGE..AE101 NO.2 |
1 | ||
| 23801-16060 |
4AGE..AE101 |
1 | ||
| Common parts | ||||
| 23532-40010 | ||||
| 90079-11021 | ||||
| 90079-11028 | ||||
| 90079-11046 | ||||
| 90079-11047 | ||||
| 90079-13011 | ||||
| 90079-22005 | ||||
| 90079-30001 | ||||
| 90079-65001 | ||||
| 90079-70009 | ||||
| 90079-70013 | ||||
| 90079-70014 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8404 | ||||

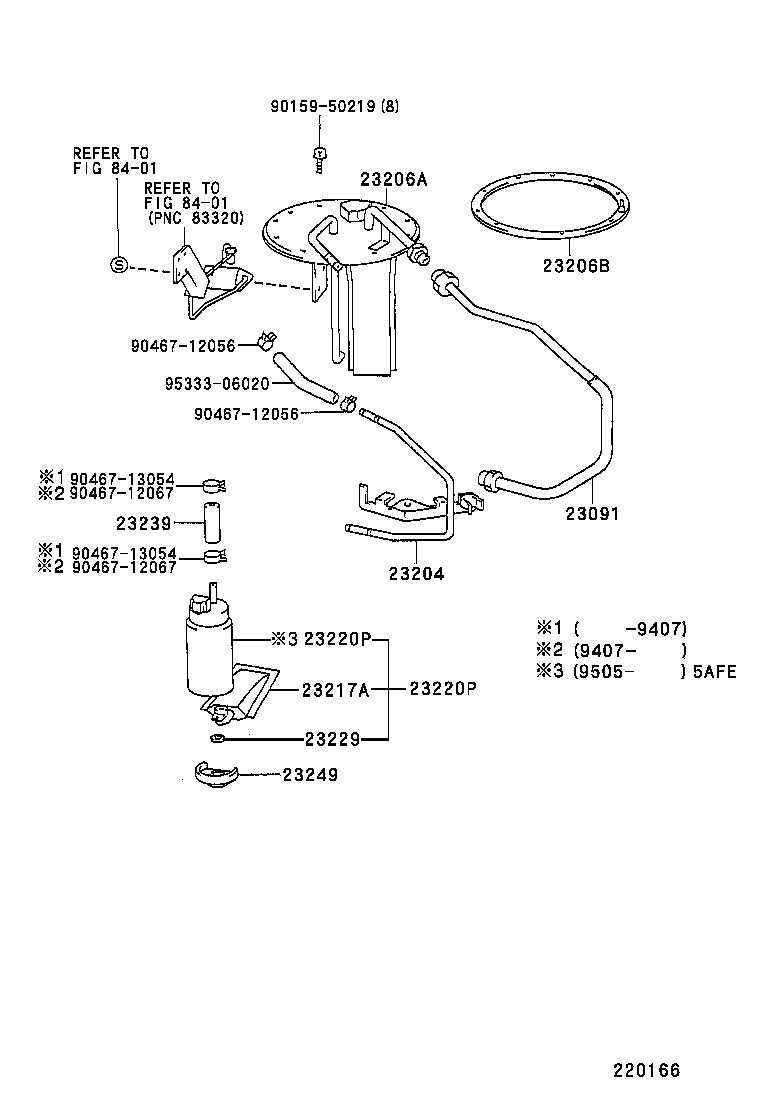

(9106- )4A#,5AFE..AE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-16060 |
4A#,5AFE..AE100,101 |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-16510 |
4A#,5AFE..AE100,101 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-16560 |
4A#,5AFE..AE100,101 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-12030 |
4A#,5AFE..AE100,101,104 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74020 |
4A#,5AFE..AE100,101 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74020 |
4A#,5AFE..AE10# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74020 |
4A#,5AFE..AE10# |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4A#,5AFE..AE10# |
1 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
4A#,5AFE..AE10# |
1 | ||
| 23239-11010 |
4A#,5AFE..AE10# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
4A#,5AFE..AE10# |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90467-12056 | ||||
| 90467-12067 | ||||
| 90467-13054 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
