AE101-AEMQK (1991)
Toyota Corolla
ILLUST NO. 1 OF 2(9106- )4AFE,5AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-15040 |
4AFE,5AFE..AE10# |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4A#,5AFE..AE10# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4A#,5AFE..AE10# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-15040 |
4AFE,5AFE..AE10# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15050 |
4AFE,5AFE..AE10# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15180 |
4AFE,5AFE..AE10# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AFE,5AFE..AE10# |
1 | ||
| 16325-63011 |
4AFE,5AFE..AE10# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AFE,5AFE..AE10# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AFE,5AFE..AE10# *WAX 82−95 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-15010 |
4AFE,5AFE..AE10# |
1 | ||
| 16361 - FAN | ||||
| 16361-11010 |
5AFE..AE100;4A#..AE101..5F..(BZT,GT,SEG) |
1 | ||
| 16361 - FAN | ||||
| 16361-11010 |
5AFE..AE100;4A#..AE101..5F..(BZT,GT,SEG) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-15120 |
5AFE..AE100;4A#..AE101..5F..(BZT,GT,SEG) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15080 |
4AFE,5AFE..AE10# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-15020 |
4AFE,5AFE..AE10# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15520 |
4AFE..AE101..5F..SEG |
1 | ||
| 16400-15521 |
4AFE..AE101..5F..SEG |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15520 |
4AFE..AE101..5F..SEG |
1 | ||
| 16400-15521 |
4AFE..AE101..5F..SEG |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15080 |
4A#,5AFE..AE10# |
1 | ||
| 16470-15081 |
4A#,5AFE..AE10# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15080 |
4A#,5AFE..AE10# |
1 | ||
| 16470-15081 |
4A#,5AFE..AE10# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16471-15080 |
4A#,5AFE..AE10# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16471-15080 |
4A#,5AFE..AE10# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16471-15080 |
4A#,5AFE..AE10# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4A#,5AFE..AE10# *H,L=170,NO.2 |
1 | ||
| 16471-15080 |
4A#,5AFE..AE10# NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,5AFE..AE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,5AFE..AE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,5AFE..AE10# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,5AFE..AE10# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15090 |
4A#,5AFE..AE10# |
1 | ||
| 16405-15091 |
4A#,5AFE..AE10# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15090 |
4A#,5AFE..AE10# |
1 | ||
| 16405-15091 |
4A#,5AFE..AE10# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-15080 |
4A#,5AFE..AE10# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15120 |
4A#,5AFE..AE10# (J) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74010 |
4AFE..AE101;4AGE..AE101..4FC |
2 | ||
| 16535-74010 |
5AFE..AE100..5F;4A#..AE101..GT,SEG |
2 | ||
| 16535-74010 |
4AFE..AE101;5AFE..AE100..5F;4AGE..AE101..4FC |
2 | ||
| 16535-74010 |
4AFE..AE101..4FC;4AGE,5AFE..AE100,101;4AFE..AE101..5F..SEG |
2 | ||
| 16535-74010 |
4AFE..AE104..5F;4A#,5AFE..AE100,101 |
2 | ||
| 16535-74010 |
4AGE..AE101;4AFE..AE101..4FC;4AFE,5AFE..AE100,101..(4DS,WG)..5F |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15160 |
4A#,5AFE..AE10#..DX,G,GT,LT,LX,SEG,SEL,SJ,XE |
1 | ||
| 16571-15160 |
4AFE,5AFE..AE10# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#,5AFE..AE10# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#,5AFE..AE10# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15210 |
4AFE,5AFE..AE10# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#,5AFE..AE10# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#,5AFE..AE10# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-15020 |
4A#,5AFE..AE10# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15260 |
5AFE..AE100;4AFE..AE101..5F..SEG |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90116-06136 | ||||
| 90119-06334 | ||||
| 90119-08419 | ||||
| 90119-08813 | ||||
| 90119-10194 | ||||
| 90179-06143 | ||||
| 90179-06307 | ||||
| 90179-08053 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91511-B0816 | ||||
| 91621-40814 | ||||
| 91651-60616 | ||||
| 92112-60835 | ||||
| 92122-60818 | ||||
| 96135-51300 | ||||
| 99555-10200 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1903 | ||||
| 2211 | ||||
| 8716 | ||||

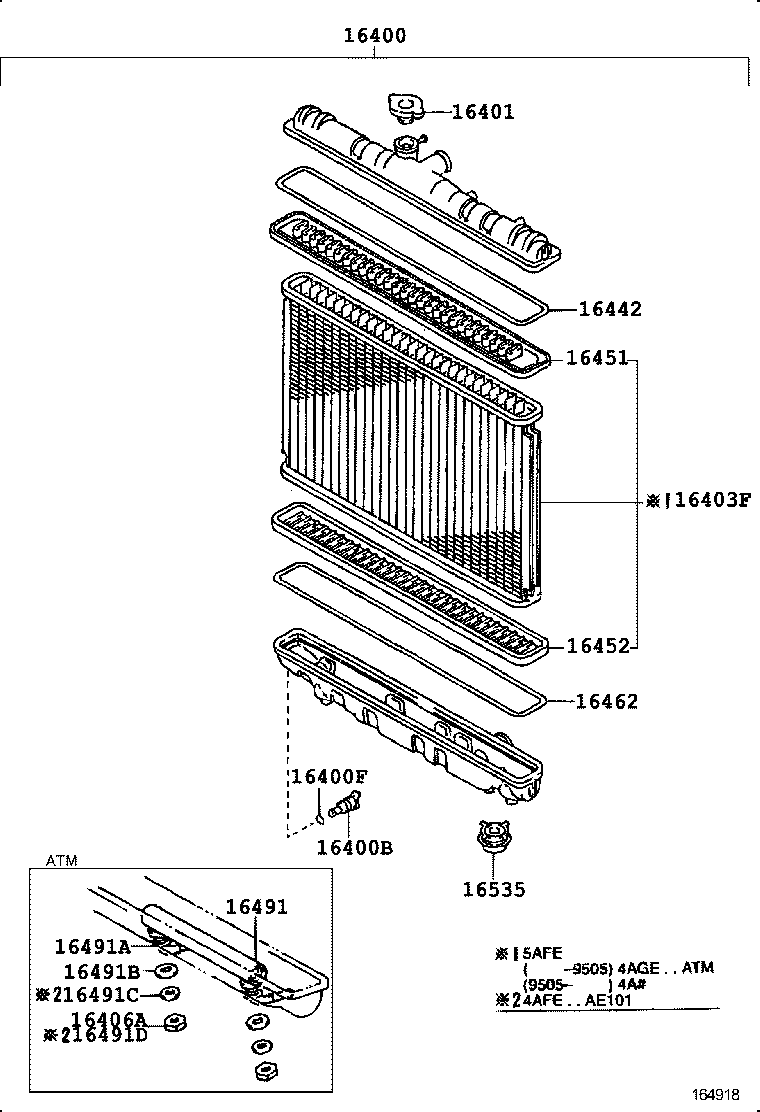

ILLUST NO. 2 OF 2(9106- )4A#,5AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-15520 |
4AFE..AE101..5F..SEG |
1 | ||
| 16400-15521 |
4AFE..AE101..5F..SEG |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
4A#..AE101,104..5F;4AFE..AE101..4FC..SEG |
1 | ||
| 23322-54010 |
4AFE..AE104..WG;4A#..AE101,104..4FC..(GT,SEL,SJ,XE);4A#,5AFE..AE100,101,109..BZT,DX,G,LT,LX,SEL,XE |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4AFE..AE104..WG;4A#..AE101,104..4FC..(GT,SEL,SJ,XE);4A#,5AFE..AE100,101,109..BZT,DX,G,LT,LX,SEL,XE |
1 | ||
| 16418-15520 |
4A#..AE101,104..5F;4AFE..AE101..4FC..SEG |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-15520 |
4A#..AE101,104..5F;4AFE..AE101..4FC..SEG |
1 | ||
| 16401-72090 |
4AFE..AE104..WG;4A#..AE101,104..4FC..(GT,SEL,SJ,XE);4A#,5AFE..AE100,101,109..BZT,DX,G,LT,LX,SEL,XE |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-15520 |
4A#..AE101,104..5F;4AFE..AE101..4FC..SEG |
1 | ||
| 16442-11380 |
4AFE..AE104..WG..5F;4AGE..AE101..4DS..4FC;4A#,5AFE..AE100,101,109..BZT,DX,G,LT,LX,SEL,XE |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-15520 |
4A#..AE101,104..5F;4AFE..AE101..4FC..SEG |
1 | ||
| 16451-11380 |
4AFE..AE104..WG..5F;4AGE..AE101..4DS..4FC;4A#,5AFE..AE100,101,109..BZT,DX,G,LT,LX,SEL,XE |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-15520 |
4A#..AE101,104..5F;4AFE..AE101..4FC..SEG |
1 | ||
| 16452-11420 |
4AFE..AE104..WG..5F;4AGE..AE101..4DS..4FC;4A#,5AFE..AE100,101,109..BZT,DX,G,LT,LX,SEL,XE |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-15520 |
4A#..AE101,104..5F;4AFE..AE101..4FC..SEG |
1 | ||
| 16462-11420 |
4AFE..AE104..WG..5F;4AGE..AE101..4DS..4FC;4A#,5AFE..AE100,101,109..BZT,DX,G,LT,LX,SEL,XE |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74010 |
4AFE..AE101;4AGE..AE101..4FC |
2 | ||
| 16535-74010 |
5AFE..AE100..5F;4A#..AE101..GT,SEG |
2 | ||
| 16535-74010 |
4AFE..AE101;5AFE..AE100..5F;4AGE..AE101..4FC |
2 | ||
| 16535-74010 |
4AFE..AE101..4FC;4AGE,5AFE..AE100,101;4AFE..AE101..5F..SEG |
2 | ||
| 16535-74010 |
4AFE..AE104..5F;4A#,5AFE..AE100,101 |
2 | ||
| 16535-74010 |
4AGE..AE101;4AFE..AE101..4FC;4AFE,5AFE..AE100,101..(4DS,WG)..5F |
2 | ||
