AE100G-AWPNK (1991)

Toyota Corolla

Production Sep 1991 - Aug 2000
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )AE100,101,104,CE100,101..WG

Click highlighted areas on diagram

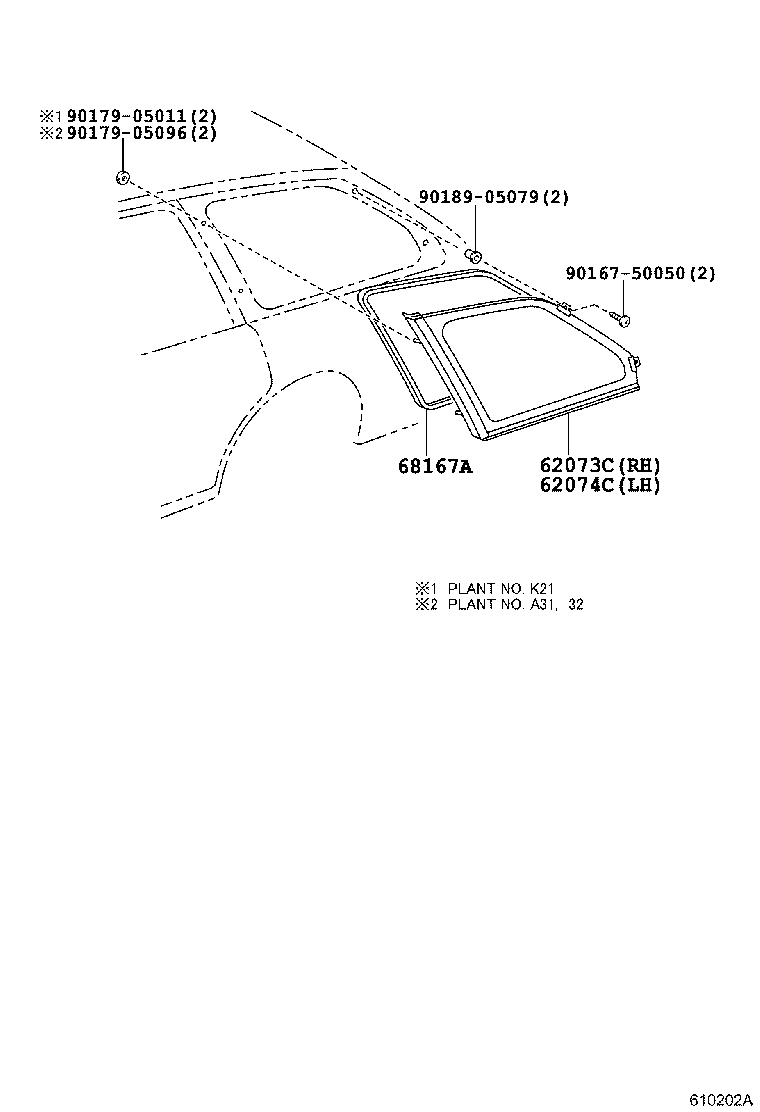

diagram 62073C 62074C 68167A 9016750050 9017905011 9017905096 9018905079
Part # Description Qty Price
62073C - GLASS SUB-ASSY, QUARTER, REAR RH
62073-13090

AE100,101,104,CE100..WG

*TT,厚さ=3.5

 1
62073-13160

AE100,101,104,CE100

*TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62073-13170

AE100,104,CE100,101

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62073-13140

AE100,101,104,CE100

*TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
62073-13150

AE100,104,CE100,101

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62073-13130

AE100,101,104,CE100

*TEM,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62074C - GLASS SUB-ASSY, QUARTER, REAR LH
62074-13090

AE100,101,104,CE100..WG

*TT,厚さ=3.5

 1
62074-13130

AE100,101,104,CE100

*TEM,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62074-13160

AE100,101,104,CE100

*TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62074-13150

AE100,104,CE100,101

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62074-13140

AE100,101,104,CE100

*TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
62074-13170

AE100,104,CE100,101

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
68167A - WEATHERSTRIP, QUARTER WINDOW NO.2 GLASS
68167-13020

AE100,101,104,CE100,101..WG

 2
Common parts
90167-50050
90179-05011
90179-05096
90189-05079
