AE100G-AWMNK (1991)
Toyota Corolla

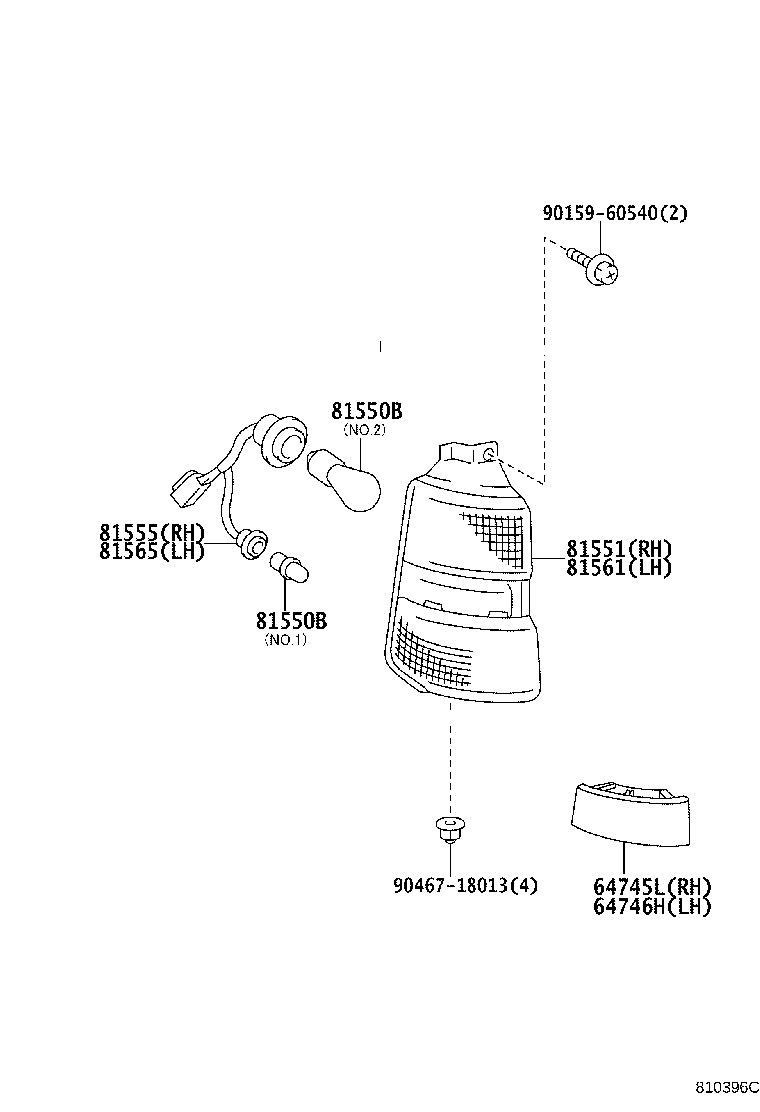

ILLUST NO. 1 OF 2(9705- )AE100,101,104,CE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64745L - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-13010 |
AE100,101,104,CE100,101 |
1 | ||
| 64746H - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-13020 |
AE100,101,104,CE100,101 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE100,CE106,108,109,EE106,107,108..V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-15009 |
AE100,101,104,CE100,101 12V 21W,ｱﾝﾊﾞｰ,NO.2 |
2 | ||
| 99132-11210 |
AE10#,CE10#,EE10# 12V 21W,TURN OR BACK |
4 | ||
| 90981-13044 |
AE100,101,104,CE100,101 12V 21/5W,NO.1 |
2 | ||
| 99132-21210 |
AE10#,CE10#,EE10#..4DS,V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE100,CE106,108,109,EE106,107,108..V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-15009 |
AE100,101,104,CE100,101 12V 21W,ｱﾝﾊﾞｰ,NO.2 |
2 | ||
| 99132-11210 |
AE10#,CE10#,EE10# 12V 21W,TURN OR BACK |
4 | ||
| 90981-13044 |
AE100,101,104,CE100,101 12V 21/5W,NO.1 |
2 | ||
| 99132-21210 |
AE10#,CE10#,EE10#..4DS,V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81551-13320 |
AE10#,CE100,106,108,109,EE102,103,104,106,107,108..V,WG |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81555-13340 |
AE10#,CE100,106,108,109,EE102,103,104..V,WG |
1 | ||
| 81555-13320 |
AE100,CE106,108,109,EE106,107,108..V,WG |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81561-13320 |
AE10#,CE100,106,108,109,EE102,103,104,106,107,108..V,WG |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81555-13320 |
AE100,CE106,108,109,EE106,107,108..V,WG |
1 | ||
| 81555-13340 |
AE10#,CE100,106,108,109,EE102,103,104..V,WG |
1 | ||
| Common parts | ||||
| 90159-60540 | ||||
| 90467-18013 | ||||

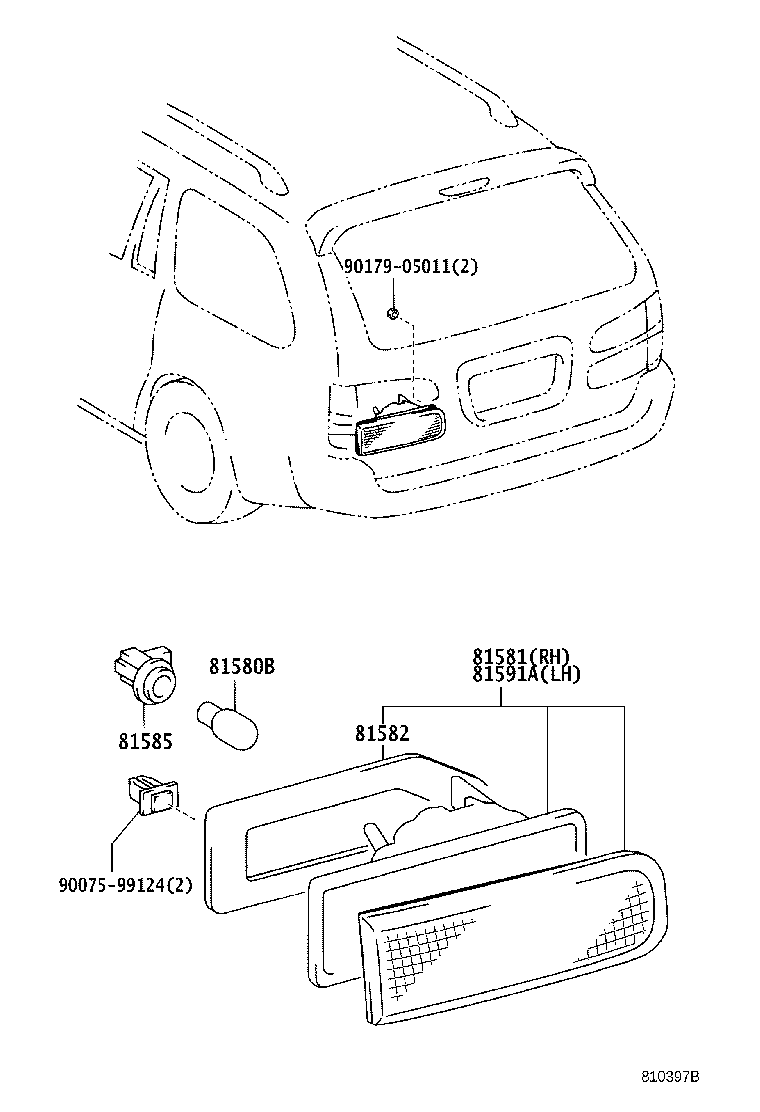

ILLUST NO. 2 OF 2(9705- )AE100,101,104,CE100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-12050 |
AE100,101,104,CE100,101 12V 5W |
2 | ||
| 81581 - LENS, REAR LAMP | ||||
| 81581-13010 |
AE100,101,104,CE100,101 |
1 | ||
| 81582 - GASKET, REAR LAMP | ||||
| 81582-13010 |
AE100,101,104,CE100,101 右側 |
1 | ||
| 81592-13010 |
AE100,101,104,CE100,101 左側 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 90075-99005 |
AE100,101,104,CE100,101 |
2 | ||
| 81591A - LENS REAR LAMP | ||||
| 81591-13010 |
AE100,101,104,CE100,101 |
1 | ||
| Common parts | ||||
| 90075-99124 | ||||
| 90179-05011 | ||||

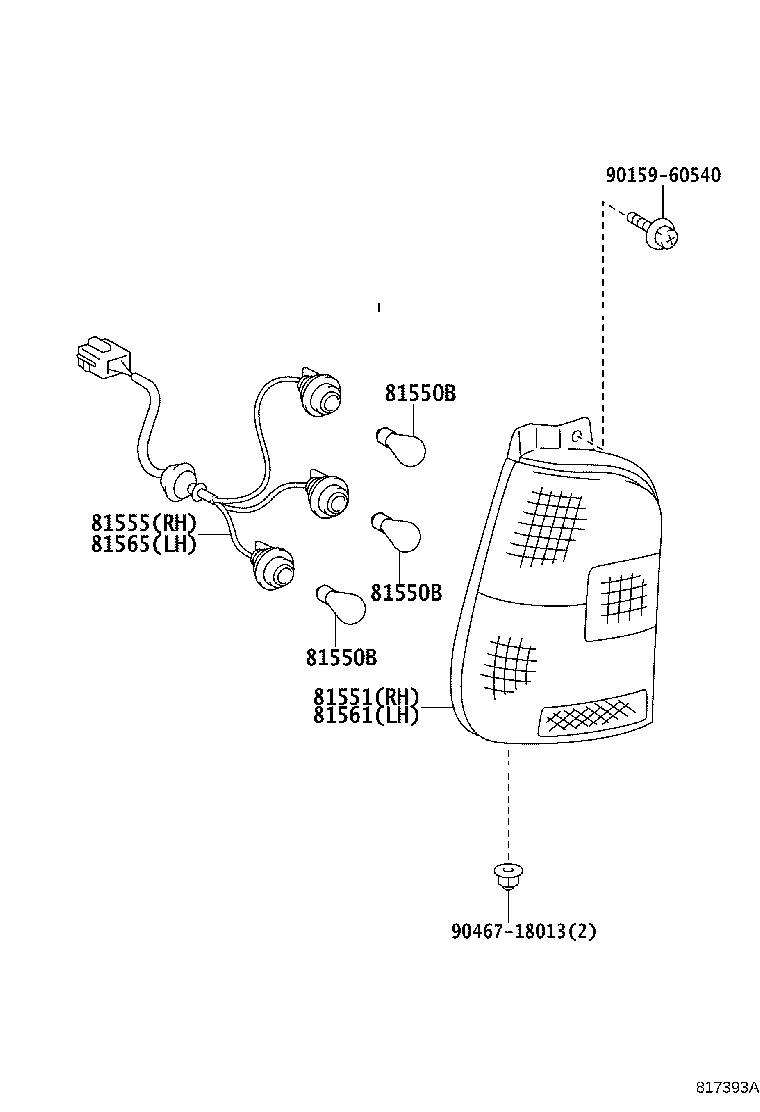

(9109-9705)V,WG ; (9705- )AE109,CE102,105,106,107,108,109,EE10# ; (9806- )AE1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE100,CE106,108,109,EE106,107,108..V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-15009 |
AE100,101,104,CE100,101 12V 21W,ｱﾝﾊﾞｰ,NO.2 |
2 | ||
| 99132-11210 |
AE10#,CE10#,EE10# 12V 21W,TURN OR BACK |
4 | ||
| 90981-13044 |
AE100,101,104,CE100,101 12V 21/5W,NO.1 |
2 | ||
| 99132-21210 |
AE10#,CE10#,EE10#..4DS,V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE100,CE106,108,109,EE106,107,108..V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-15009 |
AE100,101,104,CE100,101 12V 21W,ｱﾝﾊﾞｰ,NO.2 |
2 | ||
| 99132-11210 |
AE10#,CE10#,EE10# 12V 21W,TURN OR BACK |
4 | ||
| 90981-13044 |
AE100,101,104,CE100,101 12V 21/5W,NO.1 |
2 | ||
| 99132-21210 |
AE10#,CE10#,EE10#..4DS,V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
AE100,CE106,108,109,EE106,107,108..V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 90981-15009 |
AE100,101,104,CE100,101 12V 21W,ｱﾝﾊﾞｰ,NO.2 |
2 | ||
| 99132-11210 |
AE10#,CE10#,EE10# 12V 21W,TURN OR BACK |
4 | ||
| 90981-13044 |
AE100,101,104,CE100,101 12V 21/5W,NO.1 |
2 | ||
| 99132-21210 |
AE10#,CE10#,EE10#..4DS,V,WG 12V 21/5W,TAIL & STOP |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81551-13320 |
AE10#,CE100,106,108,109,EE102,103,104,106,107,108..V,WG |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81555-13340 |
AE10#,CE100,106,108,109,EE102,103,104..V,WG |
1 | ||
| 81555-13320 |
AE100,CE106,108,109,EE106,107,108..V,WG |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81561-13320 |
AE10#,CE100,106,108,109,EE102,103,104,106,107,108..V,WG |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-13390 |
AE100,101,104,CE100,101 |
1 | ||
| 81555-13320 |
AE100,CE106,108,109,EE106,107,108..V,WG |
1 | ||
| 81555-13340 |
AE10#,CE100,106,108,109,EE102,103,104..V,WG |
1 | ||
| Common parts | ||||
| 90159-60540 | ||||
| 90467-18013 | ||||
