AE100G-AWMNK (1991)
Toyota Corolla
(9109- )AE100,101,104,CE100,101..WG

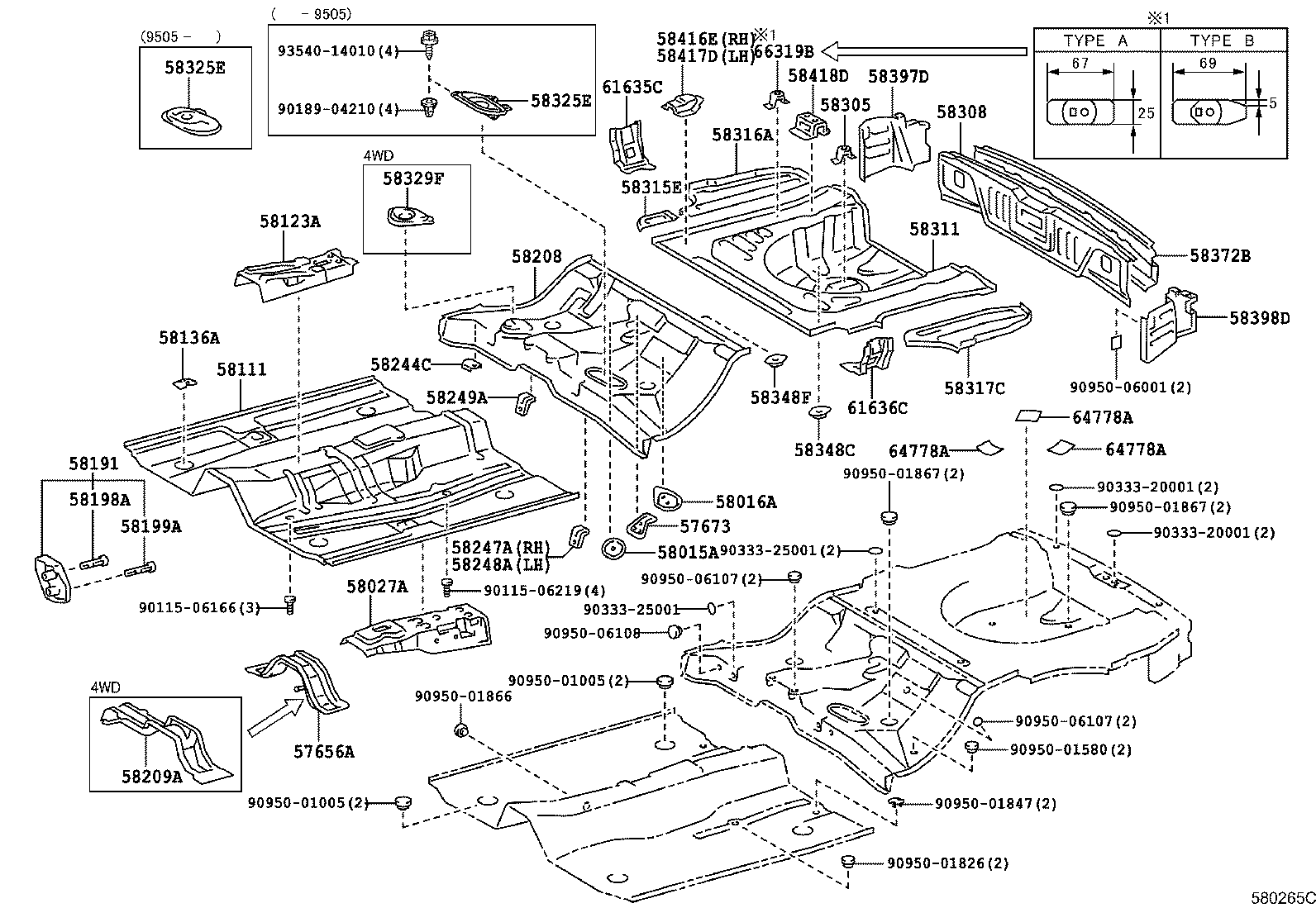

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-12070 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 57656-12060 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 57656-12080 |
AE100,EE10#;AE101..4FC,6F |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-13010 |
AE100,101,104,CE100..WG |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-12040 |
AE100,101,104,CE100,101,104,EE101 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-12010 |
AE100,101,104,CE100,101,104,EE101 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12120 |
AE100,101,CE100,106,108,EE10#..4DS,V,WG |
1 | ||
| 58027-12121 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 58027-12153 |
EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE100,101,CE100,105,106,107,108,EE104 ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ) |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12260 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 58111-12261 |
AE100,CE100,106,108,EE10# |
1 | ||
| 58111-12262 |
AE100,101,CE100,101,102,106,107,108,EE10# |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-12060 |
AE100,101,CE100,101,102,106,107,108,EE10# |
1 | ||
| 58013-12020 |
AE100,101,CE100,106,108,EE10# |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12020 |
AE10#,CE10#,EE10# |
2 | ||
| 58136-12030 |
AE10#,CE10#,EE10# |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-12110 |
AE104,CE104;AE100,101,CE100,101..BZT,G,GT,SEG,SEL,SJ |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-12030 |
AE104,CE104;AE100,101,CE100,101..BZT,G,GT,SEG,SEL,SJ |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-12020 |
AE104,CE104;AE100,101,CE100,101..BZT,G,GT,SEG,SEL,SJ |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-13900 |
AE100,101..3DS,WG |
1 | ||
| 58211-13908 |
AE101..4FC,6F;AE100,CE100,101 |
1 | ||
| 58211-12901 |
AE100,101,CE100 |
1 | ||
| 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-13030 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..3DS,V,WG |
6 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-13050 |
AE100,101,104,CE100,101..3DS,WG |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-13050 |
AE100,101,104,CE100,101..3DS,WG |
1 | ||
| 58249A - REINFORCEMENT, REAR SEAT MOUNTING | ||||
| 58249-12010 |
AE100,101,104,CE100,101 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AE10#,CE100,104,EE101 |
1 | ||
| 58351-12040 |
AE100,101,104,CE100,101,104,EE101 |
1 | ||
| 58305-10011 |
AE100..WG |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-13130 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12210 |
AE100,101,104,CE100,101,104,EE101..4DS,WG |
1 | ||
| 58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH | ||||
| 58315-12070 |
AE100,101,104,CE100,101,104,EE101 |
1 | ||
| 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH | ||||
| 58316-13020 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH | ||||
| 58317-13010 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12100 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 |
1 | ||
| 58325-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 58325-12100 |
AE100,101,104,CE100,101 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12100 |
CE106,EE102..05S;AE10#,CE100,108,EE103,104 |
1 | ||
| 58325-12080 |
AE10#,CE10#,EE10# |
1 | ||
| 58325-12100 |
AE100,101,104,CE100,101 |
1 | ||
| 58348C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58348-12020 |
AE10#,CE100,104,EE101..4DS,WG |
1 | ||
| 58348F - BRACKET, CENTER FLOOR HEAR INSULATOR, NO.3 | ||||
| 58348-12020 |
AE10#,CE100,104,EE101 |
2 | ||
| 58372B - PANEL, BODY LOWER BACK, LOWER | ||||
| 58372-13080 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58397D - PANEL, REAR FLOOR END DUST SEAL, RH | ||||
| 58397-13050 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58398D - PANEL, REAR FLOOR END DUST SEAL, LH | ||||
| 58398-13040 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58416E - BRACKET, DECK BOARD, NO.1 RH | ||||
| 58416-13040 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58417D - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58417-13040 |
AE100,101,104,CE100,101..WG |
1 | ||
| 58418D - BRACKET, DECK BOARD, NO.2 | ||||
| 58418-13020 |
AE100,101,104,CE100,101..WG |
2 | ||
| 61635C - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-13110 |
AE100,101,104,CE100,101..WG |
1 | ||
| 61636C - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-13110 |
AE100,101,104,CE100,101..WG |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12030 |
AE100..WG |
3 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12030 |
AE100..WG |
3 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12030 |
AE100..WG |
3 | ||
| 66319B - BRACKET, ROPE HOOK | ||||
| 66319-13020 |
AE100,101,104,CE100,101 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 66319-13010 |
AE100,101,104,CE100,101 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90189-04210 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01005 | ||||
| 90950-01580 | ||||
| 90950-01826 | ||||
| 90950-01847 | ||||
| 90950-01866 | ||||
| 90950-01867 | ||||
| 90950-06001 | ||||
| 90950-06107 | ||||
| 90950-06108 | ||||
| 93540-14010 | ||||
