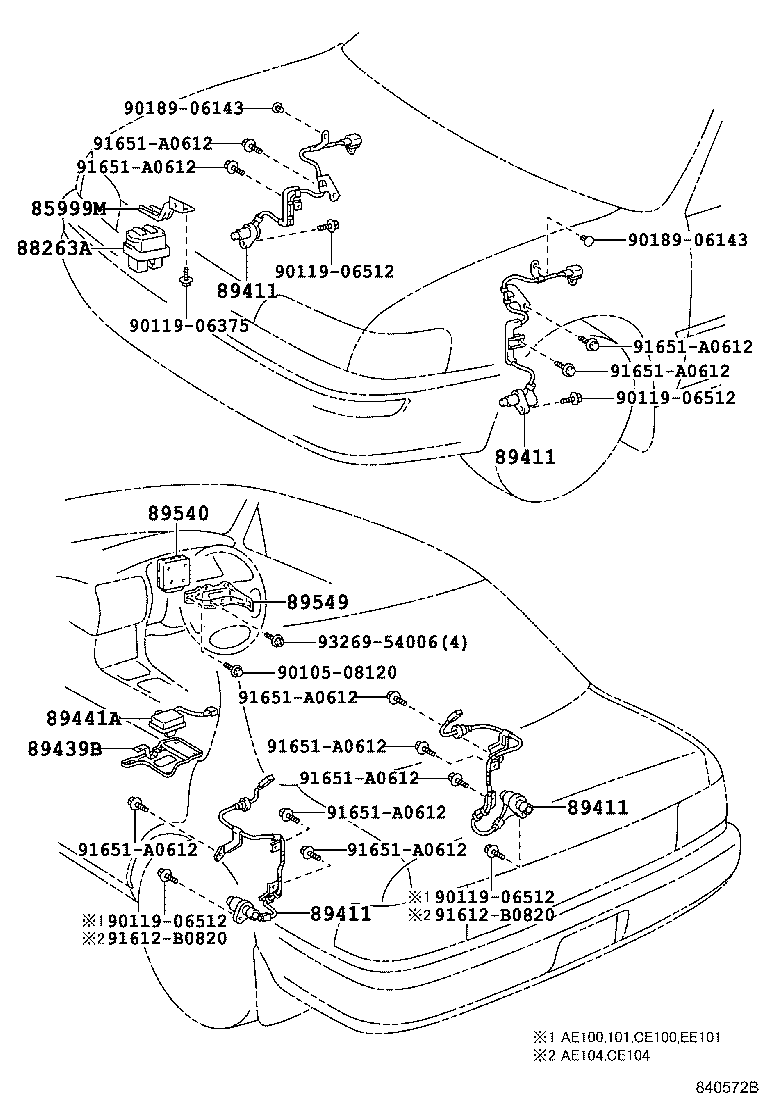

AE100G-AWMGK (1991)
Toyota Corolla
(9106-9505)AE10#,CE100,104,EE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-12170 |
AE10#,CE100,104,EE101 |
1 | ||
| 85999-12360 |
AE100,101,104,CE100,101 |
1 | ||
| 85999-12320 |
AE10#,CE100,104,EE101 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-35070 |
AE100,101,104,CE100,101 |
1 | ||
| 88263-32060 |
AE10#,CE100 |
1 | ||
| 88263-12090 |
AE10#,CE100,104,EE101 |
1 | ||
| 88263-12070 |
AE10#,CE100,104,EE101 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-12020 |
AE10#,CE100,104,EE101 FRONT LH |
1 | ||
| 89542-12020 |
AE10#,CE100,104,EE101 FRONT RH |
1 | ||
| 89545-12020 |
AE100,101,CE100,EE101 REAR RH |
1 | ||
| 89546-12020 |
AE100,101,CE100,EE101 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE100,101,104,CE100 FRONT LH |
1 | ||
| 89542-12040 |
AE100,101,104,CE100 FRONT RH |
1 | ||
| 89546-12040 |
AE100,101,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE10#,CE10#,EE10# FRONT LH |
1 | ||
| 89546-12040 |
AE100,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100,101 REAR RH |
1 | ||
| 89546-12040 |
AE100,101,CE100,101 REAR LH |
1 | ||
| 89542-12040 |
AE10#,CE10#,EE10# FRONT RH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-12020 |
AE10#,CE100,104,EE101 FRONT LH |
1 | ||
| 89542-12020 |
AE10#,CE100,104,EE101 FRONT RH |
1 | ||
| 89545-12020 |
AE100,101,CE100,EE101 REAR RH |
1 | ||
| 89546-12020 |
AE100,101,CE100,EE101 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE100,101,104,CE100 FRONT LH |
1 | ||
| 89542-12040 |
AE100,101,104,CE100 FRONT RH |
1 | ||
| 89546-12040 |
AE100,101,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE10#,CE10#,EE10# FRONT LH |
1 | ||
| 89546-12040 |
AE100,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100,101 REAR RH |
1 | ||
| 89546-12040 |
AE100,101,CE100,101 REAR LH |
1 | ||
| 89542-12040 |
AE10#,CE10#,EE10# FRONT RH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-12020 |
AE10#,CE100,104,EE101 FRONT LH |
1 | ||
| 89542-12020 |
AE10#,CE100,104,EE101 FRONT RH |
1 | ||
| 89545-12020 |
AE100,101,CE100,EE101 REAR RH |
1 | ||
| 89546-12020 |
AE100,101,CE100,EE101 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE100,101,104,CE100 FRONT LH |
1 | ||
| 89542-12040 |
AE100,101,104,CE100 FRONT RH |
1 | ||
| 89546-12040 |
AE100,101,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE10#,CE10#,EE10# FRONT LH |
1 | ||
| 89546-12040 |
AE100,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100,101 REAR RH |
1 | ||
| 89546-12040 |
AE100,101,CE100,101 REAR LH |
1 | ||
| 89542-12040 |
AE10#,CE10#,EE10# FRONT RH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-12020 |
AE10#,CE100,104,EE101 FRONT LH |
1 | ||
| 89542-12020 |
AE10#,CE100,104,EE101 FRONT RH |
1 | ||
| 89545-12020 |
AE100,101,CE100,EE101 REAR RH |
1 | ||
| 89546-12020 |
AE100,101,CE100,EE101 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE100,101,104,CE100 FRONT LH |
1 | ||
| 89542-12040 |
AE100,101,104,CE100 FRONT RH |
1 | ||
| 89546-12040 |
AE100,101,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE10#,CE10#,EE10# FRONT LH |
1 | ||
| 89546-12040 |
AE100,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100,101 REAR RH |
1 | ||
| 89546-12040 |
AE100,101,CE100,101 REAR LH |
1 | ||
| 89542-12040 |
AE10#,CE10#,EE10# FRONT RH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-12240 |
AE100,CE100 |
1 | ||
| 89541-12040 |
AE100,101,CE100,EE101 NIPPONDENSO |
1 | ||
| 89541-12030 |
AE100,101,CE100,EE101 TOYOTA |
1 | ||
| 89540-12450 |
AE100,101,CE100 |
1 | ||
| 89540-12451 |
AE100,101,CE100,101 |
1 | ||
| 89540-12140 |
AE100,101,CE100,EE101 |
1 | ||
| 89540-12340 |
AE100,101,CE100 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-12030 |
AE10#,CE100,104,EE101 |
1 | ||
| 89549-12030 |
AE100,101,CE100,EE101 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06375 | ||||
| 90119-06512 | ||||
| 90189-06143 | ||||
| 91612-B0820 | ||||
| 91651-A0612 | ||||
| 93269-54006 | ||||
(9505-9804) ; (9804- )AE100,101,104,CE101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-12170 |
AE10#,CE100,104,EE101 |
1 | ||
| 85999-12360 |
AE100,101,104,CE100,101 |
1 | ||
| 85999-12320 |
AE10#,CE100,104,EE101 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-35070 |
AE100,101,104,CE100,101 |
1 | ||
| 88263-32060 |
AE10#,CE100 |
1 | ||
| 88263-12090 |
AE10#,CE100,104,EE101 |
1 | ||
| 88263-12070 |
AE10#,CE100,104,EE101 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-12020 |
AE10#,CE100,104,EE101 FRONT LH |
1 | ||
| 89542-12020 |
AE10#,CE100,104,EE101 FRONT RH |
1 | ||
| 89545-12020 |
AE100,101,CE100,EE101 REAR RH |
1 | ||
| 89546-12020 |
AE100,101,CE100,EE101 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE100,101,104,CE100 FRONT LH |
1 | ||
| 89542-12040 |
AE100,101,104,CE100 FRONT RH |
1 | ||
| 89546-12040 |
AE100,101,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE10#,CE10#,EE10# FRONT LH |
1 | ||
| 89546-12040 |
AE100,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100,101 REAR RH |
1 | ||
| 89546-12040 |
AE100,101,CE100,101 REAR LH |
1 | ||
| 89542-12040 |
AE10#,CE10#,EE10# FRONT RH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-12020 |
AE10#,CE100,104,EE101 FRONT LH |
1 | ||
| 89542-12020 |
AE10#,CE100,104,EE101 FRONT RH |
1 | ||
| 89545-12020 |
AE100,101,CE100,EE101 REAR RH |
1 | ||
| 89546-12020 |
AE100,101,CE100,EE101 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE100,101,104,CE100 FRONT LH |
1 | ||
| 89542-12040 |
AE100,101,104,CE100 FRONT RH |
1 | ||
| 89546-12040 |
AE100,101,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE10#,CE10#,EE10# FRONT LH |
1 | ||
| 89546-12040 |
AE100,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100,101 REAR RH |
1 | ||
| 89546-12040 |
AE100,101,CE100,101 REAR LH |
1 | ||
| 89542-12040 |
AE10#,CE10#,EE10# FRONT RH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89543-12020 |
AE10#,CE100,104,EE101 FRONT LH |
1 | ||
| 89542-12020 |
AE10#,CE100,104,EE101 FRONT RH |
1 | ||
| 89545-12020 |
AE100,101,CE100,EE101 REAR RH |
1 | ||
| 89546-12020 |
AE100,101,CE100,EE101 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE100,101,104,CE100 FRONT LH |
1 | ||
| 89542-12040 |
AE100,101,104,CE100 FRONT RH |
1 | ||
| 89546-12040 |
AE100,101,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,CE100 REAR RH |
1 | ||
| 89543-12040 |
AE10#,CE10#,EE10# FRONT LH |
1 | ||
| 89546-12040 |
AE100,CE100 REAR LH |
1 | ||
| 89545-12040 |
AE100,101,CE100,101 REAR RH |
1 | ||
| 89546-12040 |
AE100,101,CE100,101 REAR LH |
1 | ||
| 89542-12040 |
AE10#,CE10#,EE10# FRONT RH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-12240 |
AE100,CE100 |
1 | ||
| 89541-12040 |
AE100,101,CE100,EE101 NIPPONDENSO |
1 | ||
| 89541-12030 |
AE100,101,CE100,EE101 TOYOTA |
1 | ||
| 89540-12450 |
AE100,101,CE100 |
1 | ||
| 89540-12451 |
AE100,101,CE100,101 |
1 | ||
| 89540-12140 |
AE100,101,CE100,EE101 |
1 | ||
| 89540-12340 |
AE100,101,CE100 |
1 | ||
| Common parts | ||||
| 82817-1A570 | ||||
| 90105-08120 | ||||
| 90119-06375 | ||||
| 90119-06512 | ||||
| 90179-06070 | ||||
| 91612-B0820 | ||||
| 91616-B0820 | ||||
| 91651-B0614 | ||||
